一、概述
1.目标：要控制任意类型交通工具的生产模式
2.目标有两层意思(1)任意类型 (2)生产模式，所以对应的，要这两个层面上抽象(Movable,VehicleFactory)，利用接口，实现多态

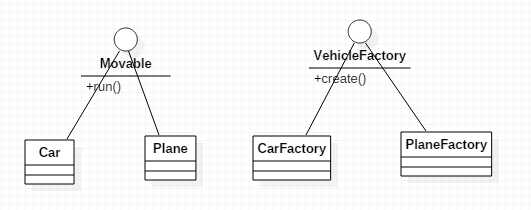

二、类结构
1.Interface Movable.java
2.Car.java
3.Plane.java
4.Interface VehicleFactory.java
5.CarFactory.java
6.PlaneFactory.java
三、代码
1.Movable.java
public interface Movable {
void run();
}
2.Car.java
public class Car implements Movable {
public Car() {
}
public void run() {
System.out.println("Car running...............");
}
}
3.Plane.java
public class Plane implements Movable {
@Override
public void run() {
System.out.println("飞机飞翔中。。。。");
}
}
4.VehicleFactory.java
public interface VehicleFactory {
Movable create();
}
5.CarFactory.java
public class CarFactory implements VehicleFactory {
private static Car car = new Car();
@Override
public Movable create() {
return car;
}
}
6.PlaneFactory.java
public class PlaneFactory implements VehicleFactory {
private static Plane plane = new Plane();
@Override
public Movable create() {
return plane;
}
}
7.Test.java
public class Test {
@org.junit.Test
public void test() {
VehicleFactory factory = new CarFactory();
Movable m1 = factory.create();
m1.run();
Movable m2 = factory.create();
System.out.println(m1 == m2);
System.out.println(m1.equals(m2));
System.out.println("******************************");
factory = new PlaneFactory();
m1 = factory.create();
m1.run();
m2 = factory.create();
System.out.println(m1 == m2);
System.out.println(m1.equals(m2));
}
}

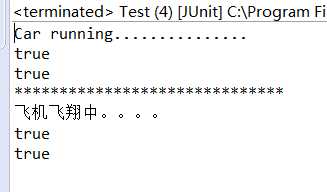

8.测试结果
原文：http://www.cnblogs.com/shamgod/p/4586349.html
