strategyPattern

时间:2015-04-27 15:05:07      阅读:162      评论:0      收藏:0      [点我收藏+]

例子:假设小明有时会超速,他可能被一个很nice 的police抓到,但是会让小明走而且不开bill,只是简单的警告下。

也有可能被一个hard的police抓到,会给他bill。但是小明不知道他会被 什么样的警察抓到,直到他被抓到前。这种就是

run time .这个是strategy设计模式的核心。

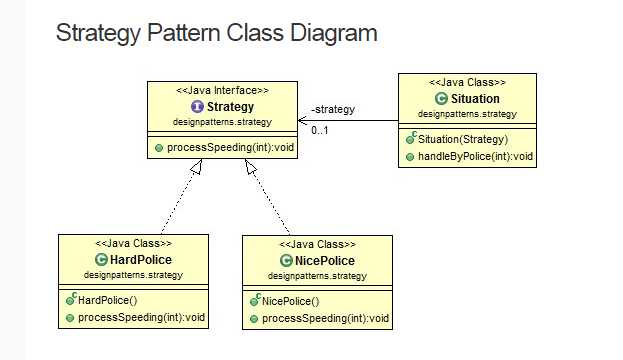

技术分享

设计 一个strategy interface,里面有一个方法。

public interface Strategy {
	public void processSpeeding (int speed);
}

 现在我们有两种警察

public class NicePolice implements Strategy{

	public void processSpeeding(int speed) {
		System.out.println("just go") ;
	}

}

 另外一个

public class HardPolice implements Strategy{

	public void processSpeeding(int speed) {
		System.out.println("you bill");
	}

}

  设计 一个解决方案,决定 那个警察将会处理事件

public class Solution {
	private Strategy strategy ;

	public Solution(Strategy strategy){
		this.strategy = strategy ;
	}
	public void handleByPolice(int speed){
		this.strategy.processSpeeding(speed) ;
	}
}

  最后是测试

public class StrategyPattern {
	public static void main(String [] args ){
		HardPolice hPolice = new HardPolice() ;
		NicePolice nicePolice= new NicePolice() ;

		//hard is meet
		Solution s1 = new Solution(hPolice) ;
		s1.handleByPolice(10) ;

		//nice is meet
		Solution s2 = new Solution(nicePolice) ;
		s2.handleByPolice(10) ;
	}
}

 在jdk中,有用到strategy的有

1). Java.util.Collections#sort(List list, Comparator < ? super T > c)
2). java.util.Arrays#sort(T[], Comparator < ? super T > c)

The sort method use different Comparator in different situations。

要想知道 comparator /comparable的不同,可以查看

http://www.programcreek.com/2011/12/examples-to-demonstrate-comparable-vs-comparator-in-java/



strategy pattern和state pattern比较像,主要的不同在于:

State pattern involves changing the behavior of an object when the state of the object changes

while Strategy pattern is mainly about using different algorithm at different situation.



strategyPattern

原文:http://www.cnblogs.com/chuiyuan/p/4460064.html
