WPF 气泡尖角在左边、下面、右边、上面

时间:2014-11-12 17:44:15      阅读:353      评论:0      收藏:0      [点我收藏+]
原文:WPF 气泡尖角在左边、下面、右边、上面

由于项目需要,在弄一个气泡提示框,根据网上资料,使用Path可以将气泡画出来,下面是我画出来的。

1、气泡尖角在左边的:



bubuko.com,布布扣
 <Path Stroke="Black" StrokeThickness="0.1" Fill="Yellow" HorizontalAlignment="Right">
            <Path.Data>
                <PathGeometry Figures="
                                      M 10,10
                                      L 10,10 200,10
                                      L 200,10 200,100
                                      L 200,100 10,100
                                      L 10,40 -10,30
                                      L -10,30 10,30
                                      Z"/>
            </Path.Data>
        </Path>
View Code



2、气泡尖角在下面的:



bubuko.com,布布扣
<Path Stroke="Black" StrokeThickness="0.1" Fill="Yellow">
            <Path.Data>
                <PathGeometry Figures="
                                      M 10,10
                                      L 10,10 200,10
                                      L 200,10 200,100

                                      L 200,100 40,100

                                      L 40,100  30,110
                                      L 30,110 30,100
                                      L 30,100 10,100
                                      Z"/>
            </Path.Data>
        </Path>
View Code



3、气泡尖角在右边



bubuko.com,布布扣
 <Path Stroke="Black" StrokeThickness="0.1" Fill="Yellow" HorizontalAlignment="Left" VerticalAlignment="Bottom" Margin="10,0,0,59.339">
            <Path.Data>
                <PathGeometry Figures="
                                      M 10,10
                                      L 10,10 200,10
                                      L 200,10 200,80
                                      L 200,80 210,80
                                      L 210,80 200,90
                                      L 200,100 10,100
                                      Z"/>
            </Path.Data>
        </Path>
View Code



4、气泡尖角在上面



bubuko.com,布布扣
<Path Stroke="Black" StrokeThickness="0.1" Fill="Yellow" HorizontalAlignment="Right" VerticalAlignment="Bottom" Margin="10,0,0,59.339">
            <Path.Data>
                <PathGeometry Figures="
                                      M 10,10
                                      L 10,10 180,10
                                      L 180,10 190,0
                                      L 190,0 190,10
                                      L 190,10,200,10
                                      L 200,100 10,100

                                      Z"/>
            </Path.Data>
        </Path>
View Code

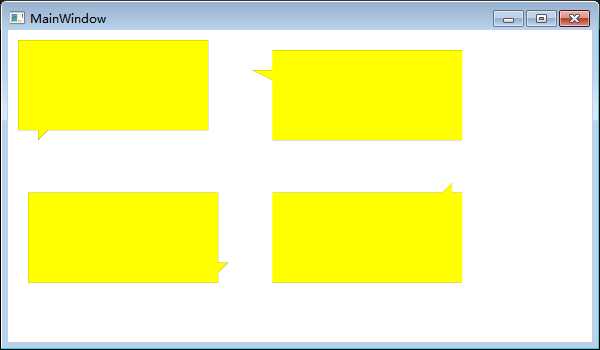

最后的效果显示:

bubuko.com,布布扣





WPF 气泡尖角在左边、下面、右边、上面

原文:http://www.cnblogs.com/lonelyxmas/p/4092860.html
