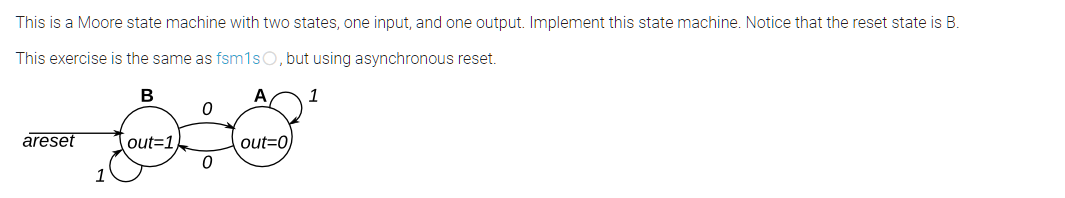

1 要求：

2 verilog代码

module ab(
    input clk,
    input areset,    // Asynchronous reset to state B
    input in,
    output out);//

    parameter A=0, B=1;
    reg state, next_state;

    always @(*) begin    // This is a combinational always block
        // State transition logic
        case(state)
            B:begin
                if(in == 0)begin
                    next_state =A;
                end
                else begin next_state = B;end
            end
            A:begin
                if(in == 0)begin
                    next_state = B;
                end
                else begin
                    next_state =A;
                end
            end
            default:begin
                next_state = B;
            end

        endcase
    end

    always @(posedge clk, posedge areset) begin    // This is a sequential always block
        // State flip-flops with asynchronous reset
        if(areset)begin
            state <=B;
        end
        else begin
            state <= next_state;
        end
    end

    // Output logic
    // assign out = (state == ...);
    assign out = (state == B)?1‘b1:1‘b0;

endmodule

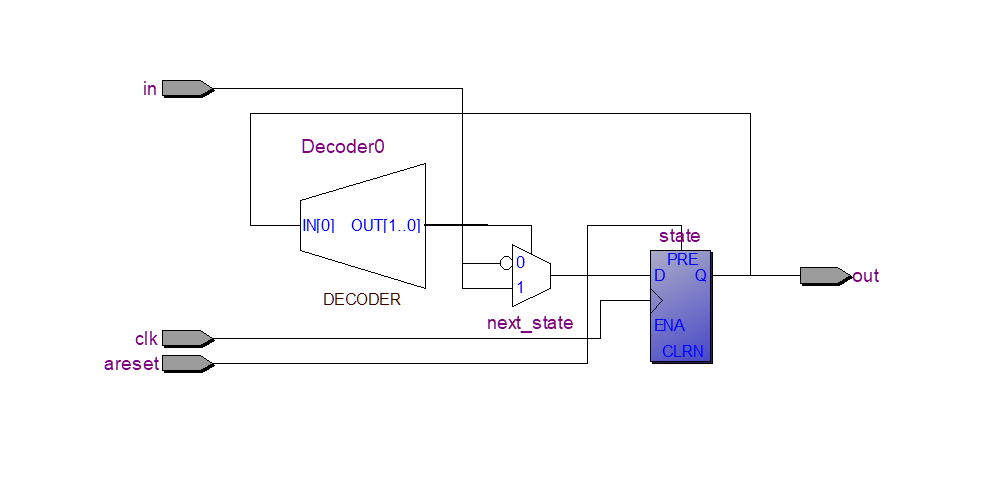

3 原理图

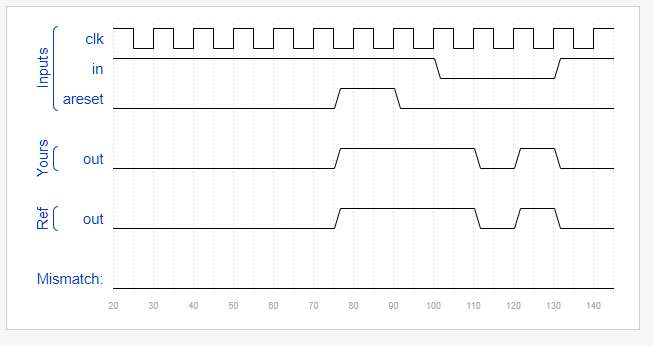

4 仿真

题源：题源：FSM1

异步状态机
