Conjugate Gradient Descent (1) - Python实现

• 算法特征:
  ①. 将线性方程组等效为最优化问题; ②. 以共轭方向作为搜索方向.
• 算法推导:
  Part Ⅰ 算法细节
  现以如下线性方程组为例进行算法推导,
  \begin{equation}
  Ax = b
  \label{eq_1}
  \end{equation}
  如?上式$\eqref{eq_1}$解存在, 则等效如下最优化问题,
  \begin{equation}
  \min\quad \frac{1}{2}\|Ax - b\|_2^2 \quad \Rightarrow\quad \min\quad \frac{1}{2}x^\mathrm{T}A^\mathrm{T}Ax - b^\mathrm{T}Ax
  \label{eq_2}
  \end{equation}
  上式$\eqref{eq_2}$之最优解$x^\star$即为式$\eqref{eq_1}$的解. 为简化叙述, 令$C = A^\mathrm{T}A,\ c=A^\mathrm{T}b$, 则式$\eqref{eq_2}$转换如下,
  \begin{equation}
  \min\quad \frac{1}{2}x^\mathrm{T}Cx - c^\mathrm{T}x
  \label{eq_3}
  \end{equation}
  其中, $C$为对称半正定矩阵. 上式$\eqref{eq_3}$为无约束凸二次规划问题, 拟设其目标函数符号为$J$, 则梯度表示如下,
  \begin{equation}
  g = \nabla J = Cx - c
  \label{eq_4}
  \end{equation}
  不失一般性, 在迭代求解过程中, 令第$k$步迭代形式如下,
  \begin{equation}
  x_{k+1} = x_k + \alpha_kd_k
  \label{eq_5}
  \end{equation}
  其中$\alpha_k$、$d_k$分别代表第$k$步迭代步长与迭代方向.
  根据线搜法要求,
  \begin{equation}
  \alpha_k = \mathop{\arg\min}_{\alpha\in \mathbb{R}}\ J(x_k+\alpha d_k)\quad\Rightarrow\quad
  \frac{\mathrm{d}J}{\mathrm{d}\alpha}\bigg|_{k+1} = 0
  \label{eq_6}
  \end{equation}
  解之得,
  \begin{equation}
  \alpha_k = \frac{-g_k^\mathrm{T}d_k}{d_k^\mathrm{T}Cd_k}
  \label{eq_7}
  \end{equation}
  根据共轭方向要求,
  \begin{gather}
  d_k = -g_k + \beta_kd_{k-1}\label{eq_8} \\
  d_{k}^\mathrm{T}Cd_{k-1} = 0\label{eq_9}
  \end{gather}
  解之得,
  \begin{equation}
  \beta_k = \frac{g_k^\mathrm{T}Cd_{k-1}}{d_{k-1}^\mathrm{T}Cd_{k-1}} =
  \frac{g_k^\mathrm{T}(g_k-g_{k-1})}{d_{k-1}^\mathrm{T}(g_k-g_{k-1})}
  \label{eq_10}
  \end{equation}
  结合式$\eqref{eq_5}$、$\eqref{eq_7}$、$\eqref{eq_8}$、$\eqref{eq_10}$即可迭代求解式$\eqref{eq_3}$, 其最优解$x^\star$即为式$\eqref{eq_1}$的解.
  Part Ⅱ 算法流程
  初始化收敛判据$\epsilon$、迭代起点$x_0$
  计算当前梯度值$g_0=Cx_0 - c$, 令: $d_0 = -g_0$, $k=0$, 重复以下步骤,
  　　step1: 如果$\|g_k\|<\epsilon$, 收敛, 迭代停止
  　　step2: 计算迭代步长$\displaystyle \alpha_k=\frac{-g_k^\mathrm{T}d_k}{d_k^\mathrm{T}Cd_k}$
  　　step3: 更新迭代点$\displaystyle x_{k+1}=x_k + \alpha_kd_k$
  　　step4: 更新梯度值$g_{k+1}=Cx_{k+1}-c$
  　　step5: 计算组合系数$\displaystyle \beta_{k+1}=\frac{g_{k+1}^\mathrm{T}(g_{k+1}-g_k)}{d_{k}^\mathrm{T}(g_{k+1}-g_k)}$
  　　step6: 更新共轭方向$\displaystyle d_{k+1}=-g_{k+1}+\beta_{k+1}d_k$
  　　step7: 令$k = k+1$, 转step1
• 代码实现:
  笔者以求解随机生成的线性方程组$Ax = b$为例进行算法实施, conjugate gradient descent实现如下,



    1 # conjugate gradient descent之实现
    2 # 求解线性方程组Ax = b
    3
    4 import numpy
    5 from matplotlib import pyplot as plt
    6
    7
    8 numpy.random.seed(0)
    9
   10
   11 # 随机生成待求解之线性方程组Ax = b
   12 def get_A_b(n=30):
   13     A = numpy.random.uniform(-10, 10, (n, n))
   14     b = numpy.random.uniform(-10, 10, (n, 1))
   15     return A, b
   16
   17
   18 # 共轭梯度法之实现
   19 class CGD(object):
   20
   21     def __init__(self, A, b, epsilon=1.e-6, maxIter=30000):
   22         self.__A = A                               # 系数矩阵
   23         self.__b = b                               # 偏置向量
   24         self.__epsilon = epsilon                   # 收敛判据
   25         self.__maxIter = maxIter                   # 最大迭代次数
   26
   27         self.__C, self.__c = self.__build_C_c()    # 构造优化问题相关参数
   28         self.__JPath = list()
   29
   30
   31     def get_solu(self):
   32         ‘‘‘
   33         获取数值解
   34         ‘‘‘
   35         self.__JPath.clear()
   36
   37         x = self.__init_x()
   38         JVal = self.__calc_JVal(self.__C, self.__c, x)
   39         self.__JPath.append(JVal)
   40         grad = self.__calc_grad(self.__C, self.__c, x)
   41         d = -grad
   42         for idx in range(self.__maxIter):
   43             # print("iterCnt: {:3d},   JVal: {}".format(idx, JVal))
   44             if self.__converged1(grad, self.__epsilon):
   45                 self.__print_MSG(x, JVal, idx)
   46                 return x, JVal, True
   47
   48             alpha = self.__calc_alpha(self.__C, grad, d)
   49             xNew = x + alpha * d
   50             JNew = self.__calc_JVal(self.__C, self.__c, xNew)
   51             self.__JPath.append(JNew)
   52             if self.__converged2(xNew - x, JNew - JVal, self.__epsilon ** 2):
   53                 self.__print_MSG(xNew, JNew, idx + 1)
   54                 return xNew, JNew, True
   55
   56             gNew = self.__calc_grad(self.__C, self.__c, xNew)
   57             beta = self.__calc_beta(gNew, grad, d)
   58             dNew = self.__calc_d(gNew, d, beta)
   59
   60             x, JVal, grad, d = xNew, JNew, gNew, dNew
   61         else:
   62             if self.__converged1(grad, self.__epsilon):
   63                 self.__print_MSG(x, JVal, self.__maxIter)
   64                 return x, JVal, True
   65
   66         print("CGD not converged after {} steps!".format(self.__maxIter))
   67         return x, JVal, False
   68
   69
   70     def get_path(self):
   71         return self.__JPath
   72
   73
   74     def __print_MSG(self, x, JVal, iterCnt):
   75         print("Iteration steps: {}".format(iterCnt))
   76         print("Solution:\n{}".format(x.flatten()))
   77         print("JVal: {}".format(JVal))
   78
   79
   80     def __converged1(self, grad, epsilon):
   81         if numpy.linalg.norm(grad, ord=numpy.inf) < epsilon:
   82             return True
   83         return False
   84
   85
   86     def __converged2(self, xDelta, JDelta, epsilon):
   87         val1 = numpy.linalg.norm(xDelta, ord=numpy.inf)
   88         val2 = numpy.abs(JDelta)
   89         if val1 < epsilon or val2 < epsilon:
   90             return True
   91         return False
   92
   93
   94     def __init_x(self):
   95         x0 = numpy.zeros((self.__C.shape[0], 1))
   96         return x0
   97
   98
   99     # def __calc_JVal(self, C, c, x):
  100         # term1 = numpy.matmul(x.T, numpy.matmul(C, x))[0, 0] / 2
  101         # term2 = numpy.matmul(c.T, x)[0, 0]
  102         # JVal = term1 - term2
  103         # return JVal
  104
  105
  106     def __calc_JVal(self, C, c, x):
  107         term1 = numpy.matmul(self.__A, x) - self.__b
  108         JVal = numpy.sum(term1 ** 2) / 2
  109         return JVal
  110
  111
  112     def __calc_grad(self, C, c, x):
  113         grad = numpy.matmul(C, x) - c
  114         return grad
  115
  116
  117     def __calc_d(self, grad, dOld, beta):
  118         d = -grad + beta * dOld
  119         return d
  120
  121
  122     def __calc_alpha(self, C, grad, d):
  123         term1 = numpy.matmul(grad.T, d)[0, 0]
  124         term2 = numpy.matmul(d.T, numpy.matmul(C, d))[0, 0]
  125         alpha = -term1 / term2
  126         return alpha
  127
  128
  129     def __calc_beta(self, grad, gOld, dOld):
  130         term0 = grad - gOld
  131         term1 = numpy.matmul(grad.T, term0)[0, 0]
  132         term2 = numpy.matmul(dOld.T, term0)[0, 0]
  133         beta = term1 / term2
  134         return beta
  135
  136
  137     def __build_C_c(self):
  138         C = numpy.matmul(A.T, A)
  139         c = numpy.matmul(A.T, b)
  140         return C, c
  141
  142
  143 class CGDPlot(object):
  144
  145     @staticmethod
  146     def plot_fig(cgdObj):
  147         x, JVal, tab = cgdObj.get_solu()
  148         JPath = cgdObj.get_path()
  149
  150         fig = plt.figure(figsize=(6, 4))
  151         ax1 = plt.subplot()
  152
  153         ax1.plot(numpy.arange(len(JPath)), JPath, "k.")
  154         ax1.plot(0, JPath[0], "go", label="starting point")
  155         ax1.plot(len(JPath)-1, JPath[-1], "r*", label="solution")
  156
  157         ax1.legend()
  158         ax1.set(xlabel="$iterCnt$", ylabel="$JVal$", title="JVal-Final = {}".format(JVal))
  159         fig.tight_layout()
  160         fig.savefig("plot_fig.png", dpi=100)
  161
  162
  163
  164 if __name__ == "__main__":
  165     A, b = get_A_b()
  166
  167     cgdObj = CGD(A, b)
  168     CGDPlot.plot_fig(cgdObj)

  View Code
• 结果展示:

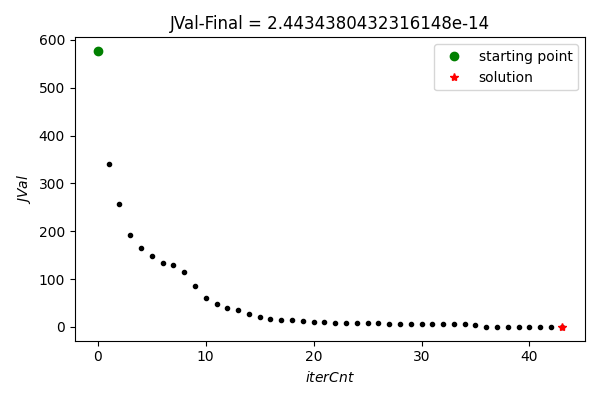

  注意, 上式中JVal之计算采用式$\eqref{eq_2}$左侧表达式, 该值收敛时趋于0则数值解可靠.
• 使用建议:
  ①. 适用于迭代求解大型线性方程组;
  ②. 对于凸二次型目标函数可利用子空间扩展定理进一步简化组合系数$\beta$之计算.
