GCS流程

void GCS::update_receive(void)
{
    for (uint8_t i=0; i<num_gcs(); i++)
	{
        chan(i)->update_receive();
    }
    // also update UART pass-thru, if enabled
    //如果使能,也更新UART透传
    update_passthru();
}

void GCS_MAVLINK::update_receive(uint32_t max_time_us)
{
　　if (mavlink_parse_char(chan, c, &msg, &status))
    {
　　　　packetReceived(status, msg);
　　 }
}

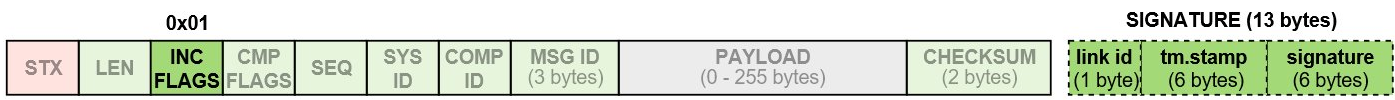

typedef struct __mavlink_message
{
	uint16_t checksum; /// sent at end of packet
	uint8_t magic;   ///< protocol magic marker
	uint8_t len;     ///< Length of payload
	uint8_t seq;     ///< Sequence of packet
	uint8_t sysid;   ///< ID of message sender system/aircraft
	uint8_t compid;  ///< ID of the message sender component
	uint8_t msgid;   ///< ID of message in payload
	uint64_t payload64[(MAVLINK_MAX_PAYLOAD_LEN+MAVLINK_NUM_CHECKSUM_BYTES+7)/8];
} mavlink_message_t;

typedef struct __mavlink_status
{
    uint8_t msg_received;               ///< Number of received messages 接受的消息数量
    uint8_t buffer_overrun;             ///< Number of buffer overruns缓冲区溢出次数
    uint8_t parse_error;                ///< Number of parse errors 解析错误次数
    mavlink_parse_state_t parse_state;  ///< Parsing state machine 解析状态机
    uint8_t packet_idx;                 ///< Index in current packet  当前包的index
    uint8_t current_rx_seq;             ///< Sequence number of last packet received 最后接受包的序列号
    uint8_t current_tx_seq;             ///< Sequence number of last packet sent  最后发送包的序列号
    uint16_t packet_rx_success_count;   ///< Received packets 接受的包
    uint16_t packet_rx_drop_count;      ///< Number of packet drops 丢弃的包
} mavlink_status_t;

typedef enum
{
    MAVLINK_PARSE_STATE_UNINIT=0,
    MAVLINK_PARSE_STATE_IDLE,
    MAVLINK_PARSE_STATE_GOT_STX,
    MAVLINK_PARSE_STATE_GOT_SEQ,
    MAVLINK_PARSE_STATE_GOT_LENGTH,
    MAVLINK_PARSE_STATE_GOT_SYSID,
    MAVLINK_PARSE_STATE_GOT_COMPID,
    MAVLINK_PARSE_STATE_GOT_MSGID,
    MAVLINK_PARSE_STATE_GOT_PAYLOAD,
    MAVLINK_PARSE_STATE_GOT_CRC1,
    MAVLINK_PARSE_STATE_GOT_BAD_CRC1
} mavlink_parse_state_t; ///< The state machine for the comm parser
