参考：https://blog.csdn.net/Pure_vv/article/details/102058609

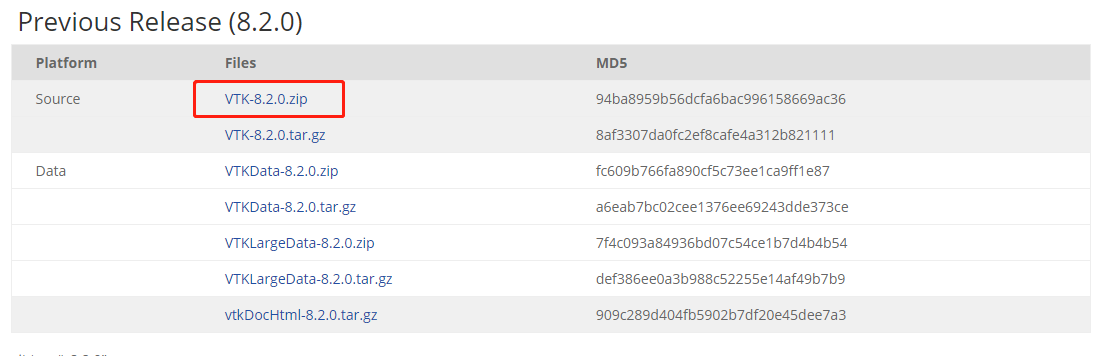

VTK-8.2.0
VTK Data
──VTK

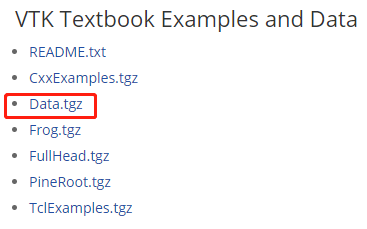

├─Data （将Data.tgz解压到Data中）
├─Files （存放编译结果）
├─Install
├─VTK-8.2.0 （存放源码，将VTK-8.2.0.zip解压到此处)

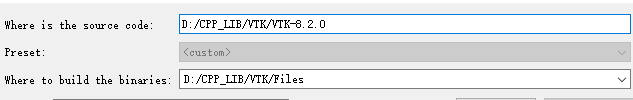

设置源码路径和编译路径如下

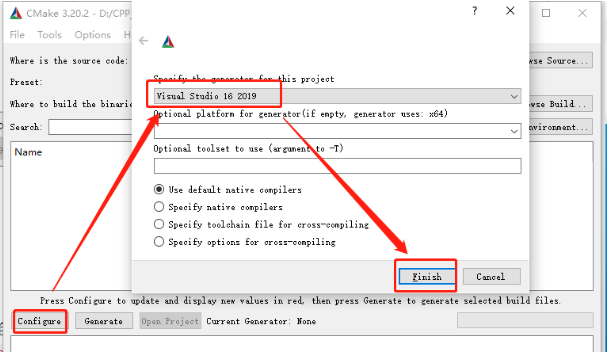

点击Configure，选择自己对应的VS版本，点击Finish

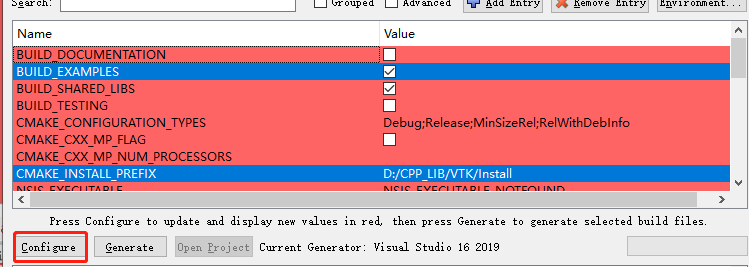

配置结束后，勾选BUILD_EXAMPLES，修改CMAKE_INSTALL_PREFIX路径为我们建立的文件目录中的Install文件夹，之后点击Configure
配置完成后点击Generate，完成后点击Open Project，会自动在VS中打开项目

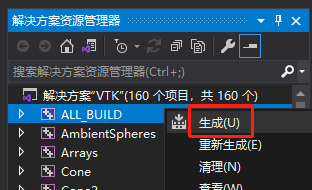

进入VS后，右键ALL_BUILD,选择生成；完成后，找到INSTALL，同样右键，选择生成

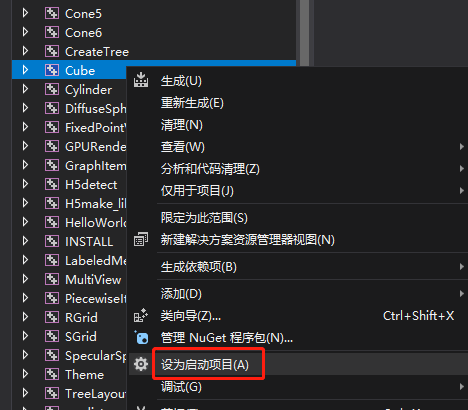

右键Cube，选择设为启动项目
上方设置为Debug与x64后，点击本地Windows调试

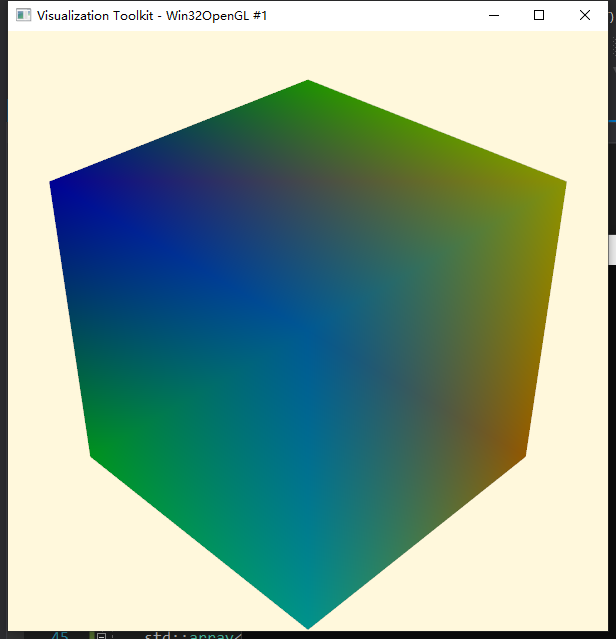

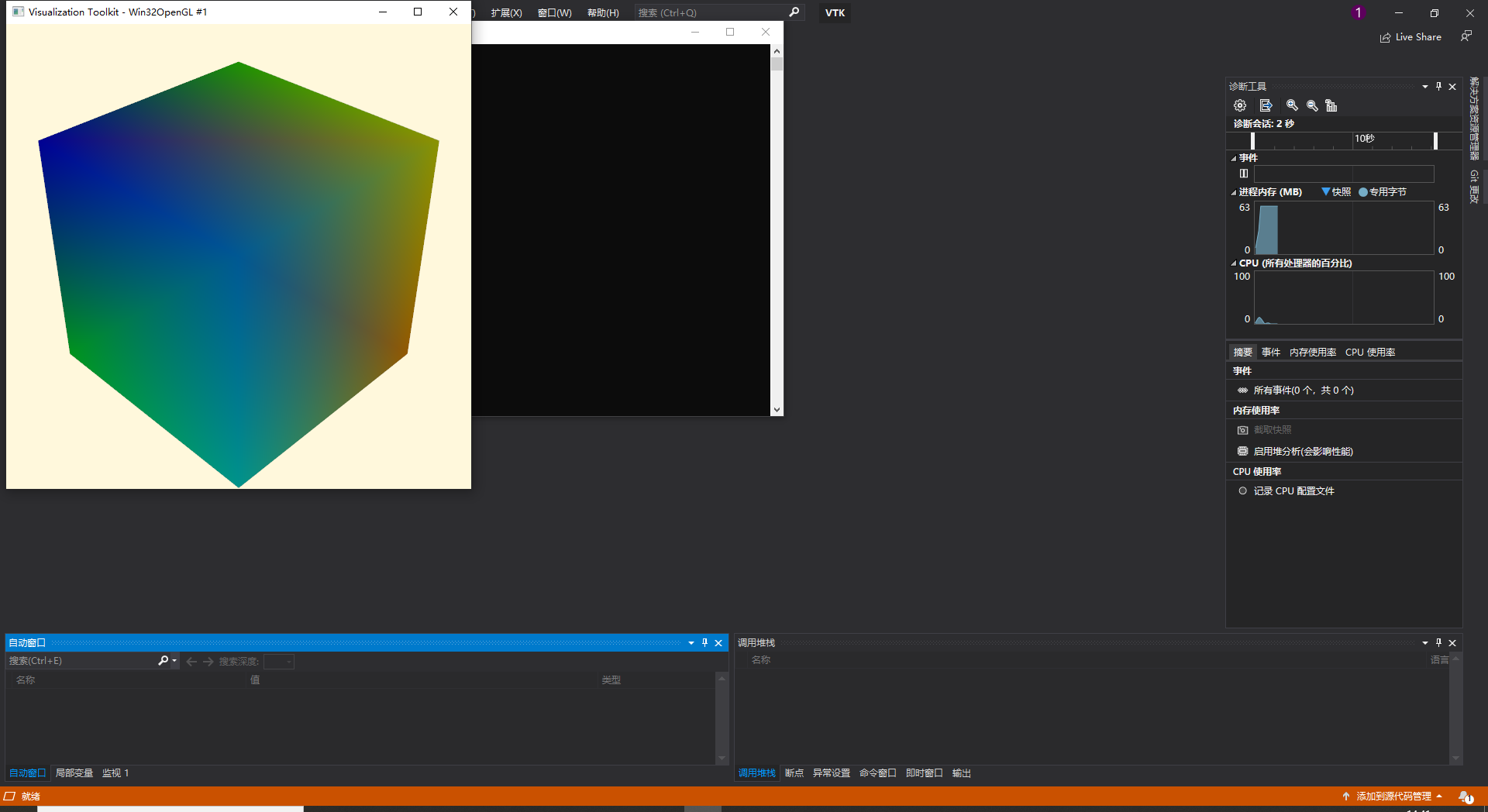

运行结束，成功显示demo！

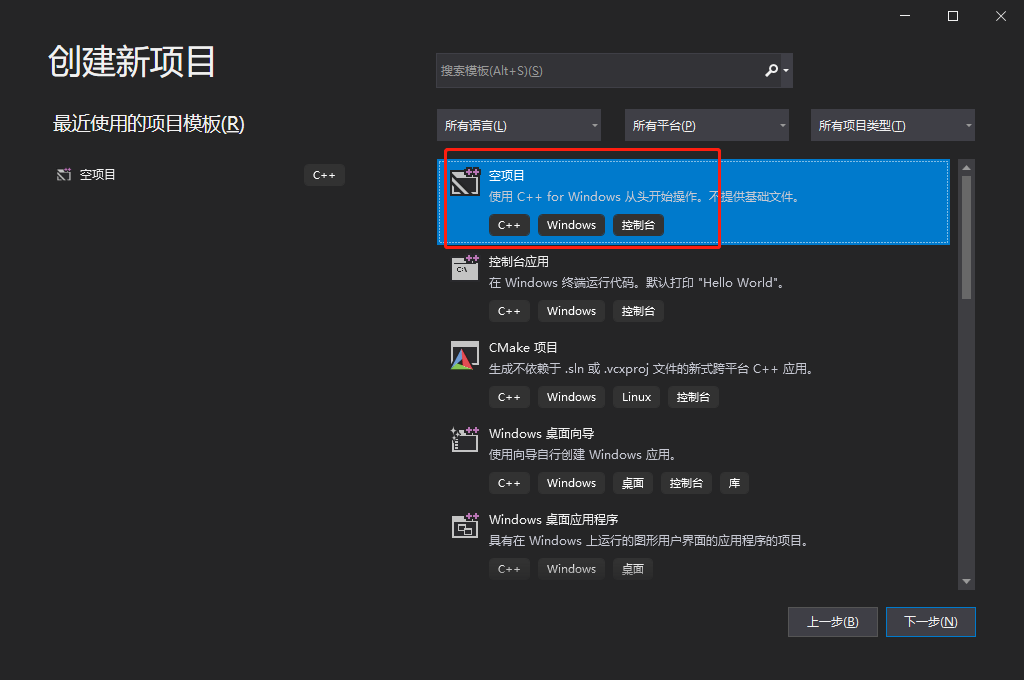

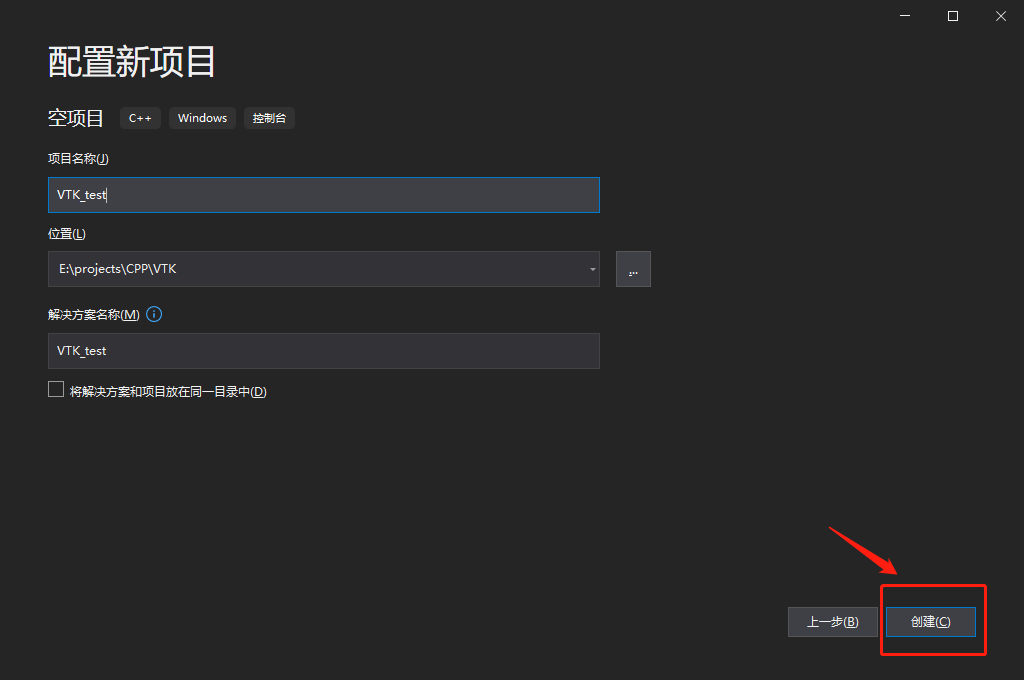

打开VS，创建一个空项目，命名为VTK_test

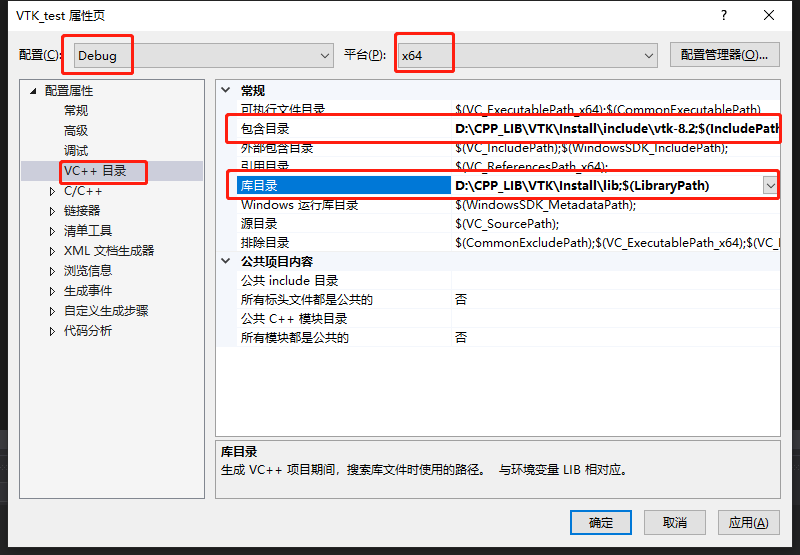

修改配置为Debug，平台为x64，之后在VC++ 目录下，编辑包含目录为Install文件夹下的include\vtk-8.2，库目录为Install文件夹下lib文件夹

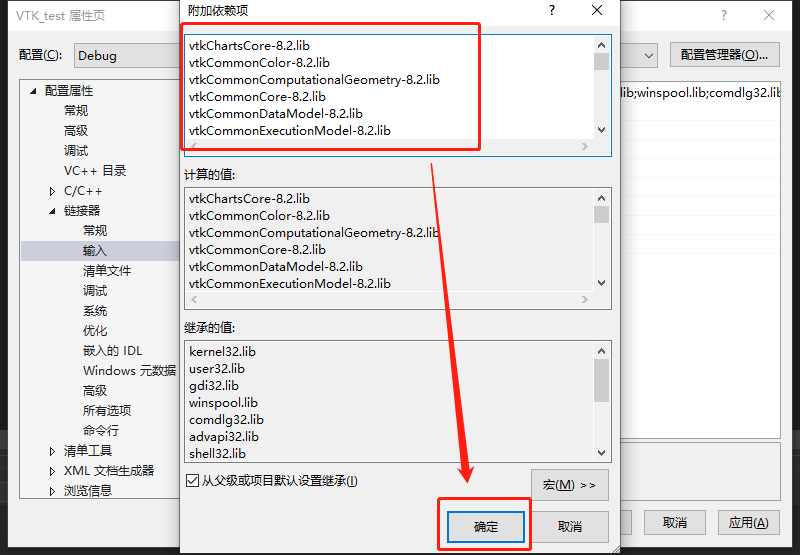

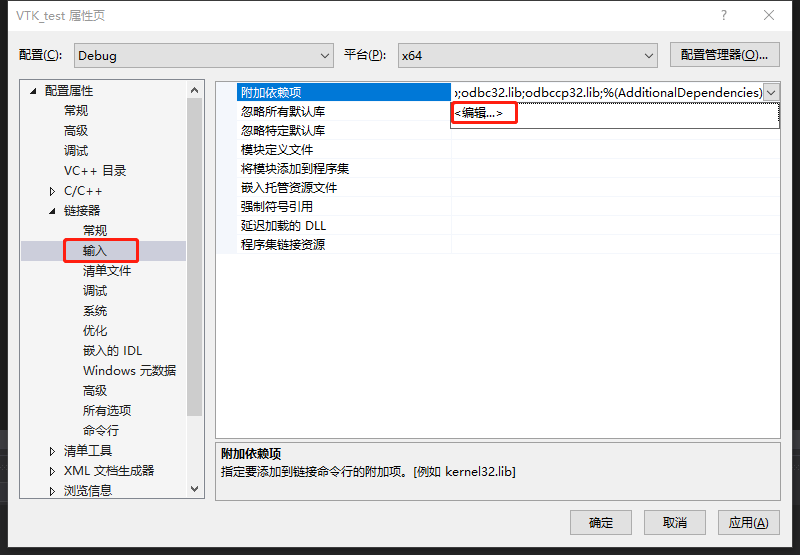

随后，点击链接器→输入→附加依赖项→编辑，在弹出的窗口中填入Install/lib文件夹下所有.lib文件的名字，点击确定
我的文件名如下：
vtkChartsCore-8.2.lib
vtkCommonColor-8.2.lib
vtkCommonComputationalGeometry-8.2.lib
vtkCommonCore-8.2.lib
vtkCommonDataModel-8.2.lib
vtkCommonExecutionModel-8.2.lib
vtkCommonMath-8.2.lib
vtkCommonMisc-8.2.lib
vtkCommonSystem-8.2.lib
vtkCommonTransforms-8.2.lib
vtkDICOMParser-8.2.lib
vtkDomainsChemistry-8.2.lib
vtkDomainsChemistryOpenGL2-8.2.lib
vtkdoubleconversion-8.2.lib
vtkexodusII-8.2.lib
vtkexpat-8.2.lib
vtkFiltersAMR-8.2.lib
vtkFiltersCore-8.2.lib
vtkFiltersExtraction-8.2.lib
vtkFiltersFlowPaths-8.2.lib
vtkFiltersGeneral-8.2.lib
vtkFiltersGeneric-8.2.lib
vtkFiltersGeometry-8.2.lib
vtkFiltersHybrid-8.2.lib
vtkFiltersHyperTree-8.2.lib
vtkFiltersImaging-8.2.lib
vtkFiltersModeling-8.2.lib
vtkFiltersParallel-8.2.lib
vtkFiltersParallelImaging-8.2.lib
vtkFiltersPoints-8.2.lib
vtkFiltersProgrammable-8.2.lib
vtkFiltersSelection-8.2.lib
vtkFiltersSMP-8.2.lib
vtkFiltersSources-8.2.lib
vtkFiltersStatistics-8.2.lib
vtkFiltersTexture-8.2.lib
vtkFiltersTopology-8.2.lib
vtkFiltersVerdict-8.2.lib
vtkfreetype-8.2.lib
vtkGeovisCore-8.2.lib
vtkgl2ps-8.2.lib
vtkglew-8.2.lib
vtkhdf5-8.2.lib
vtkhdf5_hl-8.2.lib
vtkImagingColor-8.2.lib
vtkImagingCore-8.2.lib
vtkImagingFourier-8.2.lib
vtkImagingGeneral-8.2.lib
vtkImagingHybrid-8.2.lib
vtkImagingMath-8.2.lib
vtkImagingMorphological-8.2.lib
vtkImagingSources-8.2.lib
vtkImagingStatistics-8.2.lib
vtkImagingStencil-8.2.lib
vtkInfovisCore-8.2.lib
vtkInfovisLayout-8.2.lib
vtkInteractionImage-8.2.lib
vtkInteractionStyle-8.2.lib
vtkInteractionWidgets-8.2.lib
vtkIOAMR-8.2.lib
vtkIOAsynchronous-8.2.lib
vtkIOCityGML-8.2.lib
vtkIOCore-8.2.lib
vtkIOEnSight-8.2.lib
vtkIOExodus-8.2.lib
vtkIOExport-8.2.lib
vtkIOExportOpenGL2-8.2.lib
vtkIOExportPDF-8.2.lib
vtkIOGeometry-8.2.lib
vtkIOImage-8.2.lib
vtkIOImport-8.2.lib
vtkIOInfovis-8.2.lib
vtkIOLegacy-8.2.lib
vtkIOLSDyna-8.2.lib
vtkIOMINC-8.2.lib
vtkIOMovie-8.2.lib
vtkIONetCDF-8.2.lib
vtkIOParallel-8.2.lib
vtkIOParallelXML-8.2.lib
vtkIOPLY-8.2.lib
vtkIOSegY-8.2.lib
vtkIOSQL-8.2.lib
vtkIOTecplotTable-8.2.lib
vtkIOVeraOut-8.2.lib
vtkIOVideo-8.2.lib
vtkIOXML-8.2.lib
vtkIOXMLParser-8.2.lib
vtkjpeg-8.2.lib
vtkjsoncpp-8.2.lib
vtklibharu-8.2.lib
vtklibxml2-8.2.lib
vtkLocalExample-8.2.lib
vtklz4-8.2.lib
vtklzma-8.2.lib
vtkmetaio-8.2.lib
vtkNetCDF-8.2.lib
vtkogg-8.2.lib
vtkParallelCore-8.2.lib
vtkpng-8.2.lib
vtkproj-8.2.lib
vtkpugixml-8.2.lib
vtkRenderingAnnotation-8.2.lib
vtkRenderingContext2D-8.2.lib
vtkRenderingContextOpenGL2-8.2.lib
vtkRenderingCore-8.2.lib
vtkRenderingFreeType-8.2.lib
vtkRenderingGL2PSOpenGL2-8.2.lib
vtkRenderingImage-8.2.lib
vtkRenderingLabel-8.2.lib
vtkRenderingLOD-8.2.lib
vtkRenderingOpenGL2-8.2.lib
vtkRenderingVolume-8.2.lib
vtkRenderingVolumeOpenGL2-8.2.lib
vtksqlite-8.2.lib
vtksys-8.2.lib
vtktheora-8.2.lib
vtktiff-8.2.lib
vtkverdict-8.2.lib
vtkViewsContext2D-8.2.lib
vtkViewsCore-8.2.lib
vtkViewsInfovis-8.2.lib
vtkzlib-8.2.lib
配置完成后点击应用

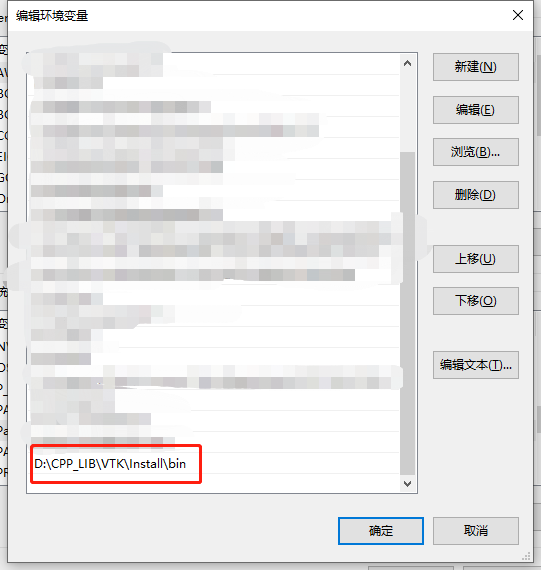

在系统变量中，添加Install/bin到Path环境变量中

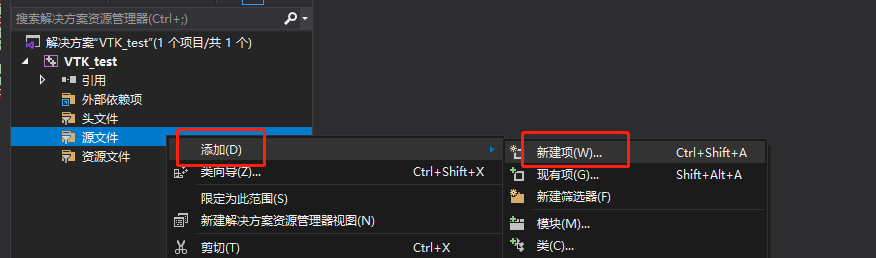

右键源文件， 选择添加， 新建项

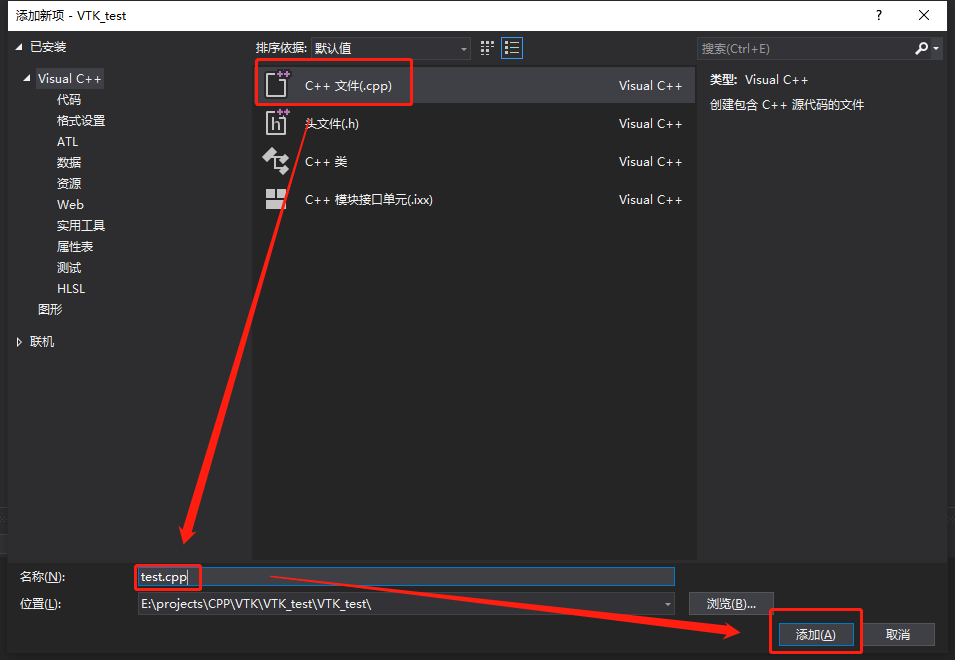

选择C++文件，命名为test.cpp，点击添加

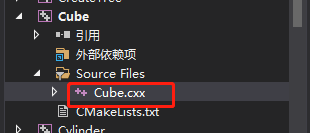

复制cube中Cube.cxx的代码至test.cpp中，用于测试。
代码内容贴在此处：
/*=========================================================================
Program: Visualization Toolkit
Module: Cube.cxx
Copyright (c) Ken Martin, Will Schroeder, Bill Lorensen
All rights reserved.
See Copyright.txt or http://www.kitware.com/Copyright.htm for details.
This software is distributed WITHOUT ANY WARRANTY; without even
the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
PURPOSE. See the above copyright notice for more information.
=========================================================================*/
// This example shows how to manually create vtkPolyData.
// For a python version, please see:
// [Cube](https://lorensen.github.io/VTKExamples/site/Python/DataManipulation/Cube/)
#include <vtkactor.h>
#include <vtkcamera.h>
#include <vtkcellarray.h>
#include <vtkfloatarray.h>
#include <vtknamedcolors.h>
#include <vtknew.h>
#include <vtkpointdata.h>
#include <vtkpoints.h>
#include <vtkpolydata.h>
#include <vtkpolydatamapper.h>
#include <vtkrenderwindow.h>
#include <vtkrenderwindowinteractor.h>
#include <vtkrenderer.h>
#include <array>
int main()
{
vtkNew<vtknamedcolors> colors;
std::array<std::array<double, 3="">, 8> pts = {{{{0, 0, 0}},
{{1, 0, 0}},
{{1, 1, 0}},
{{0, 1, 0}},
{{0, 0, 1}},
{{1, 0, 1}},
{{1, 1, 1}},
{{0, 1, 1}}}};
// The ordering of the corner points on each face.
std::array<std::array<vtkidtype, 4="">, 6> ordering = {{{{0, 1, 2, 3}},
{{4, 5, 6, 7}},
{{0, 1, 5, 4}},
{{1, 2, 6, 5}},
{{2, 3, 7, 6}},
{{3, 0, 4, 7}}}};
// We‘ll create the building blocks of polydata including data attributes.
vtkNew<vtkpolydata> cube;
vtkNew<vtkpoints> points;
vtkNew<vtkcellarray> polys;
vtkNew<vtkfloatarray> scalars;
// Load the point, cell, and data attributes.
for (auto i = 0ul; i < pts.size(); ++i)
{
points->InsertPoint(i, pts[i].data());
scalars->InsertTuple1(i, i);
}
for (auto&& i : ordering)
{
polys->InsertNextCell(vtkIdType(i.size()), i.data());
}
// We now assign the pieces to the vtkPolyData.
cube->SetPoints(points);
cube->SetPolys(polys);
cube->GetPointData()->SetScalars(scalars);
// Now we‘ll look at it.
vtkNew<vtkpolydatamapper> cubeMapper;
cubeMapper->SetInputData(cube);
cubeMapper->SetScalarRange(cube->GetScalarRange());
vtkNew<vtkactor> cubeActor;
cubeActor->SetMapper(cubeMapper);
// The usual rendering stuff.
vtkNew<vtkcamera> camera;
camera->SetPosition(1, 1, 1);
camera->SetFocalPoint(0, 0, 0);
vtkNew<vtkrenderer> renderer;
vtkNew<vtkrenderwindow> renWin;
renWin->AddRenderer(renderer);
vtkNew<vtkrenderwindowinteractor> iren;
iren->SetRenderWindow(renWin);
renderer->AddActor(cubeActor);
renderer->SetActiveCamera(camera);
renderer->ResetCamera();
renderer->SetBackground(colors->GetColor3d("Cornsilk").GetData());
renWin->SetSize(600, 600);
// interact with data
renWin->Render();
iren->Start();
return EXIT_SUCCESS;
}
上方设置为Debug与x64后，点击本地Windows调试器，运行程序
报错解决！

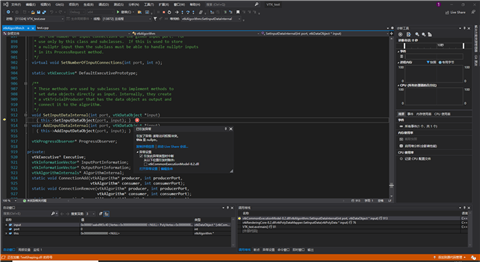

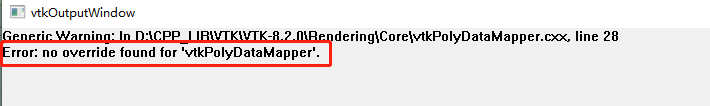

上述步骤完成后，点击运行却提示引发异常，同时弹出窗口显示Error: no override found for ‘vtkPolyDataMapper‘
解决方法如下：
查看Install/lib文件夹中与OpenGL有关的.lib文件名，我的如下所示

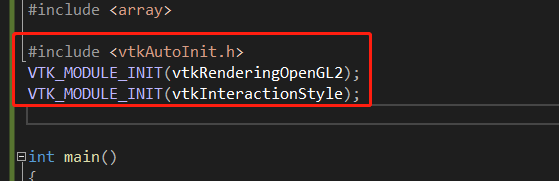

在代码中添加如下三行代码
#include <vtkautoinit.h>
VTK_MODULE_INIT(vtkRenderingOpenGL2);
VTK_MODULE_INIT(vtkInteractionStyle);
注意：如果.lib文件结尾为OpenGL，没有2，则第二行代码也需对应写作VTK_MODULE_INIT(vtkRenderingOpenGL);
最终程序成功运行！
补充
查询时，发现其他人在完成上面步骤后，运行会出现下方的错误

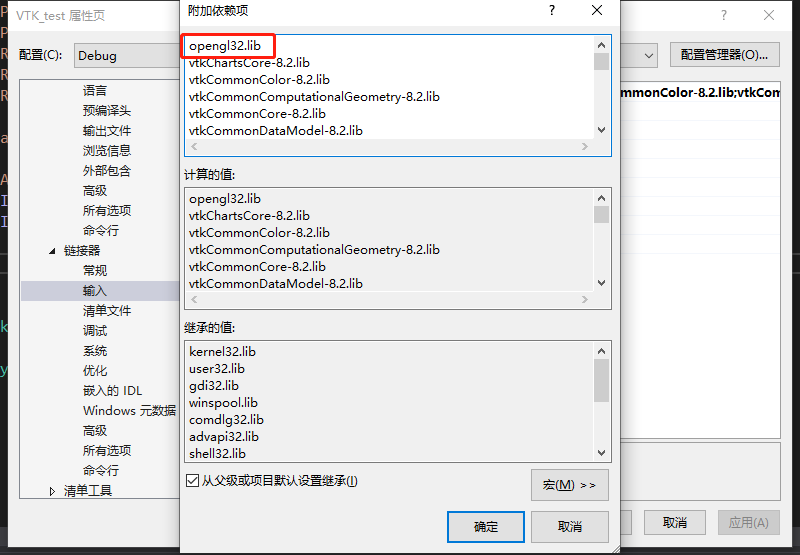

他们的解决方法为：在链接器→输入→附加依赖项中添加opengl32.lib库文件
原文：https://www.cnblogs.com/lmyybh/p/14991581.html
