概念

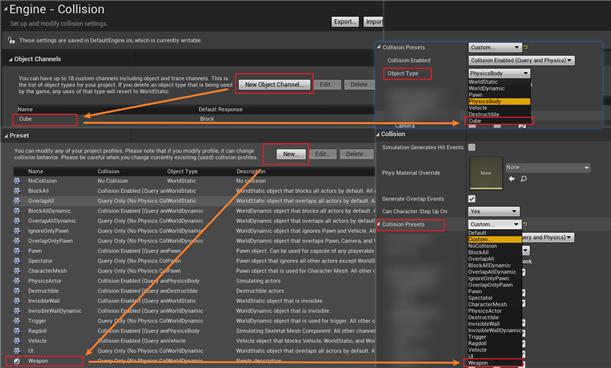

碰撞对象通道与预设

• 默认提供碰撞对象类型，如 WorldStatic、WorldDynamic等。允许用户自定义

• 默认提供碰撞预设，如 NoCollision、BloackAll、OverlapAll。允许用户自定义

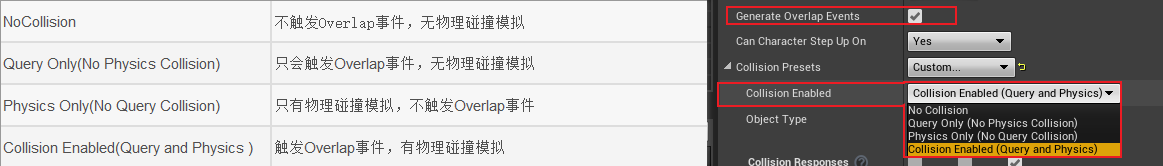

碰撞响应设置

• 可以用来设置是否模拟物理碰撞以及触发 Overlap 事件

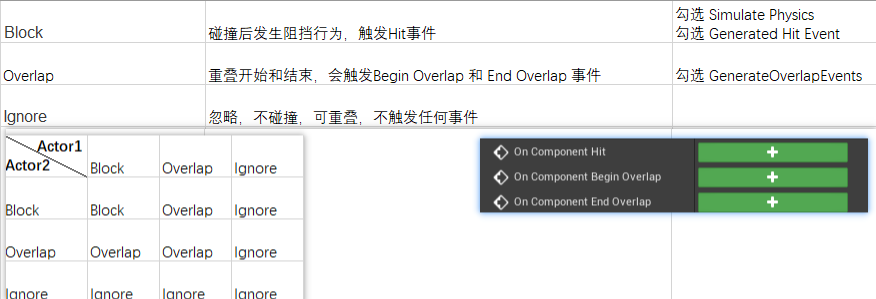

碰撞响应类型

• 物体发生碰撞后，会有三种碰撞相响应类型



C++ 实现

Component 碰撞

• 注意 Overlap Begin/End 的函数参数

• 注意 OnHit 的函数参数

• 注意甚至 Generated Hit Event 的函数名

• 绑定函数可以用 AddDynamic，也可以用 FScriptDelegate 委托

• 部分设置可不写，蓝图使用时再手动设置

• 写法支持 UShapeComponent及其派生类，如 USphereComponent 、UBoxComponent 等

  UPROPERTY(EditAnywhere)
  		USceneComponent* Root;

  	UPROPERTY(EditAnywhere)
  		UStaticMeshComponent* Cube;

  	UFUNCTION()
  		virtual void OnOverlapBegin(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult);

  	UFUNCTION()
  		virtual void OnOverlapEnd(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult);

  	UFUNCTION()
  		virtual void OnHit(UPrimitiveComponent* HitComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, FVector NormalImpulse, const FHitResult& Hit);


  ACollisionActor::ACollisionActor()
  {
   	// Set this actor to call Tick() every frame.  You can turn this off to improve performance if you don‘t need it.
  	PrimaryActorTick.bCanEverTick = true;

  	Root = CreateDefaultSubobject<USceneComponent>(TEXT("RootScene"));
  	SetRootComponent(Root);

  	Cube = CreateDefaultSubobject<UStaticMeshComponent>(TEXT("Cube"));
  	Cube->SetupAttachment(Root);
  	static ConstructorHelpers::FObjectFinder<UStaticMesh> mesh(TEXT("StaticMesh‘/Engine/BasicShapes/Cube.Cube‘"));
  	if (mesh.Succeeded())
  	{
  		Cube->SetStaticMesh(mesh.Object);
  	}

  	// 设置是否开启物理模拟
  	Cube->SetSimulatePhysics(false);

  	// 开启 Generated Hit Event
  	Cube->SetNotifyRigidBodyCollision(true);

  	// 开启CCD Continuous collision detection (CCD) 连续式碰撞检测
  	Cube->BodyInstance.SetUseCCD(true);

  	// 开启Generate Overlap Events
  	Cube->SetGenerateOverlapEvents(true);

  	// 设置碰撞预设
  	Cube->SetCollisionProfileName(TEXT("OverlapAll"));
  	//Cube->SetCollisionResponseToAllChannels(ECR_Overlap);

  	// 设置碰撞响应设置
  	Cube->SetCollisionEnabled(ECollisionEnabled::QueryAndPhysics);

  	// 绑定函数
  	Cube->OnComponentBeginOverlap.AddDynamic(this, &ACollisionActor::OnOverlapBegin);

  	// 绑定函数 使用委托
  	FScriptDelegate OverlapEndDelegate;
  	OverlapEndDelegate.BindUFunction(this, TEXT("OnOverlapEnd"));
  	Cube->OnComponentBeginOverlap.Add(OverlapEndDelegate);

  	// 绑定碰撞函数
  	Cube->OnComponentHit.AddDynamic(this, &ACollisionActor::OnHit);
  }

  void ACollisionActor::OnOverlapBegin(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult)
  {
  	UE_LOG(LogTemp, Warning, TEXT("Overlap Begin"));
  }

  void ACollisionActor::OnOverlapEnd(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult)
  {
  	UE_LOG(LogTemp, Warning, TEXT("Overlap End"));
  }

  void ACollisionActor::OnHit(UPrimitiveComponent* HitComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, FVector NormalImpulse, const FHitResult& Hit)
  {
  	UE_LOG(LogTemp, Warning, TEXT("Hit"));
  	Destroy();
  }


ATriggerBox 碰撞

• OnActorBeginOverlap

• OnActorEndOverlap

  UFUNCTION()
  	void HandleOverlap(AActor* OverlappedActor, AActor* OtherActor );


  void AMyTriggerBox::BeginPlay()
  {
  	//放在构造函数好像不起作用
  	OnActorBeginOverlap.AddDynamic(this, &AMyTriggerBox::HandleOverlap);
  }

  void AMyTriggerBox::HandleOverlap(AActor* OverlappedActor, AActor* OtherActor )
  {
  	UClass* ActorClass = OtherActor->GetClass();
  	// 其他处理逻辑
  }


参考

• 碰撞响应参考
