Spring AOP切面编程

Spring07：AOP切面编程

基于代理类的在Spring AOP实现

Spring的AOP代理底层就是使用JDK动态代理模式实现的

Spring的通知类型

org.aopalliance.intercept.MethodInterceptor
环绕通知，如：用于日志和事务

org.springframework.aop.MethodBeforeAdvice
前置通知，如：权限管理

org.springframework.aop.AfterReturningAdvice
后置通知，如：关闭流，上传文件、删除临时文件

org.springframework.aop.ThrowsAdvice
异常通知，如：处理异常记录日志

org.springframework.aop.IntroductionInterceptor
介入增强，如：直接增加一个方法

使用实例

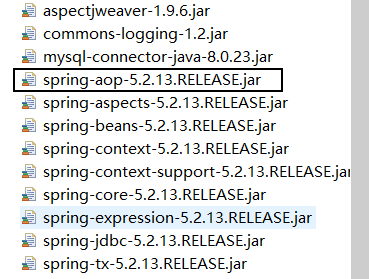

导包：

创建切面类：

实现MethodInterceptor接口

package com.znsd.aop.notice;

import org.aopalliance.intercept.MethodInterceptor;
import org.aopalliance.intercept.MethodInvocation;

public class Method implements MethodInterceptor{

	@Override
	public Object invoke(MethodInvocation method) throws Throwable {
		// TODO Auto-generated method stub
		check_Permisssions();
		Object object = method.proceed();
		log();
		return object;
	}

	public void check_Permisssions() {
		System.out.println("检查权限");
	}

	public void log() {
		System.out.println("日志记录");
	}
}

实现AfterReturningAdvice接口

package com.znsd.aop.notice;

import java.lang.reflect.Method;

import org.springframework.aop.AfterReturningAdvice;

public class After implements AfterReturningAdvice{

	@Override
	public void afterReturning(Object arg0, Method arg1, Object[] arg2, Object arg3) throws Throwable {
		// TODO Auto-generated method stub
		System.out.println("前置通知");
	}

}

实现MethodBeforeAdvice接口

package com.znsd.aop.notice;

import java.lang.reflect.Method;

import org.springframework.aop.MethodBeforeAdvice;

public class Before implements MethodBeforeAdvice{

	@Override
	public void before(Method arg0, Object[] arg1, Object arg2) throws Throwable {
		// TODO Auto-generated method stub
		System.out.println("后置通知");
	}
}

实现ThrowsAdvice接口

package com.znsd.aop.notice;

import org.springframework.aop.ThrowsAdvice;

public class Throw implements ThrowsAdvice{
	public  void  afterThrowing(Exception e)  throws  Throwable{
        System.out.println("出异常了..."+e);
    }
}

实现IntroductionInterceptor接口 注：待完善，暂时没有例子

package com.znsd.aop.notice;

import org.aopalliance.intercept.MethodInvocation;
import org.springframework.aop.IntroductionInterceptor;

public class Introduction implements IntroductionInterceptor{

	@Override
	public boolean implementsInterface(Class<?> arg0) {
		// TODO Auto-generated method stub
		return false;
	}

	@Override
	public Object invoke(MethodInvocation arg0) throws Throwable {
		// TODO Auto-generated method stub
		return null;
	}

}

定义接口

package com.znsd.aop.service;

import java.util.List;

public interface UserService {

	List ListUser();

	Object getUser();

	boolean deleteUser();

	boolean updateUser();

	boolean insertUser() throws Exception;
}

定义实现类

package com.znsd.aop.service;

import java.util.List;


public class UserServiceImpl implements UserService{

	@Override
	public List ListUser() {
		// TODO Auto-generated method stub
		System.out.println("获取List");
		return null;
	}

	@Override
	public Object getUser() {
		// TODO Auto-generated method stub
		System.out.println("获取one");
		return null;
	}

	@Override
	public boolean deleteUser() {
		// TODO Auto-generated method stub
		System.out.println("删除");

		return false;
	}

	@Override
	public boolean updateUser() {
		// TODO Auto-generated method stub
		System.out.println("修改");
		return false;
	}

	@Override
	public boolean insertUser() throws Exception{
		// TODO Auto-generated method stub
		System.out.println("增加");
        throw Ecxeption();
		return false;
	}

}

xml文件配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
            http://www.springframework.org/schema/beans/spring-beans.xsd
            http://www.springframework.org/schema/tx
        	http://www.springframework.org/schema/tx/spring-tx.xsd
        	http://www.springframework.org/schema/aop
        	http://www.springframework.org/schema/aop/spring-aop.xsd
            http://www.springframework.org/schema/context
            http://www.springframework.org/schema/context/spring-context.xsd">

	<!-- 1 目标类 -->
	<bean id="userService" class="com.znsd.aop.service.UserServiceImpl"></bean>
	<!-- 2 切面类 -->
	<bean id="method" class="com.znsd.aop.notice.Method"></bean> <!-- 植入环绕通知 -->
	<bean id="before" class="com.znsd.aop.notice.Before"></bean> <!-- 植入前置通知 -->
	<bean id="after" class="com.znsd.aop.notice.After"></bean> <!-- 植入后置通知 -->
	<bean id="throw" class="com.znsd.aop.notice.Throw"></bean> <!-- 异常后通知 -->
	<bean id="introduction" class="com.znsd.aop.notice.Introduction"></bean> <!-- 介入通知：没有使用 -->
	<!-- 3 使用Spring代理工厂注册一个ID为userDaoProxy的对象 -->
	<bean id="userServiceProxy" class="org.springframework.aop.framework.ProxyFactoryBean">
	 	<!-- 3.1代理的目标对象 -->
		<property name="target" ref="userService"></property>
		 <!-- 3.2代理实现的接口 -->
		<property name="proxyInterfaces" value="com.znsd.aop.service.UserService"/>
		<!-- 3.3指定切面 -->
		  <property name="interceptorNames">
		  	<value>method,after,before,throw</value>
		  </property>
		 <!-- 3.4指定代理方式，true：使用cglib,false(默认)：jdk -->
		 <property name="proxyTargetClass" value="false"/>
	</bean>

</beans>

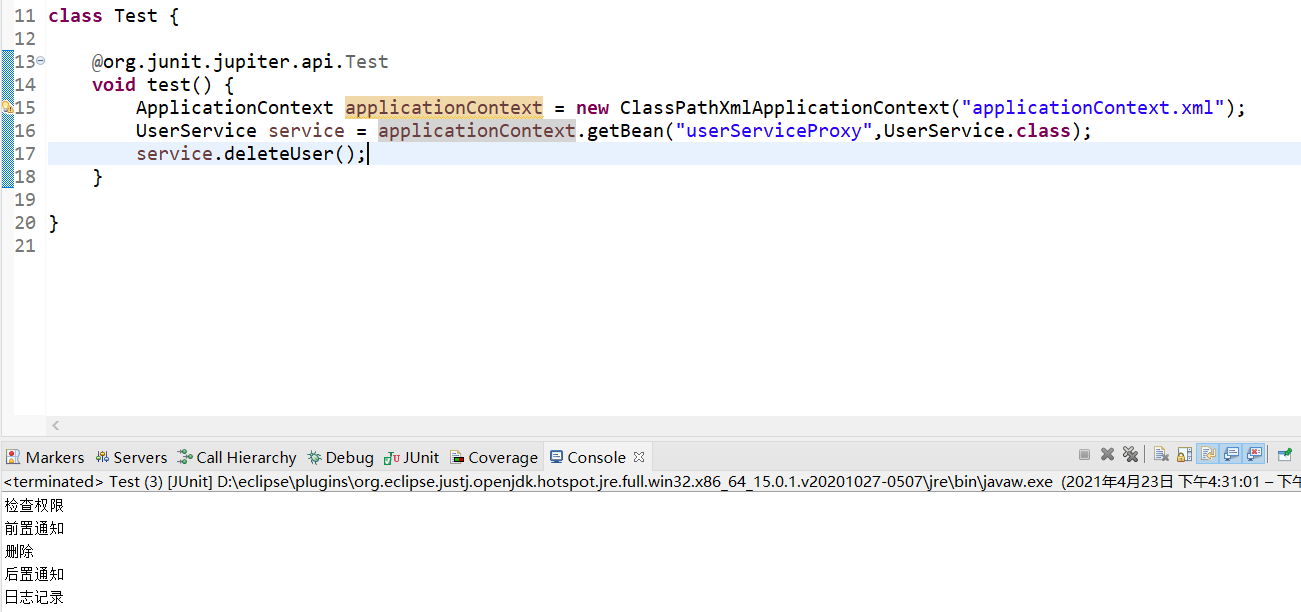

测试结果1（环绕，前置，后置）

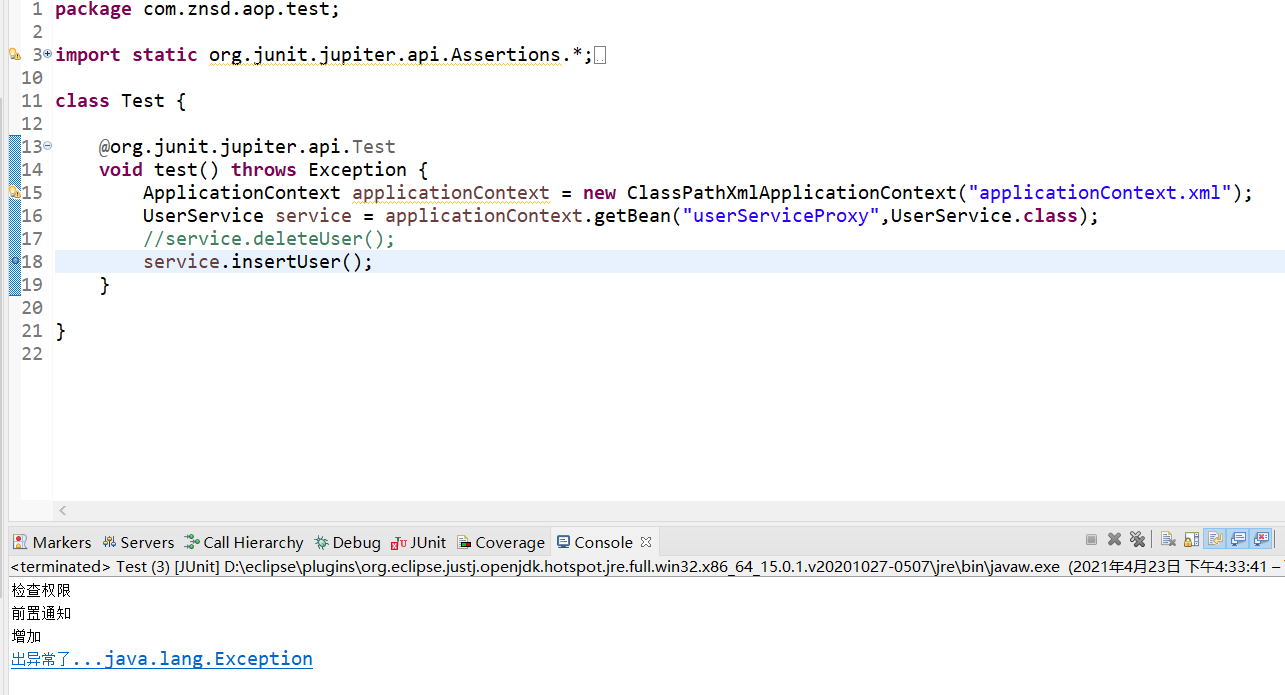

测试结果2（异常）

Spring 对AspectJ开发的支持

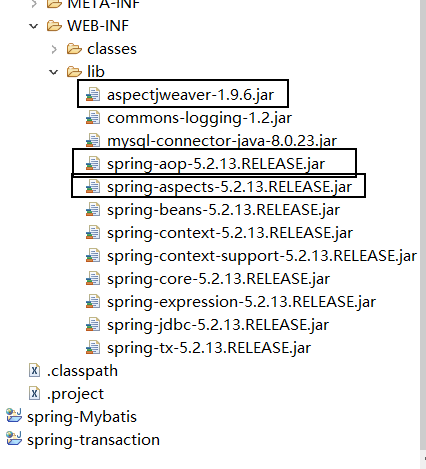

导入jar包：

基于XML的声明是AspectJ：

• 编写切面类

  package com.znsd.aop.notice;

  import org.aspectj.lang.ProceedingJoinPoint;

  public class MyAspectJ {

  	public void myBofore() {
  		System.out.println("我的前置通知");
  	}

  	public void myAfter() {
  		System.out.println("我的后置通知");
  	}

  	public void myAround(ProceedingJoinPoint proceedingJoinPoint) throws Throwable {
  		System.out.println("开启事务");
  		proceedingJoinPoint.proceed();
  		System.out.println("关闭事务");
  	}

  	//异常通知
      public void myAfterThrowing(Throwable e){
          System.out.println("异常通知："+e.getMessage());
      }
      //最终通知
      public void myLast(){
          System.out.println("最终通知：模拟方法结束后的释放资源。。。。");
      }
  }

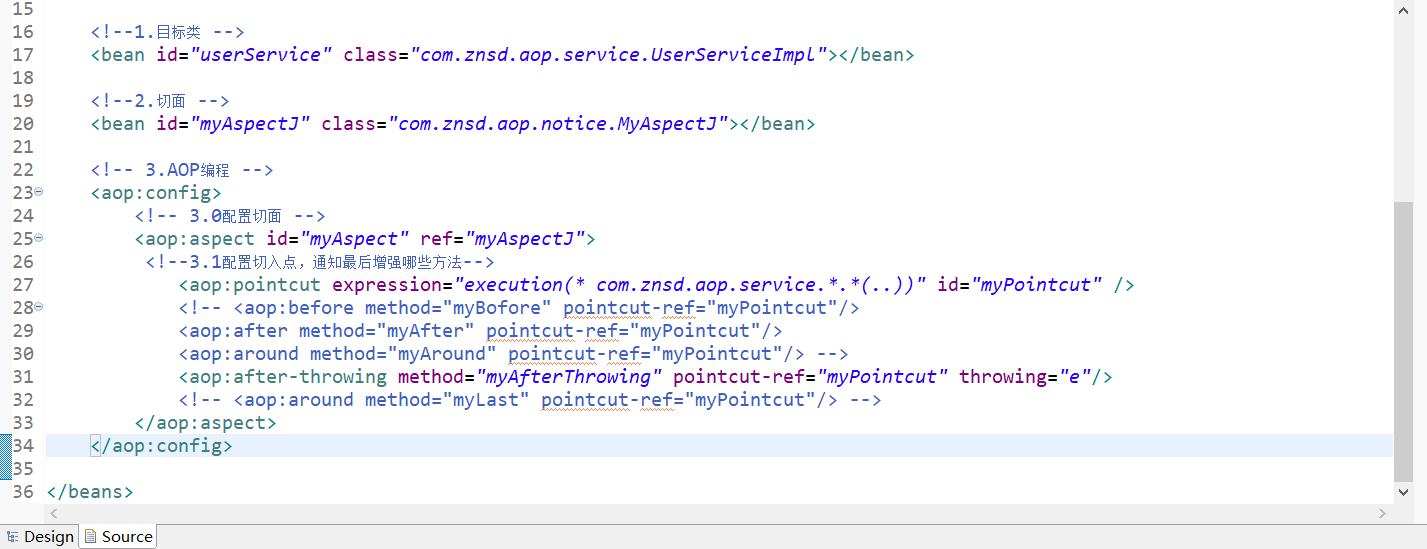

• 配置切面、切入点 、通知

  <?xml version="1.0" encoding="UTF-8"?>
  <beans xmlns="http://www.springframework.org/schema/beans"
  	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  	xmlns:context="http://www.springframework.org/schema/context"
  	xmlns:aop="http://www.springframework.org/schema/aop"
  	xmlns:tx="http://www.springframework.org/schema/tx"
  	xsi:schemaLocation="http://www.springframework.org/schema/beans
              http://www.springframework.org/schema/beans/spring-beans.xsd
              http://www.springframework.org/schema/tx
          	http://www.springframework.org/schema/tx/spring-tx.xsd
          	http://www.springframework.org/schema/aop
          	http://www.springframework.org/schema/aop/spring-aop.xsd
              http://www.springframework.org/schema/context
              http://www.springframework.org/schema/context/spring-context.xsd">

  	<!--1.目标类 -->
  	<bean id="userService" class="com.znsd.aop.service.UserServiceImpl"></bean>

  	<!--2.切面 -->
  	<bean id="myAspectJ" class="com.znsd.aop.notice.MyAspectJ"></bean>

  	<!-- 3.AOP编程 -->
  	<aop:config>
  		<!-- 3.0配置切面 -->
  		<aop:aspect id="myAspect" ref="myAspectJ">
  		 <!--3.1配置切入点，通知最后增强哪些方法-->
  			<aop:pointcut expression="execution(* com.znsd.aop.service.*.*(..))" id="myPointcut" />
  			<aop:before method="myBofore" pointcut-ref="myPointcut"/>
  			<aop:after method="myAfter" pointcut-ref="myPointcut"/>
  			<aop:around method="myAround" pointcut-ref="myPointcut"/>
  			<aop:after-throwing method="myAfterThrowing" pointcut-ref="myPointcut" throwing="e"/>
  			<aop:around method="myLast" pointcut-ref="myPointcut"/>
  		</aop:aspect>
  	</aop:config>

  </beans>

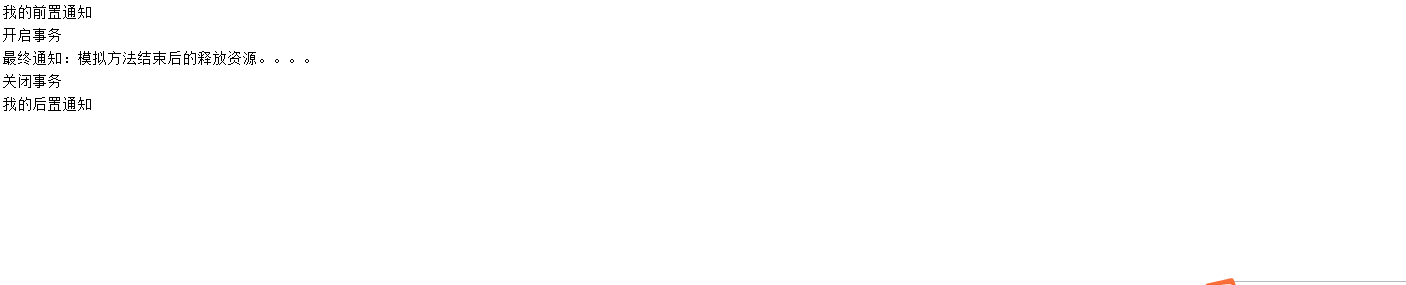

• 测试

  package com.znsd.aop.test;

  import org.junit.jupiter.api.Test;
  import org.springframework.context.ApplicationContext;
  import org.springframework.context.support.ClassPathXmlApplicationContext;

  import com.znsd.aop.service.UserService;

  class AspectJTest {

  	@Test
  	void test() {
  		ApplicationContext ap = new ClassPathXmlApplicationContext("base.xml");
  		UserService userService = ap.getBean("userService",UserService.class);
  		userService.getUser();
  	}

  }

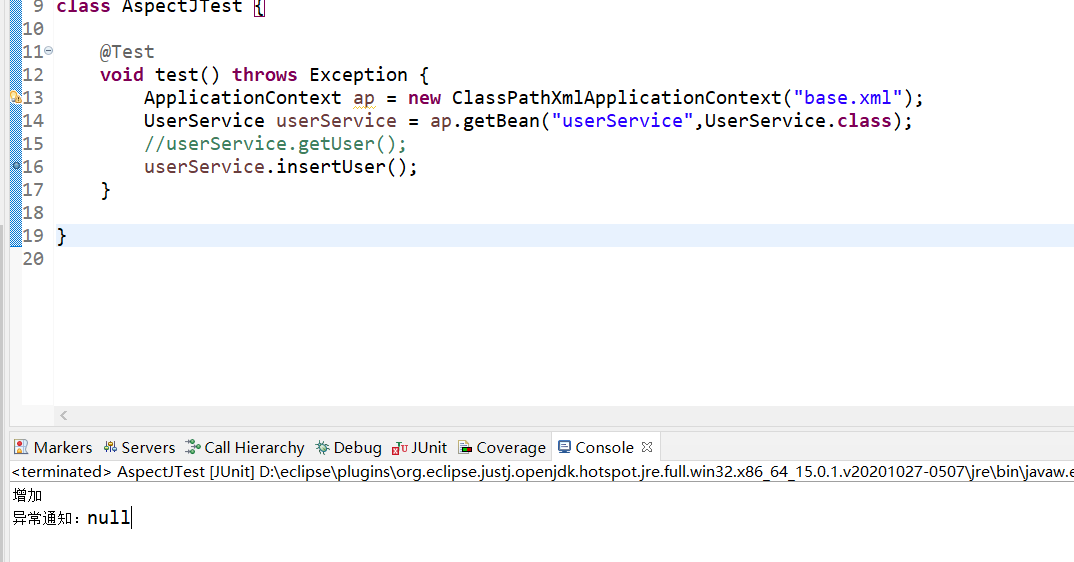

• 异常测试

Spring AOP切面编程
