配置trunk和access

配置trunk和access

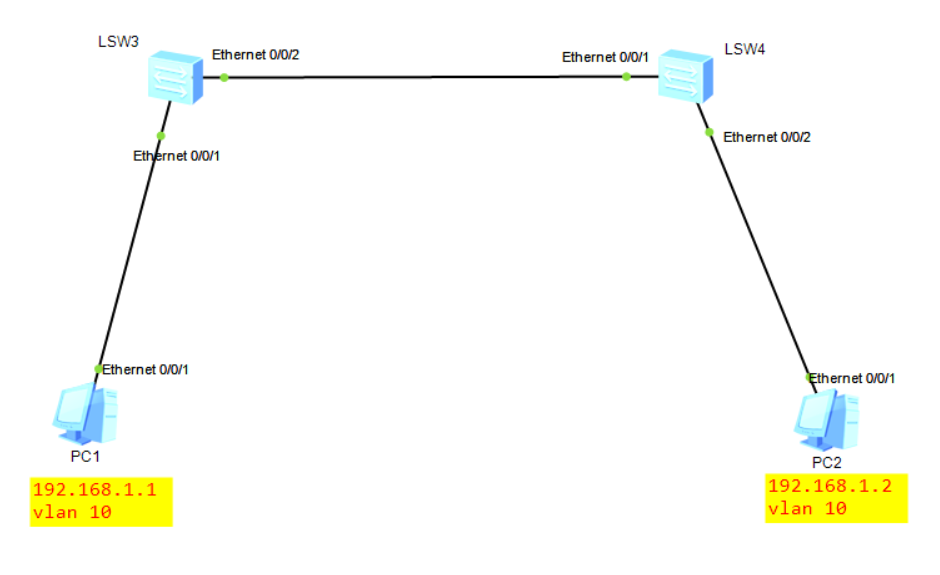

拓扑图

PC地址设置

PC1 ：192.168.1.1 	vlan10
PC2 ：192.168.1.2	vlan10

交换机配置

1. LSW3配置

<Huawei>system-view
[Huawei]vlan 10
[Huawei]interface Ethernet 0/0/1
[Huawei-Ethernet0/0/1]port link-type access
[Huawei-Ethernet0/0/1]port default vlan 10
[Huawei-Ethernet0/0/1]quit

[Huawei]interface Ethernet 0/0/2
[Huawei-Ethernet0/0/2]port link-type trunk
[Huawei-Ethernet0/0/2]port trunk allow-pass vlan 10
[Huawei-Ethernet0/0/2]quit

2. LSW4配置

<Huawei>system-view
[Huawei]vlan 10
[Huawei]interface Eth 0/0/1
[Huawei-Ethernet0/0/1]port link-type trunk
[Huawei-Ethernet0/0/1]port trunk allow-pass vlan 10
[Huawei-Ethernet0/0/1]quit

[Huawei]interface Eth 0/0/2
[Huawei-Ethernet0/0/2]port link-type access
[Huawei-Ethernet0/0/2]port default vlan 10
[Huawei-Ethernet0/0/2]quit

测试

PC>ping 192.168.1.2

Ping 192.168.1.2: 32 data bytes, Press Ctrl_C to break
From 192.168.1.2: bytes=32 seq=1 ttl=128 time=63 ms
From 192.168.1.2: bytes=32 seq=2 ttl=128 time=62 ms
From 192.168.1.2: bytes=32 seq=3 ttl=128 time=63 ms
From 192.168.1.2: bytes=32 seq=4 ttl=128 time=78 ms
From 192.168.1.2: bytes=32 seq=5 ttl=128 time=47 ms

--- 192.168.1.2 ping statistics ---
  5 packet(s) transmitted
  5 packet(s) received
  0.00% packet loss
  round-trip min/avg/max = 47/62/78 ms
