RabbitMQ - 01Spring整合

（1）项目框架

（1.1）POM文件（与Spring整合）

  <dependency>
            <groupId>com.rabbitmq</groupId>
            <artifactId>amqp-client</artifactId>
            <version>5.8.0</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.amqp</groupId>
            <artifactId>spring-rabbit</artifactId>
            <version>2.1.8.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>3.9</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <version>2.3.4.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-core</artifactId>
            <version>2.11.3</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.11.3</version>
        </dependency>

（1.2）工具类

import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class ConnectionUtil {
    public static Connection getConnection() throws IOException, TimeoutException {
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connectionFactory.setHost("192.168.100.86");
        connectionFactory.setPort(5672);
        connectionFactory.setUsername("admin");
        connectionFactory.setPassword("admin");
        connectionFactory.setVirtualHost("/test");
        Connection connection = connectionFactory.newConnection();
        return connection;
    }
}

（2）RabbitMQ工作方式

（2.1）简单模式

发送者

public class Sender {
    private final static String QUEUE = "testHello";
    public static void main(String[] args) throws IOException, TimeoutException {
        // 获取连接
        Connection connection = ConnectionUtil.getConnection();
        // 创建通道
        Channel channel = connection.createChannel();
        // 声明队列
        // 参数1： 队列名称
        // 参数2： 是否持久化队列；队列实在内存中的，rabbitMQ重启会丢失，设置为true,会保存到erlang自带的数据库，
        // 参数3： 是否排外，两个作用，一是当我们的连接关闭后是否自动删除队列，二是是否私有化当前队列，私有化后，其他通道不能访问
        // 参数4： 是否自动删除
        // 参数5： 其他参数。
        channel.queueDeclare(QUEUE, durable:false, exclusive:false, autoDelete:false, arguments:null);
        // 发送内容
        channel.basicPublish("",QUEUE,null,"发送消息1".getBytes());
        // 关闭连接
        channel.close();
        connection.close();
    }
}

消费者

public class Receiver {
    private final static String QUEUE = "testHello";
    public static void main(String[] args) throws IOException, TimeoutException {
        // 获取连接
        Connection connection = ConnectionUtil.getConnection();
        // 创建通道
        Channel channel = connection.createChannel();
        // 声明队列
        channel.queueDeclare(QUEUE, false, false, false, null);
        // 接收消息
        while (true){
            DeliverCallback deliverCallback = (consumerTag, delivery) -> {
                String message = new String(delivery.getBody(), "UTF-8");
                System.out.println("Receiver message :" + message);
            };
            channel.basicConsume(QUEUE,true,deliverCallback, consumerTag ->{});
        }
        // 关闭连接
//        channel.close();
//        connection.close();
    }
}

测试结果

技术分享图片

（2.2） Worker 队列 Distributing tasks among workers (the competing consumers pattern)

技术分享图片

生产者

public class WorkSender {
    private final static String QUEUE = "testWork";
    public static void main(String[] args) throws IOException, TimeoutException {
        Connection connection = ConnectionUtil.getConnection();
        Channel channel = connection.createChannel();
        channel.queueDeclare(QUEUE, false, false, false, null);
        // 发送内容
        for(int i = 0; i< 10; i++){
            channel.basicPublish("",QUEUE,null,("发送消息" + i).getBytes());
        }
        channel.close();
        connection.close();
    }
}

消费者

public class WorkReceiver1 {
    private final static String QUEUE = "testWork";
    public static void main(String[] args) throws IOException, TimeoutException {
        Connection connection = ConnectionUtil.getConnection();
        final Channel channel = connection.createChannel();
        channel.queueDeclare(QUEUE, false, false, false, null);
        // 告诉服务器，在没有确认当前消息完成之前，不要发送新的消息
        channel.basicQos(1);
        // 接收消息
        DefaultConsumer consumer = new DefaultConsumer(channel){
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("消费者1 收到的内容是：" + new String(body));
                try {
                    Thread.sleep(10);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                // 确认
                channel.basicAck(envelope.getDeliveryTag(),false);
            }
        };
        // 注册消费者， 参数2：手动确认，代表收到消息后需要手动告诉服务器，收到消息了。
        channel.basicConsume(QUEUE,false,consumer);
    }
}

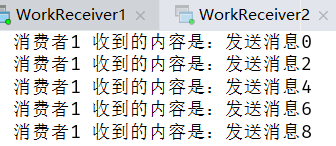

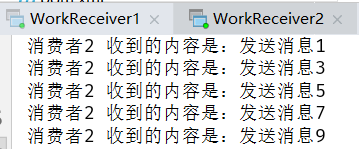

测试结果：消费者1 和消费者2 sleep 时间一样

技术分享图片

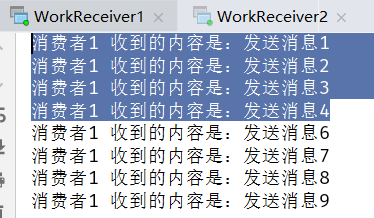

测试结果：消费者1 sleep(10) 消费者2 sleep(40)

技术分享图片

（2.3）Publish/Subscribe（交换机：Fanout） Sending messages to many consumers at once

技术分享图片

生产者

public class FanoutSender {
    private final static String EXCHANGE_NAME = "testExchange";
    public static void main(String[] args) throws IOException, TimeoutException {
        Connection connection = ConnectionUtil.getConnection();
        Channel channel = connection.createChannel();
        // 声明交换机, 类型为fanout
        channel.exchangeDeclare(EXCHANGE_NAME, "fanout");
        // 发布订阅模式，消息先发到交换机，交换机没有保存功能，如果没有消费者，消息会丢失
        channel.basicPublish(EXCHANGE_NAME,"",null,"Fanout发布订阅模式的消息1".getBytes());
        // 关闭连接
        channel.close();
        connection.close();
    }
}

消费者

public class FanoutReceiver1 {
    private final static String EXCHANGE_NAME = "testExchange";
    public static void main(String[] args) throws IOException, TimeoutException {
        Connection connection = ConnectionUtil.getConnection();
        final Channel channel = connection.createChannel();
        // 声明队列
        channel.queueDeclare("testPubQueue1", false, false, false, null);
        // 绑定队列到交换机
        channel.queueBind("testPubQueue1", EXCHANGE_NAME, routingKey:"");
        channel.basicQos(1);
        DefaultConsumer consumer = new DefaultConsumer(channel){
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("Fanout消费者1 收到的内容是：" + new String(body));
                channel.basicAck(envelope.getDeliveryTag(),false);
            }
        };
        channel.basicConsume("testPubQueue1",false,consumer);
    }
}

测试结果：

技术分享图片

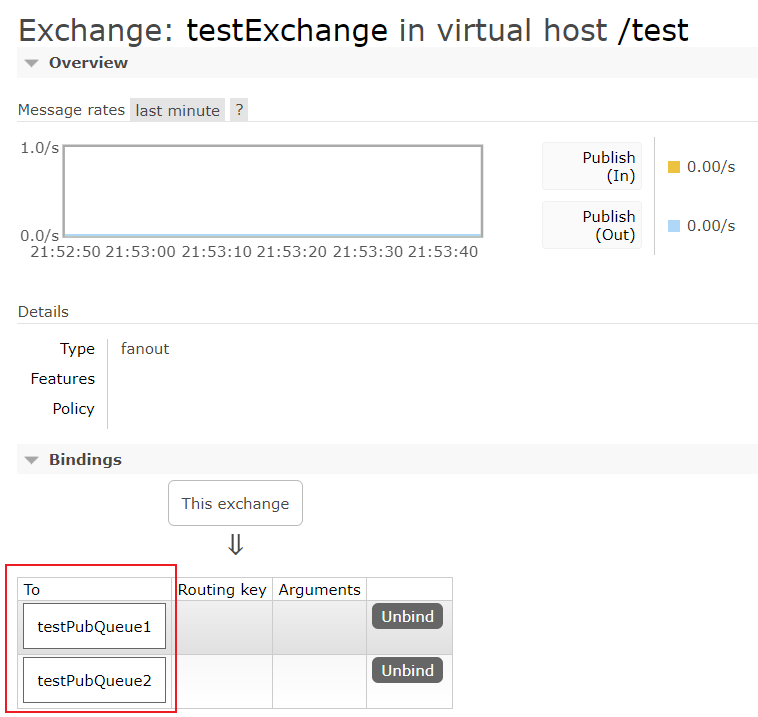

Web端查看绑定关系：

技术分享图片

（2.4） Routing（路由模式，type=direct） Receiving messages selectively

技术分享图片

生产者

public class RouteSender {
    private final static String EXCHANGE_NAME = "testRoute";
    public static void main(String[] args) throws IOException, TimeoutException {
        Connection connection = ConnectionUtil.getConnection();
        Channel channel = connection.createChannel();
        // 声明交换机, 类型为fanout
        channel.exchangeDeclare(EXCHANGE_NAME, "direct");
        // 路由模式
        channel.basicPublish(EXCHANGE_NAME,"key1",null,"路由模式的消息1".getBytes());
        channel.basicPublish(EXCHANGE_NAME,"key2",null,"路由模式的消息2".getBytes());
        // 关闭连接
        channel.close();
        connection.close();
    }
}

消费者

public class RouteReceiver1 {
    private final static String EXCHANGE_NAME = "testRoute";
    public static void main(String[] args) throws IOException, TimeoutException {
        Connection connection = ConnectionUtil.getConnection();
        final Channel channel = connection.createChannel();
        // 声明队列
        channel.queueDeclare("testRouteQueue1", false, false, false, null);
        // 绑定队列到交换机
        // 参数3： 标记，绑定到交换机时指定一个标记，只有和它一样标记的消息才会到这个队列
        channel.queueBind("testRouteQueue1", EXCHANGE_NAME, "key1");
        // 如果要接收多个标记，只需要再执行一次即可
        channel.queueBind("testRouteQueue1", EXCHANGE_NAME, "key2");
        channel.basicQos(1);
        DefaultConsumer consumer = new DefaultConsumer(channel){
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("消费者1 收到的内容是：" + new String(body));
                channel.basicAck(envelope.getDeliveryTag(),false);
            }
        };
        channel.basicConsume("testRouteQueue1",false,consumer);
    }
}

测试结果：

技术分享图片

（2.5） Topics Receiving messages based on a pattern (topics)

技术分享图片

生产者

public class TopicSender {
    private final static String EXCHANGE_NAME = "testTopic";
    public static void main(String[] args) throws IOException, TimeoutException {
        Connection connection = ConnectionUtil.getConnection();
        Channel channel = connection.createChannel();
        channel.exchangeDeclare(EXCHANGE_NAME, "topic");
        channel.basicPublish(EXCHANGE_NAME,"key.1",null,"Topic 模式的消息 : key.1".getBytes());
        channel.basicPublish(EXCHANGE_NAME,"key.1.2",null,"Topic 模式的消息 : key.1.2".getBytes());
        channel.close();
        connection.close();
    }
}

消费者

public class TopicReceiver1 {
    private final static String EXCHANGE_NAME = "testTopic";
    public static void main(String[] args) throws IOException, TimeoutException {
        Connection connection = ConnectionUtil.getConnection();
        final Channel channel = connection.createChannel();
        channel.queueDeclare("testTopicQueue1", false, false, false, null);
        channel.queueBind("testTopicQueue1", EXCHANGE_NAME, "key.*");
//        channel.queueBind("testTopicQueue1", EXCHANGE_NAME, "key.#");
        channel.basicQos(1);
        DefaultConsumer consumer = new DefaultConsumer(channel){
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("消费者1 收到的内容是：" + new String(body));
                channel.basicAck(envelope.getDeliveryTag(),false);
            }
        };
        channel.basicConsume("testTopicQueue1",false,consumer);
    }
}

测试结果：

技术分享图片
