ResNet 主干特征提取

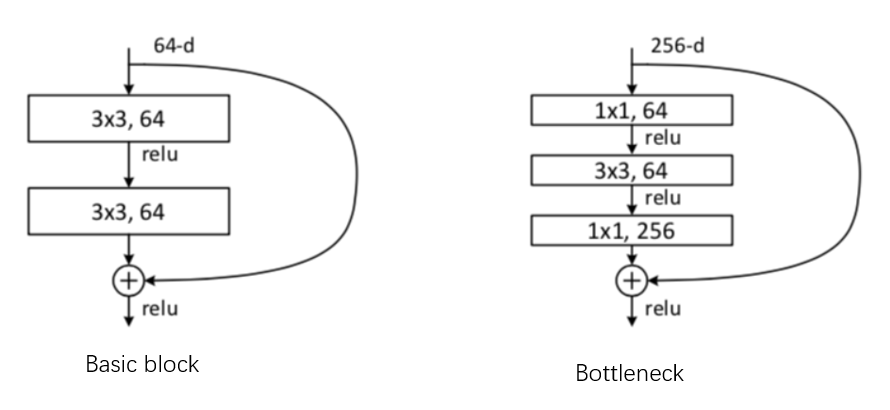

残差网络根据堆叠的层数不同，采用两个不同的单元。
if stride != 1 or self.inplanes != planes * block.expansion: # 1x1卷积，保证维度相同，可以相加 downsample = nn.Sequential( nn.Conv2d(self.inplanes, planes * block.expansion, kernel_size=1, stride=stride, bias=False), norm_layer(planes * block.expansion) )

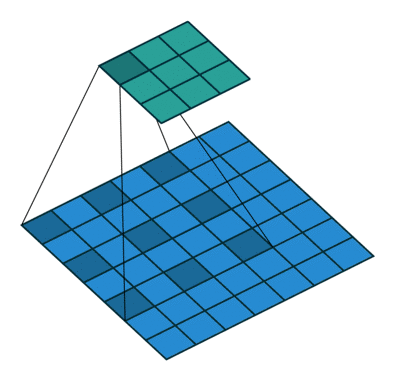

相比于图像分类采用的残差网络，在PSPnet中后两个layer中strides=1，即不对图像进行下采样，最终得到 /8的feature_map
Pyramid parsing module（PPM）
在feature map上做不同尺度的自适应平均池化（AdaptiveAvgPool2d）
class _PSPModule(nn.Module): def __init__(self, in_channels, bin_sizes, norm_layer): super(_PSPModule, self).__init__() out_channels = in_channels // len(bin_sizes) # 不同大小均值池化，获得不同大小视野域 self.stages = nn.ModuleList([self._make_stages(in_channels, out_channels, b_s, norm_layer) for b_s in bin_sizes]) self.bottleneck = nn.Sequential(nn.Conv2d(in_channels+out_channels*len(bin_sizes), out_channels, kernel_size=3, padding=1, bias=False), norm_layer(out_channels), nn.ReLU(inplace=True), nn.Dropout2d(0.1)) def _make_stages(self, in_channels, out_channels, bin_sz, norm_layer): # 采用池化下采样 prior = nn.AdaptiveAvgPool2d(output_size=bin_sz) # 1X1 压缩维度 conv = nn.Conv2d(in_channels, out_channels, kernel_size=1, bias=False) bn = norm_layer(out_channels) relu = nn.ReLU(inplace=True) return nn.Sequential(prior, conv, bn, relu) def forward(self, features): h, w = features.size(2), features.size(3) pyramids = [features] # 组合不同视野域信息和浅层信息 # 双线性插值 上采样 pyramids.extend([F.interpolate(stage(features), size=(h,w), mode=‘bilinear‘, align_corners=True) for stage in self.stages ]) output = self.bottleneck(torch.cat(pyramids, dim=1)) return output

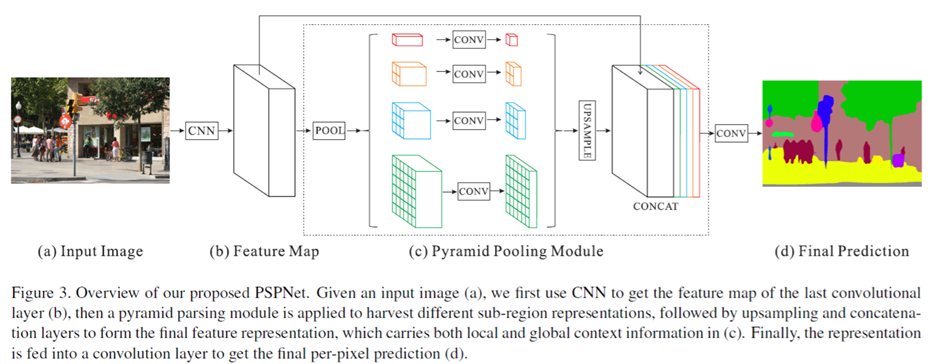

PSPNet总体结构
class PSPNet(nn.Module): def __init__(self, num_classes, backbone=resnet152, in_channels=3, pretrained=True, use_aux=True, freeze_bn=False, freeze_backbone=False): super(PSPNet, self).__init__() norm_layer = nn.BatchNorm2d model = backbone(pretrained, norm_layer=norm_layer) # 全连接输入单元数 ： 512 * block.expansion m_out_sz = model.fc.in_features print("全连接层输入", m_out_sz) self.use_aux = use_aux # conv1, bn1, relu, maxpool self.initial = nn.Sequential(*list(model.children())[:4]) if in_channels != 3: self.initial[0] = nn.Conv2d(in_channels, 64, kernel_size=7, stride=2, padding=3, bias=False) self.initial = nn.Sequential(*self.initial) self.layer1 = model.layer1 self.layer2 = model.layer2 self.layer3 = model.layer3 self.layer4 = model.layer4 # 2048*n*n->2048*1*1->512*1*1->512*n*n # 2048*n*n->2048*2*2->512*2*2->512*n*n # 2048*n*n->2048*3*3->512*3*3->512*n*n # 2048*n*n->2048*6*6->512*6*6->512*n*n # (2048+512*4)*n*n -> 512*n*n -> num_classes*n*n self.master_branch = nn.Sequential( _PSPModule(m_out_sz, bin_sizes=[1, 2, 3, 6], norm_layer=norm_layer), nn.Conv2d(m_out_sz // 4, num_classes, kernel_size=1) ) # 1024*2n*2n -> 512*2n*2n -> num_classes*2n*2n self.auxiliary_branch = nn.Sequential( nn.Conv2d(m_out_sz // 2, m_out_sz // 4, kernel_size=3, padding=1, bias=False), norm_layer(m_out_sz // 4), nn.ReLU(inplace=True), nn.Dropout2d(0.1), nn.Conv2d(m_out_sz // 4, num_classes, kernel_size=1) ) #参数初始化 initialize_weights(self.master_branch, self.auxiliary_branch) if freeze_bn: self.freeze_bn() if freeze_backbone: set_trainable([self.initial, self.layer1, self.layer2, self.layer3, self.layer4], False) def forward(self, x): input_size = (x.size(2), x.size(3)) x = self.initial(x) #/4 x = self.layer1(x) #/4 x = self.layer2(x) #/8 x = self.layer3(x) #/8 dilated = True x_aux = x x = self.layer4(x) #/8 output = self.master_branch(x) # num_classes /8 /8 # num_classes /1 /1 output = F.interpolate(output, size=input_size, mode=‘bilinear‘) if self.training and self.use_aux: # num_classes /8 /8 aux = self.auxiliary_branch(x_aux) # num_classes /1 /1 aux = F.interpolate(aux, size=input_size, mode=‘bilinear‘) return output, aux return output
