jenkins CI/CD 配置文档

1.全局工具配置

1.1 maven配置

默认 settings 提供

? 文件路径：/usr/local/bin/apache-maven-3.3.9/conf/settings.xml

默认全局 settings 提供

? 文件路径 ：/usr/local/bin/apache-maven-3.3.9/conf/settings.xml

1.2 jdk

别名：jdk8

JAVA_HOME :/usr/local/openjdk-8

1.3 git

Name :Default

Path to Git executable :/usr/bin/git

1.4 maven

name :maven

MAVEN_HOME : /usr/local/bin/apache-maven-3.3.9

2.下载kubernetes 插件

2.1 kubernetes plugin 安装

首先进入插件管理页面【系统管理】->【管理插件】->【可选插件】，搜索kubernetes plugin,勾选要安装的插件，然后点击【直接安装】。

2.2 配置kubernetes

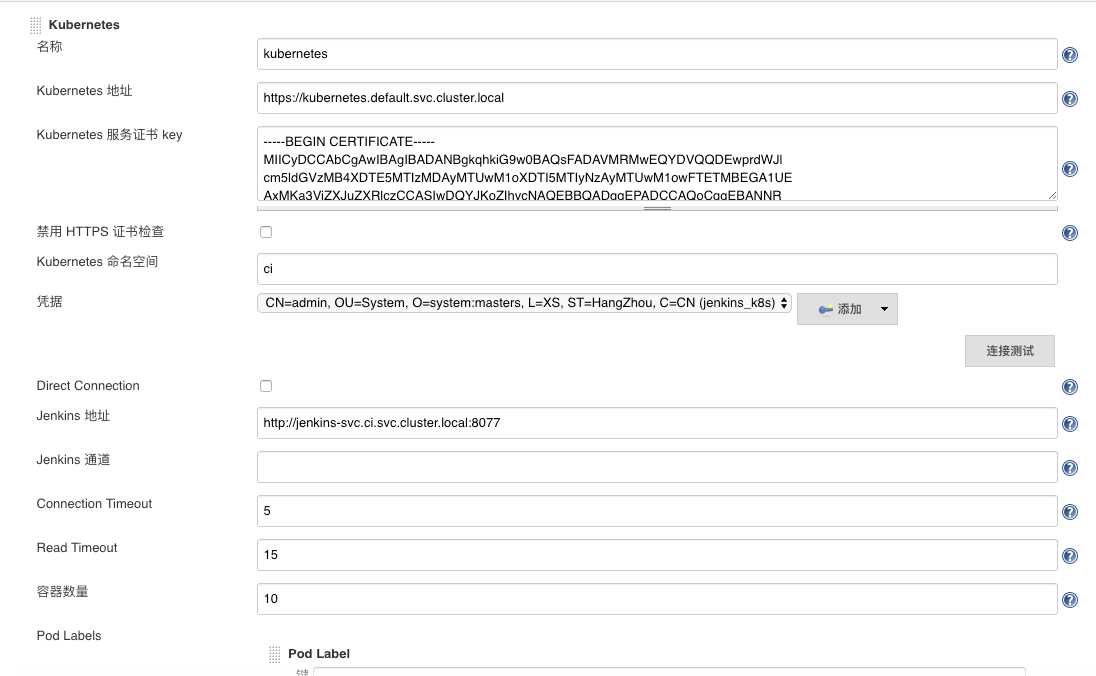

单击【系统管理】 - >【系统设置】，找到【云】，然后点击【新增一个云】


name：kubernetes

禁用https证书检查：false

kubernetes URL：https://kubernetes.default.svc.cluster.local

Kubernetes 服务证书 key : 为k8s集群生成的ca证书

cat /etc/kubernetes/pki/ca.crt

JenkinsURL：http://jenkins-svc.ci.svc.cluster.local:8077 (服务名.命名空间.svc.cluster.local:端口)

连接超时：5

读取超时：15

凭据：根据下面命令获取

##1.直接使用二进制源码包安装cfssl
wget https://pkg.cfssl.org/R1.2/cfssl_linux-amd64
chmod +x cfssl_linux-amd64
mv cfssl_linux-amd64 /usr/local/bin/cfssl
wget https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64
chmod +x cfssljson_linux-amd64
mv cfssljson_linux-amd64 /usr/local/bin/cfssljson
wget https://pkg.cfssl.org/R1.2/cfssl-certinfo_linux-amd64
chmod +x cfssl-certinfo_linux-amd64
mv cfssl-certinfo_linux-amd64 /usr/local/bin/cfssl-certinfo
export PATH=/usr/local/bin:$PATH

#准备证书签名请求
mkdir /usr/local/k8s/cfssl
cd /usr/local/k8s/cfssl

vi admin-csr.json
{
  "CN": "admin",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "HangZhou",
      "L": "XS",
      "O": "system:masters",
      "OU": "System"
    }
  ]
}

#3.创建证书和私钥
cd /usr/local/k8s/cfssl
cfssl gencert -ca=/etc/kubernetes/pki/ca.crt -ca-key=/etc/kubernetes/pki/ca.key --profile=kubernetes admin-csr.json | cfssljson -bare admin
# 生成以下三个文件
ls -l
admin.csr
admin-key.pem
admin.pem

#4.我们可以通过openssl来转换成pkc格式：
openssl pkcs12 -export -out ./jenkins-admin.pfx -inkey ./admin-key.pem -in ./admin.pem -passout pass:secret
#生成jenkins-admin.pfxpfx文件
ls
 jenkins-admin.pfx

下载jenkins-admin.pfx到本地保存

将证书内容填写，点击凭据后面的添加，点击Jenkins

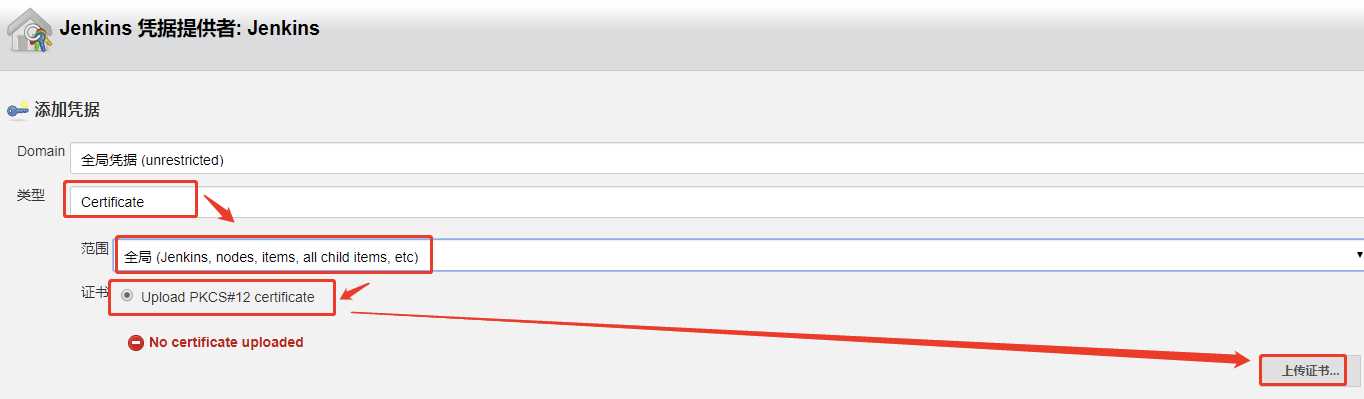

得到jenkins-admin.pfk文件后，点击Jenkins配置Credentials后面的Add，配置如下

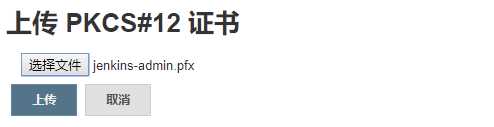

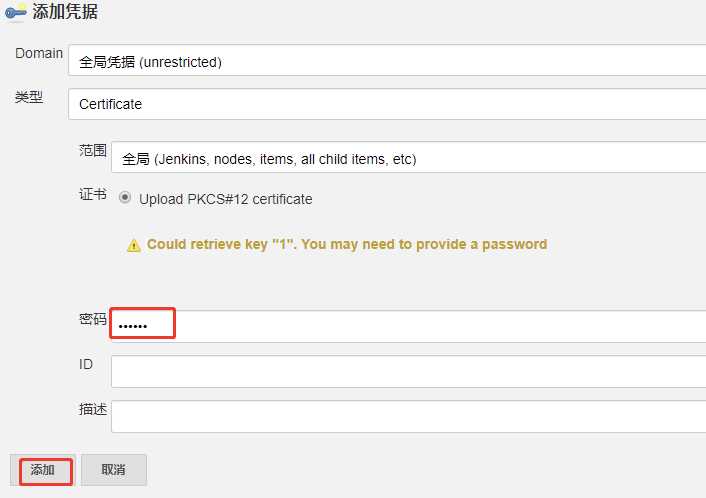

上传证书


选择文件 jenkins-admin.pfk


输入密码 secret，后面的内容可以不填写，点击添加。


选择 凭据，点击连接测试。

出现 Connection test successful 表示连接成功。

2.3配置 Pod Template

构建slave镜像

docker pull cnych/jenkins:jnlp6

docker tag cnych/jenkins:jnlp6 harbor.demo.com/private/demo-jenkins:jnlp

docker push harbor.demo.com/private/demo-jenkins:jnlp

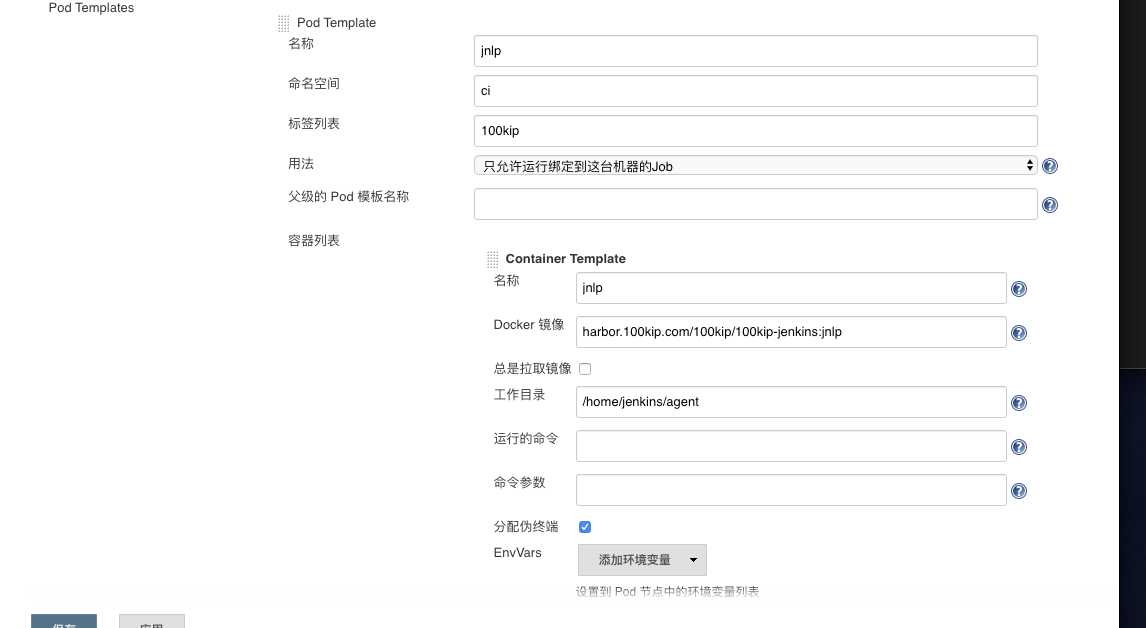

设置Pod Template （ jenkinsfile 中label标签和标签列表设置保持一致）

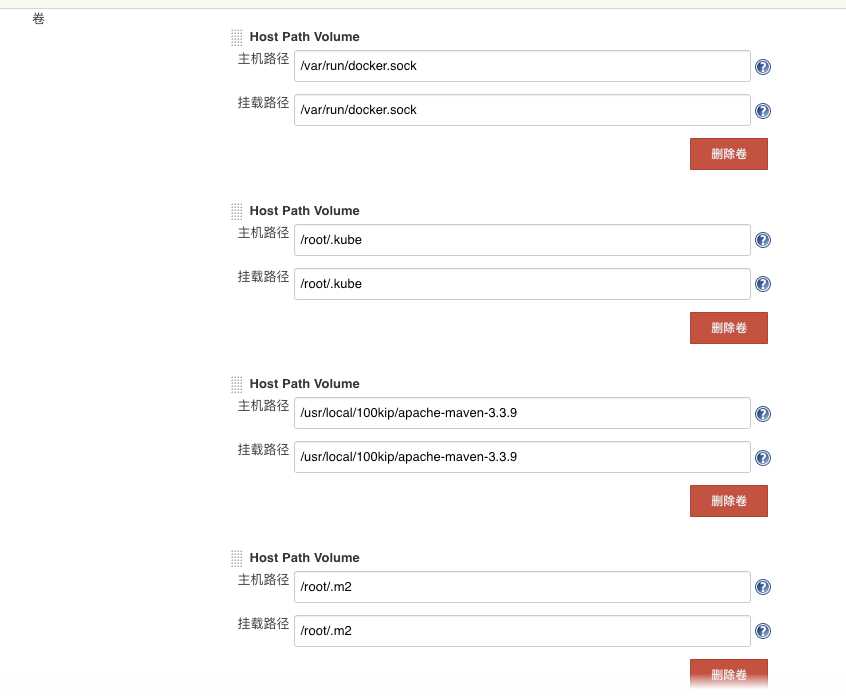

添加卷

Service Account：jenkins

3.gitlab 设置

下载gitlab插件

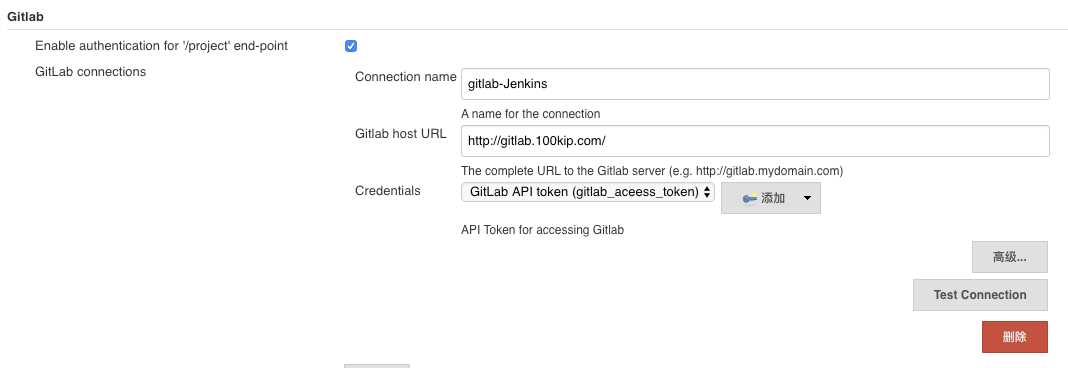

系统管理—系统配置-Gitlab

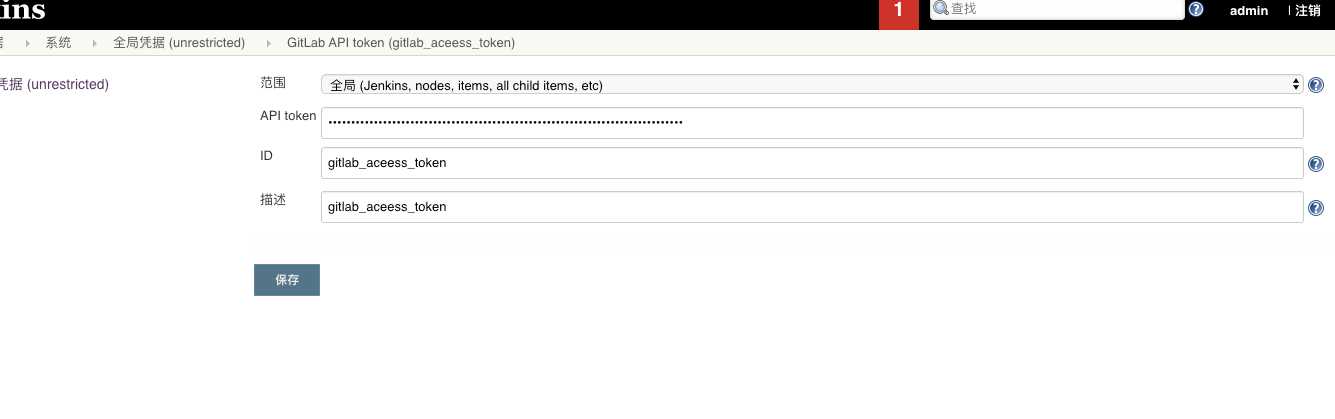

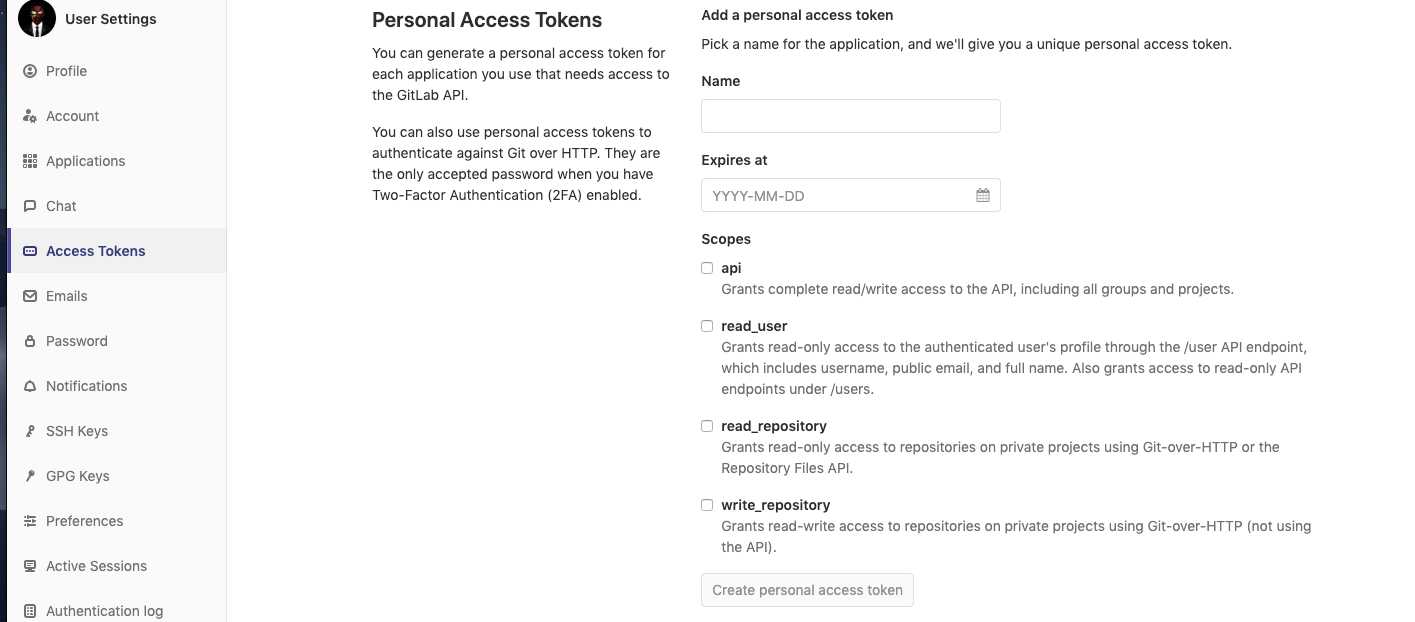

GitLab API token API token 在gitlab-settings-Access Token获取



4.新建pipeline任务

podTemplate(label: ‘100kip‘, cloud: ‘kubernetes‘) {
    node(‘100kip‘) {

        environment {
            harborHost = ""
            harborCertificate = ""
            kubeconfigId = ""
            privateHarbor = ""
            version=""
            images=""
            yamlPath="";
        }

        stage(‘Clone‘) {
            echo "1.Clone Stage"
            checkout([$class: ‘GitSCM‘,
             branches: [[name: ‘*/${branch}‘]],
             doGenerateSubmoduleConfigurations: false,
             extensions: [[$class: ‘CloneOption‘, depth: 1, honorRefspec: true, noTags: true, reference: ‘‘, shallow: true]],
             submoduleCfg: [],
             userRemoteConfigs: [[credentialsId: ‘jenkins_gitlab‘, url: ‘${git_url}‘]]]
             )
        }

        stage(‘pom version‘) {
            echo "2.pom version"
            def pom = readMavenPom file: ‘pom.xml‘
            version = "${pom.version}"
            harborHost = "harbor.demo.com"
            harborCertificate = "harbor_username_password"
            kubeconfigId = "kubernetes_config"
            privateHarbor = "${harborHost}\\/kb"
            images = "${privateHarbor}\\/${module}:${version}-${BUILD_NUMBER}"
            echo "version:${version}-----privateHarbor:${privateHarbor}----images:${images}"
            def isCanary="${canary}";
            if(isCanary == "true"){
                echo "灰度发布"
                yamlPath = "k8s/${profiles}/canary/${module}-canary.yaml";
            }else{
                yamlPath = "k8s/${profiles}/${module}.yaml";
            }
        }

        stage(‘Maven bulid‘) {
          echo "2.Maven bulid"
          sh "mvn clean package -pl ${module} -P ${profiles} -DskipTests -U "
        }

        stage(‘Docker build‘) {
            echo "3.Build Docker Image Stage"
            def buildArg = "-f ${module}/Dockerfile --build-arg version=${version} --build-arg module=${module} ."
            def customImage = docker.build("${images}", "${buildArg}")
            docker.withRegistry("http://${harborHost}", "${harborCertificate}") {
                customImage.push()
            }
        }

        stage(‘K8S Deploy‘) {
             echo "K8S Deploy"
             sh "sed -i ‘s/${module}:lastest/${images}/g‘ ${yamlPath}"
             kubernetesDeploy configs: "${yamlPath}", kubeconfigId: "${kubeconfigId}"
             echo "Service deploy successfully! please request http://${domain}"
        }

    }
}
