7段数码管绘制

时间:2020-10-19 09:42:21      阅读:23      评论:0      收藏:0      [点我收藏+]
import turtle as t
import time
def popspace(): #单管间隔
t.penup()
t.fd(5)
def popline(draw): #画数码管
popspace()
t.pendown() if draw else t.penup()
t.fd(40)
popspace()
t.right(90)
def popstart(d): #画数字数码管
popline(True) if d in [2,3,4,5,6,8,9] else popline(False)
popline(True) if d in [0,1,3,4,5,6,7,8,9] else popline(False)
popline(True) if d in [0,2,3,5,6,8,9] else popline(False)
popline(True) if d in [0,2,6,8] else popline(False)
t.left(90)
popline(True) if d in [0,4,5,6,8,9] else popline(False)
popline(True) if d in [0,2,3,5,6,7,8,9] else popline(False)
popline(True) if d in [0,1,2,3,4,7,8,9] else popline(False)
t.left(180)
t.penup()
t.fd(30)
def popdate(date):
t.pencolor((1,0.36,0.28))
t.speed(9)
for i in date:
if i == ‘-‘:
t.write(‘年‘,font=("Arial", 30, "normal"))
t.pencolor((0.93,0.51,0.93))
t.fd(60)
elif i == ‘=‘:
t.write(‘月‘,font=("Arial", 30, "normal"))
t.pencolor((0.5,0.5,0))
t.fd(60)
elif i == ‘+‘:
t.write(‘日‘,font=("Arial", 30, "normal"))
t.pencolor((0.25,0.88,0.82))
t.fd(40)
#换行输出
t.seth(-90)
t.fd(100)
t.seth(180)
t.fd(700)
t.seth(-90)
t.fd(40)
t.seth(0)
t.fd(40)
elif i == ‘*‘:
t.write(‘时‘,font=("Arial", 30, "normal"))
t.pencolor((0.18,0.55,0.34))
t.fd(60)
elif i == ‘/‘:
t.write(‘分‘,font=("Arial", 30, "normal"))
t.pencolor((1,0.89,0.77))
t.fd(60)
elif i == ‘!‘:
t.write(‘秒‘,font=("Arial", 30, "normal"))
else:
popstart(eval(i))
def main():
t.setup(1000, 800, None,None)
t.penup()
t.fd(-350)
t.pensize(6)
popdate(time.strftime(‘%Y-%m=%d+%H*%M/%S!‘,time.localtime()))
t.hideturtle()
main()

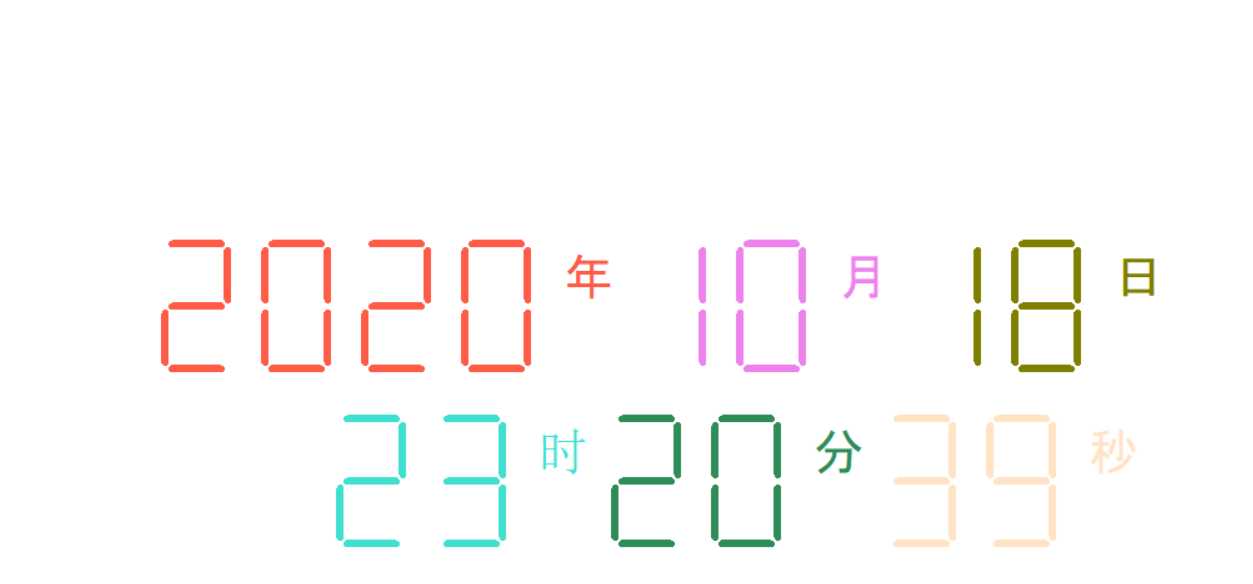

技术分享图片

7段数码管绘制
