IDEA集成MyBatis Generator 插件

时间:2020-05-31 17:50:53      阅读:53      评论:0      收藏:0      [点我收藏+]

1、修改maven的pom文件

    <build>
        <plugins>
            <!--            自动生成代码插件-->
            <!-- mybatis  generator 自动生成代码插件 -->
            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.3.7</version>
                <configuration>
                    <configurationFile>src/main/resources/generator/generatorConfig.xml</configurationFile>
                    <overwrite>true</overwrite>
                    <verbose>true</verbose>
                </configuration>
                <dependencies>
                    <dependency>
                        <groupId>mysql</groupId>
                        <artifactId>mysql-connector-java</artifactId>
                        <version>8.0.13</version>
                    </dependency>
                </dependencies>
            </plugin>
        </plugins>
    </build>

2、编写generatorConfig.xml

在IDEA开发环境下,这个文件需要放置在模块的resources的根目录下面

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>
    <context id="Mysql" targetRuntime="MyBatis3" defaultModelType="flat">

        <property name="autoDelimitKeywords" value="true"/>
        <property name="beginningDelimiter" value="`"/>
        <property name="endingDelimiter" value="`"/>

        <!--        解决每次都会生成的重复的xml 代码文件 -->
        <!--覆盖生成XML文件-->
        <plugin type="org.mybatis.generator.plugins.UnmergeableXmlMappersPlugin" />
        <!-- 生成的实体类添加toString()方法 -->
        <plugin type="org.mybatis.generator.plugins.ToStringPlugin" />

        <!-- 不生成注释 -->
        <commentGenerator>
            <property name="suppressAllComments" value="true"/>
        </commentGenerator>

        <jdbcConnection driverClass="com.mysql.cj.jdbc.Driver"
                        connectionURL="jdbc:mysql://localhost:3306/course?serverTimezone=GMT%2B8"
                        userId="root"
                        password="root">
        </jdbcConnection>

        <!-- domain类的位置 -->
        <javaModelGenerator targetProject="src\main\java"
                            targetPackage="com.course.server.domain"/>

        <!-- mapper xml的位置 -->
        <sqlMapGenerator targetProject="src\main\resources"
                         targetPackage="mapper"/>

        <!-- mapper类的位置 -->
        <javaClientGenerator targetProject="src\main\java"
                             targetPackage="com.course.server.mapper"
                             type="XMLMAPPER" />

<!--        <table tableName="test" domainObjectName="Test"/>-->
<!--        <table tableName="chapter" domainObjectName="Chapter"/>-->
<!--        <table tableName="section" domainObjectName="Section"/>-->
<!--        <table tableName="course" domainObjectName="Course"/>-->
<!--        <table tableName="course_content" domainObjectName="CourseContent"/>-->
<!--        <table tableName="course_content_file" domainObjectName="CourseContentFile"/>-->
<!--        <table tableName="teacher" domainObjectName="Teacher"/>-->
<!--        <table tableName="file" domainObjectName="File"/>-->
<!--        <table tableName="user" domainObjectName="User"/>-->
<!--        <table tableName="resource" domainObjectName="Resource"/>-->
<!--        <table tableName="role" domainObjectName="Role"/>-->
<!--        <table tableName="role_resource" domainObjectName="RoleResource"/>-->
<!--        <table tableName="role_user" domainObjectName="RoleUser"/>-->
<!--        <table tableName="member" domainObjectName="Member"/>-->
<!--        <table tableName="sms" domainObjectName="Sms"/>-->
        <table tableName="member_course" domainObjectName="MemberCourse"/>
    </context>
</generatorConfiguration>

在这个期间出现了

http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd 爆红的情况  查看这个博客解决 博客连接为 : https://www.cnblogs.com/yz-bky/p/12817330.html

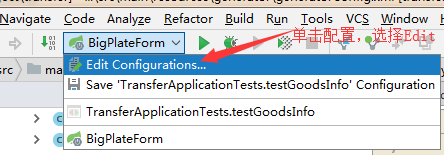

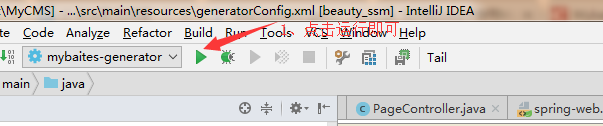

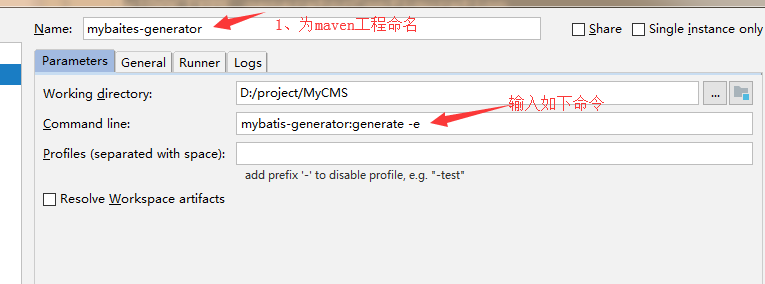

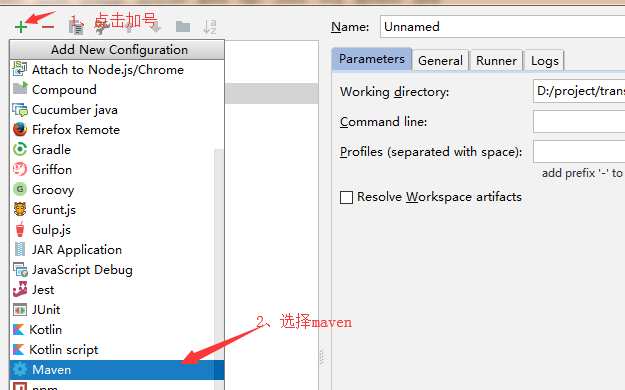

3、创建maven运行项

技术分享图片



技术分享图片



技术分享图片



技术分享图片



4. 在运行期间出现了 报错情况

mybatis-generator-maven-plugin:1.3.2:generate (default-cli) on project lin: Could not create connect

所以把mysql 的版本改为   8.0.13

这里数据库连接配置中加上serverTimezone=GMT%2B8



IDEA集成MyBatis Generator 插件

原文:https://www.cnblogs.com/guangzhou11/p/13019449.html
