django之在docker里搭建FastDFS分布式文件系统

1.环境

• Python版本：Python 3.6.8(python -v)
• FastDFS版本：lastest
• 服务器操作系统：centos 8.3.1（cat /proc/version）
• fdfs_client_py版本：1.2.6

2.注意事项

在正式开始之前，确保你的22122-23000这个范围内的端口处于打开状态，另外不要让8888端口被占用。

3.开始配置

docker pull fastdfs # 从远程镜像库中将fastdfs下载到本地镜像库中

sudo docker network create --subnet=39.101.205.23/16 me-network # 固定docker IP地址

docker run -dti --network me-network --ip "your ip address" --name tracker -v /var/fdfs/tracker:/var/fdfs delron/fastdfs tracker # 指定 tracker Ip地址

docker run -dti --network=host --name storage -e TRACKER_SERVER="your ip address" -v /var/fdfs/storage:/var/fdfs delron/fastdfs storage # 安装storage

docker container ls -a # 查看容器是否开启

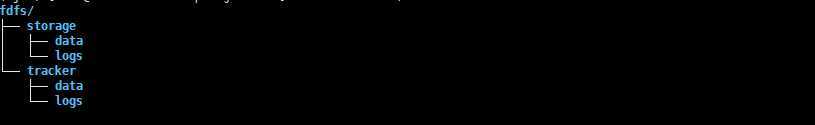

上图是fdfs挂载的目录结构。

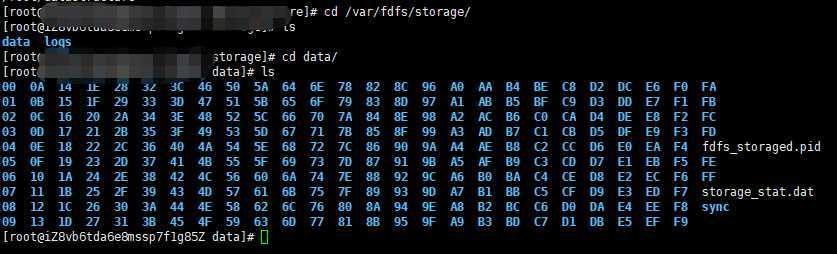

上图是上传的数据存储的目录结构。

4.使用python调用接口上传数据到FastDFS分布式文件系统中

# 创建utils/fastdfs/client.conf配置文件

# connect timeout in seconds
# default value is 30s
connect_timeout=30

# network timeout in seconds
# default value is 30s
network_timeout=60

# the base path to store log files
base_path=/Home/pyvip/test99/logs/fast.log

# tracker_server can ocur more than once, and tracker_server format is
#  "host:port", host can be hostname or ip address
tracker_server=公网IP:22122

#standard log level as syslog, case insensitive, value list:
### emerg for emergency
### alert
### crit for critical
### error
### warn for warning
### notice
### info
### debug
log_level=info

# if use connection pool
# default value is false
use_connection_pool = false

# connections whose the idle time exceeds this time will be closed
# unit: second
# default value is 3600
connection_pool_max_idle_time = 3600

# if load FastDFS parameters from tracker server
# default value is false
load_fdfs_parameters_from_tracker=false

# if use storage ID instead of IP address
# same as tracker.conf
# valid only when load_fdfs_parameters_from_tracker is false
# default value is false
use_storage_id = false

# specify storage ids filename, can use relative or absolute path
# same as tracker.conf
# valid only when load_fdfs_parameters_from_tracker is false
storage_ids_filename = storage_ids.conf


#HTTP settings
http.tracker_server_port=80

# FastDFS
FDFS_URL = ‘http://你的公网IP:8888/‘
FDFS_CLIENT_CONF = os.path.join(BASE_DIR, ‘utils/fastdfs/client.conf‘)

文件上传后访问路径
http://你的公网IP:8888/group1/M00/00/00/wKjYiVzeVpyAFbG8AACylQSEBq8752.jpg

# 安装相关包
# fdfs_client.zip文件从百度云中下载
pip install fdfs_client-py
pip install mutagen -i https://pypi.douban.com/simple
pip install requests

# 通过 python manage.py shell 进入命令行 在命令行中测试

from fdfs_client.client import Fdfs_client
client = Fdfs_client(‘utils/fastdfs/client.conf‘)
ret = client.upload_by_filename("media/son.jpg")

# FastDFS
# django settings里面的配置 地址
FDFS_URL = ‘http://"你的公网":8888/‘
FDFS_CLIENT_CONF = os.path.join(BASE_DIR, ‘utils/fastdfs/client.conf‘)

文件上传后访问路径
http://"你的公网":8888/group1/M00/00/00/wKjYiVzeVpyAFbG8AACylQSEBq8752.jpg

5.存在的问题

from fdfs_client.client import Fdfs_client
import os


client = Fdfs_client("./client.conf")

print(client)

if os.path.isfile("linux.jpg"):
    print(os.path.isfile("dj32_test/media/linux.jpg"))
    # 只有与本文件在同级的conf文件和上传文件才可以上传，否则就会报错
    response = client.upload_by_filename("邓丽君 - 船歌.mp3")
    print(response)
else:
    print("不是文件")

# response
{‘Group name‘: ‘group1‘, ‘Remote file_id‘: ‘group1/M00/00/00/J2UAAV6_18SADQXxAJEvbdc5rgM981.mp3‘, ‘Status‘: ‘Upload successed.‘, ‘Local file name‘: ‘邓丽君 - 船歌.mp3‘, ‘Uploaded size‘: ‘9.00MB‘, ‘Storage IP‘: ‘39.101.0.1‘}

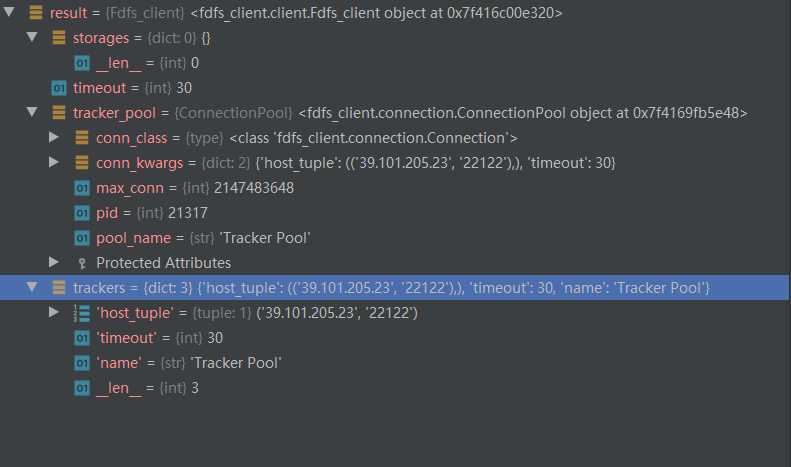

client截图：
