MyBatis多对一关系的处理

多对一关系的处理

前期准备

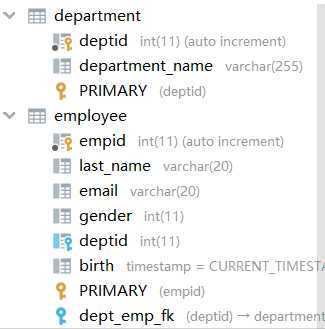

1. 数据库关系

可以看到employee是参照department表的，是多对一的关系

2. 实体类

   Department

   @Data
   public class Department {
   	private Integer deptid;
   	private String department_name;
   }


   Employee

   @Data
   public class Employee {
   private Integer empid;
   private String last_name;
   private String email;
   private Integer gender;
   //private Integer deptid;
   private Department department;
   private Date birth;
   }


3. 核心配置文件

   <?xml version="1.0" encoding="UTF-8" ?>
   <!DOCTYPE configuration
           PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
           "http://mybatis.org/dtd/mybatis-3-config.dtd">
   <configuration>
       <properties resource="DB.properties"></properties>
       <settings>
           <setting name="logImpl" value="LOG4J"/>
       </settings>
       <typeAliases>
           <package name="com.maple.pojo"/>
       </typeAliases>
       <environments default="development">
           <environment id="development">
               <transactionManager type="JDBC"/>
               <dataSource type="POOLED">
                   <property name="driver" value="${driver}"/>
                   <property name="url" value="${url}"/>
                   <property name="username" value="${username}"/>
                   <property name="password" value="${password}"/>
               </dataSource>
           </environment>
       </environments>
       <mappers>
           <mapper resource="com/maple/mapper/DepMapper.xml"/>
           <mapper resource="com/maple/mapper/EmpMapper.xml"/>
       </mappers>
   </configuration>


4. 测试类

   @Test
   public void test2(){
       SqlSession sqlSession = MyBatisUtil.getSqlSession();
       EmpMapper empMapper = sqlSession.getMapper(EmpMapper.class);
       List<Employee> empList = empMapper.queryEmpList();
       empList.forEach(emp-> System.out.println(emp));
   }
   @Test
   public void test3(){
       SqlSession sqlSession = MyBatisUtil.getSqlSession();
       EmpMapper empMapper = sqlSession.getMapper(EmpMapper.class);
       Employee employee = empMapper.queryEmpById(1001);
       System.out.println(employee);
   }


使用resultType返回类型查询

mapper文件的select

    <!--  在核心配置文件中用<typeAliases>导入Employee所在包  -->
    <select id="queryEmpList" resultType="Employee">
        select * from mybatis.employee,mybatis.department
        where employee.deptid=department.deptid
        # select * from mybatis.employee
    </select>

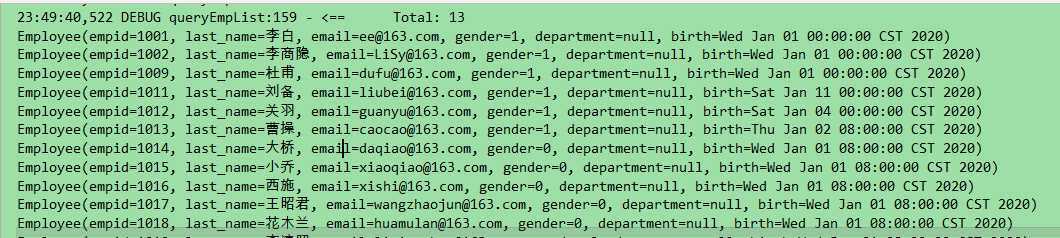

执行结果

可以看到department并没有映射到结果

解决方法

1. 按照结果嵌套处理(使用resultMap返回类型，通过子查询获取department)

   • mapper文件

     <?xml version="1.0" encoding="UTF-8" ?>
     <!DOCTYPE mapper
             PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
             "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
     <mapper namespace="com.maple.mapper.EmpMapper">
         <!--  在核心配置文件中用<typeAliases>导入Employee所在包  -->
         <resultMap id="emp" type="Employee">
             <!-- 省略了能自动映射的列  -->
             <!-- 复杂的属性需要单独处理 对象:association 集合:collection -->
             <association property="department" column="deptid" javaType="Department" select="queryDept"/>
         </resultMap>

         <select id="queryEmpList" resultMap="emp">
             select *
             from mybatis.employee
         </select>

         <select id="queryDept" resultType="com.maple.pojo.Department">
             select *
             from mybatis.department
             where deptid = #{deptid}
         </select>

         <select id="queryEmpById" resultType="Employee">

         </select>

     </mapper>

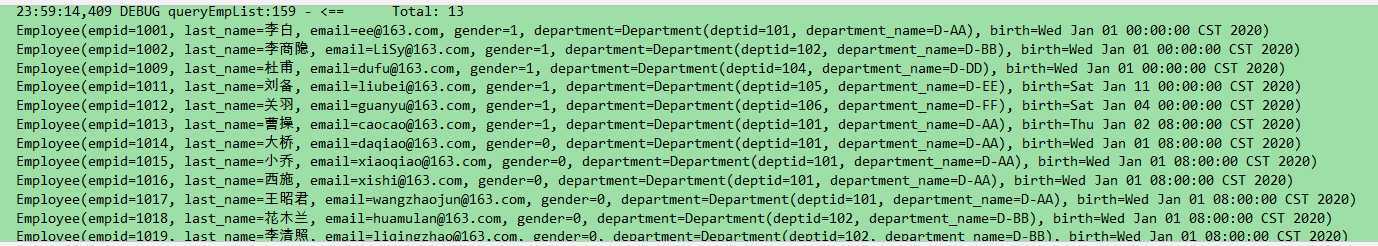

   • 执行结果



2. 按照结果嵌套处理(使用连表查询)

   mapper.xml核心代码

   	<select id="queryEmpById" resultMap="emp2" parameterType="int">
           select empid, last_name, email, gender, employee.deptid as edid, birth
                ,department.deptid as ddid, department_name
           from mybatis.department ,mybatis.employee
           where employee.deptid=department.deptid and empid=#{empid}
       </select>

       <resultMap id="emp2" type="Employee">
           <result property="empid" column="empid"/>
           <result property="last_name" column="last_name"/>
           <result property="email" column="email"/>
           <result property="gender" column="gender"/>
           <result property="birth" column="birth"/>
           <association property="department" javaType="Department">
               <result property="deptid" column="ddid"/>
               <result property="department_name" column="department_name"/>

           </association>
       </resultMap>

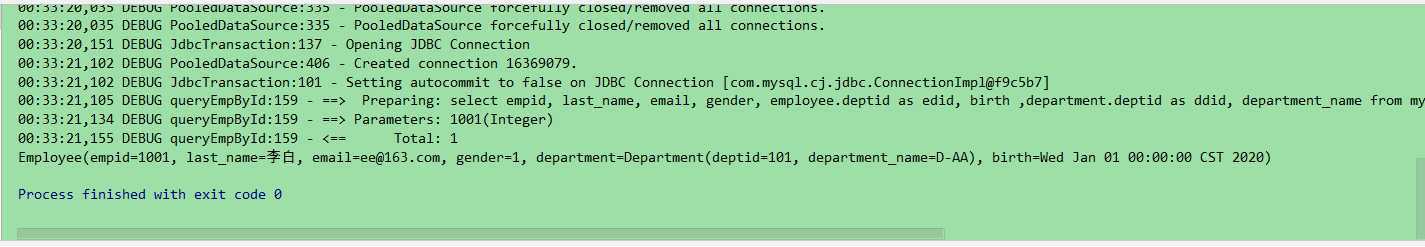

   运行结果
