Harris角检测

这里有篇原理讲解的，有兴趣自己看。https://www.cnblogs.com/Jack-Elvis/p/11640931.html

在opencv有专门的函数：

CV_EXPORTS_W void cornerHarris( InputArray src, OutputArray dst, int blockSize,
                                int ksize, double k,
                                int borderType = BORDER_DEFAULT );

The function runs the Harris corner detector on the image. Similarly to cornerMinEigenVal and
cornerEigenValsAndVecs , for each pixel \((x, y)\) it calculates a \(2\times2\) gradient covariance
matrix \(M^{(x,y)}\) over a \(\texttt{blockSize} \times \texttt{blockSize}\) neighborhood. Then, it
computes the following characteristic:

@param src Input single-channel 8-bit or floating-point image.
@param dst Image to store the Harris detector responses. It has the type CV_32FC1 and the same
size as src .
@param blockSize Neighborhood size (see the details on #cornerEigenValsAndVecs ).
@param ksize Aperture parameter for the Sobel operator.
@param k Harris detector free parameter. See the formula above.
@param borderType Pixel extrapolation method. See #BorderTypes.

那么具体怎么使用分以下几个步骤：

1. 将输入图片转成灰度

cvtColor(images, gray, COLOR_BGR2GRAY);

2. 定义参数

	double k = 0.04;
	int blocksize = 2;
	int ksize = 3;

3. 调用具体函数

cornerHarris(gray,dst,blocksize,ksize,k);

4.对结果处理，归一化，再转成8bit

	Mat dst_norm = Mat::zeros(dst.size(),dst.type());
	normalize(dst, dst_norm, 0, 255, NORM_MINMAX, -1, Mat());
	convertScaleAbs(dst_norm,dst_norm);

5. 在原图绘制结果

	for (int row = 0; row < images.rows; row++) {
		for (int col = 0; col < images.cols;col++) {
			int sp = dst_norm.at<uchar>(row, col);
			if (sp > 182) {
				circle(images, Point(col, row), 3, Scalar(0, 0, 255), 2, 8);
			}
		}
	}

实验效果：

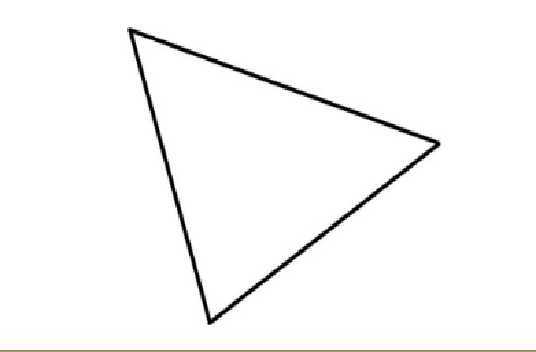

原图：

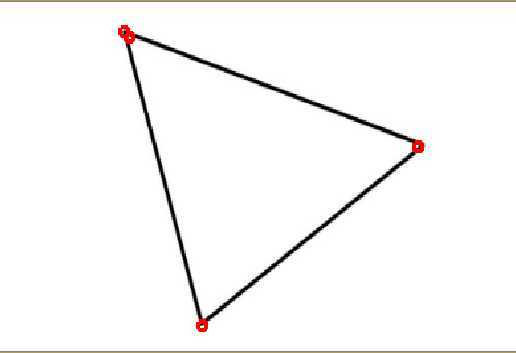

结果：

具体要绘制那些值，可以调节阀值。

注意 harris 角检测是比较慢的。
