图片的开操作

图片的开操作

• 开 = 腐蚀 + 膨胀
• 用于保留原结构， 去除干扰块
  opencv中有相关的API

CV_EXPORTS_W void morphologyEx( InputArray src, OutputArray dst,
                                int op, InputArray kernel,
                                Point anchor = Point(-1,-1), int iterations = 1,
                                int borderType = BORDER_CONSTANT,
                                const Scalar& borderValue = morphologyDefaultBorderValue() );

当op参数为 MORPH_OPEN 就是一次开操作

For instance, an opening operation (#MORPH_OPEN) with two iterations is equivalent to apply
successively: erode -> erode -> dilate -> dilate (and not erode -> dilate -> erode -> dilate)

我自定义了一次：erode -> dilate

void morphologyOpenDemo(Mat& original, int shape, cv::Size size, cv::Point anchor);
void morphologyOpenDemo(Mat& original,int shape,cv::Size size,cv::Point anchor)
{
	if (original.empty())
	{
		cout << " can`t get this ph" << endl;
	}
	namedWindow("open_source_win",WINDOW_FREERATIO);
	imshow("open_source_win",original);
	Mat kernel = getStructuringElement(shape, size, anchor);
	Mat erode_result;
	erode(original, erode_result, kernel);
	Mat dst;
	dilate(erode_result, dst, kernel);
	namedWindow("open_dst_win", WINDOW_FREERATIO);
	imshow("open_dst_win", dst);
}

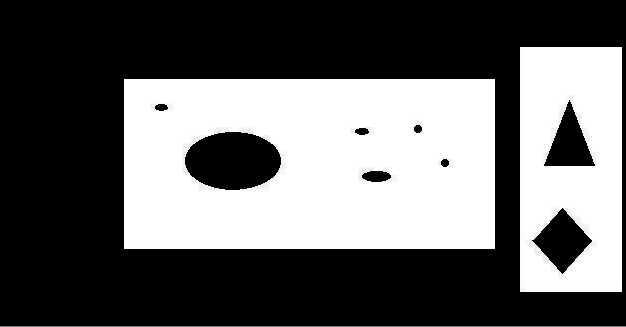

实验效果：

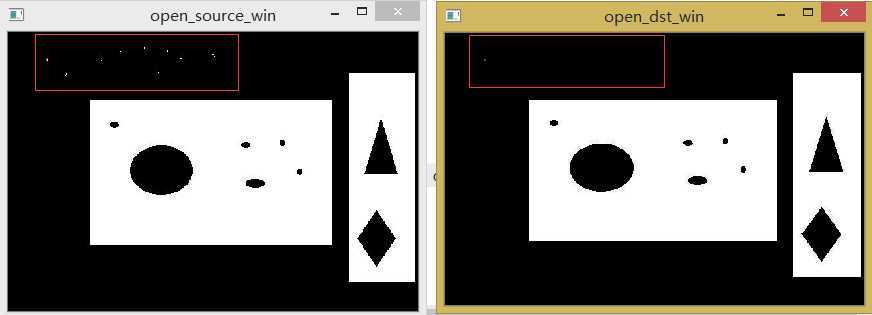

图片前后结构基本不变，画框部分干扰部分已经去除。

直接调用的结果示意图：

这里我迭代了两次，干扰部分基本完全消失。

        Mat dst;
	morphologyEx(src,dst,MORPH_OPEN,kernel,Point(-1,-1),2);
	imshow("open_dst", dst);

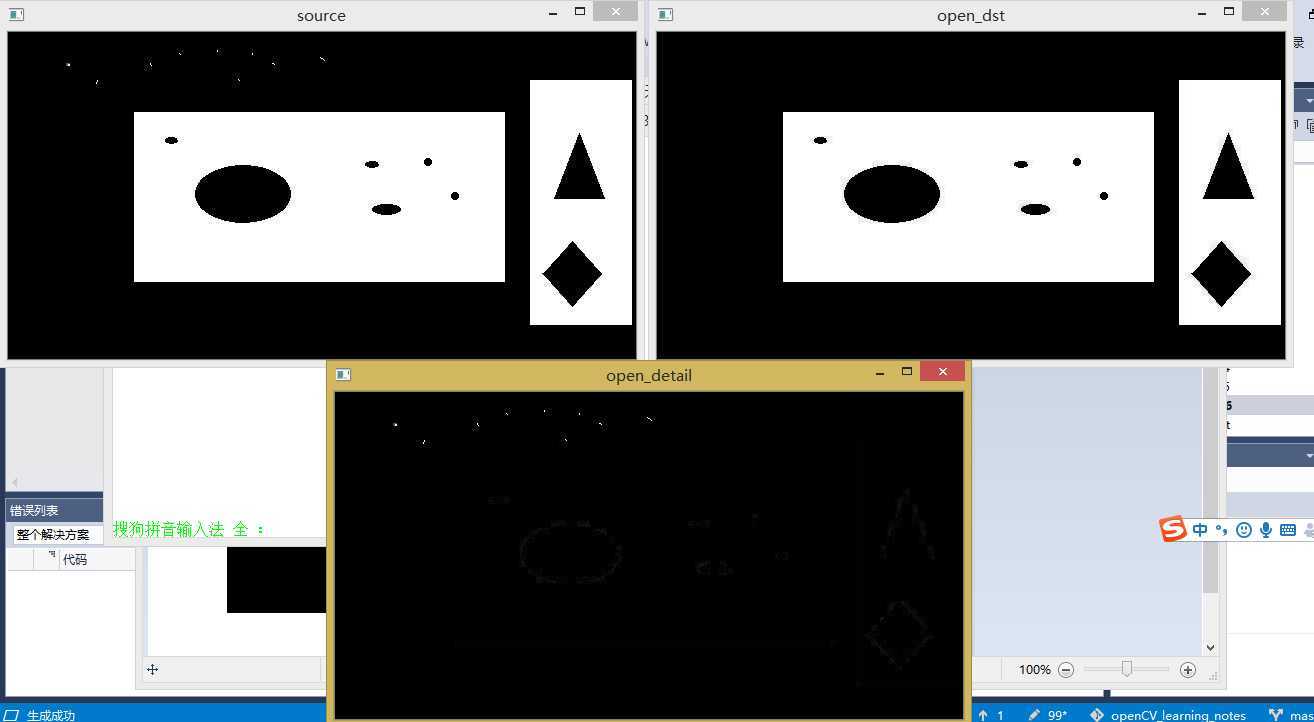

开操作 提取细节

• 细节 = 原图 -开操作

	Mat kernel = getStructuringElement(MORPH_RECT,Size(3,3),Point(-1,-1));
	Mat dst;
	morphologyEx(src,dst,MORPH_OPEN,kernel,Point(-1,-1),2);
	imshow("open_dst", dst);

	Mat detail;
	subtract(src,dst,detail);
	imshow("open_detail", detail);

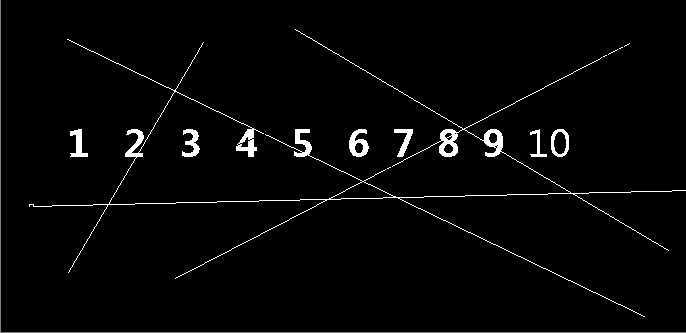

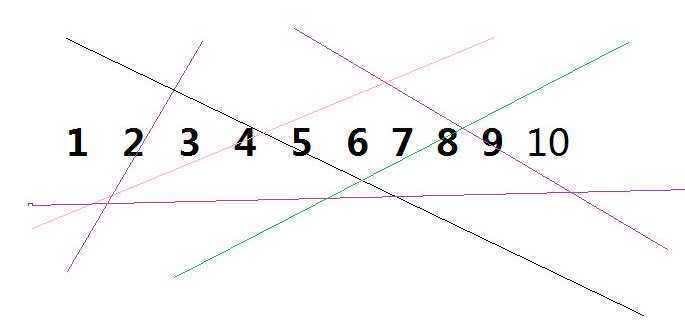

开操作去除干扰

先二值化然后开操作,这里二值化可以随意选择Canny之类，类梯度都可以。

	Mat gray, binary;
	cvtColor(src, gray, COLOR_BGR2GRAY);
	threshold(gray,binary,0,255,THRESH_BINARY_INV|THRESH_OTSU);
	Mat kernel = getStructuringElement(MORPH_RECT, Size(3, 3), Point(-1, -1));
	imshow("binary_win", binary);
	Mat dst;
	morphologyEx(binary, dst, MORPH_OPEN, kernel, Point(-1, -1), 1);
	imshow("dst_win",dst);

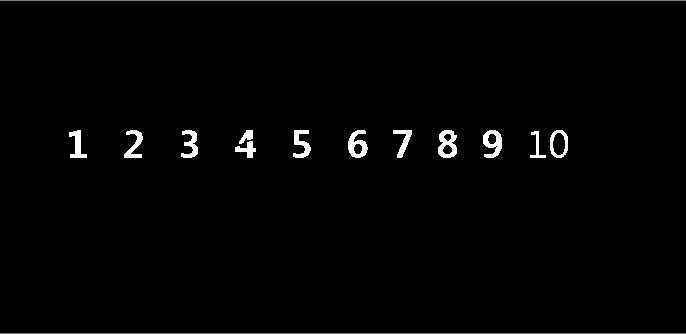

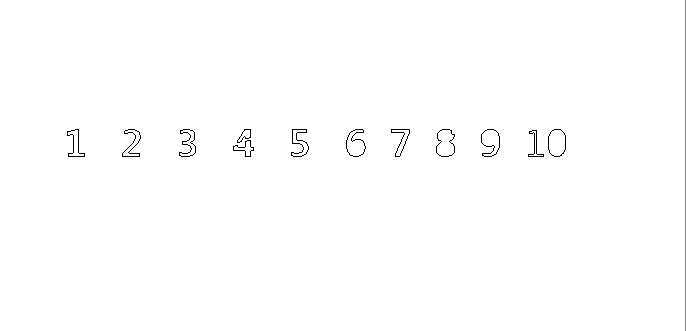

实验效果：

本节代码地址：https://github.com/cyssmile/openCV_learning_notes/blob/master/opencv_test/opencv_036/opencv_036.cpp
