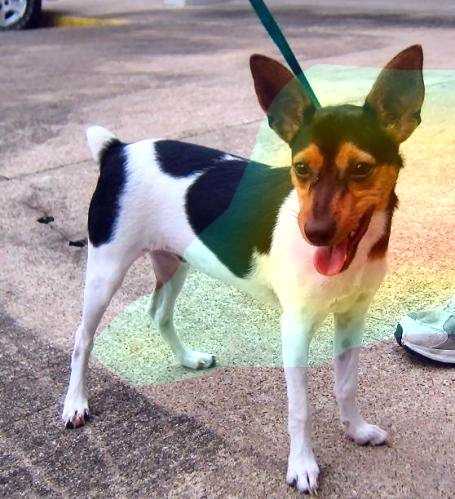

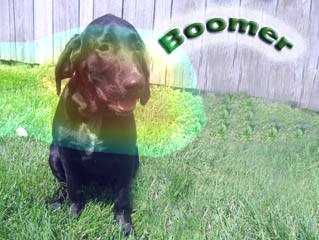

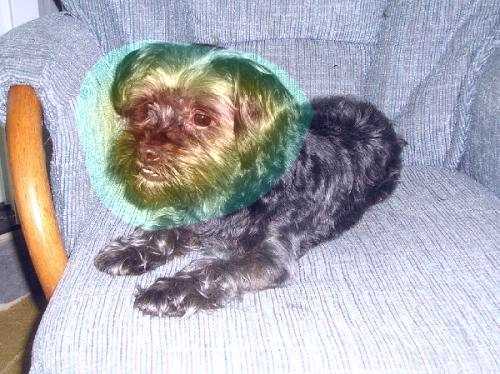

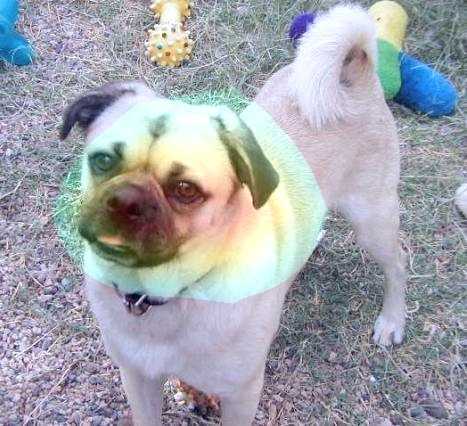

图像分类识别中，可以根据热力图来观察模型根据图片的哪部分决定图片属于一个分类。
以前面的Resnet50模型为例：https://www.cnblogs.com/zhengbiqing/p/11964301.html
输出模型结构为：
model.summary()
__________________________________________________________________________________________________
Layer (type) Output Shape Param # Connected to
==================================================================================================
input_1 (InputLayer) (None, 150, 150, 3) 0
__________________________________________________________________________________________________
conv1_pad (ZeroPadding2D) (None, 156, 156, 3) 0 input_1[0][0]
__________________________________________________________________________________________________
conv1 (Conv2D) (None, 75, 75, 64) 9472 conv1_pad[0][0]
__________________________________________________________________________________________________
bn_conv1 (BatchNormalization) (None, 75, 75, 64) 256 conv1[0][0]
__________________________________________________________________________________________________
activation_1 (Activation) (None, 75, 75, 64) 0 bn_conv1[0][0]
__________________________________________________________________________________________________
pool1_pad (ZeroPadding2D) (None, 77, 77, 64) 0 activation_1[0][0]
__________________________________________________________________________________________________
max_pooling2d_1 (MaxPooling2D) (None, 38, 38, 64) 0 pool1_pad[0][0]
__________________________________________________________________________________________________
res2a_branch2a (Conv2D) (None, 38, 38, 64) 4160 max_pooling2d_1[0][0]
__________________________________________________________________________________________________
bn2a_branch2a (BatchNormalizati (None, 38, 38, 64) 256 res2a_branch2a[0][0]
__________________________________________________________________________________________________
activation_2 (Activation) (None, 38, 38, 64) 0 bn2a_branch2a[0][0]
__________________________________________________________________________________________________
res2a_branch2b (Conv2D) (None, 38, 38, 64) 36928 activation_2[0][0]
__________________________________________________________________________________________________
bn2a_branch2b (BatchNormalizati (None, 38, 38, 64) 256 res2a_branch2b[0][0]
__________________________________________________________________________________________________
activation_3 (Activation) (None, 38, 38, 64) 0 bn2a_branch2b[0][0]
__________________________________________________________________________________________________
res2a_branch2c (Conv2D) (None, 38, 38, 256) 16640 activation_3[0][0]
__________________________________________________________________________________________________
res2a_branch1 (Conv2D) (None, 38, 38, 256) 16640 max_pooling2d_1[0][0]
__________________________________________________________________________________________________
bn2a_branch2c (BatchNormalizati (None, 38, 38, 256) 1024 res2a_branch2c[0][0]
__________________________________________________________________________________________________
bn2a_branch1 (BatchNormalizatio (None, 38, 38, 256) 1024 res2a_branch1[0][0]
__________________________________________________________________________________________________
add_1 (Add) (None, 38, 38, 256) 0 bn2a_branch2c[0][0]
bn2a_branch1[0][0]
__________________________________________________________________________________________________
activation_4 (Activation) (None, 38, 38, 256) 0 add_1[0][0]
__________________________________________________________________________________________________
res2b_branch2a (Conv2D) (None, 38, 38, 64) 16448 activation_4[0][0]
__________________________________________________________________________________________________
bn2b_branch2a (BatchNormalizati (None, 38, 38, 64) 256 res2b_branch2a[0][0]
__________________________________________________________________________________________________
activation_5 (Activation) (None, 38, 38, 64) 0 bn2b_branch2a[0][0]
__________________________________________________________________________________________________
res2b_branch2b (Conv2D) (None, 38, 38, 64) 36928 activation_5[0][0]
__________________________________________________________________________________________________
bn2b_branch2b (BatchNormalizati (None, 38, 38, 64) 256 res2b_branch2b[0][0]
__________________________________________________________________________________________________
activation_6 (Activation) (None, 38, 38, 64) 0 bn2b_branch2b[0][0]
__________________________________________________________________________________________________
res2b_branch2c (Conv2D) (None, 38, 38, 256) 16640 activation_6[0][0]
__________________________________________________________________________________________________
bn2b_branch2c (BatchNormalizati (None, 38, 38, 256) 1024 res2b_branch2c[0][0]
__________________________________________________________________________________________________
add_2 (Add) (None, 38, 38, 256) 0 bn2b_branch2c[0][0]
activation_4[0][0]
__________________________________________________________________________________________________
activation_7 (Activation) (None, 38, 38, 256) 0 add_2[0][0]
__________________________________________________________________________________________________
res2c_branch2a (Conv2D) (None, 38, 38, 64) 16448 activation_7[0][0]
__________________________________________________________________________________________________
bn2c_branch2a (BatchNormalizati (None, 38, 38, 64) 256 res2c_branch2a[0][0]
__________________________________________________________________________________________________
activation_8 (Activation) (None, 38, 38, 64) 0 bn2c_branch2a[0][0]
__________________________________________________________________________________________________
res2c_branch2b (Conv2D) (None, 38, 38, 64) 36928 activation_8[0][0]
__________________________________________________________________________________________________
bn2c_branch2b (BatchNormalizati (None, 38, 38, 64) 256 res2c_branch2b[0][0]
__________________________________________________________________________________________________
activation_9 (Activation) (None, 38, 38, 64) 0 bn2c_branch2b[0][0]
__________________________________________________________________________________________________
res2c_branch2c (Conv2D) (None, 38, 38, 256) 16640 activation_9[0][0]
__________________________________________________________________________________________________
bn2c_branch2c (BatchNormalizati (None, 38, 38, 256) 1024 res2c_branch2c[0][0]
__________________________________________________________________________________________________
add_3 (Add) (None, 38, 38, 256) 0 bn2c_branch2c[0][0]
activation_7[0][0]
__________________________________________________________________________________________________
activation_10 (Activation) (None, 38, 38, 256) 0 add_3[0][0]
__________________________________________________________________________________________________
res3a_branch2a (Conv2D) (None, 19, 19, 128) 32896 activation_10[0][0]
__________________________________________________________________________________________________
bn3a_branch2a (BatchNormalizati (None, 19, 19, 128) 512 res3a_branch2a[0][0]
__________________________________________________________________________________________________
activation_11 (Activation) (None, 19, 19, 128) 0 bn3a_branch2a[0][0]
__________________________________________________________________________________________________
res3a_branch2b (Conv2D) (None, 19, 19, 128) 147584 activation_11[0][0]
__________________________________________________________________________________________________
bn3a_branch2b (BatchNormalizati (None, 19, 19, 128) 512 res3a_branch2b[0][0]
__________________________________________________________________________________________________
activation_12 (Activation) (None, 19, 19, 128) 0 bn3a_branch2b[0][0]
__________________________________________________________________________________________________
res3a_branch2c (Conv2D) (None, 19, 19, 512) 66048 activation_12[0][0]
__________________________________________________________________________________________________
res3a_branch1 (Conv2D) (None, 19, 19, 512) 131584 activation_10[0][0]
__________________________________________________________________________________________________
bn3a_branch2c (BatchNormalizati (None, 19, 19, 512) 2048 res3a_branch2c[0][0]
__________________________________________________________________________________________________
bn3a_branch1 (BatchNormalizatio (None, 19, 19, 512) 2048 res3a_branch1[0][0]
__________________________________________________________________________________________________
add_4 (Add) (None, 19, 19, 512) 0 bn3a_branch2c[0][0]
bn3a_branch1[0][0]
__________________________________________________________________________________________________
activation_13 (Activation) (None, 19, 19, 512) 0 add_4[0][0]
__________________________________________________________________________________________________
res3b_branch2a (Conv2D) (None, 19, 19, 128) 65664 activation_13[0][0]
__________________________________________________________________________________________________
bn3b_branch2a (BatchNormalizati (None, 19, 19, 128) 512 res3b_branch2a[0][0]
__________________________________________________________________________________________________
activation_14 (Activation) (None, 19, 19, 128) 0 bn3b_branch2a[0][0]
__________________________________________________________________________________________________
res3b_branch2b (Conv2D) (None, 19, 19, 128) 147584 activation_14[0][0]
__________________________________________________________________________________________________
bn3b_branch2b (BatchNormalizati (None, 19, 19, 128) 512 res3b_branch2b[0][0]
__________________________________________________________________________________________________
activation_15 (Activation) (None, 19, 19, 128) 0 bn3b_branch2b[0][0]
__________________________________________________________________________________________________
res3b_branch2c (Conv2D) (None, 19, 19, 512) 66048 activation_15[0][0]
__________________________________________________________________________________________________
bn3b_branch2c (BatchNormalizati (None, 19, 19, 512) 2048 res3b_branch2c[0][0]
__________________________________________________________________________________________________
add_5 (Add) (None, 19, 19, 512) 0 bn3b_branch2c[0][0]
activation_13[0][0]
__________________________________________________________________________________________________
activation_16 (Activation) (None, 19, 19, 512) 0 add_5[0][0]
__________________________________________________________________________________________________
res3c_branch2a (Conv2D) (None, 19, 19, 128) 65664 activation_16[0][0]
__________________________________________________________________________________________________
bn3c_branch2a (BatchNormalizati (None, 19, 19, 128) 512 res3c_branch2a[0][0]
__________________________________________________________________________________________________
activation_17 (Activation) (None, 19, 19, 128) 0 bn3c_branch2a[0][0]
__________________________________________________________________________________________________
res3c_branch2b (Conv2D) (None, 19, 19, 128) 147584 activation_17[0][0]
__________________________________________________________________________________________________
bn3c_branch2b (BatchNormalizati (None, 19, 19, 128) 512 res3c_branch2b[0][0]
__________________________________________________________________________________________________
activation_18 (Activation) (None, 19, 19, 128) 0 bn3c_branch2b[0][0]
__________________________________________________________________________________________________
res3c_branch2c (Conv2D) (None, 19, 19, 512) 66048 activation_18[0][0]
__________________________________________________________________________________________________
bn3c_branch2c (BatchNormalizati (None, 19, 19, 512) 2048 res3c_branch2c[0][0]
__________________________________________________________________________________________________
add_6 (Add) (None, 19, 19, 512) 0 bn3c_branch2c[0][0]
activation_16[0][0]
__________________________________________________________________________________________________
activation_19 (Activation) (None, 19, 19, 512) 0 add_6[0][0]
__________________________________________________________________________________________________
res3d_branch2a (Conv2D) (None, 19, 19, 128) 65664 activation_19[0][0]
__________________________________________________________________________________________________
bn3d_branch2a (BatchNormalizati (None, 19, 19, 128) 512 res3d_branch2a[0][0]
__________________________________________________________________________________________________
activation_20 (Activation) (None, 19, 19, 128) 0 bn3d_branch2a[0][0]
__________________________________________________________________________________________________
res3d_branch2b (Conv2D) (None, 19, 19, 128) 147584 activation_20[0][0]
__________________________________________________________________________________________________
bn3d_branch2b (BatchNormalizati (None, 19, 19, 128) 512 res3d_branch2b[0][0]
__________________________________________________________________________________________________
activation_21 (Activation) (None, 19, 19, 128) 0 bn3d_branch2b[0][0]
__________________________________________________________________________________________________
res3d_branch2c (Conv2D) (None, 19, 19, 512) 66048 activation_21[0][0]
__________________________________________________________________________________________________
bn3d_branch2c (BatchNormalizati (None, 19, 19, 512) 2048 res3d_branch2c[0][0]
__________________________________________________________________________________________________
add_7 (Add) (None, 19, 19, 512) 0 bn3d_branch2c[0][0]
activation_19[0][0]
__________________________________________________________________________________________________
activation_22 (Activation) (None, 19, 19, 512) 0 add_7[0][0]
__________________________________________________________________________________________________
res4a_branch2a (Conv2D) (None, 10, 10, 256) 131328 activation_22[0][0]
__________________________________________________________________________________________________
bn4a_branch2a (BatchNormalizati (None, 10, 10, 256) 1024 res4a_branch2a[0][0]
__________________________________________________________________________________________________
activation_23 (Activation) (None, 10, 10, 256) 0 bn4a_branch2a[0][0]
__________________________________________________________________________________________________
res4a_branch2b (Conv2D) (None, 10, 10, 256) 590080 activation_23[0][0]
__________________________________________________________________________________________________
bn4a_branch2b (BatchNormalizati (None, 10, 10, 256) 1024 res4a_branch2b[0][0]
__________________________________________________________________________________________________
activation_24 (Activation) (None, 10, 10, 256) 0 bn4a_branch2b[0][0]
__________________________________________________________________________________________________
res4a_branch2c (Conv2D) (None, 10, 10, 1024) 263168 activation_24[0][0]
__________________________________________________________________________________________________
res4a_branch1 (Conv2D) (None, 10, 10, 1024) 525312 activation_22[0][0]
__________________________________________________________________________________________________
bn4a_branch2c (BatchNormalizati (None, 10, 10, 1024) 4096 res4a_branch2c[0][0]
__________________________________________________________________________________________________
bn4a_branch1 (BatchNormalizatio (None, 10, 10, 1024) 4096 res4a_branch1[0][0]
__________________________________________________________________________________________________
add_8 (Add) (None, 10, 10, 1024) 0 bn4a_branch2c[0][0]
bn4a_branch1[0][0]
__________________________________________________________________________________________________
activation_25 (Activation) (None, 10, 10, 1024) 0 add_8[0][0]
__________________________________________________________________________________________________
res4b_branch2a (Conv2D) (None, 10, 10, 256) 262400 activation_25[0][0]
__________________________________________________________________________________________________
bn4b_branch2a (BatchNormalizati (None, 10, 10, 256) 1024 res4b_branch2a[0][0]
__________________________________________________________________________________________________
activation_26 (Activation) (None, 10, 10, 256) 0 bn4b_branch2a[0][0]
__________________________________________________________________________________________________
res4b_branch2b (Conv2D) (None, 10, 10, 256) 590080 activation_26[0][0]
__________________________________________________________________________________________________
bn4b_branch2b (BatchNormalizati (None, 10, 10, 256) 1024 res4b_branch2b[0][0]
__________________________________________________________________________________________________
activation_27 (Activation) (None, 10, 10, 256) 0 bn4b_branch2b[0][0]
__________________________________________________________________________________________________
res4b_branch2c (Conv2D) (None, 10, 10, 1024) 263168 activation_27[0][0]
__________________________________________________________________________________________________
bn4b_branch2c (BatchNormalizati (None, 10, 10, 1024) 4096 res4b_branch2c[0][0]
__________________________________________________________________________________________________
add_9 (Add) (None, 10, 10, 1024) 0 bn4b_branch2c[0][0]
activation_25[0][0]
__________________________________________________________________________________________________
activation_28 (Activation) (None, 10, 10, 1024) 0 add_9[0][0]
__________________________________________________________________________________________________
res4c_branch2a (Conv2D) (None, 10, 10, 256) 262400 activation_28[0][0]
__________________________________________________________________________________________________
bn4c_branch2a (BatchNormalizati (None, 10, 10, 256) 1024 res4c_branch2a[0][0]
__________________________________________________________________________________________________
activation_29 (Activation) (None, 10, 10, 256) 0 bn4c_branch2a[0][0]
__________________________________________________________________________________________________
res4c_branch2b (Conv2D) (None, 10, 10, 256) 590080 activation_29[0][0]
__________________________________________________________________________________________________
bn4c_branch2b (BatchNormalizati (None, 10, 10, 256) 1024 res4c_branch2b[0][0]
__________________________________________________________________________________________________
activation_30 (Activation) (None, 10, 10, 256) 0 bn4c_branch2b[0][0]
__________________________________________________________________________________________________
res4c_branch2c (Conv2D) (None, 10, 10, 1024) 263168 activation_30[0][0]
__________________________________________________________________________________________________
bn4c_branch2c (BatchNormalizati (None, 10, 10, 1024) 4096 res4c_branch2c[0][0]
__________________________________________________________________________________________________
add_10 (Add) (None, 10, 10, 1024) 0 bn4c_branch2c[0][0]
activation_28[0][0]
__________________________________________________________________________________________________
activation_31 (Activation) (None, 10, 10, 1024) 0 add_10[0][0]
__________________________________________________________________________________________________
res4d_branch2a (Conv2D) (None, 10, 10, 256) 262400 activation_31[0][0]
__________________________________________________________________________________________________
bn4d_branch2a (BatchNormalizati (None, 10, 10, 256) 1024 res4d_branch2a[0][0]
__________________________________________________________________________________________________
activation_32 (Activation) (None, 10, 10, 256) 0 bn4d_branch2a[0][0]
__________________________________________________________________________________________________
res4d_branch2b (Conv2D) (None, 10, 10, 256) 590080 activation_32[0][0]
__________________________________________________________________________________________________
bn4d_branch2b (BatchNormalizati (None, 10, 10, 256) 1024 res4d_branch2b[0][0]
__________________________________________________________________________________________________
activation_33 (Activation) (None, 10, 10, 256) 0 bn4d_branch2b[0][0]
__________________________________________________________________________________________________
res4d_branch2c (Conv2D) (None, 10, 10, 1024) 263168 activation_33[0][0]
__________________________________________________________________________________________________
bn4d_branch2c (BatchNormalizati (None, 10, 10, 1024) 4096 res4d_branch2c[0][0]
__________________________________________________________________________________________________
add_11 (Add) (None, 10, 10, 1024) 0 bn4d_branch2c[0][0]
activation_31[0][0]
__________________________________________________________________________________________________
activation_34 (Activation) (None, 10, 10, 1024) 0 add_11[0][0]
__________________________________________________________________________________________________
res4e_branch2a (Conv2D) (None, 10, 10, 256) 262400 activation_34[0][0]
__________________________________________________________________________________________________
bn4e_branch2a (BatchNormalizati (None, 10, 10, 256) 1024 res4e_branch2a[0][0]
__________________________________________________________________________________________________
activation_35 (Activation) (None, 10, 10, 256) 0 bn4e_branch2a[0][0]
__________________________________________________________________________________________________
res4e_branch2b (Conv2D) (None, 10, 10, 256) 590080 activation_35[0][0]
__________________________________________________________________________________________________
bn4e_branch2b (BatchNormalizati (None, 10, 10, 256) 1024 res4e_branch2b[0][0]
__________________________________________________________________________________________________
activation_36 (Activation) (None, 10, 10, 256) 0 bn4e_branch2b[0][0]
__________________________________________________________________________________________________
res4e_branch2c (Conv2D) (None, 10, 10, 1024) 263168 activation_36[0][0]
__________________________________________________________________________________________________
bn4e_branch2c (BatchNormalizati (None, 10, 10, 1024) 4096 res4e_branch2c[0][0]
__________________________________________________________________________________________________
add_12 (Add) (None, 10, 10, 1024) 0 bn4e_branch2c[0][0]
activation_34[0][0]
__________________________________________________________________________________________________
activation_37 (Activation) (None, 10, 10, 1024) 0 add_12[0][0]
__________________________________________________________________________________________________
res4f_branch2a (Conv2D) (None, 10, 10, 256) 262400 activation_37[0][0]
__________________________________________________________________________________________________
bn4f_branch2a (BatchNormalizati (None, 10, 10, 256) 1024 res4f_branch2a[0][0]
__________________________________________________________________________________________________
activation_38 (Activation) (None, 10, 10, 256) 0 bn4f_branch2a[0][0]
__________________________________________________________________________________________________
res4f_branch2b (Conv2D) (None, 10, 10, 256) 590080 activation_38[0][0]
__________________________________________________________________________________________________
bn4f_branch2b (BatchNormalizati (None, 10, 10, 256) 1024 res4f_branch2b[0][0]
__________________________________________________________________________________________________
activation_39 (Activation) (None, 10, 10, 256) 0 bn4f_branch2b[0][0]
__________________________________________________________________________________________________
res4f_branch2c (Conv2D) (None, 10, 10, 1024) 263168 activation_39[0][0]
__________________________________________________________________________________________________
bn4f_branch2c (BatchNormalizati (None, 10, 10, 1024) 4096 res4f_branch2c[0][0]
__________________________________________________________________________________________________
add_13 (Add) (None, 10, 10, 1024) 0 bn4f_branch2c[0][0]
activation_37[0][0]
__________________________________________________________________________________________________
activation_40 (Activation) (None, 10, 10, 1024) 0 add_13[0][0]
__________________________________________________________________________________________________
res5a_branch2a (Conv2D) (None, 5, 5, 512) 524800 activation_40[0][0]
__________________________________________________________________________________________________
bn5a_branch2a (BatchNormalizati (None, 5, 5, 512) 2048 res5a_branch2a[0][0]
__________________________________________________________________________________________________
activation_41 (Activation) (None, 5, 5, 512) 0 bn5a_branch2a[0][0]
__________________________________________________________________________________________________
res5a_branch2b (Conv2D) (None, 5, 5, 512) 2359808 activation_41[0][0]
__________________________________________________________________________________________________
bn5a_branch2b (BatchNormalizati (None, 5, 5, 512) 2048 res5a_branch2b[0][0]
__________________________________________________________________________________________________
activation_42 (Activation) (None, 5, 5, 512) 0 bn5a_branch2b[0][0]
__________________________________________________________________________________________________
res5a_branch2c (Conv2D) (None, 5, 5, 2048) 1050624 activation_42[0][0]
__________________________________________________________________________________________________
res5a_branch1 (Conv2D) (None, 5, 5, 2048) 2099200 activation_40[0][0]
__________________________________________________________________________________________________
bn5a_branch2c (BatchNormalizati (None, 5, 5, 2048) 8192 res5a_branch2c[0][0]
__________________________________________________________________________________________________
bn5a_branch1 (BatchNormalizatio (None, 5, 5, 2048) 8192 res5a_branch1[0][0]
__________________________________________________________________________________________________
add_14 (Add) (None, 5, 5, 2048) 0 bn5a_branch2c[0][0]
bn5a_branch1[0][0]
__________________________________________________________________________________________________
activation_43 (Activation) (None, 5, 5, 2048) 0 add_14[0][0]
__________________________________________________________________________________________________
res5b_branch2a (Conv2D) (None, 5, 5, 512) 1049088 activation_43[0][0]
__________________________________________________________________________________________________
bn5b_branch2a (BatchNormalizati (None, 5, 5, 512) 2048 res5b_branch2a[0][0]
__________________________________________________________________________________________________
activation_44 (Activation) (None, 5, 5, 512) 0 bn5b_branch2a[0][0]
__________________________________________________________________________________________________
res5b_branch2b (Conv2D) (None, 5, 5, 512) 2359808 activation_44[0][0]
__________________________________________________________________________________________________
bn5b_branch2b (BatchNormalizati (None, 5, 5, 512) 2048 res5b_branch2b[0][0]
__________________________________________________________________________________________________
activation_45 (Activation) (None, 5, 5, 512) 0 bn5b_branch2b[0][0]
__________________________________________________________________________________________________
res5b_branch2c (Conv2D) (None, 5, 5, 2048) 1050624 activation_45[0][0]
__________________________________________________________________________________________________
bn5b_branch2c (BatchNormalizati (None, 5, 5, 2048) 8192 res5b_branch2c[0][0]
__________________________________________________________________________________________________
add_15 (Add) (None, 5, 5, 2048) 0 bn5b_branch2c[0][0]
activation_43[0][0]
__________________________________________________________________________________________________
activation_46 (Activation) (None, 5, 5, 2048) 0 add_15[0][0]
__________________________________________________________________________________________________
res5c_branch2a (Conv2D) (None, 5, 5, 512) 1049088 activation_46[0][0]
__________________________________________________________________________________________________
bn5c_branch2a (BatchNormalizati (None, 5, 5, 512) 2048 res5c_branch2a[0][0]
__________________________________________________________________________________________________
activation_47 (Activation) (None, 5, 5, 512) 0 bn5c_branch2a[0][0]
__________________________________________________________________________________________________
res5c_branch2b (Conv2D) (None, 5, 5, 512) 2359808 activation_47[0][0]
__________________________________________________________________________________________________
bn5c_branch2b (BatchNormalizati (None, 5, 5, 512) 2048 res5c_branch2b[0][0]
__________________________________________________________________________________________________
activation_48 (Activation) (None, 5, 5, 512) 0 bn5c_branch2b[0][0]
__________________________________________________________________________________________________
res5c_branch2c (Conv2D) (None, 5, 5, 2048) 1050624 activation_48[0][0]
__________________________________________________________________________________________________
bn5c_branch2c (BatchNormalizati (None, 5, 5, 2048) 8192 res5c_branch2c[0][0]
__________________________________________________________________________________________________
add_16 (Add) (None, 5, 5, 2048) 0 bn5c_branch2c[0][0]
activation_46[0][0]
__________________________________________________________________________________________________
activation_49 (Activation) (None, 5, 5, 2048) 0 add_16[0][0]
__________________________________________________________________________________________________
global_average_pooling2d_1 (Glo (None, 2048) 0 activation_49[0][0]
__________________________________________________________________________________________________
dense_1 (Dense) (None, 1024) 2098176 global_average_pooling2d_1[0][0]
__________________________________________________________________________________________________
batch_normalization_1 (BatchNor (None, 1024) 4096 dense_1[0][0]
__________________________________________________________________________________________________
activation_50 (Activation) (None, 1024) 0 batch_normalization_1[0][0]
__________________________________________________________________________________________________
dropout_1 (Dropout) (None, 1024) 0 activation_50[0][0]
__________________________________________________________________________________________________
dense_2 (Dense) (None, 1) 1025 dropout_1[0][0]
==================================================================================================
Total params: 25,691,009
Trainable params: 2,101,249
Non-trainable params: 23,589,760
__________________________________________________________________________________________________
得到热力图函数：
def get_heatmap(model, index, last_conv_layer_name, out_channel): output = model.output[:, index] # The is the output feature map of the last convolutional layer, last_conv_layer = model.get_layer(last_conv_layer_name) # This is the gradient of the output class with regard to # the output feature map of last convolutional layer grads = K.gradients(output, last_conv_layer.output)[0] # This is a vector of shape (512,), where each entry # is the mean intensity of the gradient over a specific feature map channel pooled_grads = K.mean(grads, axis=(0, 1, 2)) # This function allows us to access the values of the quantities we just defined: # `pooled_grads` and the output feature map of last convolutional layer, # given a sample image iterate = K.function([model.input], [pooled_grads, last_conv_layer.output[0]]) # These are the values of these two quantities, as Numpy arrays, # given our sample image of two elephants pooled_grads_value, conv_layer_output_value = iterate([x]) # We multiply each channel in the feature map array # by "how important this channel is" with regard to the class for i in range(out_channel): conv_layer_output_value[:, :, i] *= pooled_grads_value[i] # The channel-wise mean of the resulting feature map # is our heatmap of class activation heatmap = np.mean(conv_layer_output_value, axis=-1) heatmap = np.maximum(heatmap, 0) return heatmap
识别图片，得到热力图：
test_files = os.listdir(test_dir) tgt_dir = r‘D:\heatmap_out‘ for f in test_files: abs_f = os.path.join(test_dir, f) img = cv2.imdecode(np.fromfile(abs_f, dtype=np.uint8), cv2.IMREAD_UNCHANGED) img = cv2.resize(img, (150,150), cv2.INTER_LINEAR) x = np.expand_dims(np.asarray(img), axis=0) preds = model.predict(x) preds = preds.tolist()[0] index = np.argmax(preds) heatmap = get_heatmap(model, index, ‘activation_49‘, 2048) heatmap /= np.max(heatmap) imgt = cv2.imdecode(np.fromfile(abs_f, dtype=np.uint8), cv2.IMREAD_UNCHANGED) #cv2.imread(path) heatmapt = cv2.resize(heatmap.copy(), (imgt.shape[1], imgt.shape[0])) # We convert the heatmap to RGB heatmapt = np.uint8(255 * heatmapt) heatmapt[heatmapt < 80] = 0 # We apply the heatmap to the original image heatmapt = cv2.applyColorMap(heatmapt, cv2.COLORMAP_JET) # 0.3 here is a heatmap intensity factor superimposed_img = heatmapt * 0.3 + imgt cv2.imencode(‘.jpg‘, superimposed_img)[1].tofile(os.path.join(tgt_dir,f))
其中：
get_heatmap(index, ‘activation_49‘, 2048)
根据不同的模型，填入不同的卷积层名称和通道数。根据前面打印的模型结构：
__________________________________________________________________________________________________ activation_49 (Activation) (None, 5, 5, 2048) 0 add_16[0][0] __________________________________________________________________________________________________
这里为‘activation_49‘、2048。
得到的热力图结果图片：
原文：https://www.cnblogs.com/zhengbiqing/p/12506331.html
