tensorflow 2.0 学习 （十五）自编码器 FashionMNIST数据集图像重建

  1 import os
  2 import numpy as np
  3 import tensorflow as tf
  4 from tensorflow import keras
  5 from tensorflow.keras import layers, losses, optimizers, Model, Sequential
  6 from PIL import Image
  7 import matplotlib.pyplot as plt
  8
  9 batchsz = 128  # 批量大小
 10 h_dim = 20  # 中间隐藏层维度
 11 lr = 0.001
 12
 13 # 加载Fashion MNIST 图片数据集
 14 (x_train, y_train), (x_test, y_test) = keras.datasets.fashion_mnist.load_data()
 15 print(‘x_train shape:‘, x_train.shape, tf.reduce_max(y_train), tf.reduce_min(y_train))
 16 # x_train shape: (60000, 28, 28) tf.Tensor(9, shape=(), dtype=uint8) tf.Tensor(0, shape=(), dtype=uint8)
 17 print(‘x_test shape:‘, x_test.shape)  # x_test shape: (10000, 28, 28)
 18
 19 # 归一化
 20 x_train, x_test = x_train.astype(np.float32) / 255., x_test.astype(np.float32) / 255.
 21 # 只需要通过图片数据即可构建数据集对象，不需要标签
 22 train_db = tf.data.Dataset.from_tensor_slices(x_train)
 23 train_db = train_db.shuffle(10000).batch(batchsz)
 24 # 构建测试集对象
 25 test_db = tf.data.Dataset.from_tensor_slices(x_test)
 26 test_db = test_db.shuffle(1000).batch(batchsz)
 27
 28

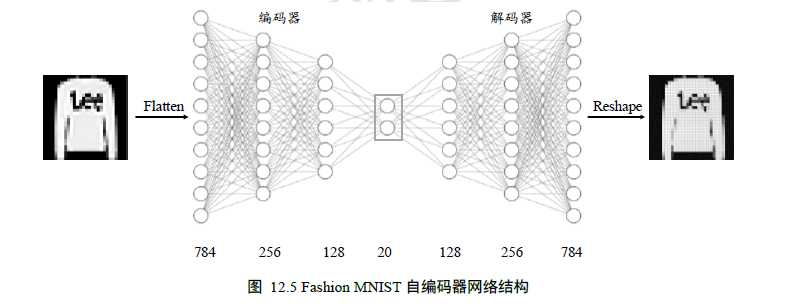

 29 class AE(Model):
 30     # 自编码器模型类，包含了Encoder 和Decoder2 个子网络
 31     def __init__(self):
 32         super(AE, self).__init__()
 33         # 创建Encoders 网络
 34         self.encoder = Sequential([
 35             layers.Dense(256, activation=tf.nn.relu),
 36             layers.Dense(128, activation=tf.nn.relu),
 37             layers.Dense(h_dim)])
 38         # 创建Decoders 网络
 39         self.decoder = Sequential([
 40             layers.Dense(128, activation=tf.nn.relu),
 41             layers.Dense(256, activation=tf.nn.relu),
 42             layers.Dense(784)])
 43
 44     def call(self, inputs, training=None):
 45         #  前向传播函数
 46         #  编码获得隐藏向量h,[b, 784] => [b, 20]
 47         h = self.encoder(inputs)
 48         # 解码获得重建图片，[b, 20] => [b, 784]
 49         x_hat = self.decoder(h)
 50         return x_hat
 51
 52
 53 def save_images(imgs, name):
 54     # 创建280x280 大小图片阵列
 55     new_im = Image.new(‘L‘, (280, 280))
 56     index = 0
 57     for i in range(0, 280, 28):  # 10 行图片阵列
 58         for j in range(0, 280, 28):  # 10 列图片阵列
 59             im = imgs[index]
 60             im = Image.fromarray(im, mode=‘L‘)
 61             new_im.paste(im, (i, j))  # 写入对应位置
 62             index += 1
 63     # 保存图片阵列
 64     new_im.save(name)
 65
 66

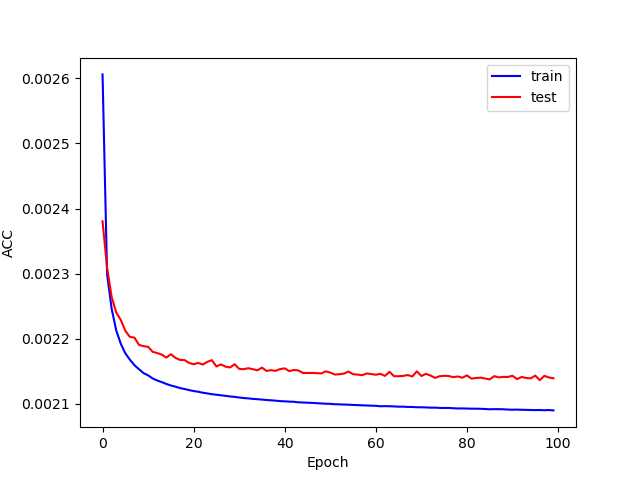

 67 def draw():
 68     plt.figure()
 69     plt.plot(train_tot_loss, ‘b‘, label=‘train‘)
 70     plt.plot(test_tot_loss, ‘r‘, label=‘test‘)
 71     plt.xlabel(‘Epoch‘)
 72     plt.ylabel(‘ACC‘)
 73     plt.legend()
 74     plt.savefig(‘exam10.1_train_test_AE.png‘)
 75     plt.show()
 76
 77
 78 # 创建网络对象
 79 model = AE()
 80 # 指定输入大小
 81 model.build(input_shape=(None, 784))
 82 # 打印网络信息
 83 model.summary()
 84 # 创建优化器，并设置学习率
 85 optimizer = optimizers.Adam(lr=lr)
 86 # 保存训练和测试过程中的误差情况
 87 train_tot_loss = []
 88 test_tot_loss = []
 89
 90
 91 def main():
 92     for epoch in range(100):  # 训练100 个Epoch
 93
 94         cor, tot = 0, 0
 95         for step, x in enumerate(train_db):  # 遍历训练集
 96             # 打平，[b, 28, 28] => [b, 784]
 97             x = tf.reshape(x, [-1, 784])
 98             # 构建梯度记录器
 99             with tf.GradientTape() as tape:
100                 # 前向计算获得重建的图片
101                 x_rec_logits = model(x)
102                 # 计算重建图片与输入之间的损失函数
103                 rec_loss = tf.nn.sigmoid_cross_entropy_with_logits(labels=x, logits=x_rec_logits)
104                 # 计算均值
105                 rec_loss = tf.reduce_mean(rec_loss)
106                 cor += rec_loss
107                 tot += x.shape[0]
108                 # 自动求导，包含了2 个子网络的梯度
109                 grads = tape.gradient(rec_loss, model.trainable_variables)
110                 # 自动更新，同时更新2 个子网络
111                 optimizer.apply_gradients(zip(grads, model.trainable_variables))
112             if step % 100 == 0:
113                 # 间隔性打印训练误差
114                 print(epoch, step, float(rec_loss))
115         train_tot_loss.append(cor / tot)
116
117         correct, total = 0, 0
118         for x in test_db:
119             x = tf.reshape(x, [-1, 784])
120             out = model(x)
121             out_loss = tf.nn.sigmoid_cross_entropy_with_logits(labels=x, logits=out)
122             # 计算均值
123             loss = tf.reduce_mean(out_loss)
124             correct += loss
125             total += x.shape[0]
126         test_tot_loss.append(correct / total)
127
128         if (epoch == 0) or (epoch == 9) or (epoch == 99):
129             #  重建图像
130             # 重建图片，从测试集采样一批图片
131             x = next(iter(test_db))
132             out_logits = model(tf.reshape(x, [-1, 784]))  # 打平并送入自编码器
133             x_hat = tf.sigmoid(out_logits)  # 将输出转换为像素值，使用sigmoid 函数
134             # 恢复为28x28,[b, 784] => [b, 28, 28]
135             x_hat = tf.reshape(x_hat, [-1, 28, 28])
136             # 输入的前50 张+重建的前50 张图片合并，[b, 28, 28] => [2b, 28, 28]
137             x_concat = tf.concat([x[:50], x_hat[:50]], axis=0)
138             x_concat = x_concat.numpy() * 255.  # 恢复为0~255 范围
139             x_concat = x_concat.astype(np.uint8)  # 转换为整型
140             save_images(x_concat, ‘exam10.1_rec_epoch_%d.png‘ % (epoch+1))  # 保存图片
141
142
143 if __name__ == ‘__main__‘:
144     main()
145     draw()
