应用场景：
有如下的SQL:
select t.*, t1.owner
from t, t1
where t.id=t1.id;
表t ,t1的数据量比较大，比如200W行.但是两张表能关联的行数却很少，比如不到50条. T1表的行比较宽,且在id列上有单列索引.
这里限制t1的索引为单列索引是为了让访问t1表数据的时候要通过rowid回表.因为在实际应用中,我们通常会需要t1表的几个列，但是不可能对它们全都索引.
此时可以优化为下面的SQL.
select /*+ use_nl(t1, t) ordered */ t.*, t1.owner
from t, t1
where t.id=t1.id and t1.id is not null;
改写原理:
1. 当我们使用NEST LOOP的时候，t1表可以使用id列上的index走出INDEX RANGE SCAN，此时如果输入值不在索引范围内时，是能够很快返回的，理论上就无须访问索引的leaf块。只需访问root和部分branch即可.而这里我们能够真正匹配的数据很少，所以大部分时候都没有到达leaf.
不过这种场景实际应用中并不常见,所以在CBO看来, cost= rows of t * 3(假设index深度为3)， 这个cost远大于hash join的cost。如果不加hint，CBO是不会选这个执行计划的.

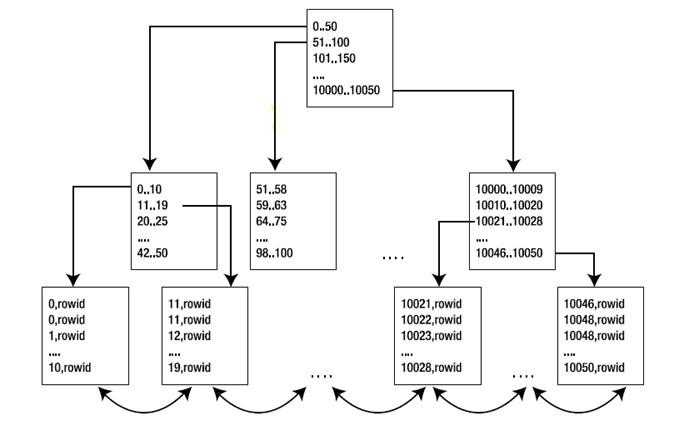

比如下图，要访问10051的数据，通过root节点就知道没这个key了，根本不需完成一次index range scan，而在loop join的下一次循环如果是要10052，直接在cache里快速匹配即可，这个是我猜测的，在CBO执行过程中这个应该很容易实现，相当于做预先处理，这样的预处理再结合storage index就形成了smart scan。
2. HASH JOIN时需要真正拿到索引中t1.id列全部数据后再做匹配，因此此时会走IFS或IFFS，直接遍历索引的所有叶子节点，然后建立hash表.
当索引里记录比较多同时能够匹配的记录有很少是，这种方法不如上面的NEST LOOP.
实验准备：
表的创建和数据的准备,需要的时间比较久，得耐心等待.
--表T
create table
t (
id
number,
col1
varchar2(30),
col2
varchar2(30),
col3
varchar2(30),
col4
varchar2(30),
col5
varchar2(30),
col6
varchar2(30),
col7
varchar2(30),
col8
varchar2(30),
col9
varchar2(30),
col10
varchar2(30)
);
--随机生成约200W行数据
insert into
t select
rownum,
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30)
from
dual connect by rownum<2000000;
--T1变的行宽比较大，此时full table scan 读的块较多.
create table
t1 (
id
number,
id2
number,
id3
varchar2(30),
id4
varchar2(30),
id5
varchar2(30),
id6
varchar2(30),
id7
varchar2(30),
id8
varchar2(30),
id9
varchar2(30),
id10
varchar2(30),
id11
varchar2(30),
id12
varchar2(30),
id13
varchar2(30),
id14
varchar2(30),
id15
varchar2(30),
id16
varchar2(30),
id17
varchar2(30),
id18
varchar2(30),
id19
varchar2(30),
id20
varchar2(30),
id21
varchar2(30),
owner
varchar2(30));
--T1表上创建索引
create index t1_idx_id on t1(id);
--随机生成约200W行数据
insert into
t1 select
rownum+2000000,
round(dbms_random.value(1,100000000)),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30),
dbms_random.string(‘u‘,30)
from dual
connect by rownum<2000000;
--收集表的统计信息
exec
dbms_stats.gather_table_stats(ownname=>‘SYS‘,tabname=>‘T‘,estimate_percent=>100,method_opt=>‘for
all columns size auto‘,cascade=>TRUE)
exec
dbms_stats.gather_table_stats(ownname=>‘SYS‘,tabname=>‘T1‘,estimate_percent=>100,method_opt=>‘for
all columns size auto‘,cascade=>TRUE)
--让表T, T1 有少数的关联行,这里是制造10条关联记录.
update t1
set id = (select round(dbms_random.value(1,1999999)) from dual)
where id in
(select round(dbms_random.value(2000001,4000000)) from dual connect by
rownum<10) and id is not null;
实验开始:
SQL>
select t.*, t1.owner
2 from t, t1
3 where t.id=t1.id and t1.id is not null;
已选择10行。
已用时间: 00: 00: 18.54
执行计划
----------------------------------------------------------
Plan hash
value: 1444793974
-----------------------------------------------------------------------------------
| Id |
Operation | Name |
Rows | Bytes |TempSpc| Cost (%CPU)| Time
|
-----------------------------------------------------------------------------------
|
0 | SELECT STATEMENT |
| 1 | 352
| | 109K (1)| 00:21:56
|
|*
1 | HASH JOIN
| | 1 | 352
| 93M| 109K (1)| 00:21:56 |
|* 2
| TABLE ACCESS FULL| T1 | 1999K|
70M| | 49367 (1)| 00:09:53
|
|
3 | TABLE ACCESS FULL| T |
1999K| 600M| | 24691
(1)| 00:04:57 |
-----------------------------------------------------------------------------------
Predicate
Information (identified by operation id):
---------------------------------------------------
1 - access("T"."ID"="T1"."ID")
2 - filter("T1"."ID" IS NOT NULL)
统计信息
----------------------------------------------------------
97 recursive calls
0 db block gets
454560 consistent gets
283928 physical reads
0 redo size
2086 bytes sent via SQL*Net to client
420 bytes received via SQL*Net from client
2 SQL*Net roundtrips to/from client
0 sorts (memory)
0 sorts (disk)
10 rows processed
全表扫描的T1时，18S。
SQL>
select /*+index(t1 T1_IDX_ID)*/t.*, t1.owner
2 from t, t1
3 where t.id=t1.id and t1.id is not null;
已选择10行。
已用时间: 00: 01: 52.29
执行计划
----------------------------------------------------------
Plan hash
value: 2604990230
--------------------------------------------------------------------------------------------------
| Id |
Operation
| Name | Rows | Bytes |TempSpc| Cost (%CPU)|
Time |
--------------------------------------------------------------------------------------------------
|
0 | SELECT
STATEMENT
|
| 1 | 352
| | 246K (1)| 00:49:19
|
|*
1 | HASH
JOIN
|
| 1 | 352 |
93M| 246K (1)| 00:49:19 |
|
2 | TABLE ACCESS BY INDEX ROWID|
T1 | 1999K|
70M| | 186K (1)| 00:37:15
|
|*
3 | INDEX FULL
SCAN | T1_IDX_ID
| 1999K|
| | 4279 (1)| 00:00:52
|
|
4 | TABLE ACCESS
FULL |
T | 1999K|
600M| | 24691 (1)| 00:04:57
|
--------------------------------------------------------------------------------------------------
Predicate
Information (identified by operation id):
---------------------------------------------------
1 - access("T"."ID"="T1"."ID")
3 - filter("T1"."ID" IS NOT NULL)
统计信息
----------------------------------------------------------
98 recursive calls
0 db block gets
458819 consistent gets
271761 physical reads
13092036 redo size
2086 bytes sent via SQL*Net to client
420 bytes received via SQL*Net from client
2 SQL*Net roundtrips to/from client
0 sorts (memory)
0 sorts (disk)
10 rows processed
SQL>
select /*+ use_nl(t1, t) ordered */t.*, t1.owner
2 from t, t1
3 where t.id=t1.id and t1.id is not null;
已选择10行。
已用时间: 00: 00: 04.81
执行计划
----------------------------------------------------------
Plan hash
value: 3173170385
------------------------------------------------------------------------------------------
| Id |
Operation
| Name | Rows | Bytes | Cost (%CPU)|
Time |
------------------------------------------------------------------------------------------
|
0 | SELECT
STATEMENT
|
| 1 | 352 | 4026K (1)| 13:25:15
|
|
1 | NESTED
LOOPS
|
| |
|
| |
|
2 | NESTED
LOOPS
|
| 1 | 352 | 4026K (1)| 13:25:15
|
|
3 | TABLE ACCESS
FULL |
T | 1999K|
600M| 24691 (1)| 00:04:57 |
|*
4 | INDEX RANGE
SCAN | T1_IDX_ID
| 1 |
| 2 (0)| 00:00:01 |
|
5 | TABLE ACCESS BY INDEX ROWID|
T1 | 1
| 37 | 2 (0)| 00:00:01
|
------------------------------------------------------------------------------------------
Predicate
Information (identified by operation id):
---------------------------------------------------
4 - access("T"."ID"="T1"."ID")
filter("T1"."ID" IS NOT NULL)
统计信息
----------------------------------------------------------
0 recursive calls
0 db block gets
90946 consistent gets
90914 physical reads
0 redo size
2086 bytes sent via SQL*Net to client
420 bytes received via SQL*Net from client
2 SQL*Net roundtrips to/from client
0 sorts (memory)
0 sorts (disk)
10 rows processed
select /*+
use_nl(t1, t) ordered gather_plan_statistics*/t.*,
t1.owner
from
t, t1 where t.id=t1.id and t1.id is not null
Plan hash value: 3173170385
---------------------------------------------------------------------------------------------------------------------------------------------
| Id |
Operation
| Name | Starts | E-Rows |E-Bytes| Cost (%CPU)|
E-Time | A-Rows | A-Time | Buffers |
Reads |
---------------------------------------------------------------------------------------------------------------------------------------------
|
0 | SELECT
STATEMENT
|
| 4 |
| |
4026K(100)| | 40
|00:01:04.01 | 363K|
363K|
|
1 | NESTED
LOOPS
|
| 4 |
|
|
| | 40 |00:01:04.01
| 363K|
363K|
|
2 | NESTED
LOOPS
|
| 4 | 1
| 352 | 4026K (1)| 13:25:15 | 40 |00:01:04.01
| 363K|
363K|
|
3 | TABLE ACCESS
FULL |
T
| 4 | 1999K| 600M|
24691 (1)| 00:04:57 | 7999K|00:00:33.47
| 363K| 363K|
|*
4 | INDEX RANGE
SCAN | T1_IDX_ID
| 7999K| 1
| | 2
(0)| 00:00:01 | 40 |00:00:51.27 | 60 | 0
|
|
5 | TABLE ACCESS BY INDEX ROWID|
T1 | 40
| 1 | 37
| 2 (0)| 00:00:01 | 40 |00:00:00.01 |
40 | 0 |
---------------------------------------------------------------------------------------------------------------------------------------------
一种特殊场景下的HASH JOIN的优化为NEST LOOP.
原文：http://www.cnblogs.com/princessd8251/p/3551424.html
