菜鸟实现(四) AndroidStudio 安卓 消息列表 支持侧滑删除功能 （粗糙版）

 1 package com.example.home;
 2
 3 import android.content.Intent;
 4 import android.os.Bundle;
 5 import android.view.LayoutInflater;
 6 import android.view.View;
 7 import android.view.View.OnClickListener;
 8 import android.view.ViewGroup;
 9 import android.widget.Toast;
10 import com.example.home.message.SwipeAdapter;
11 import com.example.home.message.SwipeListView;
12 import com.example.home.message.WXMessage;
13 import androidx.fragment.app.Fragment;
14 import java.util.ArrayList;
15 import java.util.List;
16
17 public class MessageFragment extends Fragment implements OnClickListener {
18     SwipeAdapter mAdapter;
19
20
21     @Override
22     public View onCreateView(LayoutInflater inflater, ViewGroup container,
23                              Bundle savedInstanceState) {
24         View view = inflater.inflate(R.layout.activity_message, container, false);
25
26

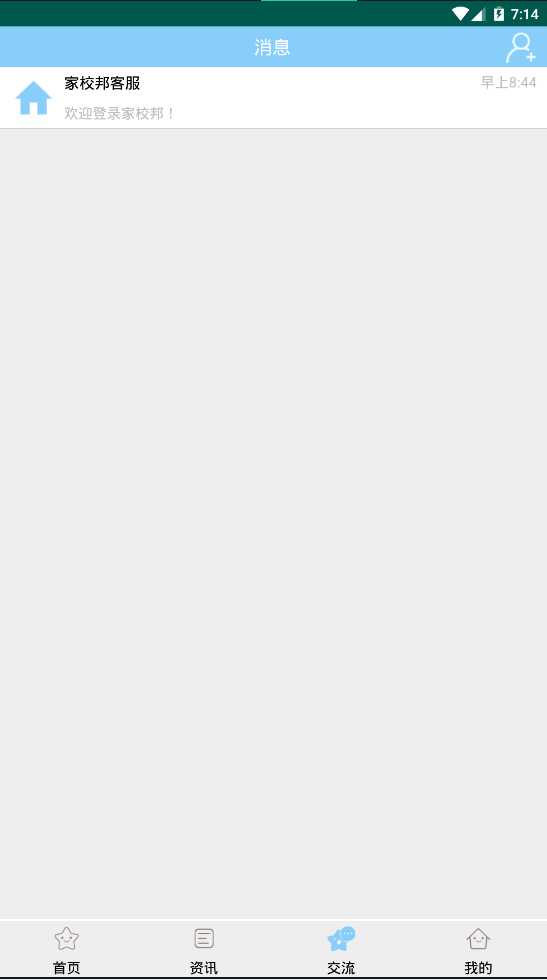

27         SwipeListView mListView = (SwipeListView)view.findViewById(R.id.mListView);
28         final List<WXMessage> data = new ArrayList<WXMessage>();
29         WXMessage msg = null;
30         msg = new WXMessage("家校邦客服", "欢迎登录家校邦！", "早上8:44");
31         msg.setIcon_id(R.drawable.chat1);
32         data.add(msg);
33
34
35         mAdapter = new SwipeAdapter(view.getContext(),data);
36
37         mAdapter.setOnRightItemClickListener(new SwipeAdapter.onRightItemClickListener() {
38
39             @Override
40             public void onRightItemClick(View v, int position) {

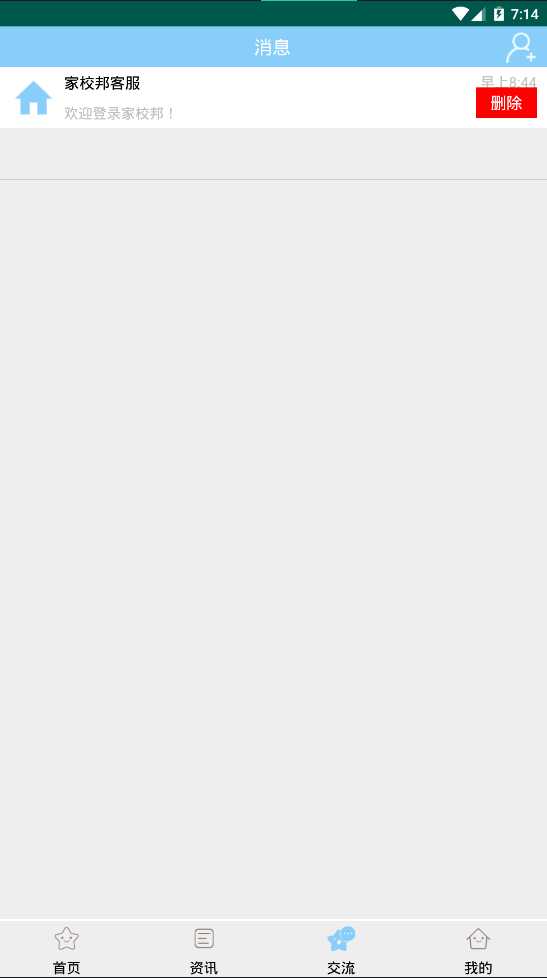

41
42                 Toast.makeText(v.getContext(), "删除第  " + (position+1)+" 对话记录", Toast.LENGTH_SHORT).show();
43                 data.remove(position);
44                 mAdapter.notifyDataSetChanged();
45
46             }
47         });
48
49
50         mAdapter.setOnLeftItemClickListener(new SwipeAdapter.onLeftItemClickListener() {
51
52
53             public void onLeftItemClick(View v, int position) {
54
55                 Intent intent = new Intent();
56                 intent.setAction("abc");         //跳转到聊天窗口，在AndroidManifest.xml文件里需要有相应代码呼应
57                 startActivity(intent);
58
59
60             }
61         });
62
63
64
65         mAdapter.setOnTopItemClickListener(new SwipeAdapter.onTopItemClickListener() {
66
67
68             public void onTopItemClick(View v, int position) {
69
70                 Intent intent = new Intent();
71                 intent.setAction("eee");         //跳转到添加好友窗口
72                 startActivity(intent);
73
74
75             }
76         });
77
78
79         mListView.setAdapter(mAdapter);
80
81
82         return view;
83     }
84
85     @Override
86     public void onClick(View view) {
87
88     }
89 }

 1 package com.example.home.message;
 2
 3 import android.app.Activity;
 4 import android.os.Bundle;
 5 import android.view.View;
 6 import android.view.View.OnClickListener;
 7 import android.view.Window;
 8 import android.widget.ImageView;
 9
10 import com.example.home.R;
11

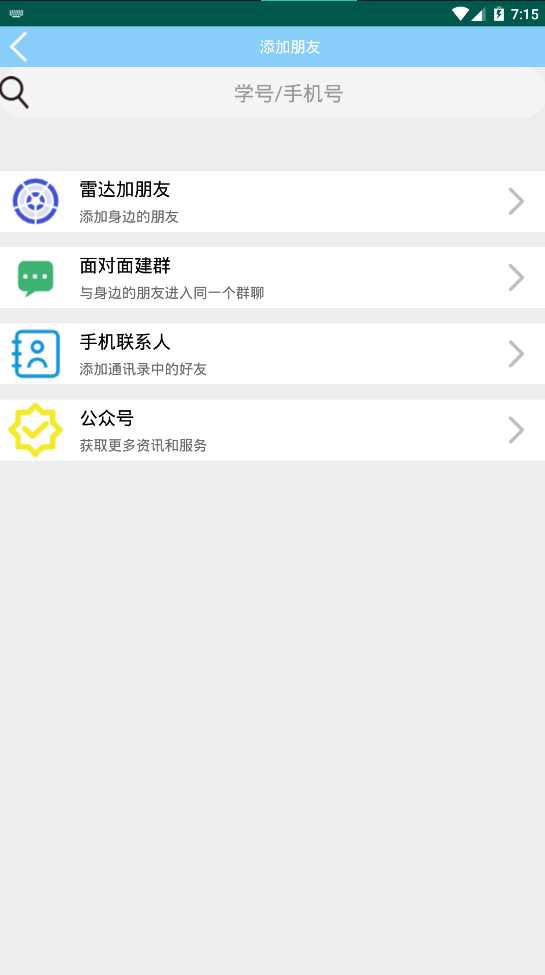

12 public class Addfriend extends Activity implements OnClickListener {
13
14     protected void onCreate(Bundle savedInstanceState) {
15         // TODO Auto-generated method stub
16         super.onCreate(savedInstanceState);
17         requestWindowFeature(Window.FEATURE_NO_TITLE);
18         setContentView(R.layout.activity_message_addfriend);
19
20
21     }
22
23
24
25
26     public void onClick(View v) {
27
28         ImageView iv_back3 = (ImageView) findViewById(R.id.iv_back3);
29         iv_back3.setOnClickListener(this);
30
31
32         switch (v.getId()) {             //返回到聊天列表
33             case R.id.iv_back3:
34                 finish();
35                 break;
36         }
37     }
38
39
40 }

  1 package com.example.home.message;
  2
  3 import android.content.Context;
  4 import android.util.Log;
  5 import android.view.LayoutInflater;
  6 import android.view.View;
  7 import android.view.View.OnClickListener;
  8 import android.view.ViewGroup;
  9 import android.widget.BaseAdapter;
 10 import android.widget.ImageButton;
 11 import android.widget.ImageView;
 12 import android.widget.RelativeLayout;
 13 import android.widget.TextView;
 14
 15 import com.example.home.R;
 16
 17 import java.util.List;
 18
 19 public class SwipeAdapter extends BaseAdapter {
 20
 21     private Context mContext = null;
 22     private List<WXMessage> data;
 23
 24
 25     public SwipeAdapter(Context ctx,List<WXMessage> data) {
 26         mContext = ctx;
 27         this.data = data;
 28     }
 29
 30     @Override
 31     public int getCount() {
 32         return data.size();
 33     }
 34
 35     @Override
 36     public Object getItem(int position) {
 37         return null;
 38     }
 39
 40     @Override
 41     public long getItemId(int position) {
 42         return position;
 43     }
 44
 45     @Override
 46     public View getView(final int position, View convertView , final ViewGroup parent) {
 47
 48         ViewHolder holder;
 49         if (convertView == null) {
 50             convertView = LayoutInflater.from(mContext).inflate(R.layout.activity_message_chatlist, parent, false);
 51             holder = new ViewHolder();
 52             holder.item_left = (RelativeLayout)convertView.findViewById(R.id.item_left);
 53             holder.item_right = (RelativeLayout)convertView.findViewById(R.id.item_right);
 54             holder.addfriend = (ImageButton)convertView.findViewById(R.id.addfriend);
 55
 56             holder.iv_icon = (ImageView) convertView.findViewById(R.id.iv_icon);
 57             holder.tv_title = (TextView)convertView.findViewById(R.id.tv_title);
 58             holder.tv_msg = (TextView)convertView.findViewById(R.id.tv_msg);
 59             holder.tv_time = (TextView)convertView.findViewById(R.id.tv_time);
 60
 61             holder.item_right_txt = (TextView)convertView.findViewById(R.id.item_right_txt);
 62             convertView.setTag(holder);
 63         } else {
 64             holder = (ViewHolder)convertView.getTag();
 65         }
 66
 67         Log.i("SwipeAdapter", "getView position="+position);
 68
 69         WXMessage msg = data.get(position);
 70
 71         holder.tv_title.setText(msg.getTitle());
 72         holder.tv_msg.setText(msg.getMsg());
 73         holder.tv_time.setText(msg.getTime());
 74
 75         holder.iv_icon.setImageResource(msg.getIcon_id());
 76
 77         holder.item_right.setOnClickListener(new OnClickListener() {
 78             @Override
 79             public void onClick(View v) {
 80                 if (mListener != null) {
 81                     mListener.onRightItemClick(v, position);
 82                 }
 83             }
 84         });
 85         holder.item_left.setOnClickListener(new OnClickListener() {
 86             @Override
 87             public void onClick(View v) {
 88                 if (mlListener != null) {
 89
 90                     v = LayoutInflater.from(mContext).inflate(R.layout.activity_message_chat, parent, false);
 91                     mlListener.onLeftItemClick(v, position);
 92                 }
 93             }
 94
 95
 96         });
 97         holder.addfriend.setOnClickListener(new OnClickListener() {
 98             @Override
 99             public void onClick(View v) {
100                 if (mLListener != null) {
101
102                     v = LayoutInflater.from(mContext).inflate(R.layout.activity_message_chat, parent, false);
103                     mLListener.onTopItemClick(v, position);
104                 }
105             }
106
107
108         });
109         return convertView;
110     }
111
112     static class ViewHolder {
113         public ImageButton addfriend;
114         RelativeLayout item_left;
115         RelativeLayout item_right;
116
117         TextView tv_title;
118         TextView tv_msg;
119         TextView tv_time;
120         ImageView iv_icon;
121
122         TextView item_right_txt;
123     }
124
125
126     private onRightItemClickListener mListener = null;
127
128     public void setOnRightItemClickListener(onRightItemClickListener listener){
129         mListener = listener;
130     }
131
132     public interface onRightItemClickListener {
133         void onRightItemClick(View v, int position);
134     }
135
136
137     private onLeftItemClickListener mlListener = null;
138
139     public void setOnLeftItemClickListener(onLeftItemClickListener listener){
140         mlListener = listener;
141     }
142
143     public interface onLeftItemClickListener {
144         void onLeftItemClick(View v, int position);
145     }
146
147
148     private onTopItemClickListener mLListener = null;
149
150     public void setOnTopItemClickListener(onTopItemClickListener listener){
151         mLListener = listener;
152     }
153
154     public interface onTopItemClickListener {
155         void onTopItemClick(View v, int position);
156     }
157
158
159
160 }

  1 package com.example.home.message;
  2
  3 import android.content.Context;
  4 import android.util.AttributeSet;
  5 import android.util.Log;
  6 import android.view.MotionEvent;
  7 import android.view.View;
  8 import android.widget.ListView;
  9 import android.widget.RelativeLayout;
 10
 11 import com.example.home.R;
 12
 13 public class SwipeListView extends ListView {
 14
 15     private static final String TAG = SwipeListView.class.getSimpleName();
 16
 17     private boolean isShown;
 18
 19     private View mPreItemView;
 20
 21     private View mCurrentItemView;
 22
 23     private float mFirstX;
 24
 25     private float mFirstY;
 26
 27     private boolean mIsHorizontal;
 28
 29     public SwipeListView(Context context) {
 30         super(context);
 31         // TODO Auto-generated constructor stub
 32     }
 33
 34     public SwipeListView(Context context, AttributeSet attrs) {
 35         super(context, attrs);
 36         // TODO Auto-generated constructor stub
 37     }
 38
 39     public SwipeListView(Context context, AttributeSet attrs, int defStyle) {
 40         super(context, attrs, defStyle);
 41         // TODO Auto-generated constructor stub
 42     }
 43
 44     @Override
 45     public boolean onInterceptTouchEvent(MotionEvent ev) {
 46         float lastX = ev.getX();
 47         float lastY = ev.getY();
 48         switch (ev.getAction()) {
 49         case MotionEvent.ACTION_DOWN:
 50
 51             mIsHorizontal = false;
 52
 53             mFirstX = lastX;
 54             mFirstY = lastY;
 55             int motionPosition = pointToPosition((int) mFirstX, (int) mFirstY);
 56
 57             Log.e(TAG, "onInterceptTouchEvent----->ACTION_DOWN position=" + motionPosition);
 58
 59             if (motionPosition >= 0) {
 60                 View currentItemView = getChildAt(motionPosition - getFirstVisiblePosition());
 61                 mPreItemView = mCurrentItemView;
 62                 mCurrentItemView = currentItemView;
 63             }
 64             break;
 65
 66         case MotionEvent.ACTION_MOVE:
 67             float dx = lastX - mFirstX;
 68             float dy = lastY - mFirstY;
 69
 70             if (Math.abs(dx) >= 5 && Math.abs(dy) >= 5) {
 71                 return true;
 72             }
 73             break;
 74
 75         case MotionEvent.ACTION_UP:
 76         case MotionEvent.ACTION_CANCEL:
 77
 78             Log.i(TAG, "onInterceptTouchEvent----->ACTION_UP");
 79             if (isShown && mPreItemView != mCurrentItemView) {
 80                 Log.i(TAG, "1---> hiddenRight");
 81                 hiddenRight(mPreItemView);
 82             }
 83             break;
 84         }
 85
 86         return super.onInterceptTouchEvent(ev);
 87     }
 88
 89     @Override
 90     public boolean onTouchEvent(MotionEvent ev) {
 91         // TODO Auto-generated method stub
 92         float lastX = ev.getX();
 93         float lastY = ev.getY();
 94
 95         switch (ev.getAction()) {
 96         case MotionEvent.ACTION_DOWN:
 97             Log.i(TAG, "---->ACTION_DOWN");
 98             break;
 99
100         case MotionEvent.ACTION_MOVE:
101             float dx = lastX - mFirstX;
102             float dy = lastY - mFirstY;
103
104             mIsHorizontal = isHorizontalDirectionScroll(dx, dy);
105
106             if (!mIsHorizontal) {
107                 break;
108             }
109
110             Log.i(TAG, "onTouchEvent ACTION_MOVE");
111
112             if (mIsHorizontal) {
113                 if (isShown && mPreItemView != mCurrentItemView) {
114                     Log.i(TAG, "2---> hiddenRight");
115
116                     hiddenRight(mPreItemView);
117                 }
118             }else {
119                 if (isShown) {
120                     Log.i(TAG, "3---> hiddenRight");
121
122                     hiddenRight(mPreItemView);
123                 }
124             }
125             break;
126         case MotionEvent.ACTION_UP:
127         case MotionEvent.ACTION_CANCEL:
128             Log.i(TAG, "============ACTION_UP");
129             if (isShown) {
130                 Log.i(TAG, "4---> hiddenRight");
131
132                 hiddenRight(mPreItemView);
133             }
134
135             if (mIsHorizontal) {
136                 if (mFirstX - lastX > 30) {
137                     showRight(mCurrentItemView);
138                 } else {
139                     Log.i(TAG, "5---> hiddenRight");
140
141                     hiddenRight(mCurrentItemView);
142                 }
143                 return true;
144             }
145             break;
146         }
147
148         return super.onTouchEvent(ev);
149     }
150
151     private void showRight(View rightView) {
152         RelativeLayout rl_right=(RelativeLayout)rightView.findViewById(R.id.item_right);
153         rl_right.setVisibility(View.VISIBLE);
154
155         isShown = true;
156     }
157
158     private void hiddenRight(View rightView) {
159
160         RelativeLayout rl_right=(RelativeLayout)rightView.findViewById(R.id.item_right);
161         rl_right.setVisibility(View.GONE);
162
163         isShown = false;
164     }
165
166
167     private boolean isHorizontalDirectionScroll(float dx, float dy) {
168         boolean mIsHorizontal = true;
169
170         if (Math.abs(dx) > 30 && Math.abs(dx) > 2 * Math.abs(dy)) {
171             mIsHorizontal = true;
172             System.out.println("mIsHorizontal---->" + mIsHorizontal);
173         } else if (Math.abs(dy) > 30 && Math.abs(dy) > 2 * Math.abs(dx)) {
174             mIsHorizontal = false;
175             System.out.println("mIsHorizontal---->" + mIsHorizontal);
176         }
177
178         return mIsHorizontal;
179     }
180
181 }

 1 package com.example.home.message;
 2
 3 public class WXMessage {
 4     private int icon_id;
 5     private String title;
 6     private String msg;
 7     private String time;
 8
 9     public WXMessage(){
10
11     }
12     public WXMessage(String title, String msg, String time) {
13         this.title = title;
14         this.msg = msg;
15         this.time = time;
16     }
17
18
19
20     public int getIcon_id() {
21         return icon_id;
22     }
23     public void setIcon_id(int icon_id) {
24         this.icon_id = icon_id;
25     }
26
27
28
29     public String getTitle() {
30         return title;
31     }
32     public void setTitle(String title) {
33         this.title = title;
34     }
35
36
37
38     public String getMsg() {
39         return msg;
40     }
41     public void setMsg(String msg) {
42         this.msg = msg;
43     }
44
45
46
47     public String getTime() {
48         return time;
49     }
50     public void setTime(String time) {
51         this.time = time;
52     }
53
54 }

 1 <?xml version="1.0" encoding="utf-8"?>
 2 <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
 3     android:layout_width="match_parent"
 4     android:layout_height="match_parent">
 5
 6
 7
 8     <com.example.home.message.SwipeListView
 9         android:id="@+id/mListView"
10         android:layout_width="match_parent"
11         android:layout_height="match_parent"
12         android:cacheColorHint="@android:color/transparent"/>
13
14 </RelativeLayout>

  1 <?xml version="1.0" encoding="utf-8"?>
  2 <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3     android:layout_width="match_parent"
  4     android:layout_height="wrap_content">
  5
  6
  7     <RelativeLayout
  8         android:id="@+id/message_top_bar"
  9         android:layout_width="match_parent"
 10         android:layout_height="40dp"
 11         android:background="#87CEFA"
 12         >
 13
 14         <TextView
 15             android:id="@+id/message_txt_topbar"
 16             android:layout_width="match_parent"
 17             android:layout_height="match_parent"
 18             android:layout_centerInParent="true"
 19             android:gravity="center"
 20             android:text="消息"
 21             android:textColor="#ffff"
 22             android:textSize="18sp" />
 23
 24         <ImageButton
 25             android:id="@+id/addfriend"
 26             android:layout_width="wrap_content"
 27             android:layout_height="wrap_content"
 28             android:layout_marginRight="10dp"
 29             android:layout_alignParentRight="true"
 30             android:layout_marginTop="6dp"
 31             android:background="@drawable/addf"
 32             android:onClick="onClick"/>
 33
 34
 35     </RelativeLayout>
 36
 37     <RelativeLayout
 38         android:id="@+id/item_left"
 39         android:layout_width="match_parent"
 40         android:layout_height="wrap_content"
 41         android:background="#FFFFFF"
 42         android:layout_marginTop="40dp"
 43         android:paddingBottom="5dp"
 44         android:paddingLeft="10dp"
 45         android:paddingRight="10dp"
 46         android:paddingTop="5dp" >
 47
 48         <ImageView
 49             android:id="@+id/iv_icon"
 50             android:layout_width="50dp"
 51             android:layout_height="50dp"
 52             android:layout_marginRight="5dp"
 53             android:src="@drawable/chat1" />
 54
 55         <TextView
 56             android:id="@+id/tv_title"
 57             android:layout_width="wrap_content"
 58             android:layout_height="wrap_content"
 59             android:layout_toRightOf="@id/iv_icon"
 60             android:textColor="@color/black"
 61             android:textSize="15sp" />
 62
 63         <TextView
 64             android:id="@+id/tv_msg"
 65             android:layout_width="wrap_content"
 66             android:layout_height="wrap_content"
 67             android:layout_alignBottom="@id/iv_icon"
 68             android:layout_alignLeft="@id/tv_title"
 69             android:singleLine="true"
 70             android:ellipsize="end"
 71             android:textColor="#BEBEBE" />
 72
 73         <TextView
 74             android:id="@+id/tv_time"
 75             android:layout_width="wrap_content"
 76             android:layout_height="wrap_content"
 77             android:layout_alignParentRight="true"
 78             android:layout_alignTop="@id/tv_title"
 79             android:textColor="#BEBEBE" />
 80     </RelativeLayout>
 81
 82     <RelativeLayout
 83         android:id="@+id/item_right"
 84         android:layout_width="60dp"
 85         android:layout_height="30dp"
 86         android:layout_alignParentRight="true"
 87         android:layout_centerVertical="true"
 88         android:layout_marginRight="10dp"
 89         android:layout_marginTop="120dp"
 90         android:background="#FF0000"
 91         android:visibility="gone" >
 92
 93         <TextView
 94             android:id="@+id/item_right_txt"
 95             android:layout_width="wrap_content"
 96             android:layout_height="wrap_content"
 97             android:layout_centerInParent="true"
 98             android:gravity="center"
 99             android:text="删除"
100             android:textSize="16sp"
101             android:textColor="#FFFFFF" />
102     </RelativeLayout>
103
104
105 </RelativeLayout>

  1 <?xml version="1.0" encoding="utf-8"?>
  2 <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3     android:layout_width="match_parent"
  4     android:layout_height="match_parent"
  5     android:orientation="vertical" >
  6
  7     <LinearLayout
  8         android:layout_width="match_parent"
  9         android:layout_height="40dp"
 10         android:background="#87CEFA"
 11         android:gravity="center"
 12         android:orientation="horizontal" >
 13
 14
 15         <ImageButton
 16             android:id="@+id/iv_back3"
 17             android:layout_width="wrap_content"
 18             android:layout_height="wrap_content"
 19             android:layout_marginLeft="5dp"
 20             android:background="@drawable/nf"
 21             android:onClick="onClick"
 22             />
 23         <TextView
 24             android:layout_width="0dp"
 25             android:layout_height="wrap_content"
 26             android:layout_weight="1"
 27             android:gravity="center"
 28             android:textColor="#ffffff"
 29             android:textSize="15sp"
 30             android:text="添加朋友"/>
 31
 32
 33     </LinearLayout>
 34
 35     <LinearLayout
 36         android:layout_height="50dp"
 37         android:layout_width="match_parent">
 38
 39         <AutoCompleteTextView
 40             android:id="@+id/edsearch"
 41             android:gravity="center"
 42             android:layout_width="match_parent"
 43             android:layout_height="50dp"
 44             android:layout_weight="1"
 45             android:hint="学号/手机号"
 46             android:completionThreshold="1"
 47             android:textSize="20sp"
 48             android:inputType="text"
 49             android:lines="1"
 50             android:background="@drawable/yuanjiao"
 51             android:drawableLeft="@drawable/sousuo1" />
 52
 53
 54
 55     </LinearLayout>
 56
 57
 58     <RelativeLayout
 59         android:layout_height="320dp"
 60         android:layout_width="match_parent"
 61         android:layout_marginTop="37dp">
 62
 63         <RelativeLayout
 64             android:layout_height="60dp"
 65             android:layout_width="match_parent"
 66             android:layout_marginTop="15dp"
 67             android:background="@color/white">
 68
 69             <ImageView
 70                 android:layout_height="54dp"
 71                 android:layout_width="54dp"
 72                 android:layout_marginLeft="10dp"
 73                 android:layout_marginTop="3dp"
 74                 android:background="@drawable/leida">
 75
 76             </ImageView>
 77
 78             <TextView
 79                 android:layout_width="100dp"
 80                 android:layout_height="30dp"
 81                 android:layout_marginLeft="80dp"
 82                 android:layout_marginTop="5dp"
 83                 android:text="雷达加朋友"
 84                 android:textSize="18dp"
 85                 android:textColor="@color/black">
 86
 87             </TextView>
 88
 89             <TextView
 90                 android:layout_width="100dp"
 91                 android:layout_height="18dp"
 92                 android:layout_marginLeft="80dp"
 93                 android:layout_marginTop="35dp"
 94                 android:text="添加身边的朋友"
 95                 android:textSize="14dp"
 96                 android:textColor="#696969">
 97
 98             </TextView>
 99
100             <ImageView
101                 android:layout_height="30dp"
102                 android:layout_width="30dp"
103                 android:layout_marginRight="15dp"
104                 android:layout_alignParentRight="true"
105                 android:layout_marginTop="15dp"
106                 android:background="@drawable/arrow">
107
108             </ImageView>
109
110
111         </RelativeLayout>
112
113
114         <RelativeLayout
115             android:layout_height="60dp"
116             android:layout_width="match_parent"
117             android:layout_marginTop="90dp"
118             android:background="@color/white">
119
120             <ImageView
121                 android:layout_height="54dp"
122                 android:layout_width="54dp"
123                 android:layout_marginLeft="10dp"
124                 android:layout_marginTop="3dp"
125                 android:background="@drawable/jianqun">
126
127             </ImageView>
128
129
130             <TextView
131                 android:layout_width="100dp"
132                 android:layout_height="30dp"
133                 android:layout_marginLeft="80dp"
134                 android:layout_marginTop="5dp"
135                 android:text="面对面建群"
136                 android:textSize="18dp"
137                 android:textColor="@color/black">
138
139             </TextView>
140
141             <TextView
142                 android:layout_width="200dp"
143                 android:layout_height="18dp"
144                 android:layout_marginLeft="80dp"
145                 android:layout_marginTop="35dp"
146                 android:text="与身边的朋友进入同一个群聊"
147                 android:textSize="14dp"
148                 android:textColor="#696969">
149
150             </TextView>
151
152             <ImageView
153                 android:layout_height="30dp"
154                 android:layout_width="30dp"
155                 android:layout_marginRight="15dp"
156                 android:layout_alignParentRight="true"
157                 android:layout_marginTop="15dp"
158                 android:background="@drawable/arrow">
159
160             </ImageView>
161
162         </RelativeLayout>
163
164         <RelativeLayout
165             android:layout_height="60dp"
166             android:layout_width="match_parent"
167             android:layout_marginTop="165dp"
168             android:background="@color/white">
169
170
171             <ImageView
172                 android:layout_height="54dp"
173                 android:layout_width="54dp"
174                 android:layout_marginLeft="10dp"
175                 android:layout_marginTop="3dp"
176                 android:background="@drawable/lianxi">
177
178             </ImageView>
179
180
181             <TextView
182                 android:layout_width="100dp"
183                 android:layout_height="30dp"
184                 android:layout_marginLeft="80dp"
185                 android:layout_marginTop="5dp"
186                 android:text="手机联系人"
187                 android:textSize="18dp"
188                 android:textColor="@color/black">
189
190             </TextView>
191
192             <TextView
193                 android:layout_width="130dp"
194                 android:layout_height="18dp"
195                 android:layout_marginLeft="80dp"
196                 android:layout_marginTop="35dp"
197                 android:text="添加通讯录中的好友"
198                 android:textSize="14dp"
199                 android:textColor="#696969">
200
201             </TextView>
202
203             <ImageView
204                 android:layout_height="30dp"
205                 android:layout_width="30dp"
206                 android:layout_marginRight="15dp"
207                 android:layout_alignParentRight="true"
208                 android:layout_marginTop="15dp"
209                 android:background="@drawable/arrow">
210
211             </ImageView>
212
213
214
215         </RelativeLayout>
216
217         <RelativeLayout
218             android:layout_height="60dp"
219             android:layout_width="match_parent"
220             android:layout_marginTop="240dp"
221             android:background="@color/white">
222
223             <ImageView
224                 android:layout_height="54dp"
225                 android:layout_width="54dp"
226                 android:layout_marginLeft="10dp"
227                 android:layout_marginTop="3dp"
228                 android:background="@drawable/gong">
229
230             </ImageView>
231
232
233             <TextView
234                 android:layout_width="100dp"
235                 android:layout_height="30dp"
236                 android:layout_marginLeft="80dp"
237                 android:layout_marginTop="5dp"
238                 android:text="公众号"
239                 android:textSize="18dp"
240                 android:textColor="@color/black">
241
242             </TextView>
243
244             <TextView
245                 android:layout_width="150dp"
246                 android:layout_height="18dp"
247                 android:layout_marginLeft="80dp"
248                 android:layout_marginTop="35dp"
249                 android:text="获取更多资讯和服务"
250                 android:textSize="14dp"
251                 android:textColor="#696969">
252
253             </TextView>
254
255             <ImageView
256                 android:layout_height="30dp"
257                 android:layout_width="30dp"
258                 android:layout_marginRight="15dp"
259                 android:layout_alignParentRight="true"
260                 android:layout_marginTop="15dp"
261                 android:background="@drawable/arrow">
262
263             </ImageView>
264
265         </RelativeLayout>
266
267
268     </RelativeLayout>
269
270
271 </LinearLayout>
