服务发现（consul）搭建

下载最新版 consul

本人使用的版本为1.5.1，操作系统：window server 2008

consul部署的时候分为客户端和服务端，本次操作服务器2台，客户端1台

服务器2台：222.222.222.8，222.222.222.16

客户端：222.222.222.15

• 222.222.222.8 服务器配置文件（server.json）：

{
 "datacenter":"dcl",
"data_dir":"data",
"node_name":"consul-server01",
"server":true,
"bootstrap_expect":2,
"bind_addr":"222.222.222.8",
"client_addr":"0.0.0.0",
"ui":true
}　　

启动服务

用bat 使用 sc 命令 设置为window server 服务自动启动

sc create "ZctGroup.ConsulServer" binPath= "E:\consul_1.5.1_windows_amd64\consul.exe agent -config-dir E:\consul_1.5.1_windows_amd64\server.json " start= auto
sc description "ZctGroup.ConsulServer" "服务发现"
sc start "ZctGroup.ConsulServer"
pause

• 222.222.222.16 服务器配置文件（server.json）：

{
 "datacenter":"dcl",
"data_dir":"data",
"node_name":"consul-server02",
"server":true,
"bind_addr":"222.222.222.16",
"client_addr":"0.0.0.0",
"ui":true,
"retry_join":["222.222.222.8"],
"retry_interval":"30s",
"rejoin_after_leave":true,
"start_join":["222.222.222.8"]
}

启动服务

用bat 使用 sc 命令 设置为window server 服务自动启动

sc create "ZctGroup.ConsulServer" binPath= "E:\consul_1.5.1_windows_amd64\consul.exe agent -config-dir E:\consul_1.5.1_windows_amd64\server.json " start= auto
sc description "ZctGroup.ConsulServer" "服务发现"
sc start "ZctGroup.ConsulServer"
pause

• 222.222.222.15 客户端配置文件

{
 "datacenter":"dcl",
"data_dir":"data",
"node_name":"consul-client01",
"server":false,
"bind_addr":"222.222.222.15",
"client_addr":"222.222.222.15",
"ui":true,
"retry_join":["222.222.222.8"],
"retry_interval":"30s",
"rejoin_after_leave":true,
"start_join":["222.222.222.8"]
}

启动服务

用bat 使用 sc 命令 设置为window server 服务自动启动

sc create "ZctGroup.ConsulClient" binPath= "E:\consul_1.5.1_windows_amd64\consul.exe agent -config-dir E:\consul_1.5.1_windows_amd64\server.json " start= auto
sc description "ZctGroup.ConsulClient" "服务发现"
sc start "ZctGroup.ConsulClient"
pause

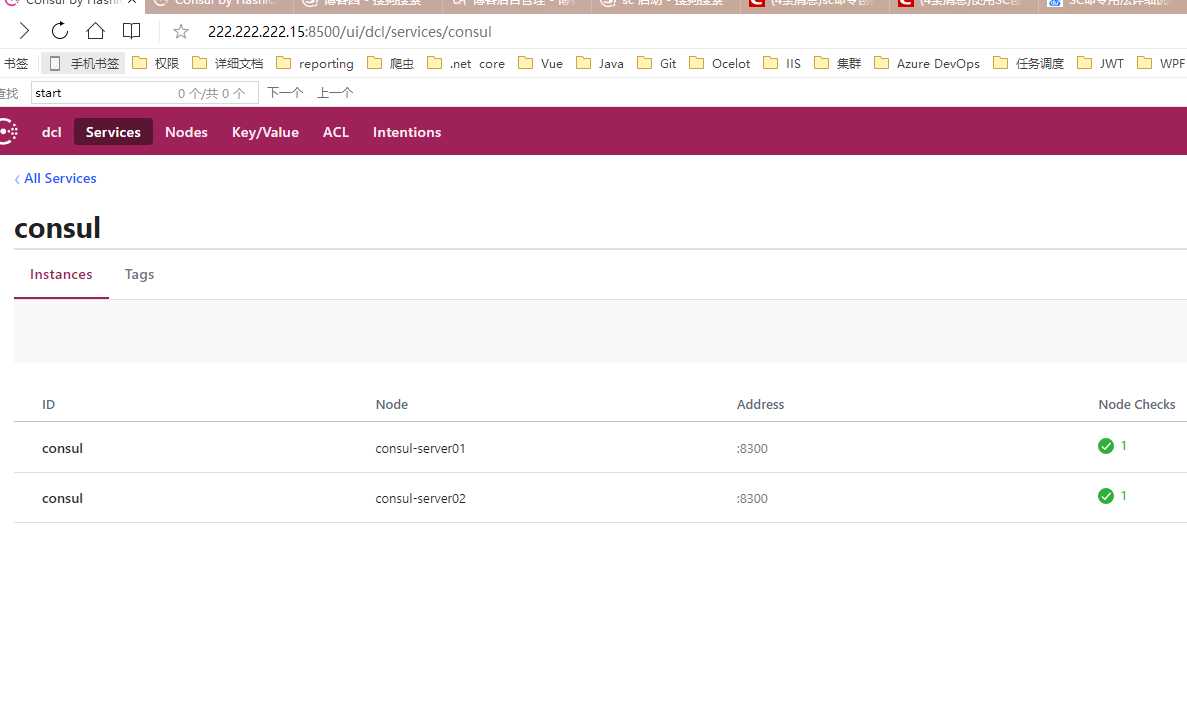

查看结果：
