MySQL参数max_connect_errors分析

时间:2019-12-01 16:30:08      阅读:108      评论:0      收藏:0      [点我收藏+]

一、问题引入

1.1、报错

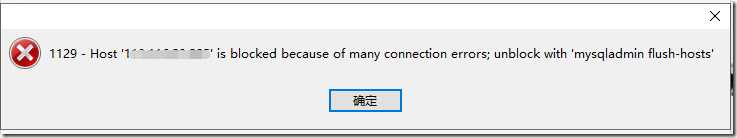

最近一台mysql服务器报错:ERROR 1129 (00000): Host ‘xxx‘ is blocked because of many connection errors. Unblock with ‘mysqladmin flush-hosts‘。

技术分享图片

1.2、本质原因

因为同一个IP在短时间内产生太多中断的数据库连接(超过max_connect_errors的最大值)而导致的

If more than this many successive connection requests from a host are interrupted without a successful connection, the server blocks that host from further connections. You can unblock blocked hosts by flushing the host cache. To do so, issue a FLUSH HOSTS statement or execute a mysqladmin flush-hosts command. If a connection is established successfully within fewer than max_connect_errors attempts after a previous connection was interrupted, the error count for the host is cleared to zero. However, once a host is blocked, flushing the host cache is the only way to unblock it. The default is 100.

翻译:如果MySQL服务器连续接收到了来自于同一个主机的请求,而且这些连续的请求全部都没有成功的建立连接就被中断了,当这些连续的请求的累计值大于max_connect_errors的设定值时,MySQL服务器就会阻止这台主机后续的所有请求。相信一开始你看到这些资料,也会被“many successive connection requests from a host are interrupted without a successful connection”给弄懵,其实这个就是因为由于网络异常而中止数据库连接

There seems to be confusion around that variable. It does not really block hosts for repeated invalid passwords but for aborted connections due to network errors.

二、实验验证

#创建测试用户
mysql> grant all privileges on *.* to test@‘%‘ identified by ‘mysql‘;
Query OK, 0 rows affected, 1 warning (0.01 sec)

#查看变量max_connect_errors并设置值
mysql> show variables like ‘%max_connect_errors%‘;
+--------------------+-------+
| Variable_name      | Value |
+--------------------+-------+
| max_connect_errors | 100   |
+--------------------+-------+
1 row in set (0.13 sec)

mysql> set global max_connect_errors=3;
Query OK, 0 rows affected (0.00 sec)

mysql> show variables like ‘%max_connect_errors%‘;
+--------------------+-------+
| Variable_name      | Value |
+--------------------+-------+
| max_connect_errors | 3     |
+--------------------+-------+
1 row in set (0.00 sec)

#在另外一台测试机器,以错误的密码去连接这个MySQL数据库,如下所示,即使前面输入了三次错误密码,第四次输入是也没有碰到上面错误。那么可以排除这个变量与密码错误输入有关系
[root@docker02 ~]# mysql -utest -pmysql11 -h 192.168.11.10
ERROR 1045 (28000): Access denied for user ‘test‘@‘192.168.11.11‘ (using password: YES)
[root@docker02 ~]# mysql -utest -pmysql11 -h 192.168.11.10
ERROR 1045 (28000): Access denied for user ‘test‘@‘192.168.11.11‘ (using password: YES)
[root@docker02 ~]# mysql -utest -pmysql11 -h 192.168.11.10
ERROR 1045 (28000): Access denied for user ‘test‘@‘192.168.11.11‘ (using password: YES)
[root@docker02 ~]# mysql -utest -pmysql11 -h 192.168.11.10
ERROR 1045 (28000): Access denied for user ‘test‘@‘192.168.11.11‘ (using password: YES)
[root@docker02 ~]# mysql -utest -pmysql11 -h 192.168.11.10
ERROR 1045 (28000): Access denied for user ‘test‘@‘192.168.11.11‘ (using password: YES)

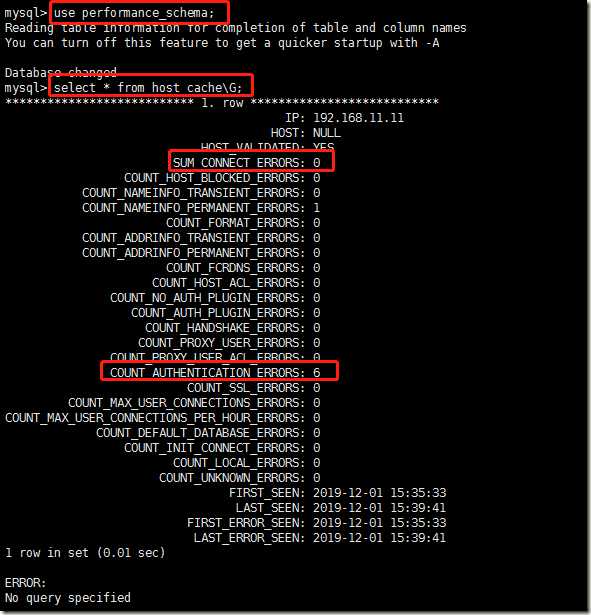

关于某个IP输入了错误密码,MySQL会在performance_schema数据库下的host_cache表中记录。它会累计记录在COUNT_AUTHENTICATION_ERRORS字段

技术分享图片

host_cache的字段是统计被视为“阻塞”的连接错误的数量(根据max_connect_errors系统变量进行评估)。 只计算协议握手错误,并且仅用于通过验证的主机(HOST_VALIDATED = YES)

SUM_CONNECT_ERRORS:The number of connection errors that are deemed “blocking” (assessed against the max_connect_errors system variable). Only protocol handshake errors are counted, and only for hosts that passed validation (HOST_VALIDATED = YES).

MySQL客户端与数据库建立连接需要发起三次握手协议,正常情况下,这个时间非常短,但是一旦网络异常,网络超时等因素出现,就会导致这个握手协议无法完成,MySQL有个参数connect_timeout,它是MySQL服务端进程mysqld等待连接建立完成的时间,单位为秒。如果超过connect_timeout时间范围内,仍然无法完成协议握手话,MySQL客户端会收到异常,异常消息类似于: Lost connection to MySQL server at ‘XXX‘, system error: errno,该变量默认是10秒

mysql> show variables like ‘connect_timeout‘;
+-----------------+-------+
| Variable_name   | Value |
+-----------------+-------+
| connect_timeout | 10    |
+-----------------+-------+
1 row in set (0.01 sec)

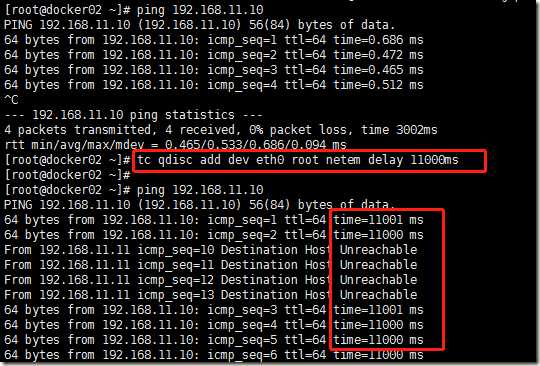

构造一个网络超时引起的数据库连接被中断案例吧,我们用Linux下的netem与tc命令模拟构造出复杂环境下的网络传输延时案例,如下设置后,此时从测试服务器去访问MySQL服务器,都会出现延时11秒

[root@docker02 ~]# ping 192.168.11.10
PING 192.168.11.10 (192.168.11.10) 56(84) bytes of data.
64 bytes from 192.168.11.10: icmp_seq=1 ttl=64 time=0.686 ms
64 bytes from 192.168.11.10: icmp_seq=2 ttl=64 time=0.472 ms
64 bytes from 192.168.11.10: icmp_seq=3 ttl=64 time=0.465 ms
64 bytes from 192.168.11.10: icmp_seq=4 ttl=64 time=0.512 ms
^C
--- 192.168.11.10 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3002ms
rtt min/avg/max/mdev = 0.465/0.533/0.686/0.094 ms
[root@docker02 ~]# tc qdisc add dev eth0 root netem delay 11000ms
[root@docker02 ~]#
[root@docker02 ~]# ping 192.168.11.10
PING 192.168.11.10 (192.168.11.10) 56(84) bytes of data.
64 bytes from 192.168.11.10: icmp_seq=1 ttl=64 time=11001 ms
64 bytes from 192.168.11.10: icmp_seq=2 ttl=64 time=11000 ms
From 192.168.11.11 icmp_seq=10 Destination Host Unreachable
From 192.168.11.11 icmp_seq=11 Destination Host Unreachable
From 192.168.11.11 icmp_seq=12 Destination Host Unreachable
From 192.168.11.11 icmp_seq=13 Destination Host Unreachable
64 bytes from 192.168.11.10: icmp_seq=3 ttl=64 time=11001 ms
64 bytes from 192.168.11.10: icmp_seq=4 ttl=64 time=11000 ms
64 bytes from 192.168.11.10: icmp_seq=5 ttl=64 time=11000 ms
64 bytes from 192.168.11.10: icmp_seq=6 ttl=64 time=11000 ms
64 bytes from 192.168.11.10: icmp_seq=7 ttl=64 time=11000 ms

技术分享图片

在测试服务器连接MySQL数据库,如下所示(注意,如果你是在通过ssh连接这台服务器的话,此时在测试服务器上操作会相当慢。当然你也可以在MySQL服务器模拟网络延时,或者你将connect_timeout和网络延时都设小一点)

[root@docker02 ~]# mysql -utest -pmysql -h 192.168.11.10
ERROR 2013 (HY000): Lost connection to MySQL server at ‘reading authorization packet‘, system error: 0

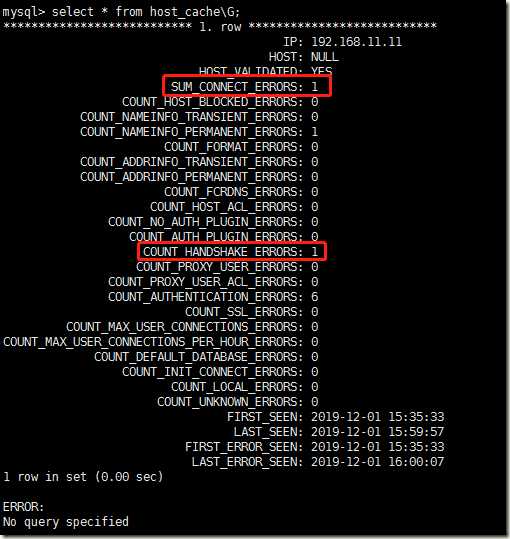

由于网络延时超过10秒,导致连接MySQL失败,此时,你在MySQL服务器上查询host_cache表时,那么你就会看到SUM_CONNECT_ERRORS变成1了,COUNT_HANDSHAKE_ERRORS也变成了1

技术分享图片

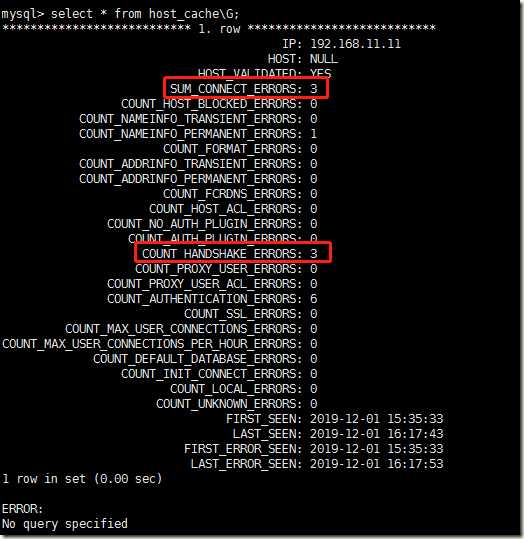

反复这样折腾三次,那么你会看到SUM_CONNECT_ERRORS变成3了,COUNT_HANDSHAKE_ERRORS也变成了3了

技术分享图片

用netem与tc 命令在测试服务器上取消网络延迟模拟,然后去测试连接MySQL数据库

技术分享图片

此时就能构造出“ERROR 1129 (HY000): Host ‘xxx‘ is blocked because of many connection errors; unblock with ‘mysqladmin flush-hosts‘”错误了。
