前面做了关于ELK组件的各个实验，但是并没有真正的把各个组件结合起来做一个实验，现在使用一个脚本简单的生成日志，模拟生产不断产生日志的效果

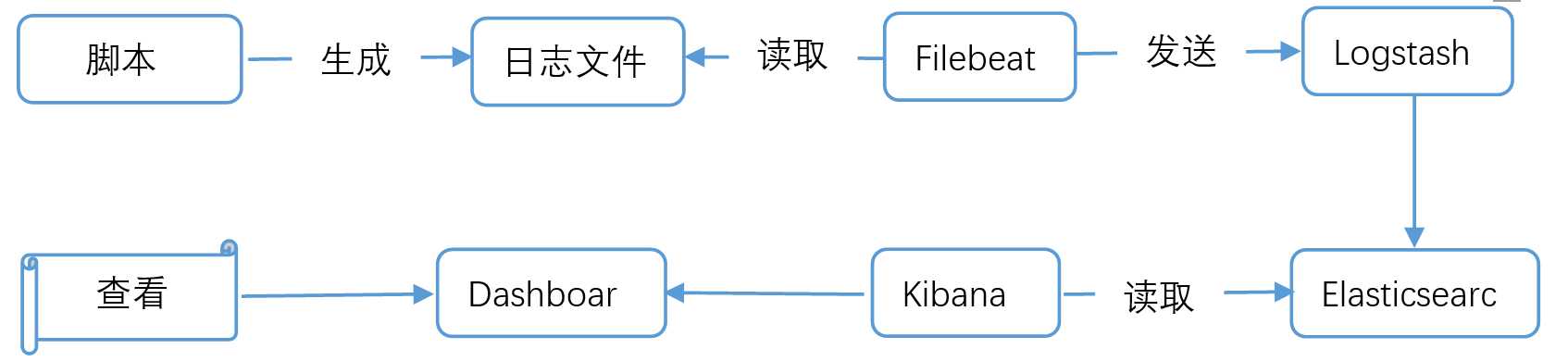

一流程说明

技术分享图片

使用脚本产生日志，模拟用户的操作

日志的格式

[INFO]  2019-11-30 18:00:20 [cn.success.dashboard.Main] -DAU|5206|使用优惠卷|2019-11-30 18:20:23

日志的格式时"DAU" + userID + "|" + visit + "|" +date

通过Filebeat读取日志文件的内容，并将内容发送给Logstash，，原因时需要对内容做处理

Logstash接收到内容后，进行处理，如分割操作，然后将内容发送到 Elasticsearch中

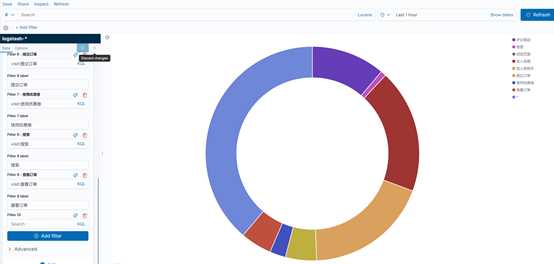

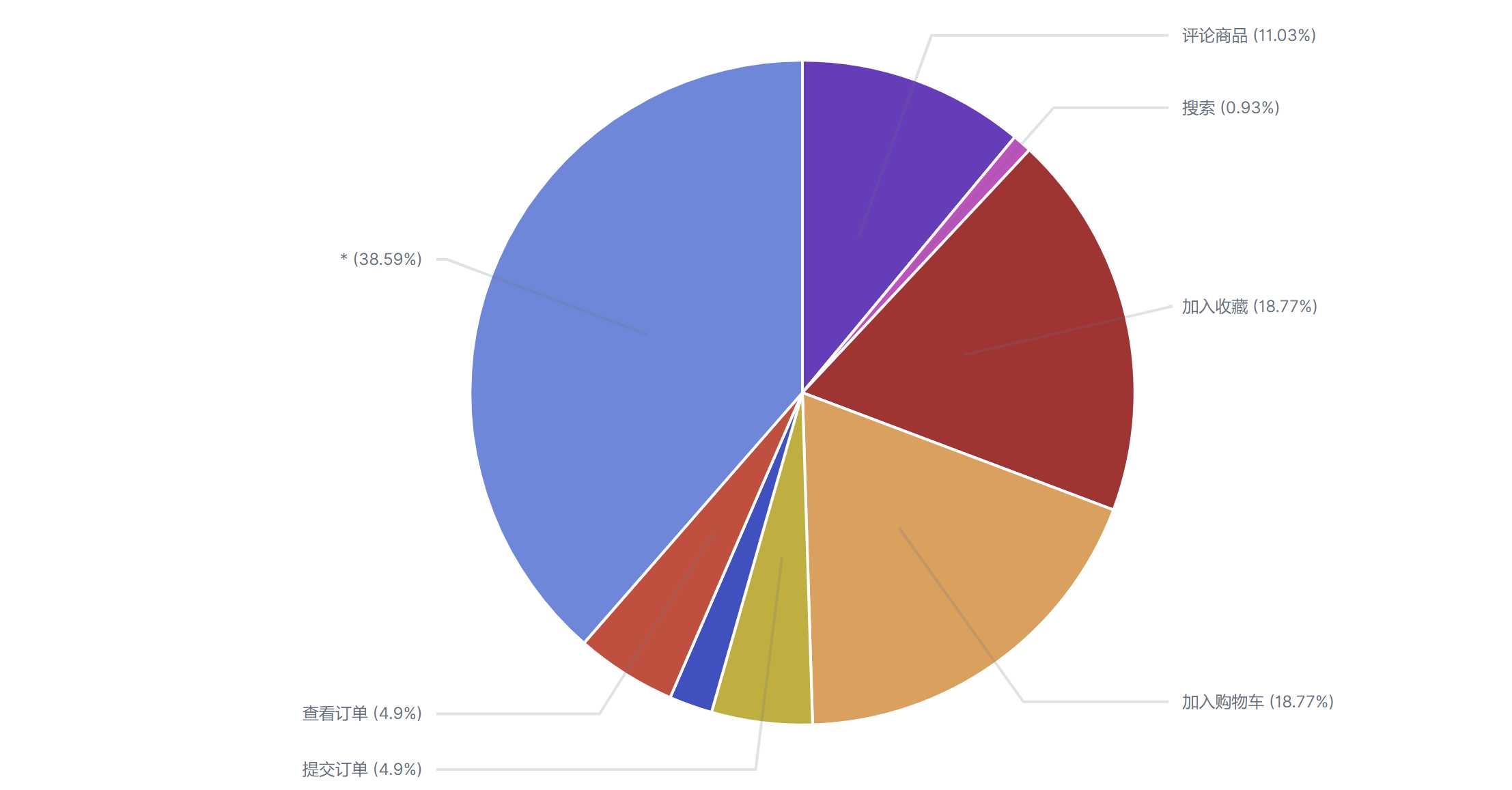

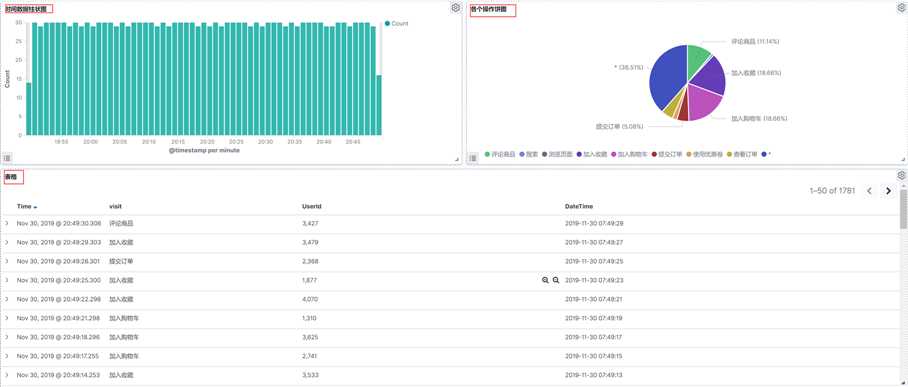

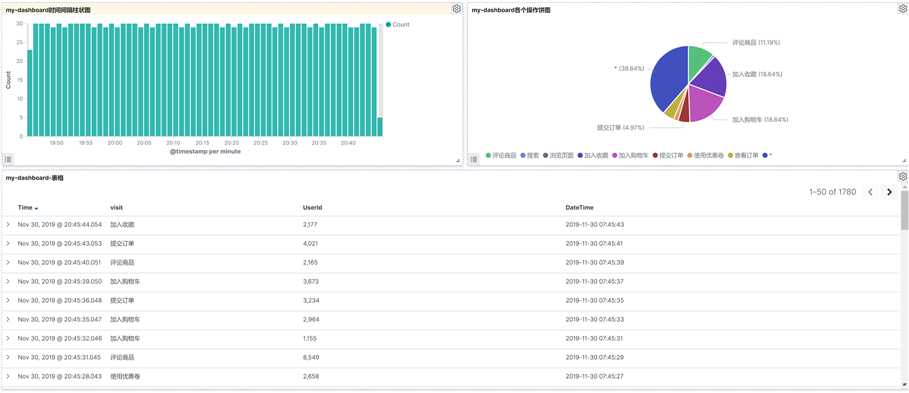

Kiana会读取 Elasticsearch中的数据，并且在 Kiana中进行设计 Dashboard，最后进行展示

后面的日志格式，图表，Dashboard都是自定义的

二编一个日志的脚本

为了方便实验，脚本很简陋，只是一个输入工具，没有什么实际作用

2.1 日志内容如下

#!/bin/bash
visit_array=("浏览页面" "评论商品"  "加入收藏" "加入购物车" "提交订单" "使用优惠卷" "领取优惠卷" "搜索" "查看订单")
visit_number=`head /dev/urandom | cksum | cut -c 1-1`
id_number=`head /dev/urandom | cksum | cut -c 1-4`
echo "[INFO] `date +%F` `date|awk ‘{print $4}‘` [cn.success.dashboard.Main] - DAU|$id_number|${visit_array[$visit_number]}|`date +%F` `date|awk ‘{print $4}‘`"

2.2 执行测试

简单执行一下，看一下效果

[root@node4 ~]# sh /opt/logs.sh
[INFO] 2019-11-30 05:35:28 [cn.success.dashboard.Main] - DAU|3149|查看订单|2019-11-30 05:35:28
[root@node4 ~]# sh /opt/logs.sh
[INFO] 2019-11-30 05:35:29 [cn.success.dashboard.Main] - DAU|2686|搜索|2019-11-30 05:35:29
[root@node4 ~]# sh /opt/logs.sh
[INFO] 2019-11-30 05:35:30 [cn.success.dashboard.Main] - DAU|2922|加入收藏|2019-11-30 05:35:30
[root@node4 ~]# sh /opt/logs.sh
[INFO] 2019-11-30 05:35:30 [cn.success.dashboard.Main] - DAU|1680|加入收藏|2019-11-30 05:35:30
[root@node4 ~]# sh /opt/logs.sh
[INFO] 2019-11-30 05:35:31 [cn.success.dashboard.Main] - DAU|1987|加入购物车|2019-11-30 05:35:31

2.3 实际操作

然后写一个死循环，两秒执行一次，把这个输入一个日志文件里模拟

[root@node4 ~]# while
> :
> do
> sh /opt/logs.sh >> /var/log/elk-test.log
> sleep 2
> done

2.4 查看效果

[root@node4 ~]# tail -f /var/log/elk-test.log

[INFO] 2019-11-30 05:40:52 [cn.success.dashboard.Main] - DAU|2461|评论商品|2019-11-30 05:40:52
[INFO] 2019-11-30 05:40:54 [cn.success.dashboard.Main] - DAU|1463|加入购物车|2019-11-30 05:40:54
[INFO] 2019-11-30 05:40:56 [cn.success.dashboard.Main] - DAU|3408|加入收藏|2019-11-30 05:40:56
[INFO] 2019-11-30 05:40:58 [cn.success.dashboard.Main] - DAU|2821|加入收藏|2019-11-30 05:40:58
[INFO] 2019-11-30 05:41:00 [cn.success.dashboard.Main] - DAU|3630|加入购物车|2019-11-30 05:41:00
[INFO] 2019-11-30 05:41:02 [cn.success.dashboard.Main] - DAU|4136|加入购物车|2019-11-30 05:41:02
[INFO] 2019-11-30 05:41:05 [cn.success.dashboard.Main] - DAU|1673|加入收藏|2019-11-30 05:41:05
[INFO] 2019-11-30 05:41:07 [cn.success.dashboard.Main] - DAU|1073|评论商品|2019-11-30 05:41:07
[INFO] 2019-11-30 05:41:09 [cn.success.dashboard.Main] - DAU|3007|提交订单|2019-11-30 05:41:09
[INFO] 2019-11-30 05:41:11 [cn.success.dashboard.Main] - DAU|2361|评论商品|2019-11-30 05:41:11
[INFO] 2019-11-30 05:41:13 [cn.success.dashboard.Main] - DAU|2634|加入收藏|2019-11-30 05:41:13
[INFO] 2019-11-30 05:41:15 [cn.success.dashboard.Main] - DAU|1799|加入购物车|2019-11-30 05:41:15
[INFO] 2019-11-30 05:41:17 [cn.success.dashboard.Main] - DAU|3545|评论商品|2019-11-30 05:41:17
[INFO] 2019-11-30 05:41:19 [cn.success.dashboard.Main] - DAU|3488||2019-11-30 05:41:19
[INFO] 2019-11-30 05:41:21 [cn.success.dashboard.Main] - DAU|1711|加入购物车|2019-11-30 05:41:21
[INFO] 2019-11-30 05:41:23 [cn.success.dashboard.Main] - DAU|5896|加入购物车|2019-11-30 05:41:23

基本达到一个日志的效果

三配置filebeat

[root@node4 ~]# cd /usr/local/filebeat/

[root@node4 filebeat]# vi elk-test.yml

filebeat.inputs:
- type: log
  enabled: true
  paths:
    -  /var/log/elk-test.log
setup.template.settings:
  index.number_of_shards: 3
output.logstash:
  hosts: ["192.168.132.131:5044"]

四配置logstash

4.1 初步配置

[root@node1 logstash]# vi elk-test.conf

input {
  beats{
  port => "5044"
  }
}
filter{
  mutate {
    split => {"message" => "|"}
  }
  mutate {
    add_field =>{
        "UserId" => "%{[message][1]}"
        "visit"  => "%{[message][2]}"
        "date"   => "%{[message][3]}"
        }
    }
}
output {
  stdout {codec => rubydebug}
}

先输出到控制台

[root@node1 logstash]# bin/logstash -f elk-test.conf

[2019-11-30T05:58:26,028][INFO ][org.logstash.beats.Server][main] Starting server on port: 5044
[2019-11-30T05:58:26,864][INFO ][logstash.agent           ] Successfully started Logstash API endpoint {:port=>9600}

root@node1 ~]# netstat -antlup|grep 5044

技术分享图片

再启动filebeat

[root@node4 filebeat]# ./filebeat -e -c elk-test.yml

查看控制台的输出情况

技术分享图片

4.2 把数据进行格式化配置

[root@node1 ~]# vim /usr/local/logstash/elk-test.conf

input {
  beats{
  port => "5044"
  }
}
filter{
  mutate {
    split => {"message" => "|"}
  }
  mutate {
    add_field =>{
        "UserId" => "%{[message][1]}"
        "visit" => "%{[message][2]}"
        "DateTime" => "%{[message][3]}"
        }
    }
  mutate{
    convert => {
      "UserId" => "integer"
      "visit" => "string"
      "DateTime" => "string"
    }
  }
}
output {
  stdout {codec => rubydebug}
}

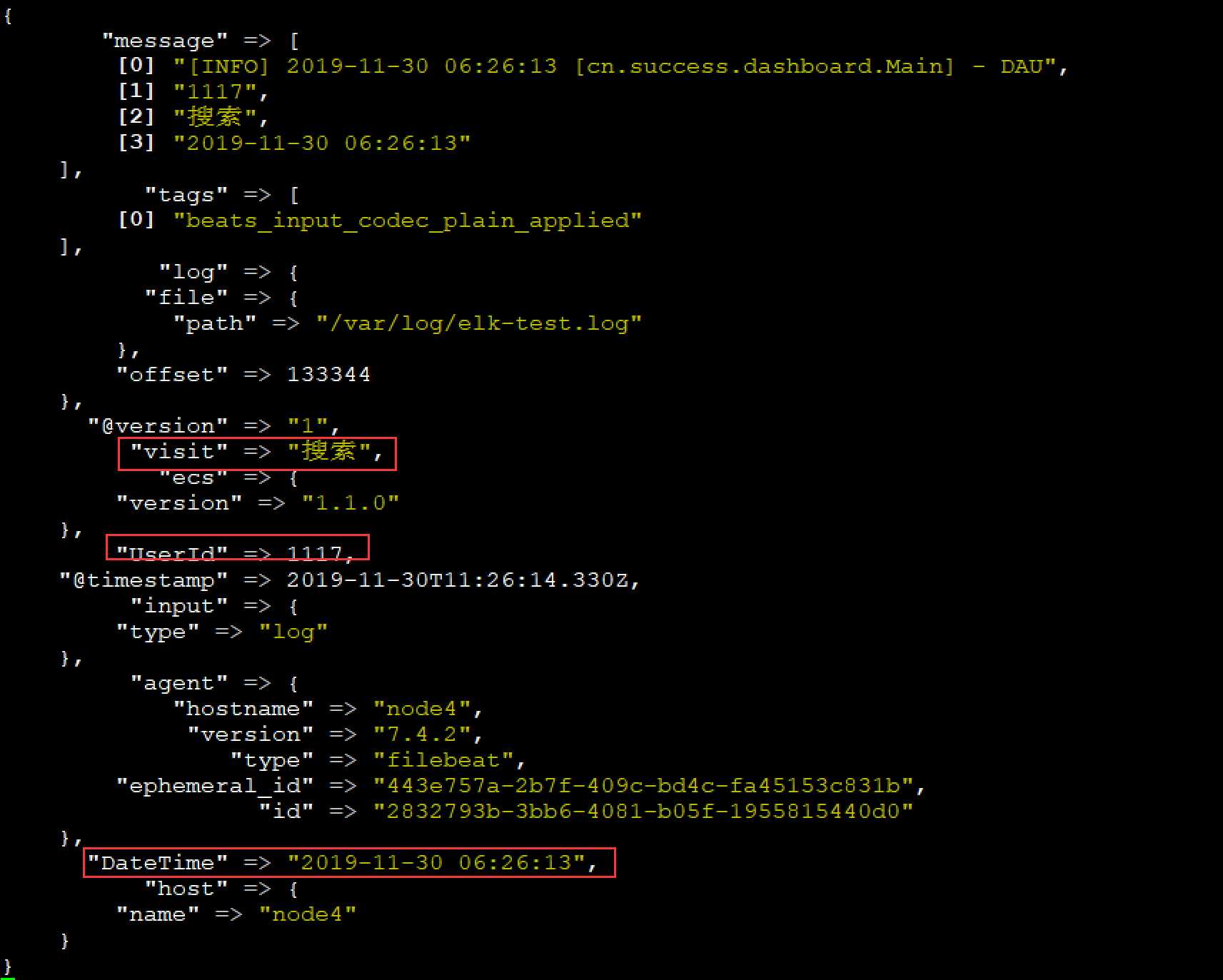

启动再看

技术分享图片

数据处理完成

4.3 数据传到elasticsearch配置

[root@node1 logstash]# vim elk-test.conf

input {
  beats{
  port => "5044"
  }
}
filter{
  mutate {
    split => {"message" => "|"}
  }
  mutate {
    add_field =>{
        "UserId" => "%{[message][1]}"
        "visit" => "%{[message][2]}"
        "DateTime" => "%{[message][3]}"
        }
    }
  mutate{
    convert => {
      "UserId" => "integer"
      "visit" => "string"
      "DateTime" => "string"
    }
  }
}
output {
  elasticsearch{
    hosts => ["192.168.132.131:9200","192.168.132.132:9200","192.168.132.133:9200"]
  }
}
