[转载]Ajax与JSON的一些总结
作者:JK_Rush【 http://www.cnblogs.com/rush/ 】
大早上看到的一篇好文章,因为最近在学习所以关注了,截取了一部分我可以理解的并加了一些自己的内容,蛮适合初学者看一下。
Ajax【ASynchronous JavaScript And XML】技术的核心是XMLHttpRequest对象(简称XHR),可以通过使用XHR对象获取到服务器的数据,然后再通过DOM将数据插入到页面中呈现。虽然名字中包含XML,但Ajax通讯与数据格式无关,所以我们的数据格式可以是XML或JSON【JavaScript Object Notation】等格式。
XMLHttpRequest对象用于在后台与服务器交换数据,具体作用如下:
在后台向服务器发送数据
https://www.cnblogs.com/rush/archive/2012/05/15/2502264.html#lb4)
XMLHttpRequest是一个JavaScript对象,它是由微软设计,并且被Mozilla、Apple和Google采纳,W3C正在标准化它。它提供了一种简单的方法来检索URL中的数据。
我们要创建一个XMLHttpRequest实例,只需new一个就OK了:
//// Creates a XMLHttpRequest object.
var req = new XMLHttpRequest();
也许有人会说:“这可不行啊!IE6不支持原始的XHR对象”,确实是这样,我们在后面将会介绍支持IE6或更老版本创建XHR对象的方法。
在创建XHR对象后,接着我们要调用一个初始化方法open(),它接受五个参数具体定义如下:
void open(
DOMString method, //"GET", "POST", "PUT", "DELETE"
DOMString url,
optional boolean async,
optional DOMString user,
optional DOMString password
);
通过上面的定义我们知道open()方法的签名包含五个参数,其中有参数method和url地址是必填的,假设我们针对URL: myxhrtest.aspx发送GET请求获取数据,具体定义如下:
var req = new XMLHttpRequest();
req.open(
"GET",
"myxhrtest.aspx",
false
);
通过上述代码会启动一个针对myxhrtest.aspx的GET请求,这里有两点要注意:一是URL相对于执行代码的当前页面(使用绝对路径);二是调用open()方法并不会真正发送请求,而只是启动一个请求准备发送。
只能向同一个域中使用相同端口和协议的URL中发送请求;如果URL与启动请求的页面有任何差别,都会引发安全错误。
要真正发送请求要使用send()方法,send()方法接受一个参数,即要作为请求主体发送的数据,如果不需要通过请求主体发送数据,我们必须传递一个null值。在调用send()之后,请求就会被分派到服务器,完整Ajax请求代码如下:
var req = new XMLHttpRequest();
req.open(
"GET",
"myxhrtest.aspx",
false
);
req.send(null);
在发送请求之后,我们需要检查请求是否执行成功,首先可以通过status属性判断,一般来说,可以将HTTP状态代码为200作为成功标志。这时,响应主体内容会保存到responseText中。此外,状态代码为304表示请求的资源并没有被修改,可以直接使用浏览器缓存的数据,Ajax的同步请求代码如下:
if (req != null) {
req.onreadystatechange = function() {
if ((req.status >= 200 && req.status < 300) || req.status == 304) {
//// Do something.
}
else {
alert("Request was unsuccessful: " + req.status);
}
};
req.open("GET", "www.myxhrtest.aspx", true);
req.send(null);
}
前面我们定义了Ajax的同步请求,如果我们发送异步请求,那么在请求过程中javascript代码会继续执行,这时可以通过readyState属性判断请求的状态,当readyState = 4时,表示收到全部响应数据,属性值的定义如下:
readyState值 | 描述 |
---|---|
0 | 未初始化;尚未调用open()方法 |
1 | 启动;尚未调用send()方法 |
2 | 已发送;但尚未收到响应 |
3 | 接收;已经收到部分响应数据 |
4 | 完成;收到全部响应数据 |
? 表1 readyState属性值
同步请求:发生请求后,要等待服务器执行完毕才继续执行当前代码。
异步请求:发生请求后,无需等到服务器执行完毕,可以继续执行当前代码。
现在我们要增加判断readyState属性值,当readyState = 4时,表示全部数据接收完成, 所以Ajax的异步请求代码如下:
if (req != null) {
req.onreadystatechange = function() {
//// Checks the asyn request completed or not.
if (req.readyState == 4) {
if ((req.status >= 200 && req.status < 300) || req.status == 304) {
//// Do something.
}
else {
alert("Request was unsuccessful: " + req.status);
}
}
};
req.open("GET", "www.myxhrtest.aspx", true);
req.send(null);
}
现在我们对Ajax的请求实现有了初步的了解,接下来我们将通过具体的例子说明Ajax请求的应用场合和局限。
在日常网络生活中,我们在浏览器的地址中输入要访问的URL并且回车,浏览器会向服务器发送请求,当服务器收到请求后,把相应的请求页面发送回浏览器,我们会发现页面大部分加载完毕,有些还没有加载完毕。总得来说,采用异步加载方式不会影响已加载完毕的页面浏览,我们可以通过Ajax实现异步加载。
这里我们以AdventureWorks数据库为例,把产品表(Product)中的数据通过报表呈现给用户,我们可以通过多种方法实现该报表需求,这里我们将通过Ajax实现该功能。
首先,我们要把后台数据转换为JSON格式,接下来我们定义Product表的数据库访问对象(DAO),具体的实现代码如下:
/// <summary>
/// The product datatable dao.
/// </summary>
public class ProductDao
{
/// <summary>
/// Initializes a new instance of the <see cref="ProductDao"/> class.
/// </summary>
public ProductDao()
{
}
/// <summary>
/// Gets or sets the product id.
/// </summary>
public int Id { get; set; }
/// <summary>
/// Gets or sets the product name.
/// </summary>
public string Name { get; set; }
/// <summary>
/// Gets or sets the product serial number.
/// </summary>
public string SerialNumber { get; set; }
/// <summary>
/// Gets or sets the product qty.
/// </summary>
public short Qty { get; set; }
}
前面我们定义了Product表的数据库访问对象——ProductDao,它包含四个属性分别是产品的Id,名称,序列号和销售数量。
接下来,让我们实现Product表的数据库操作类。
/// <summary>
/// Product table data access manager.
/// </summary>
public class ProductManager
{
/// <summary>
/// The query sql.
/// </summary>
private const string Query =
"SELECT ProductID, Name, ProductNumber, SafetyStockLevel FROM Production.Product";
/// <summary>
/// Stores the object of <see cref="ProductDao"/> into list.
/// </summary>
private IList<ProductDao> _products = new List<ProductDao>();
/// <summary>
/// Gets all products in product table.
/// </summary>
/// <returns>
/// The list of <see cref="ProductDao"/> object.
/// </returns>
public IList<ProductDao> GetAllProducts()
{
using (var con = new SqlConnection(ConfigurationManager.ConnectionStrings["SQLCONN"].ToString()))
using (var com = new SqlCommand(Query, con))
{
con.Open();
using (var reader = com.ExecuteReader(CommandBehavior.CloseConnection))
{
while (reader.Read())
{
var product = new ProductDao
{
Id = (int)reader["ProductID"],
Name = (string)reader["Name"],
SerialNumber = (string)reader["ProductNumber"],
Qty = (short)reader["SafetyStockLevel"]
};
_products.Add(product);
}
}
}
return _products;
}
}
前面我们实现了Product表的数据库操作类——ProductManager,它包含两个私有字段Quey和_products,还有一个获取Product表中数据的方法——GetAllProducts()。
通过实现ProductDao和ProductManager,而且我们提供GetAllProducts()方法,获取Product表中的数据,接下来我们要调用该方法获取数据。
为了使数据通过JSON格式传递给页面,这里我们要创建一般处理程序(ASHX文件),
一般处理程序适用场合:

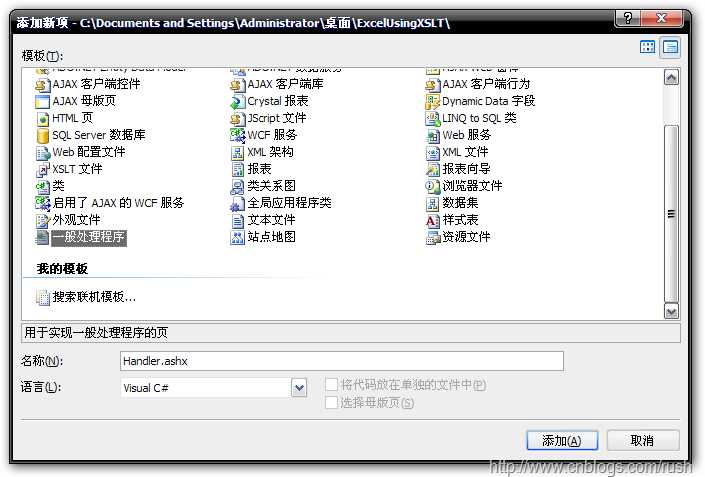

? 图1一般处理程序
把一般处理程序文件添加到项目中时,会添加一个扩展名为.ashx的文件,现在我们创建一个一般处理程序ProductInfo,具体代码如下:
<%@ WebHandler Language="C#" Class="ProductInfo" %>
using System.Runtime.Serialization.Json;
using System.Web;
using ASP.App_Code;
/// <summary>
/// The product data handler.
/// </summary>
public class ProductInfo : IHttpHandler {
public void ProcessRequest (HttpContext context) {
context.Response.ContentType = "application/json";
// Creates a <see cref="ProductManager"/> oject.
var manager = new ProductManager();
// Invokes the GetAllProducts method.
var products = manager.GetAllProducts();
// Serializes data to json format.
var json = new DataContractJsonSerializer(products.GetType());
json.WriteObject(context.Response.OutputStream, products);
}
// Whether can resuable by other handler or not.
public bool IsReusable {
get {
return false;
}
}
}
大家注意到ProductInfo类实现了IHttpHandler接口,该接口包含一个方法ProcessRequest()方法和一个属性IsReusable。ProcessRequest()方法用于处理入站的Http请求。在默认情况下,ProductInfo类会把内容类型改为application/json,然后我们把数据通过JSON格式写入输入流中;IsReusable属性表示相同的处理程序是否可以用于多个请求,这里我们设置为false,如果为了提高性能也可以设置为true。

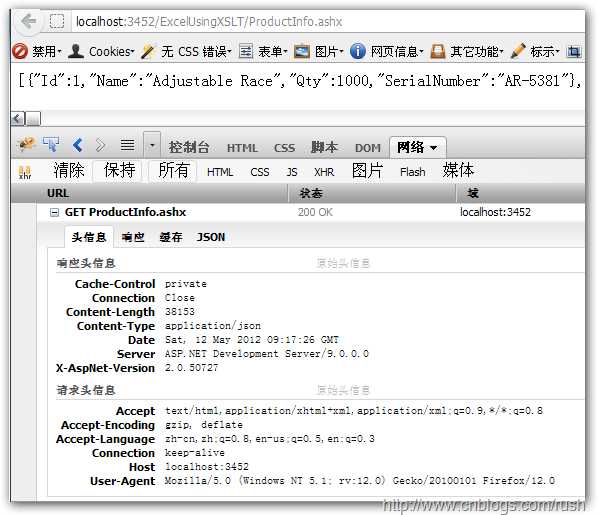

如下图所示,我们通过ProductInfo类成功地实现获取数据到响应流中,并且以JSON格式显示出来。
? 图2 Http请求
当我们请求ProductInfo时, 首先它会调用ProcessRequest()方法,接着调用GetAllProducts()方法从数据库中获取数据,然后把数据通过JSON格式写入到响应流中。
现在,我们已经成功地把数据通过JSON格式写入到响应流当中,接着我们将通过Ajax方式请求数据并且把数据显示到页面中。
首先,我们定义方法createXHR()用来创建XMLHttpRequest对象,前面我们提到IE6或者更老的版本不支持XMLHttpRequest()方法来创建XMLHttpRequest对象,所以我们要在createXHR()方法中,增加判断当前浏览器是否IE6或更老的版本,如果是,就要通过MSXML库的一个ActiveX对象实现。因此,在IE中可能遇到三种不同版本的XHR对象(MSXML2.XMLHttp6.0,MSXML2.XMLHttp3.0和MSXML2.XMLHttp)。
// Creates a XMLHttpRequest object bases on web broswer.
function createXHR() {
// Checks whether support XMLHttpRequest or not.
if (typeof XMLHttpRequest != "undefined") {
return new XMLHttpRequest();
}
// IE6 and elder version.
else if (typeof ActiveXObject != "undefined") {
if (typeof arguments.callee.activeXString != "string") {
var versions = [
"MSXML2.XMLHttp6.0",
"MSXML2.XMLHttp3.0",
"MSXML2.XMLHttp"];
for (var i = 0; i < versions.length; i++) {
try {
var xhr = new ActiveXObject(versions[i]);
arguments.callee.activeXString = versions[i];
return xhr;
}
catch (ex) {
throw new Error(ex.toString());
}
}
return new ActiveXObject(arguments.callee.activeXString);
}
else {
throw new Error("No XHR object available");
}
}
return null;
}
$(document).ready(function() {
GetDataFromServer();
});
function GetDataFromServer() {
// Creates a XMLHttpRequest object.
var req = new createXHR();
if (req != null) {
req.onreadystatechange = function() {
if (req.readyState == 4) {
if ((req.status >= 200 && req.status < 300) || req.status == 304) {
////alert(req.responseText);
var jsonTextDiv = document.getElementById("jsonText");
// Deserializes JavaScript Object Notation (JSON) text to produce a JavaScript value.
var data = JSON.parse(req.responseText);
for (var i = 0; i < data.length; i++) {
var item = data[i];
var div = document.createElement("div");
div.setAttribute("class", "dataItem");
// Inserts data into the html.
div.innerHTML = item.Name + " sold " + item.Qty + "; Product number: " + item.SerialNumber;
jsonTextDiv.appendChild(div);
}
}
else {
alert("Request was unsuccessful: " + req.status);
}
}
};
// Sends a asyn request.
req.open("GET", "ProductInfo.ashx", true);
req.send(null);
}
}
由于前面我们介绍过Ajax发生请求的方法,所以不再重复介绍了,但我们注意到GetDataFromServer()方法中,获取responseText数据(JSON格式),然后通过parse()方法把JSON格式数据转换为Javascript对象,最后把数据插入到div中,页面呈现效果如下:

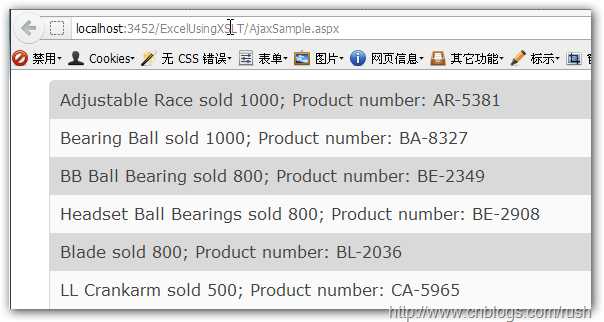

? 图3 Ajax请求结果
现在,我们成功地把数据输出到页面当中,也许用户还会觉得用户体验不好,那么我们给就该页面增加CSS样式。
由于时间的关系,我们已经把CSS样式定义好了,具体如下:
#header {
width: 100%;
margin-left: 10px;
margin-right: 10px;
background-color:#480082;
color: #FFFFFF;
}
body {
margin-left: 40px;
margin-right: 40px;
}
div#jsonText {
background-color: #d9d9d9;
-webkit-border-radius: 6px;
border-radius: 6px;
margin: 10px 0px 0px 0px;
padding: 0px;
border: 1px solid #d9d9d9;
}
div.dataItem {
font-family: Verdana, Helvetica, sans-serif;
color: #434343;
padding: 10px;
}
div.dataItem:nth-child(2n) {
background-color: #fafafa;
}
div.dataItem:first-child {
-webkit-border-top-left-radius: 6px;
-webkit-border-top-right-radius: 6px;
border-top-left-radius: 6px;
border-top-right-radius: 6px;
}
div.dataItem:last-child {
-webkit-border-bottom-left-radius: 6px;
-webkit-border-bottom-right-radius: 6px;
border-bottom-left-radius: 6px;
border-bottom-right-radius: 6px;
}
我们刷新一下页面,OK现在页面效果好多了。
? 图4 Ajax请求结果
怎么说呢,这篇文章虽热不错,但还是有一些年龄了,这里来个现代化的例子感受一下。
案例:注册页面-校验用户名是否存在
服务器响应的数据,在客户端使用时,要想当做json数据格式使用。有两种解决方案:
- $.get(type):将最后一个参数type指定为"json"
- 在服务器端设置MIME类型
response.setContentType("application/json;charset=utf-8");
首先要有个注册页面regist.html吧。
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>注册页面</title>
<script src="../BootStrap/js/jquery-3.2.1.min.js"></script>
<script>
//在页面加载完成后
$(function () {
//给username绑定blur事件
$("#username").blur(function () {
//获取username文本输入框的值
var username = $(this).val();
//发送ajax请求
//期望服务器响应回的数据格式:{"userExsit":true,"msg":"此用户名太受欢迎,请更换一个"}
// {"userExsit":false,"msg":"用户名可用"}
$.get("findUserServlet",{username:username},function (data) {
//判断userExsit键的值是否是true
// alert(data);
var span = $("#s_username");
if(data.userExsit){
//用户名存在
span.css("color","red");
span.html(data.msg);
}else{
//用户名不存在
span.css("color","green");
span.html(data.msg);
}
});
});
});
</script>
</head>
<body>
<form>
<input type="text" id="username" name="username" placeholder="请输入用户名">
<span id="s_username"></span>
<br>
<input type="password" name="password" placeholder="请输入密码"><br>
<input type="submit" value="注册"><br>
</form>
</body>
</html>
其次,寻找用户是否存在FindUserServlet.java
package wzm.servlet;
import com.fasterxml.jackson.databind.ObjectMapper;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.HashMap;
import java.util.Map;
@WebServlet("/findUserServlet")
public class FindUserServlet extends HttpServlet {
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//1.获取用户名
String username = request.getParameter("username");
//2.调用service层判断用户名是否存在
//期望服务器响应回的数据格式:{"userExsit":true,"msg":"此用户名太受欢迎,请更换一个"}
// {"userExsit":false,"msg":"用户名可用"}
//设置响应的数据格式为json
response.setContentType("application/json;charset=utf-8");
Map<String,Object> map = new HashMap<String,Object>();
if("tom".equals(username)){
//存在
map.put("userExsit",true);
map.put("msg","此用户名太受欢迎,请更换一个");
}else{
//不存在
map.put("userExsit",false);
map.put("msg","用户名可用");
}
//将map转为json,并且传递给客户端
//将map转为json
ObjectMapper mapper = new ObjectMapper();
//并且传递给客户端
mapper.writeValue(response.getWriter(),map);
}
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
this.doPost(request, response);
}
}
原文:https://www.cnblogs.com/wangzheming35/p/11925748.html
