epwmss2: epwmss@48442000 {
compatible = "ti,dra746-pwmss", "ti,am33xx-pwmss";
reg = <0x48442000 0x30>;
ti,hwmods = "epwmss2";
#address-cells = <1>;
#size-cells = <1>;
status = "okay";
ranges;

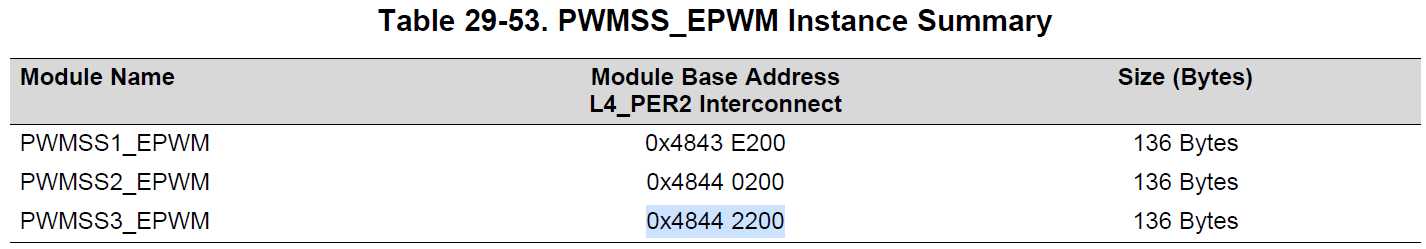

ehrpwm2: pwm@48442200 {
compatible = "ti,dra746-ehrpwm",
"ti,am3352-ehrpwm",
"ti,am33xx-ehrpwm";
#pwm-cells = <3>;
reg = <0x48442200 0x80>;
clocks = <&ehrpwm2_tbclk>, <&l4_root_clk_div>;
clock-names = "tbclk", "fck";
status = "okay";
};
...
};
通过调用以下脚本可以产生25Hz, duty=25%的pwm脉冲
#!/bin/sh echo 1 > /sys/class/pwm/pwmchip0/export # setup frequency to 25Hz duty cycle 25% echo 40000000 > /sys/class/pwm/pwmchip0/pwm1/period echo 10000000 > /sys/class/pwm/pwmchip0/pwm1/duty_cycle echo normal > /sys/class/pwm/pwmchip0/pwm1/polarity echo 1 > /sys/class/pwm/pwmchip0/pwm1/enable echo "setting pwm for camera isp frame sync
代码流程:
static int ehrpwm_pwm_probe(struct platform_device *pdev)
{
...
ret = pwmchip_add(&pc->chip);
if (ret < 0) {
dev_err(&pdev->dev, "pwmchip_add() failed: %d\n", ret);
return ret;
}
...
}
pwmchip_add函数定义在/driver/pwm/core.c里面
int pwmchip_add(struct pwm_chip *chip)
{
return pwmchip_add_with_polarity(chip, PWM_POLARITY_NORMAL);
}
同样pwmchip_add_with_polarity函数也定义在core.c下
int pwmchip_add_with_polarity(struct pwm_chip *chip,
enum pwm_polarity polarity)
{
...
pwmchip_sysfs_export(chip);
...
}
可在driver/pwm/sysfs.c下面找到pwmchip_sysfs_export的定义,这里调用了device_create在/sys/下面创建一个名字为pwmchip%d的目录.
void pwmchip_sysfs_export(struct pwm_chip *chip)
{
...
parent = device_create(&pwm_class, chip->dev, MKDEV(0, 0), chip,
"pwmchip%d", chip->base);
...
}
并调用根据pwm_class定义的内核属性新建文件夹pwm
static struct class pwm_class = {
.name = "pwm",
.owner = THIS_MODULE,
.dev_groups = pwm_chip_groups,
};
在pwm下面新建npwm, unexport, export三个文件
static ssize_t export_store(struct device *parent,
struct device_attribute *attr,
const char *buf, size_t len)
{
struct pwm_chip *chip = dev_get_drvdata(parent);
struct pwm_device *pwm;
unsigned int hwpwm;
int ret;
ret = kstrtouint(buf, 0, &hwpwm);
if (ret < 0)
return ret;
if (hwpwm >= chip->npwm)
return -ENODEV;
pwm = pwm_request_from_chip(chip, hwpwm, "sysfs");
if (IS_ERR(pwm))
return PTR_ERR(pwm);
ret = pwm_export_child(parent, pwm);
if (ret < 0)
pwm_put(pwm);
return ret ? : len;
}
static DEVICE_ATTR_WO(export);
static ssize_t unexport_store(struct device *parent,
struct device_attribute *attr,
const char *buf, size_t len)
{
struct pwm_chip *chip = dev_get_drvdata(parent);
unsigned int hwpwm;
int ret;
ret = kstrtouint(buf, 0, &hwpwm);
if (ret < 0)
return ret;
if (hwpwm >= chip->npwm)
return -ENODEV;
ret = pwm_unexport_child(parent, &chip->pwms[hwpwm]);
return ret ? : len;
}
static DEVICE_ATTR_WO(unexport);
static ssize_t npwm_show(struct device *parent, struct device_attribute *attr,
char *buf)
{
const struct pwm_chip *chip = dev_get_drvdata(parent);
return sprintf(buf, "%u\n", chip->npwm);
}
static DEVICE_ATTR_RO(npwm);
static struct attribute *pwm_chip_attrs[] = {
&dev_attr_export.attr,
&dev_attr_unexport.attr,
&dev_attr_npwm.attr,
NULL,
};
ATTRIBUTE_GROUPS(pwm_chip);
往生成的export里面写数据才会生成新的目录
static ssize_t export_store(struct device *parent,
struct device_attribute *attr,
const char *buf, size_t len)
{
...
ret = pwm_export_child(parent, pwm);
...
}
如下在调用export之后先生成一个pwm%d的目录
static int pwm_export_child(struct device *parent, struct pwm_device *pwm)
{
...
export->child.release = pwm_export_release;
export->child.parent = parent;
export->child.devt = MKDEV(0, 0);
export->child.groups = pwm_groups;
dev_set_name(&export->child, "pwm%u", pwm->hwpwm);
...
}
上面函数调用了pwm_groups,而pwm_groups定义如下
static DEVICE_ATTR_RW(period);
static DEVICE_ATTR_RW(duty_cycle);
static DEVICE_ATTR_RW(enable);
static DEVICE_ATTR_RW(polarity);
static struct attribute *pwm_attrs[] = {
&dev_attr_period.attr,
&dev_attr_duty_cycle.attr,
&dev_attr_enable.attr,
&dev_attr_polarity.attr,
NULL
};
脚本里先往export里面写1,然后才能在生成新的文件之后做其他操作.
