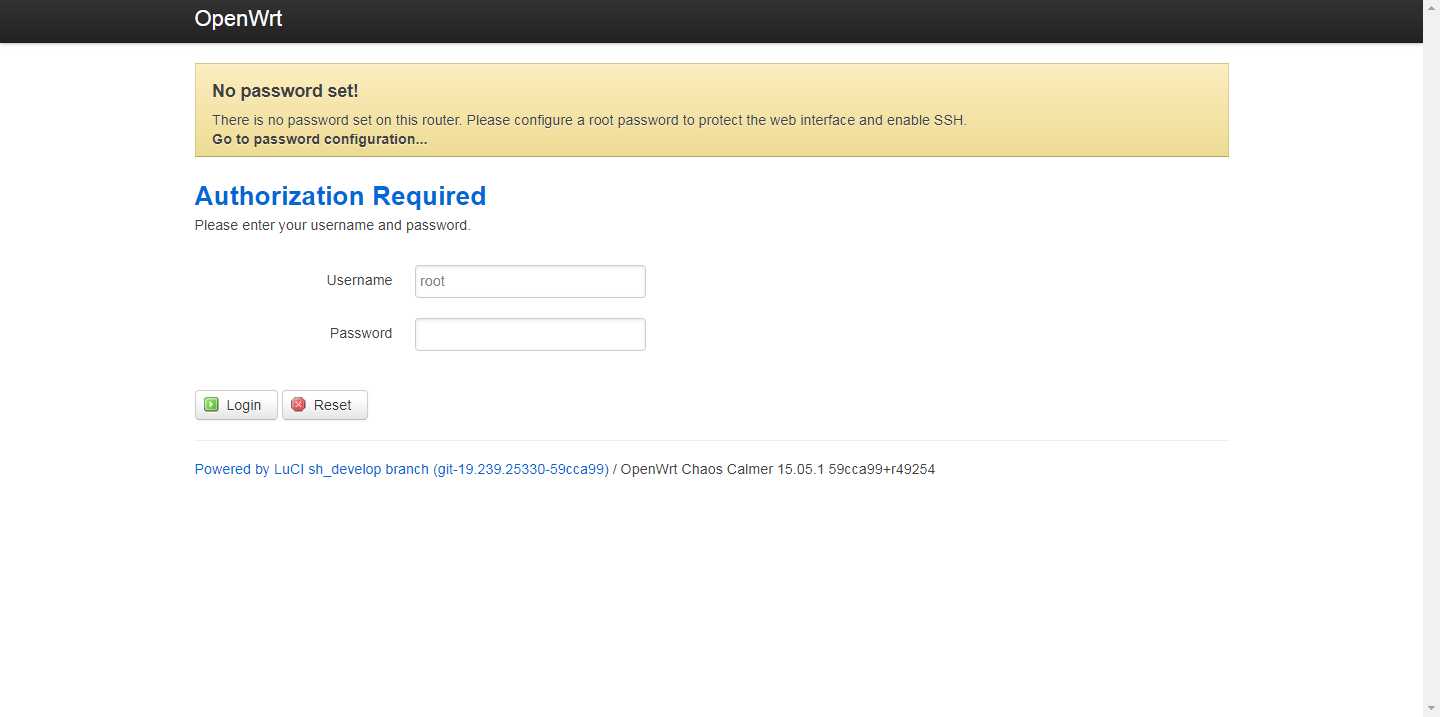

那么,到底什么是Luci呢?先直观的感受一下,打开web浏览器的网关地址,然后出现了一个web登录界面,这个就是Openwrt Luci的应用。
概述:
OpenWRT的web采取的是luci框架, 在luci的官方网站说明了luci是一个MVC架构的框架,是一个单用户框架,
公用的模块放置在*/luci/controller/下面,
各个用户的模块放置在*/luci/controller/下面对应的文件夹里面,
比如admin登录,最终的页面只显示/luci/controller/admin下面的菜单。这样既有效的管理了不同管理员的权限。
基础知识:
Luci = lua + uci
lua : 脚本语言
uci :(Unified Configuration Interface)是Openwrt的配置框架
Openwrt 的 web 服务器: uhttpd
uhttpd:是一个轻量级的web服务器,由于其可以和Openwrt的配置框架UCI结合到一起,因此默认被用于OpenWrt的Web管理接口LuCI。我们都知道,网站都是被部署在一台台服务器,PC等设备上的,我们的设备访问网站时,先是通过网络访问到部署这个网站的服务器,然后服务器的web服务再返回页面给我们;也就是说如果服务器没有web服务,我们是访问不了网页的哦。
说明:
1) lua单行注释使用“--”,类似于C语言的“//”,多行注释时,“--[[”类似C语言中的“/*”,“]]--”类似C语言中的“*/”
contoller:逻辑控制文件(主要是注册页面)
model :业务上的处理
view : 存放 html 文件
controller在luci框架中的作用是逻辑上的组织,编码时主要分为2块
1 模块的注册 :
module("luci.controller.admin.system", package.seeall) //在luci/controller/admin/下注册一个system模块
2 节点的注册 :表示添加一个新的模块入口
local fs = require "nixio.fs" entry({"admin", "system"}, alias("admin", "system", "system"), _("System"), 30).index = true entry({"admin", "system", "system"}, cbi("admin_system/system"), _("System"), 1) entry({"admin", "system", "clock_status"}, call("action_clock_status")) entry({"admin", "system", "admin"}, cbi("admin_system/admin"), _("Administration"), 2) entry({"admin", "system", "reboot"}, call("action_reboot"), _("Reboot"), 90)
函数原型 : entry(path, target, title=nil, order=nil)
path :是访问的路径,路径是按字符串数组给定的, 比如路径按如下方式写"{"admin", "loogson", "control"}",那么就可以在浏览器里访问"http://192.168.1.1/cgi-bin/luci/admin/loogson/control"来访问这个脚本。 其中的“admin”表示为管理员添加脚本,"loogson"即为一级菜单名,"control"为菜单项名。系统会自动在对应的菜单中生成菜单项。比如想在"System"菜单下创建一个菜单项,那么一级菜单名可以写为
"system"。
target : 为调用目标,调用目标分为三种,分别是执行指定方法(Action)、访问指定页面(Views)以及调用CBI Module。
call:第一种可以直接调用指定的函数,比如点击菜单项就直接重启路由器等等,比如写为"call("function_name")",然后在该lua文件下编写名为function_name的函数就可以调用了。 template:第二种可以访问指定的页面,比如写为"template("myapp/mymodule")"就可以调用/usr/lib/lua/luci/view/myapp/mymodule.htm文件了。 cbi: 第三种主要应用在配置界面,比如写为"cbi("myapp/mymodule")"就可以调用/usr/lib/lua/luci/model/cbi/myapp/mymodule.lua文件了。 title和order: 是针对管理员菜单的,其中的title即是显示在网页上的内容。这里我们创建"/usr/lib/lua/luci/controller/loogson.lua"文件,定义我们的入口为"loogson"。 alias :表示连接到其他某个节点
用户管理:
/luci/controller/admin下面的菜单,一共7个文件
root@OpenWrt:/usr/lib/lua/luci/controller/admin# ls -l -rw-rw-r-- 1 root root 319 Mar 31 07:19 filebrowser.lua -rw-rw-r-- 1 root root 1140 Mar 31 07:19 index.lua -rw-rw-r-- 1 root root 11355 Mar 31 07:19 network.lua -rw-rw-r-- 1 root root 4403 Mar 31 07:19 status.lua -rw-rw-r-- 1 root root 10235 Mar 31 07:19 system.lua -rw-rw-r-- 1 root root 1769 Mar 31 07:19 uci.lua -rw-rw-r-- 1 root root 1167 Mar 31 07:19 servicectl.lua
前面6个来至Feeds/luci/modules/luci-mod-admin-full/luasrc/controller/admin目录,最后一个来自luci-base目录
2.1 Map 函数
m = Map("配置文件存储的文件名,不包含路径", "配置页面标题", "配置页面说明")
2.2
local m, s, o //定义全局变量
2.3
Section : 创建与配置文件中对应的Section , Section分为两种,NamedSection 和 TypedSection NamedSection :根据配置文件中的Section名 TypedSection:根据配置文件中的Section类型
s = m:section(TypedSection, "_dummy", "") s.addremove = false //不允许增加或删除Section s.anonymous = true //设定不显示Section的名称
2.4 定义:
选项:tab s:tab("led", translate("Control LED")) 文本框:value o:value(0, translate("LED0")) o:value(1, translate("LED1")) o:value(2, translate("LED2")) 下拉框:ListValue o = s:taboption("led", ListValue, "lednum", translate("LED NUM:")) 选择框:Flag
3.1 首先只有当web 服务器起来后,才可能访问到页面,所以首先看一下web 服务器的配置,前文说过,openwrt 的web 服务器使用的是uhttpd
root@OpenWrt:/etc/config# cat uhttpd #也可以通过uci 命令查看 :uci show uhttpd config uhttpd ‘main‘ list listen_http ‘0.0.0.0:8080‘ #http协议IPV4的监听端口80 list listen_http ‘[::]:8080‘ #http协议IPV6的监听端口80 list listen_https ‘0.0.0.0:443‘ #https协议的监听端口为443 list listen_https ‘[::]:443‘ option redirect_https ‘1‘ option home ‘/www‘ #指定根路径 option rfc1918_filter ‘1‘ option max_requests ‘3‘ #最大请求数 option max_connections ‘100‘ #最大TCP连接数 option cert ‘/etc/uhttpd.crt‘ #HTTPS连接的证书路径 option key ‘/etc/uhttpd.key‘ #HTTPS连接的私钥路径 option cgi_prefix ‘/cgi-bin‘ #cgi脚本的路径,这个路径又是home的相对路径,即/www/cgi-bin option script_timeout ‘60‘ option network_timeout ‘30‘ option http_keepalive ‘20‘ option tcp_keepalive ‘1‘ option ubus_prefix ‘/ubus‘ config cert ‘px5g‘ option days ‘730‘ option bits ‘1024‘ option country ‘ZZ‘ option state ‘Somewhere‘ option location ‘‘ option commonname ‘OpenWrt‘
3.2 由上面uhttpd的配置来看,当我们通过web的方式访问时,uhttpd会导向"/www"的路径,那么我们来看看"/www"里面有什么。
root@OpenWrt:/www# ls cgi-bin index.html luci-static
root@OpenWrt:/www# cat index.html <?xml version="1.0" encoding="utf-8"?> <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN" "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd"> <html xmlns="http://www.w3.org/1999/xhtml"> <head> <meta http-equiv="Cache-Control" content="no-cache" /> <meta http-equiv="refresh" content="0; URL=/cgi-bin/luci" /> </head> <body style="background-color: white"> <a style="color: black; font-family: arial, helvetica, sans-serif;" href="/cgi-bin/luci">LuCI - Lua Configuration Interface</a> </body> </html> root@OpenWrt:/www#
从 index.html 可以看到这个内容“href="/cgi-bin/luci”,原来是这里把网关导向了“/cgi-bin/luci”;那么我们再来看看这个路径里面又有什么?
root@OpenWrt:/www/cgi-bin# ls #这里有个luci的脚本 luci
root@OpenWrt:/www/cgi-bin# cat luci #!/usr/bin/lua require "luci.cacheloader" require "luci.sgi.cgi" luci.dispatcher.indexcache = "/tmp/luci-indexcache" luci.sgi.cgi.run() root@OpenWrt:/www/cgi-bin#
这个路径下面放着一个lua的脚本,脚本里面调用了这个接口“luci.sgi.cgi.run()”,那么这个接口执行的函数在哪里呢,在这里:
root@OpenWrt:/usr/lib/lua/luci/sgi# ls cgi.lua uhttpd.lua
root@OpenWrt:/usr/lib/lua/luci/sgi# cat cgi.lua -- Copyright 2008 Steven Barth <steven@midlink.org> -- Licensed to the public under the Apache License 2.0. exectime = os.clock() module("luci.sgi.cgi", package.seeall) local ltn12 = require("luci.ltn12") require("nixio.util") require("luci.http") require("luci.sys") require("luci.dispatcher") -- Limited source to avoid endless blocking local function limitsource(handle, limit) limit = limit or 0 local BLOCKSIZE = ltn12.BLOCKSIZE return function() if limit < 1 then handle:close() return nil else local read = (limit > BLOCKSIZE) and BLOCKSIZE or limit limit = limit - read local chunk = handle:read(read) if not chunk then handle:close() end return chunk end end end function run() local r = luci.http.Request( luci.sys.getenv(), limitsource(io.stdin, tonumber(luci.sys.getenv("CONTENT_LENGTH"))), ltn12.sink.file(io.stderr) ) local x = coroutine.create(luci.dispatcher.httpdispatch) local hcache = "" local active = true while coroutine.status(x) ~= "dead" do local res, id, data1, data2 = coroutine.resume(x, r) if not res then print("Status: 500 Internal Server Error") print("Content-Type: text/plain\n") print(id) break; end if active then if id == 1 then io.write("Status: " .. tostring(data1) .. " " .. data2 .. "\r\n") elseif id == 2 then hcache = hcache .. data1 .. ": " .. data2 .. "\r\n" elseif id == 3 then io.write(hcache) io.write("\r\n") elseif id == 4 then io.write(tostring(data1 or "")) elseif id == 5 then io.flush() io.close() active = false elseif id == 6 then data1:copyz(nixio.stdout, data2) data1:close() end end end end root@OpenWrt:/usr/lib/lua/luci/sgi#
现在我们可以初步了解到,lua语言就是这样被Luci使用的。
那么我们再整体看一下整个访问流程:
web(输入网关地址)==> uhttpd调用"/www/index.html" ==> index.html重定向到"/cgi-bin/luci" ==> luci被启动。
