使用Linux好久了，一定会意识到一个问题，某个分区容量不够用了，想要扩容怎么办？这里就涉及到LVM逻辑卷的管理了，可以动态调整Linux分区容量。

LVM 概述

全称Logical Volume Manager，可以动态调整磁盘容量，提高磁盘管理灵活性。

在安装CentOS 7的过程中选择自动分区时，默认就是以LVM的方案安装的系统。

但是/boot分区必须独立出来，不能基于LVM创建。

PV 物理卷

物理卷，Physical Volume，是LVM机制的基本存储设备，通常对应一个普通分区或是整个硬盘。

创建物理卷时，会在分区或磁盘头部创建一个用于记录LVM属性的保留区块，并把存储空间分割成默认大小为4MB的基本单元（Physical Extend，PE），从而构成物理卷。

普通分区先转换分区类型为8e；整块硬盘，可以将所有的空间划分为一个主分区再做调整。

VG 卷组

卷组，Volume Group，是由一个或多个物理卷组成的一个整体。可以动态添加、移除物理卷，创建时可以指定PE大小。

LV 逻辑卷

逻辑卷，Logical Volume，建立在卷组之上，与物理卷没有直接关系。格式化后，即可挂载使用。

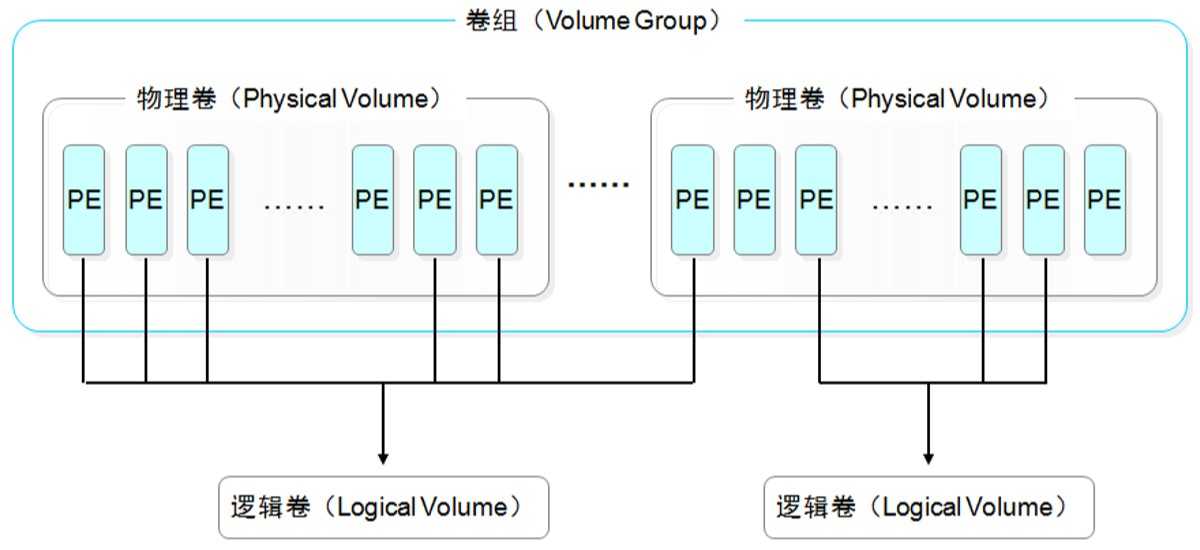

三者关系

通过以上对三者的解释可以看出，建立LVM的过程。首先，将普通分区或整个硬盘创建为物理卷；然后，将一个或多个物理卷创建为卷组；最后，在卷组上分割不同的数据存储空间形成逻辑卷。有了逻辑卷，就可以格式化、挂载使用了。

LVM 管理

LVM 常用命令

PV 管理

pvsacn

• 扫描列出系统中所有的物理卷

-e:仅显示属于输出卷组的物理卷
-n：仅显示不属于任何卷组的物理卷

[root@localhost ~]# pvscan
  PV /dev/sda2   VG centos          lvm2 [<19.00 GiB / 0    free]
  PV /dev/sdb1                      lvm2 [<20.00 GiB]
  PV /dev/sdc1                      lvm2 [<20.00 GiB]
  Total: 3 [58.99 GiB] / in use: 1 [<19.00 GiB] / in no VG: 2 [<40.00 GiB]

pvcreate

• 将分区或整个硬盘转换成物理卷

[root@localhost ~]# pvcreate /dev/sd{b,c}1
  Physical volume "/dev/sdb1" successfully created.
  Physical volume "/dev/sdc1" successfully created.

pvdisplay

• 显示物理卷的详细信息

[root@localhost ~]# pvdisplay
  --- Physical volume ---
  PV Name               /dev/sda2
  VG Name               centos
  PV Size               <19.00 GiB / not usable 3.00 MiB
  Allocatable           yes (but full)
  PE Size               4.00 MiB
  Total PE              4863
  Free PE               0
  Allocated PE          4863
  PV UUID               E4eovQ-CgPo-OSDK-75MO-BfD8-pGsP-BUlqip

  "/dev/sdb1" is a new physical volume of "<20.00 GiB"
  --- NEW Physical volume ---
  PV Name               /dev/sdb1
  VG Name
  PV Size               <20.00 GiB
  Allocatable           NO
  PE Size               0
  Total PE              0
  Free PE               0
  Allocated PE          0
  PV UUID               gR5mm3-f50o-XLTq-34GY-n6Iz-WXkQ-uMZAkJ

  "/dev/sdc1" is a new physical volume of "<20.00 GiB"
  --- NEW Physical volume ---
  PV Name               /dev/sdc1
  VG Name
  PV Size               <20.00 GiB
  Allocatable           NO
  PE Size               0
  Total PE              0
  Free PE               0
  Allocated PE          0
  PV UUID               O2gKxa-ONts-kyXK-zZrO-3dDg-FhtI-V6GPy9

pvremove

• 删除指定的物理卷，还原成普通分区或磁盘

TIPS：只有不属于卷组的物理卷才可以删除还原。

[root@localhost ~]# pvremove /dev/sdd1
  Labels on physical volume "/dev/sdd1" successfully wiped.

VG 管理

vgscan

• 扫描系统中已建立的LVM卷组

[root@localhost ~]# vgscan
  Reading volume groups from cache.
  Found volume group "class" using metadata type lvm2
  Found volume group "centos" using metadata type lvm2

vgcreate

• 将一个或多个物理卷创建为一个卷组

-l：卷组上允许创建的最大逻辑卷数
-p：卷组中允许添加的最大物理卷数
-s：卷组上的物理卷的PE大小

[root@localhost ~]# vgcreate class /dev/sd{b,c}1
  Volume group "class" successfully created

vgdisplay

• 显示系统中各卷组的详细信息

[root@localhost ~]# vgdisplay
  --- Volume group ---
  VG Name               class
  System ID
  Format                lvm2
  Metadata Areas        2
  Metadata Sequence No  1
  VG Access             read/write
  VG Status             resizable
  MAX LV                0
  Cur LV                0
  Open LV               0
  Max PV                0
  Cur PV                2
  Act PV                2
  VG Size               39.99 GiB
  PE Size               4.00 MiB
  Total PE              10238
  Alloc PE / Size       0 / 0
  Free  PE / Size       10238 / 39.99 GiB
  VG UUID               ZtQvGX-YOdy-U8wj-mGQs-TT1e-1PBR-dBNKAG

  --- Volume group ---
  VG Name               centos
  System ID
  Format                lvm2
  Metadata Areas        1
  Metadata Sequence No  3
  VG Access             read/write
  VG Status             resizable
  MAX LV                0
  Cur LV                2
  Open LV               2
  Max PV                0
  Cur PV                1
  Act PV                1
  VG Size               <19.00 GiB
  PE Size               4.00 MiB
  Total PE              4863
  Alloc PE / Size       4863 / <19.00 GiB
  Free  PE / Size       0 / 0
  VG UUID               bLPJGb-SQQ3-KcUb-OSdo-qaMR-9hJE-MTkc7a

vgremove

• 删除指定的卷组

TIPS：卷组下面的逻辑卷没有被挂载使用，卷组删除时会一并删除下面的逻辑卷。

[root@localhost ~]# vgremove class
  Volume group "class" successfully removed

vgextend

• 添加新的物理卷，动态扩展卷组的磁盘空间

[root@localhost ~]# vgextend class /dev/sdd1
  Volume group "class" successfully extended

vgreduce

• 删除卷组中的物理卷，减少卷组容量，

-a：如果命令行中没有指定要删除的物理卷，则删除所有的空物理卷。（all）

TIPS：删除啊前确保对应的物理卷没有在使用，就是下面没有逻辑卷，否则删除不了。

[root@localhost ~]# vgreduce class /dev/sdd1
  Removed "/dev/sdd1" from volume group "class"

[root@localhost ~]# vgreduce -a class
  Physical volume "/dev/sdb1" still in use
  Physical volume "/dev/sdc1" still in use
  Removed "/dev/sdd1" from volume group "class"

LV 管理

lvscan

• 扫描系统中已建立的LVM逻辑卷

[root@localhost ~]# lvscan
  ACTIVE            '/dev/class/stu01' [25.00 GiB] inherit
  ACTIVE            '/dev/class/stu02' [14.99 GiB] inherit
  ACTIVE            '/dev/centos/swap' [2.00 GiB] inherit
  ACTIVE            '/dev/centos/root' [<17.00 GiB] inherit

lvcreate

• 从指定的卷组中分割空间，创建新的逻辑卷

-L：指定逻辑卷的大小，单位为KMGT
-l：指定百分比创建，如50%vg卷组的一半空间、100%free所有剩下的。
-n：指定逻辑卷的名称

[root@localhost ~]# lvcreate -L 25G -n stu01 class
  Logical volume "stu01" created.

[root@localhost ~]# lvcreate -l 100%free -n stu02 class
  Logical volume "stu02" created.

lvdisplay

• 显示逻辑卷的详细信息

[root@localhost ~]# lvdisplay
  --- Logical volume ---
  LV Path                /dev/class/stu01
  LV Name                stu01
  VG Name                class
  LV UUID                XUP7dq-IM9f-PdKk-XpDH-J1hx-kkuB-cOu3Qx
  LV Write Access        read/write
  LV Creation host, time localhost.localdomain, 2019-08-24 09:42:35 +0800
  LV Status              available
  # open                 0
  LV Size                25.00 GiB
  Current LE             6400
  Segments               2
  Allocation             inherit
  Read ahead sectors     auto
  - currently set to     8192
  Block device           253:2

  --- Logical volume ---
  LV Path                /dev/class/stu02
  LV Name                stu02
  VG Name                class
  LV UUID                P7iMC1-X0oT-6TCH-vLYj-HW2j-6QMu-rS7Jyp
  LV Write Access        read/write
  LV Creation host, time localhost.localdomain, 2019-08-24 09:59:30 +0800
  LV Status              available
  # open                 0
  LV Size                14.99 GiB
  Current LE             3838
  Segments               1
  Allocation             inherit
  Read ahead sectors     auto
  - currently set to     8192
  Block device           253:3

  --- Logical volume ---
  LV Path                /dev/centos/swap
  LV Name                swap
  VG Name                centos
  LV UUID                NXiaXT-T6yv-ktM2-plyS-j6Hg-hkvu-1JQ2eL
  LV Write Access        read/write
  LV Creation host, time localhost, 2019-08-16 17:12:19 +0800
  LV Status              available
  # open                 2
  LV Size                2.00 GiB
  Current LE             512
  Segments               1
  Allocation             inherit
  Read ahead sectors     auto
  - currently set to     8192
  Block device           253:1

  --- Logical volume ---
  LV Path                /dev/centos/root
  LV Name                root
  VG Name                centos
  LV UUID                7FnsfT-B8xi-3vgu-8N0k-nzNn-8Rra-eoE4iC
  LV Write Access        read/write
  LV Creation host, time localhost, 2019-08-16 17:12:19 +0800
  LV Status              available
  # open                 1
  LV Size                <17.00 GiB
  Current LE             4351
  Segments               1
  Allocation             inherit
  Read ahead sectors     auto
  - currently set to     8192
  Block device           253:0

lvremove

• 删除指定的逻辑卷

TIPS：备份数据，解挂载，删除。

[root@localhost ~]# umount /mnt/stu02/
[root@localhost ~]# lvremove /dev/class/stu02

lvextend

• 动态扩展LVM逻辑卷的空间大小

-L：指定扩展逻辑卷的大小，单位为KMGT
-l：指定百分比扩建，如100%free所有剩下的。

[root@localhost ~]# lvextend -L +5G /dev/class/stu02
  Size of logical volume class/stu02 changed from 14.99 GiB (3838 extents) to 19.99 GiB (5118 extents).
  Logical volume class/stu02 successfully resized.

TIPS：在线调整大小，xfs使用xfs_growfs，ext3、ext4使用resize2fs。

[root@localhost ~]# xfs_growfs /dev/class/stu02
meta-data=/dev/mapper/class-stu02 isize=512    agcount=4, agsize=982528 blks
         =                       sectsz=512   attr=2, projid32bit=1
         =                       crc=1        finobt=0 spinodes=0
data     =                       bsize=4096   blocks=3930112, imaxpct=25
         =                       sunit=0      swidth=0 blks
naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
log      =internal               bsize=4096   blocks=2560, version=2
         =                       sectsz=512   sunit=0 blks, lazy-count=1
realtime =none                   extsz=4096   blocks=0, rtextents=0
data blocks changed from 3930112 to 5240832

lvreduce

• 减少LVM逻辑卷的空间大小

TIPS：备份数据，解挂载，减少空间，强制格式化，重新挂载。

-L：指定逻辑卷的大小，单位为KMGT

[root@localhost ~]# umount /mnt/stu02/
[root@localhost ~]# lvreduce -L -10G /dev/class/stu02
[root@localhost ~]# mkfs.xfs -f /dev/class/stu02
[root@localhost ~]# mount -a
[root@localhost ~]# df -hT

LVM 实验

创建 LVM 逻辑卷

1.添加两块20G的磁盘，重启机器，并对其进行分区，全部空间分为一个主分区，类型改为Linux LVM，ID为8e。分区过程省略，不清楚可参考上一篇博客。

[root@localhost ~]# fdisk -l

Disk /dev/sda: 21.5 GB, 21474836480 bytes, 41943040 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk label type: dos
Disk identifier: 0x0009e645

   Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *        2048     2099199     1048576   83  Linux
/dev/sda2         2099200    41943039    19921920   8e  Linux LVM

Disk /dev/sdb: 21.5 GB, 21474836480 bytes, 41943040 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk label type: dos
Disk identifier: 0x5e081577

   Device Boot      Start         End      Blocks   Id  System
/dev/sdb1            2048    41943039    20970496   8e  Linux LVM

Disk /dev/sdc: 21.5 GB, 21474836480 bytes, 41943040 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk label type: dos
Disk identifier: 0x25c06655

   Device Boot      Start         End      Blocks   Id  System
/dev/sdc1            2048    41943039    20970496   8e  Linux LVM

Disk /dev/mapper/centos-root: 18.2 GB, 18249416704 bytes, 35643392 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/mapper/centos-swap: 2147 MB, 2147483648 bytes, 4194304 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes

2.将/dev/sdb1、/dev/sdc1转换为物理卷。

[root@localhost ~]# pvcreate /dev/sd{b,c}1
  Physical volume "/dev/sdb1" successfully created.
  Physical volume "/dev/sdc1" successfully created.

3.创建名称为class的卷组，并将sdb1和sdc1添加进卷组。

[root@localhost ~]# vgcreate class /dev/sd{b,c}1
  Volume group "class" successfully created

4.划分大小为25G，名称为stu01的逻辑卷；剩下的空间创建名称为stu02的逻辑卷。

[root@localhost ~]# lvcreate -L 25G -n stu01 class
  Logical volume "stu01" created.

[root@localhost ~]# lvcreate -l 100%free -n stu02 class
  Logical volume "stu02" created.

5.格式化逻辑卷，设置自动挂载，挂载后就可以使用了。

[root@localhost ~]# mkfs.xfs /dev/class/stu01
meta-data=/dev/class/stu01       isize=512    agcount=4, agsize=1638400 blks
         =                       sectsz=512   attr=2, projid32bit=1
         =                       crc=1        finobt=0, sparse=0
data     =                       bsize=4096   blocks=6553600, imaxpct=25
         =                       sunit=0      swidth=0 blks
naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
log      =internal log           bsize=4096   blocks=3200, version=2
         =                       sectsz=512   sunit=0 blks, lazy-count=1
realtime =none                   extsz=4096   blocks=0, rtextents=0
[root@localhost ~]# mkfs.xfs /dev/class/stu02
meta-data=/dev/class/stu02       isize=512    agcount=4, agsize=982528 blks
         =                       sectsz=512   attr=2, projid32bit=1
         =                       crc=1        finobt=0, sparse=0
data     =                       bsize=4096   blocks=3930112, imaxpct=25
         =                       sunit=0      swidth=0 blks
naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
log      =internal log           bsize=4096   blocks=2560, version=2
         =                       sectsz=512   sunit=0 blks, lazy-count=1
realtime =none                   extsz=4096   blocks=0, rtextents=0

[root@localhost ~]# mkdir /mnt/stu0{1,2}
[root@localhost ~]# vim /etc/fstab
//最后面添加下面两行内容
/dev/class/stu01        /mnt/stu01      xfs     defaults        0 0
/dev/class/stu02        /mnt/stu02      xfs     defaults        0 0

[root@localhost ~]# mount -a
[root@localhost ~]# df -hT
Filesystem              Type      Size  Used Avail Use% Mounted on
/dev/mapper/centos-root xfs        17G  1.1G   16G   7% /
devtmpfs                devtmpfs  901M     0  901M   0% /dev
tmpfs                   tmpfs     912M     0  912M   0% /dev/shm
tmpfs                   tmpfs     912M  8.7M  904M   1% /run
tmpfs                   tmpfs     912M     0  912M   0% /sys/fs/cgroup
/dev/sda1               xfs      1014M  143M  872M  15% /boot
tmpfs                   tmpfs     183M     0  183M   0% /run/user/0
/dev/mapper/class-stu01 xfs        25G   33M   25G   1% /mnt/stu01
/dev/mapper/class-stu02 xfs        15G   33M   15G   1% /mnt/stu02

扩容 LVM 逻辑卷

1.再添加一块20G的磁盘，重启机器，并对其进行分区，全部空间分为一个主分区，类型改为Linux LVM，ID为8e。

[root@localhost ~]# fdisk /dev/sdd
Welcome to fdisk (util-linux 2.23.2).

Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.

Device does not contain a recognized partition table
Building a new DOS disklabel with disk identifier 0xfaadbaba.

Command (m for help): n
Partition type:
   p   primary (0 primary, 0 extended, 4 free)
   e   extended
Select (default p):
Using default response p
Partition number (1-4, default 1):
First sector (2048-41943039, default 2048):
Using default value 2048
Last sector, +sectors or +size{K,M,G} (2048-41943039, default 41943039):
Using default value 41943039
Partition 1 of type Linux and of size 20 GiB is set

Command (m for help): t
Selected partition 1
Hex code (type L to list all codes): 8e
Changed type of partition 'Linux' to 'Linux LVM'

Command (m for help): p

Disk /dev/sdd: 21.5 GB, 21474836480 bytes, 41943040 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk label type: dos
Disk identifier: 0xfaadbaba

   Device Boot      Start         End      Blocks   Id  System
/dev/sdd1            2048    41943039    20970496   8e  Linux LVM

Command (m for help): w
The partition table has been altered!

Calling ioctl() to re-read partition table.
Syncing disks.

2.将/dev/sdd1转换为物理卷。

[root@localhost ~]# pvcreate /dev/sdd1
  Physical volume "/dev/sdd1" successfully created.

3.若是卷组剩余空间不够，就要先对class卷组进行扩容。

[root@localhost ~]# vgdisplay class
  --- Volume group ---
  VG Name               class
  System ID
  Format                lvm2
  Metadata Areas        2
  Metadata Sequence No  6
  VG Access             read/write
  VG Status             resizable
  MAX LV                0
  Cur LV                2
  Open LV               2
  Max PV                0
  Cur PV                2
  Act PV                2
  VG Size               39.99 GiB
  PE Size               4.00 MiB
  Total PE              10238
  Alloc PE / Size       10238 / 39.99 GiB
  Free  PE / Size       0 / 0
  VG UUID               iB1h9h-2uQa-rD7o-GBVK-pOCA-ek2c-TXieLr

[root@localhost ~]# vgextend class /dev/sdd1
  Volume group "class" successfully extended

[root@localhost ~]# vgdisplay class
  --- Volume group ---
  VG Name               class
  System ID
  Format                lvm2
  Metadata Areas        3
  Metadata Sequence No  7
  VG Access             read/write
  VG Status             resizable
  MAX LV                0
  Cur LV                2
  Open LV               2
  Max PV                0
  Cur PV                3
  Act PV                3
  VG Size               <59.99 GiB
  PE Size               4.00 MiB
  Total PE              15357
  Alloc PE / Size       10238 / 39.99 GiB
  Free  PE / Size       5119 / <20.00 GiB
  VG UUID               iB1h9h-2uQa-rD7o-GBVK-pOCA-ek2c-TXieLr

4.对stu02扩容5G，使用xfs_growfs在线调整大小。

[root@localhost ~]# lvextend -L +5G /dev/class/stu02
  Size of logical volume class/stu02 changed from 14.99 GiB (3838 extents) to 19.99 GiB (5118 extents).
  Logical volume class/stu02 successfully resized.

[root@localhost ~]# df -hT
Filesystem              Type      Size  Used Avail Use% Mounted on
/dev/mapper/centos-root xfs        17G  1.1G   16G   7% /
devtmpfs                devtmpfs  901M     0  901M   0% /dev
tmpfs                   tmpfs     912M     0  912M   0% /dev/shm
tmpfs                   tmpfs     912M  8.7M  903M   1% /run
tmpfs                   tmpfs     912M     0  912M   0% /sys/fs/cgroup
/dev/sda1               xfs      1014M  143M  872M  15% /boot
/dev/mapper/class-stu01 xfs        25G   33M   25G   1% /mnt/stu01
/dev/mapper/class-stu02 xfs        15G   33M   15G   1% /mnt/stu02
tmpfs                   tmpfs     183M     0  183M   0% /run/user/0

[root@localhost ~]# xfs_growfs /dev/class/stu02
meta-data=/dev/mapper/class-stu02 isize=512    agcount=4, agsize=982528 blks
         =                       sectsz=512   attr=2, projid32bit=1
         =                       crc=1        finobt=0 spinodes=0
data     =                       bsize=4096   blocks=3930112, imaxpct=25
         =                       sunit=0      swidth=0 blks
naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
log      =internal               bsize=4096   blocks=2560, version=2
         =                       sectsz=512   sunit=0 blks, lazy-count=1
realtime =none                   extsz=4096   blocks=0, rtextents=0
data blocks changed from 3930112 to 5240832

[root@localhost ~]# df -hT | grep stu02
/dev/mapper/class-stu02 xfs        20G   33M   20G   1% /mnt/stu02

总结

内容不多，但是还要实际操作才能了解。就是三步走，创建物理卷，创建卷组，创建逻辑卷，然后格式化并挂载使用。扩容的话，没有挂载使用，就正常扩，然后格式化挂载，已经挂载使用了，扩容后使用xfs_growfs在线调整生效。还有下一篇关于磁盘配额。

Linux LVM逻辑卷管理

原文：https://www.cnblogs.com/llife/p/11404135.html
