一、介绍

MySQL Router简介

MySQL Router是MySQL官方提供的一个轻量级中间件，是InnoDB Cluster的一部分，可在应用程序和后端MySQL服务器之间提供透明路由。主要用以解决MySQL主从库集群的高可用、负载均衡、易扩展等问题。Router作为一个流量转发层，位于应用与MySQL服务器之间，其功能类似于LVS。

为什么要用MySQL Router？

基于组复制(MGR)的机制，当主节点宕机离开集群，剩余的其他节点会基于paxos协议选举一个新的主节点。这里有一个问题，应用程序端如果连接到了主节点，这时主节点宕机离开集群，可用的数据库IP地址发生变化，客户端应用程序这个时候还是会向失败的节点尝试连接，虽然可以修改客户端应用程序的连接配置，但是这种情况基本是不现实的。

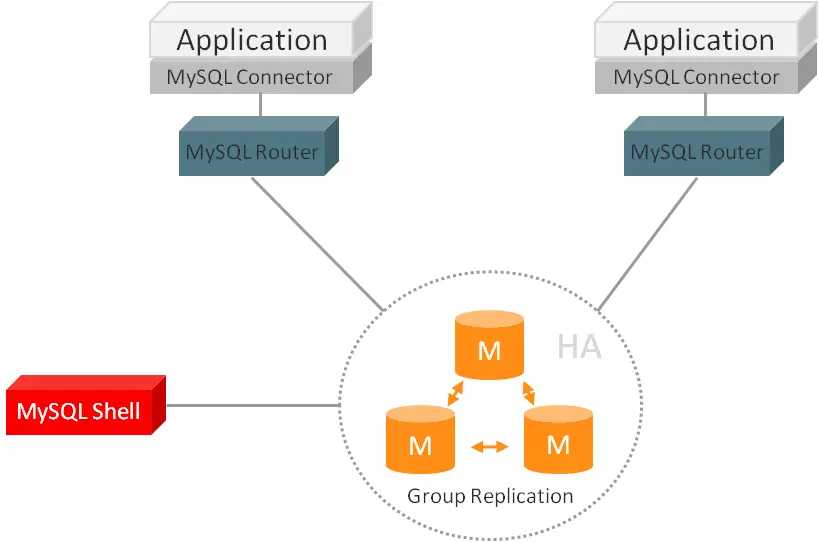

MySQL Router关系图

上图充分说明了MySQL Router在InnoDB集群里面的角色，主要作用是为数据库集群提供一个虚拟IP作为应用程序单一连接点，通过这个单一的连接点实现负载均衡，读写分离，故障转移等数据库高可用方案。

MySQL Router推荐安装在应用程序所在的机器上，原因包括：

• 通过本地Unix套接字连接，而不是TCP/IP，提升性能
• 降低网络延迟
• MySQL实例不需要额外的账号，只需要一个router@198.51.100.45, 而不是myapp@%
• 提升应用程序服务器的可扩展性

MySQL Cluster简介

Cluster是这个高可用方案中的一个虚拟节点，它会在MGR的所有成员上创建一个名为MySQL_innodb_cluster_metadata的数据库，存储集群的元数据信息，包括集群信息、集群成员、组复制信息、连接的MySQL Router等信息，以提供MySQL Router查询。它相当于对组复制上的成员做了一层逻辑上的封装，以一个集群的模式展现出来，各节点的状态与对应实例在组复制中成员的状态实时同步，但是集群的节点与组复制的成员只在创建集群时同步，后期组复制的成员变更并不自动同步到集群中，可以在集群中做手动的节点增减，这样使得面向应用端的具体实例实现了更可控更灵活的高可用。

二、环境准备

操作系统：CentOS Linux release 7.2.1511
MySQL版本：mysql-5.7.26-linux-glibc2.12-x86_64
MySQL Router版本：mysql-router-8.0.17-linux-glibc2.12-x86_64
MySQL Shell版本：mysql-shell-8.0.17-linux-glibc2.12-x86-64bit

三、安装和配置MySQL Router

MySQL Router有两种部署模式：

• bootstrap模式：支持failover，必须结合InnoDB Cluster使用，在--directory指定的路径下自动生成安装目录，配置文件里的端口为6446和6447。
• 简单模式：不支持failover，无需结合InnoDB Cluster使用，一般在主从复制或者主主复制等模式下使用，使用/usr/local/mysqlrouter/share/doc/mysqlrouter/sample_mysqlrouter.conf这个配置文件部署。

3.1bootstrap模式安装MySQL Router

注意： 使用bootstrap的方式安装MySQL Router的前提条件是MGR已装好，MySQL Shell已装好，InnoDB Cluster已经配置好，也就是说这种部署方式必须要结合InnoDB Cluster使用。

3.1.1使用yum源的方式安装MySQL Router

# wget -P /software/ https://repo.mysql.com//mysql80-community-release-el7-3.noarch.rpm
# rpm -Uvh /software/mysql80-community-release-el7-3.noarch.rpm
# yum -y install mysql-router

3.1.2查看MySQL Router的默认配置

```
[root@node4 yum.repos.d]# mysqlrouter --help
MySQL Router  Ver 8.0.16 for Linux on x86_64 (MySQL Community - GPL)
Copyright (c) 2015, 2019, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Configuration read from the following files in the given order (enclosed
in parentheses means not available for reading):
  /etc/mysqlrouter/mysqlrouter.conf
  (/root/.mysqlrouter.conf)
Plugins Path:
  /usr/lib64/mysqlrouter

Default Log Directory:
  /var/log/mysqlrouter

Default Persistent Data Directory:
  /var/lib/mysqlrouter

Default Runtime State Directory:
  /run/mysqlrouter
```

通过mysqlrouter --help可以看到默认的一些路径：

• 配置文件：/etc/mysqlrouter/mysqlrouter.conf
• 插件路径：/usr/lib64/mysqlrouter
• 日志路径：/var/log/mysqlrouter
• 持久化数据路径：/var/lib/mysqlrouter
• 运行时状态路径：/run/mysqlrouter

如果在mysqlrouter命令行使用--config或-c选项传入用户定义的配置文件，则不会加载默认配置文件。

3.1.3初始化MySQL Router，地址填primary的地址

[root@node4 tmp]# mysqlrouter --bootstrap root@172.16.9.51:3306 --directory /data/mysqlrouter --conf-use-sockets --user=root
Please enter MySQL password for root:
WARNING: The MySQL server does not have SSL configured and metadata used by the router may be transmitted unencrypted.
# Bootstrapping MySQL Router instance at '/data/mysqlrouter'...

- Checking for old Router accounts
  - No prior Router accounts found
- Creating mysql account mysql_router1_zhi3m2uhudci@'%' for cluster management
- Storing account in keyring
- Adjusting permissions of generated files
- Creating configuration /data/mysqlrouter/mysqlrouter.conf

# MySQL Router configured for the InnoDB cluster 'st'    #InnoDB集群名

After this MySQL Router has been started with the generated configuration

    $ mysqlrouter -c /data/mysqlrouter/mysqlrouter.conf

the cluster 'st' can be reached by connecting to:

## MySQL Classic protocol

- Read/Write Connections: localhost:6446, /data/mysqlrouter/mysql.sock
- Read/Only Connections:  localhost:6447, /data/mysqlrouter/mysqlro.sock

## MySQL X protocol

- Read/Write Connections: localhost:64460, /data/mysqlrouter/mysqlx.sock
- Read/Only Connections:  localhost:64470, /data/mysqlrouter/mysqlxro.sock

--bootstrap：引导并配置Router以便与MySQL InnoDB集群一起运行。

3.1.4编辑配置文件，一般只需要配置bootstrap_server_addresses这一行即可

# File automatically generated during MySQL Router bootstrap
[DEFAULT]
user=root
logging_folder=/data/mysqlrouter/log
runtime_folder=/data/mysqlrouter/run
data_folder=/data/mysqlrouter/data
keyring_path=/data/mysqlrouter/data/keyring
master_key_path=/data/mysqlrouter/mysqlrouter.key
connect_timeout=15
read_timeout=30
#dynamic_state=/data/mysqlrouter/data/state.json

[logger]
level = INFO

[metadata_cache:st]
router_id=14
bootstrap_server_addresses=mysql://oratest51:3306,mysql://oratest52:3306,mysql://test61:3306
user=mysql_router14_ebhje7bsnckc
metadata_cluster=st
ttl=300
use_gr_notifications=0

[routing:st_default_rw]
bind_address=0.0.0.0
bind_port=6446
socket=/data/mysqlrouter/mysql.sock
destinations=metadata-cache://st/default?role=PRIMARY
routing_strategy=first-available
protocol=classic

[routing:st_default_ro]
bind_address=0.0.0.0
bind_port=6447
socket=/data/mysqlrouter/mysqlro.sock
destinations=metadata-cache://st/default?role=SECONDARY
routing_strategy=round-robin-with-fallback
protocol=classic

[routing:st_default_x_rw]
bind_address=0.0.0.0
bind_port=64460
socket=/data/mysqlrouter/mysqlx.sock
destinations=metadata-cache://st/default?role=PRIMARY
routing_strategy=first-available
protocol=x

[routing:st_default_x_ro]
bind_address=0.0.0.0
bind_port=64470
socket=/data/mysqlrouter/mysqlxro.sock
destinations=metadata-cache://st/default?role=SECONDARY
routing_strategy=round-robin-with-fallback
protocol=x

3.1.5启动MySQL Router

[root@node2 mysqlrouter]# cd /data/mysqlrouter/
[root@node2 mysqlrouter]# sh start.sh

启动过程较慢，日志里可以看到启动信息

3.1.6测试连接MySQL Router

默认情况下，使用6446作为RW端口，使用6447作为RO端口

# mysql -uroot -p123456 -h172.16.8.68 -P6446
# mysql -uroot -p123456 -h172.16.8.68 -P6447
# netstat -ntlp |grep mysqlrouter

3.2简单模式安装MySQL Router

3.2.1下载软件包并上传到服务器

[root@node4 etc]# mkdir /software;cd /software
[root@node4 etc]# wget https://cdn.mysql.com//Downloads/MySQL-Router/mysql-router-8.0.17-linux-glibc2.12-x86_64.tar.xz

3.2.2解压到指定目录

[root@node4 etc]# tar -Jxvf /software/mysql-router-8.0.17-linux-glibc2.12-x86_64.tar.xz -C /usr/local/
[root@node4 etc]# cd /usr/local
[root@node4 etc]# mv mysql-router-8.0.17-linux-glibc2.12-x86_64/ mysqlrouter

3.2.3设置环境变量

[root@node4 etc]# echo 'export PATH=/usr/local/mysqlrouter/bin/:$PATH' >> /etc/profile
[root@node4 etc]# source /etc/profile

3.2.4编辑配置文件

# mkdir -p /usr/local/mysqlrouter/etc
# cp /usr/local/mysqlrouter/share/doc/mysqlrouter/sample_mysqlrouter.conf /usr/local/mysqlrouter/etc
# mv /usr/local/mysqlrouter/etc/sample_mysqlrouter.conf /usr/local/mysqlrouter/etc/mysqlrouter.conf
# vim /usr/local/mysqlrouter/etc/mysqlrouter.conf
##部分省略
[DEFAULT]
logging_folder =/usr/local/mysqlrouter/log/
plugin_folder = /usr/local/mysqlrouter/lib/mysqlrouter/
config_folder = /usr/local/mysqlrouter/etc/
runtime_folder = /usr/local/mysqlrouter/run/
data_folder = /usr/local/mysqlrouter/data/
keyring_path = /var/lib/keyring-data
master_key_path = /var/lib/keyring-key

[logger]
level = INFO

[routing:masters]
bind_address = 172.16.8.68:7002
destinations = 172.16.9.61:3306
mode = read-write
connect_timeout = 2

[routing:slaves]
bind_address = 172.16.8.68:7001
destinations = 172.16.9.51:3306,172.16.9.52:3306
mode = read-only
connect_timeout = 1
##部分省略

/usr/local/mysqlrouter/share/doc/mysqlrouter/sample_mysqlrouter.conf这个是MySQL Router的参照配置文件，所以这里先把模板复制出来。

mysql router默认会寻找安装目录下的mysqlrouter.conf和家目录下的.mysqlrouter.conf。也可以在二进制程序mysqlrouter命令下使用-c或者--config手动指定配置文件。

MySQL Router的配置文件是片段式的，常用的就3个片段：[DEFAULT]、[logger]、[routing:NAME]，片段名称区分大小写，且只支持单行"#"或";"注释。

• bind_address：添加MySQL Router所在机器的IP
• destinations：后端的mysql服务器IP+端口
• mode：提供两种mode，read-only和read-write，read-write的调度方式为first-available，read-only的调度方式为round-robin
• connect_timeout：连接超时时间
• routing_strategy：路由策略，有round-robin和first-available策略
• 更多配置选项可以参考：https://dev.mysql.com/doc/mysql-router/8.0/en/mysql-router-conf-options.html

如果是多主模式，配置文件如下

[routing:mutili_rw]
bind_address=172.16.8.68
bind_port=7003
destinations=172.16.9.51:3306,172.16.9.52:3306,172.16.9.61:3306
mode=read-write
connect_timeout=2
protocol=classic

3.2.5创建上一步中配置文件里指定的目录

[root@node4 etc]# mkdir -p /usr/local/mysqlrouter/run/
[root@node4 etc]# mkdir -p /usr/local/lib/mysqlrouter
[root@node4 etc]# mkdir -p /usr/local/mysqlrouter/etc/
[root@node4 etc]# mkdir -p /usr/local/mysqlrouter/run/
[root@node4 etc]# mkdir -p /usr/local/mysqlrouter/data/
[root@node4 etc]# mkdir -p /usr/local/mysqlrouter/log/

3.2.6启动MySQL Router

[root@node4 etc]# mysqlrouter --config /usr/local/mysqlrouter/etc/mysqlrouter.conf &

3.2.7查看MySQL Router的端口监听是否已开启

[root@node4 etc]# netstat -ntlp |grep mysqlrouter
tcp        0      0 172.16.8.68:7001        0.0.0.0:*               LISTEN      9221/mysqlrouter
tcp        0      0 172.16.8.68:7002        0.0.0.0:*               LISTEN      9221/mysqlrouter

3.2.8MySQL Router的停止暂时没有停止脚本，如果要停止需要用kill -9的方式杀掉进程

四、功能测试

以下测试都是在InnoDB Cluster下，MySQL Router的安装模式是bootstrap

4.1路由验证

4.1.1 测试通过MySQL Router连接7002 RW端口，查看连接的是否为primary

[root@node4 mysqlrouter]# for ((i=0;i<=5;i++));do mysql -h172.16.8.101 -uroot -p123456 -P6446 -e"select @@hostname;";done;
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| oratest51  |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| oratest51  |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| oratest51  |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| oratest51  |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| oratest51  |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| oratest51  |
+------------+

测试结果： 使用6446 RW端口会访问到后端InnoDB Cluster的primary

4.1.2测试通过MySQL Router连接6447 RO端口，查看连接的是否为seconde节点，rr算法是否生效

[root@node4 mysqlrouter]# for ((i=0;i<=5;i++));do mysql -h172.16.8.101 -uroot -p123456 -P6447 -e"select @@hostname;";done;
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| oratest52  |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| test61     |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| oratest52  |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| test61     |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| oratest52  |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| test61     |
+------------+

测试结果： 使用6447 RO端口会连接到后端InnoDB Cluster集群中所有的seconde节点，并且以rr(round-robin)的策略调度

4.2高可用测试

4.2.1模拟其中一台seconde节点宕机，查看MySQL Router是否会自动取消该节点的路由

1. 停掉一台seconde节点
   [root@oratest52 ~]# systemctl status mysql [root@oratest52 ~]# systemctl stop mysql [root@oratest52 ~]# systemctl status mysql
2. 在InnoDB Cluster中查看集群状态，可以看到oratest52已经处于MISSING状态
   MySQL 172.16.9.51:3306 JS > cluster.status() { "clusterName": "st", "defaultReplicaSet": { "name": "default", "primary": "oratest51:3306", "ssl": "DISABLED", "status": "OK_NO_TOLERANCE", "statusText": "Cluster is NOT tolerant to any failures. 1 member is not active", "topology": { "oratest51:3306": { "address": "oratest61:3306", "mode": "R/O", "readReplicas": {}, "role": "HA", "status": "ONLINE" }, "oratest52:3306": { "address": "oratest52:3306", "mode": "n/a", "readReplicas": {}, "role": "HA", "shellConnectError": "MySQL Error 2003 (HY000): Can‘t connect to MySQL server on ‘oratest52‘ (111)", "status": "(MISSING)" }, "test61:3306": { "address": "test51:3306", "mode": "R/W", "readReplicas": {}, "role": "HA", "status": "ONLINE" } }, "topologyMode": "Single-Primary" }, "groupInformationSourceMember": "test61:3306" }
3. 在MGR中查看GR状态，可以看到已经没有oratest52这台机器
   mysql> select * from performance_schema.replication_group_members; +---------------------------+--------------------------------------+-------------+-------------+--------------+ | CHANNEL_NAME | MEMBER_ID | MEMBER_HOST | MEMBER_PORT | MEMBER_STATE | +---------------------------+--------------------------------------+-------------+-------------+--------------+ | group_replication_applier | 48cdca42-a386-11e9-95f1-0050569d2587 | test61 | 3306 | ONLINE | | group_replication_applier | e9ee5267-a386-11e9-ac35-0050569d9ef5 | oratest51 | 3306 | ONLINE | +---------------------------+--------------------------------------+-------------+-------------+--------------+
4. 测试通过6447 RO端口连接，查看是否会自动剔除宕机的oratest52节点
   [root@node4 ~]# for ((i=0;i<=5;i++));do mysql -h172.16.8.101 -uroot -p123456 -P6447 -e"select @@hostname;";done; mysql: [Warning] Using a password on the command line interface can be insecure. +------------+ | @@hostname | +------------+ | test61 | +------------+ mysql: [Warning] Using a password on the command line interface can be insecure. +------------+ | @@hostname | +------------+ | test61 | +------------+ mysql: [Warning] Using a password on the command line interface can be insecure. +------------+ | @@hostname | +------------+ | test61 | +------------+ mysql: [Warning] Using a password on the command line interface can be insecure. +------------+ | @@hostname | +------------+ | test61 | +------------+ mysql: [Warning] Using a password on the command line interface can be insecure. +------------+ | @@hostname | +------------+ | test61 | +------------+
   测试结果： MySQL Router会自动剔除宕机的oratest52节点，read请求只会转发到后端正常的MySQL实例，过程无需人工干预。

4.2.2启动上一步中停止的MySQL实例，确认MGR和InnoDB Cluster一切正常后，查看MySQL Router是否会自动加入这台已恢复的实例进行转发

1. 启动oratest52的MySQL服务

    [root@oratest52 ~]# systemctl start mysql

2. 启动MGR，并确认MGR状态正常
   ```
   mysql> start group_replication;
   Query OK, 0 rows affected (2.92 sec)

   mysql> select * from performance_schema.replication_group_members;
   +---------------------------+--------------------------------------+-------------+-------------+--------------+
   | CHANNEL_NAME | MEMBER_ID | MEMBER_HOST | MEMBER_PORT | MEMBER_STATE |
   +---------------------------+--------------------------------------+-------------+-------------+--------------+
   | group_replication_applier | 48cdca42-a386-11e9-95f1-0050569d2587 | test61 | 3306 | ONLINE |
   | group_replication_applier | 50bc1160-a386-11e9-92c9-0050569dc0da | oratest52 | 3306 | ONLINE |
   | group_replication_applier | e9ee5267-a386-11e9-ac35-0050569d9ef5 | oratest51 | 3306 | ONLINE |
   +---------------------------+--------------------------------------+-------------+-------------+--------------+
   ```
3. 检查InnoDB Cluster是否正常
   MySQL 172.16.9.51:3306 JS > cluster.status() { "clusterName": "st", "defaultReplicaSet": { "name": "default", "primary": "oratest51:3306", "ssl": "DISABLED", "status": "OK", "statusText": "Cluster is ONLINE and can tolerate up to ONE failure.", "topology": { "oratest51:3306": { "address": "oratest61:3306", "mode": "R/O", "readReplicas": {}, "role": "HA", "status": "ONLINE" }, "oratest52:3306": { "address": "oratest52:3306", "mode": "R/O", "readReplicas": {}, "role": "HA", "status": "ONLINE" }, "test61:3306": { "address": "test51:3306", "mode": "R/W", "readReplicas": {}, "role": "HA", "status": "ONLINE" } }, "topologyMode": "Single-Primary" }, "groupInformationSourceMember": "test61:3306" }

4. 查看恢复正常的实例，能不能自动加入MySQL Router进行转发，可以看到oratest52可以被正常调度
   [root@node4 mysqlrouter]# for ((i=0;i<=5;i++));do mysql -h172.16.8.101 -uroot -p123456 -P6447 -e"select @@hostname;";done; mysql: [Warning] Using a password on the command line interface can be insecure. +------------+ | @@hostname | +------------+ | oratest52 | +------------+ mysql: [Warning] Using a password on the command line interface can be insecure. +------------+ | @@hostname | +------------+ | test61 | +------------+ mysql: [Warning] Using a password on the command line interface can be insecure. +------------+ | @@hostname | +------------+ | oratest52 | +------------+ mysql: [Warning] Using a password on the command line interface can be insecure. +------------+ | @@hostname | +------------+ | test61 | +------------+ mysql: [Warning] Using a password on the command line interface can be insecure. +------------+ | @@hostname | +------------+ | oratest52 | +------------+ mysql: [Warning] Using a password on the command line interface can be insecure. +------------+ | @@hostname | +------------+ | test61 | +------------+
   测试结果： 恢复正常的MySQL实例可以自动加入MySQL Router并进行转发，无需人工干预。

4.2.3模拟停掉primary节点，测试MySQL Router如何处理发送RW端口的请求，MySQL Router怎样获取新的primary节点

1. 当前primary节点是oratest51，在primary节点上停止MySQL，确认停止成功
   [root@oratest51 data]# systemctl status mysql [root@oratest51 data]# systemctl stop mysql [root@oratest51 data]# systemctl status mysql [root@oratest51 data]# ps -ef |grep mysql
2. 查看InnoDB Cluster状态，可以看到oratest51已经处于MISSING状态，primary节点已经切换到了test61

 MySQL  172.16.9.61:3306  JS > cluster.status();
{
    "clusterName": "st",
    "defaultReplicaSet": {
        "name": "default",
        "primary": "test61:3306",
        "ssl": "DISABLED",
        "status": "OK_NO_TOLERANCE",
        "statusText": "Cluster is NOT tolerant to any failures. 1 member is not active",
        "topology": {
            "oratest51:3306": {
                "address": "oratest51:3306",
                "mode": "n/a",
                "readReplicas": {},
                "role": "HA",
                "shellConnectError": "MySQL Error 2003 (HY000): Can't connect to MySQL server on 'oratest51' (111)",
                "status": "(MISSING)"
            },
            "oratest52:3306": {
                "address": "oratest52:3306",
                "mode": "R/O",
                "readReplicas": {},
                "role": "HA",
                "status": "ONLINE"
            },
            "test61:3306": {
                "address": "test61:3306",
                "mode": "R/W",
                "readReplicas": {},
                "role": "HA",
                "status": "ONLINE"
            }
        },
        "topologyMode": "Single-Primary"
    },
    "groupInformationSourceMember": "test61:3306"
}

1. 测试连接到RW 6446端口，查看是否可以正常连接到新的primary节点test61，并且写入数据否正常

[root@node2 mysqlrouter]# for ((i=0;i<=5;i++));do mysql -h172.16.8.101 -uroot -p123456 -P6446 -e"select @@hostname;";done;
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| test61     |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| test61     |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| test61     |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| test61     |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| test61     |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| test61     |
+------------+

测试结果： 当primary节点挂掉之后，MySQL Router会自动去连接新的primary节点

4.2.4启动上一步中停掉的oratest51，将状态恢复正常，测试MySQL Router能不能自动加入这台已恢复的节点并调度

1. 启动oratest51，将状态恢复正常

[root@oratest51 ~]# systemctl start mysql
[root@oratest51 ~]# systemctl status mysql
[root@oratest51 ~]# mysql -uroot -p123456
mysql> start group_replication;
mysql> select * from performance_schema.replication_group_members;
+---------------------------+--------------------------------------+------------+-------------+--------------+
| CHANNEL_NAME              | MEMBER_ID                            |MEMBER_HOST | MEMBER_PORT | MEMBER_STATE |
+---------------------------+--------------------------------------+------------+-------------+--------------+
| group_replication_applier | 48cdca42-a386-11e9-95f1-0050569d2587 |test61      |        3306 | ONLINE       |
| group_replication_applier | 50bc1160-a386-11e9-92c9-0050569dc0da |oratest52   |        3306 | ONLINE       |
| group_replication_applier | e9ee5267-a386-11e9-ac35-0050569d9ef5 |oratest51   |        3306 | ONLINE       |
+---------------------------+--------------------------------------+------------+-------------+--------------+
3 rows in set (0.00 sec)
mysql> quit
[root@oratest51 local]# mysqlsh
 MySQL  JS > shell.connect('root@172.16.9.51:3306')
 MySQL  172.16.9.51:3306  JS > var cluster = dba.getCluster()
 MySQL  172.16.9.51:3306  JS > cluster.status();
{
    "clusterName": "st",
    "defaultReplicaSet": {
        "name": "default",
        "primary": "test61:3306",
        "ssl": "DISABLED",
        "status": "OK",
        "statusText": "Cluster is ONLINE and can tolerate up to ONE failure.",
        "topology": {
            "oratest51:3306": {
                "address": "oratest51:3306",
                "mode": "R/O",
                "readReplicas": {},
                "role": "HA",
                "status": "ONLINE"
            },
            "oratest52:3306": {
                "address": "oratest52:3306",
                "mode": "R/O",
                "readReplicas": {},
                "role": "HA",
                "status": "ONLINE"
            },
            "test61:3306": {
                "address": "test61:3306",
                "mode": "R/W",
                "readReplicas": {},
                "role": "HA",
                "status": "ONLINE"
            }
        },
        "topologyMode": "Single-Primary"
    },
    "groupInformationSourceMember": "test61:3306"
}

1. 测试RO端口的Router调度

[root@node4 mysqlrouter]# for ((i=0;i<=5;i++));do mysql -h172.16.8.101 -uroot -p123456 -P6447 -e"select @@hostname;";done;
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| oratest52  |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| oratest51     |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| oratest52  |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| oratest51     |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| oratest52  |
+------------+
mysql: [Warning] Using a password on the command line interface can be insecure.
+------------+
| @@hostname |
+------------+
| test61     |
+------------+

测试结果： 恢复正常的实例加入集群后，会自动加入到MySQL Router并进行调度

五、运维相关

数据库节点变更

MySQL Router在初始化配置的时候是连接到集群节点读取集群的元数据的。如果在集群中新增或减少节点，需要同步更新MySQL Router的配置，否则无法生效

# mysqlrouter --bootstrap 172.16.9.51:3306 --directory /data/mysqlrouter --user=root --conf-use-sockets --force

更新了MySQL Router的配置的配置，需要重启MySQL Router：

#systemctl restart mysqlrouter
#systemctl status mysqlrouter

六、问题汇总

6.1初始化MySQL Router前，需要停止group_replication

6.2使用--bootstrap初始化MySQL Router报错

6.2.1使用--bootstrap初始化MySQL Router报错Unable to connect to the metadata server

[root@oratest51 data]# mysqlrouter --bootstrap root@172.16.9.51:3310 --directory /data/mysqlrouter --conf-use-sockets --user=root
Please enter MySQL password for root:
Error: Unable to connect to the metadata server: Error connecting to MySQL server at 172.16.9.51:3310: Can't connect to MySQL server on '172.16.9.51' (111) (2003)

原因： 需要配置连接用户的权限
解决办法： 给连接用户配置所有权限，如下：

mysql> grant all privileges  on *.* to root@'%' identified by "123456";
mysql> flush privileges;

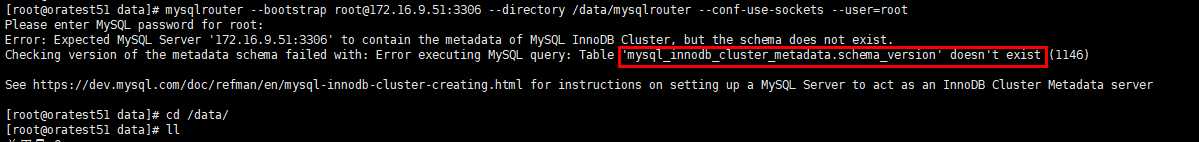

6.2.2使用--bootstrap初始化MySQL Router报错缺少mysql_innodb_cluster_metadata.schema_version表

[root@oratest51 data]# mysqlrouter --bootstrap root@172.16.9.51:3306 --directory /data/mysqlrouter --conf-use-sockets --user=root
Please enter MySQL password for root:
Error: Expected MySQL Server '172.16.9.51:3306' to contain the metadata of MySQL InnoDB Cluster, but the schema does not exist.
Checking version of the metadata schema failed with: Error executing MySQL query: Table 'mysql_innodb_cluster_metadata.schema_version' doesn't exist (1146)

See https://dev.mysql.com/doc/refman/en/mysql-innodb-cluster-creating.html for instructions on setting up a MySQL Server to act as an InnoDB Cluster Metadata server

原因： 没有创建InnoDB Cluster集群，创建InnoDB Cluster集群后会自动生成这张表。mysql_innodb_cluster_metadata.schema_version表的用途是MySQL Router在进行调度分配的时候，需要读取这张表的内容来做调度策略。
解决办法： 创建InnoDB Cluster集群

6.3启动MySQL Router hang住不动

6.3.1启动MySQL Router hang住不动，查看日志报错Error: bootstrap_server_addresses is not allowed when dynamic state file is used，具体如下：

[root@node2 log]# tailf /root/mysqlrouter/log/mysqlrouter.log
2019-08-02 15:37:52 routing INFO [7f9721e2d700] [routing:st_default_ro] started: listening using /root/mysqlrouter/mysqlro.sock
2019-08-02 15:37:52 routing INFO [7f972162c700] [routing:st_default_rw] started: listening using /root/mysqlrouter/mysql.sock
2019-08-02 15:37:52 routing INFO [7f9720e2b700] [routing:st_default_x_ro] started: listening using /root/mysqlrouter/mysqlxro.sock
2019-08-02 15:37:52 routing INFO [7f9713fff700] [routing:st_default_x_rw] started: listening on 0.0.0.0:64460, routing strategy = first-available
2019-08-02 15:37:52 routing INFO [7f9713fff700] [routing:st_default_x_rw] started: listening using /root/mysqlrouter/mysqlx.sock
2019-08-02 15:37:52 routing INFO [7f9713fff700] [routing:st_default_x_rw] stopped
2019-08-02 15:37:52 routing INFO [7f9721e2d700] [routing:st_default_ro] stopped
2019-08-02 15:37:52 routing INFO [7f972162c700] [routing:st_default_rw] stopped
2019-08-02 15:37:52 routing INFO [7f9720e2b700] [routing:st_default_x_ro] stopped
2019-08-02 15:37:52 main ERROR [7f9726f1b880] Error: bootstrap_server_addresses is not allowed when dynamic state file is used

原因： 开启了dynamic_state
解决办法： 在配置文件中注释掉dynamic_state所在行，例如下列第11行

 1 # File automatically generated during MySQL Router bootstrap
 2 [DEFAULT]
 3 user=root
 4 logging_folder=/root/mysqlrouter/log
 5 runtime_folder=/root/mysqlrouter/run
 6 data_folder=/root/mysqlrouter/data
 7 keyring_path=/root/mysqlrouter/data/keyring
 8 master_key_path=/root/mysqlrouter/mysqlrouter.key
 9 connect_timeout=15
10 read_timeout=30
11 #dynamic_state=/root/mysqlrouter/data/state.json

6.3.2启动MySQL Router hang住不动

启动MySQL Router hang住不动，查看日志报错Unable to fetch live group_replication member data from any server in replicaset ‘default‘，具体如下：

[root@node2 log]# tailf /root/mysqlrouter/log/mysqlrouter.log
2019-08-02 15:46:41 metadata_cache WARNING [7f3030405700] While updating metadata, could not establish a connection to replicaset 'default' through test61:3306
2019-08-02 15:46:51 metadata_cache WARNING [7f3030405700] While updating metadata, could not establish a connection to replicaset 'default' through oratest52:3306
2019-08-02 15:47:01 metadata_cache WARNING [7f3030405700] While updating metadata, could not establish a connection to replicaset 'default' through oratest51:3306
2019-08-02 15:47:01 metadata_cache ERROR [7f3030405700] Unable to fetch live group_replication member data from any server in replicaset 'default'

原因： MySQL Router所在节点没有配置本机DNS解析
解决办法： 在/etc/hosts中添加MGR实例的解析

七、个人总结

• MySQL Router有两种部署模式：
  • bootstrap模式：支持failover，必须结合InnoDB Cluster使用，在--directory指定的路径下自动生成安装目录，配置文件里的端口为6446和6447。
  • 简单模式：不支持failover，无需结合InnoDB Cluster使用，一般在主从复制或者主主复制等模式下使用，使用/usr/local/mysqlrouter/share/doc/mysqlrouter/sample_mysqlrouter.conf这个配置文件部署。
• MySQL Router使用的是一个IP地址(可以理解为VIP)加一个RW端口和一个RO端口实现读写分离，Router自身不能判断应用程序的请求是读还是写，因此做读写分离时，必须指定两个端口。
• MySQL Router自身存在单点隐患，为了解决MySQL Router的单点问题，可以在MySQL Router的上层在搭建一个负载均衡服务器，如果是自建机房可以选择LVS，HAProxy等方案，但是这样做感觉更加复杂了，网上看到有人说可以在每个应用上部署MySQL Router，待验证。
• 有的应用程序可能不支持配置两个端口做读写分离，后端的MGR可以配置成多主模式，这样的话所有节点都可以读写，MySQL Router的配置文件中只需要定义RW的部分就可以了，待验证。
• 通过bootstrap生成的配置文件，只需要在bootstrap_server_addresses这一栏里配置就可以了，格式如下：

bootstrap_server_addresses=mysql://oratest51:3306,mysql://oratest52:3306,mysql://test61:3306

• MySQL Router的后端MySQL实例挂掉之后，无需人工干预，MySQL Router会自动剔除挂了的MySQL实例，当挂了的MySQL实例恢复后会自动加入MySQL Router的后端服务器，也无需人工干预。
• MGR架构可以实现高可用，但是要实现failover，则需要安装InnoDB Cluster了。MySQL Shell和MySQL Router是InnoDB Cluster集群的一部分
• MySQL Router非常轻量级，性能损耗小于1%，官方建议每台应用上部署一个mysqlrouter节点，优点是节省网络带宽。缺点是mysqlrouter太轻量级了，只能提供简单的基于端口的读写路由(Port based routing)和基于权重轮询的负载均衡(Weighted Balance)，不支持基于SQL的读写分离(Query based routing)和空闲优先的负载均衡(Application Layer balancer)

MySQL Router

原文：https://www.cnblogs.com/williamzheng/p/11347362.html
