matplotlib库绘制条形图

 1 from matplotlib import pyplot as plt
 2 import matplotlib
 3
 4 """绘制条形图"""
 5 font = {‘family‘: ‘MicroSoft YaHei‘}
 6 matplotlib.rc(‘font‘, **font)  # 使支持中文
 7
 8 x = ["战狼2","速度与激情8","功夫瑜伽","西游伏妖篇","变形金刚5：最后的骑士","摔跤吧！爸爸","加勒比海盗5：死无对证","金刚：骷髅岛","极限特工：终极回归","生化危机6：终章","乘风破浪","神偷奶爸3","智取威虎山","大闹天竺","金刚狼3：殊死一战","蜘蛛侠：英雄归来","悟空传","银河护卫队2","情圣","新木乃伊",]
 9
10 y = [56.01,26.94,17.53,16.49,15.45,12.96,11.8,11.61,11.28,11.12,10.49,10.3,8.75,7.55,7.32,6.99,6.88,6.86,6.58,6.23]
11
12 plt.figure(figsize=(20, 8), dpi=80)  # 设置图形大小
13

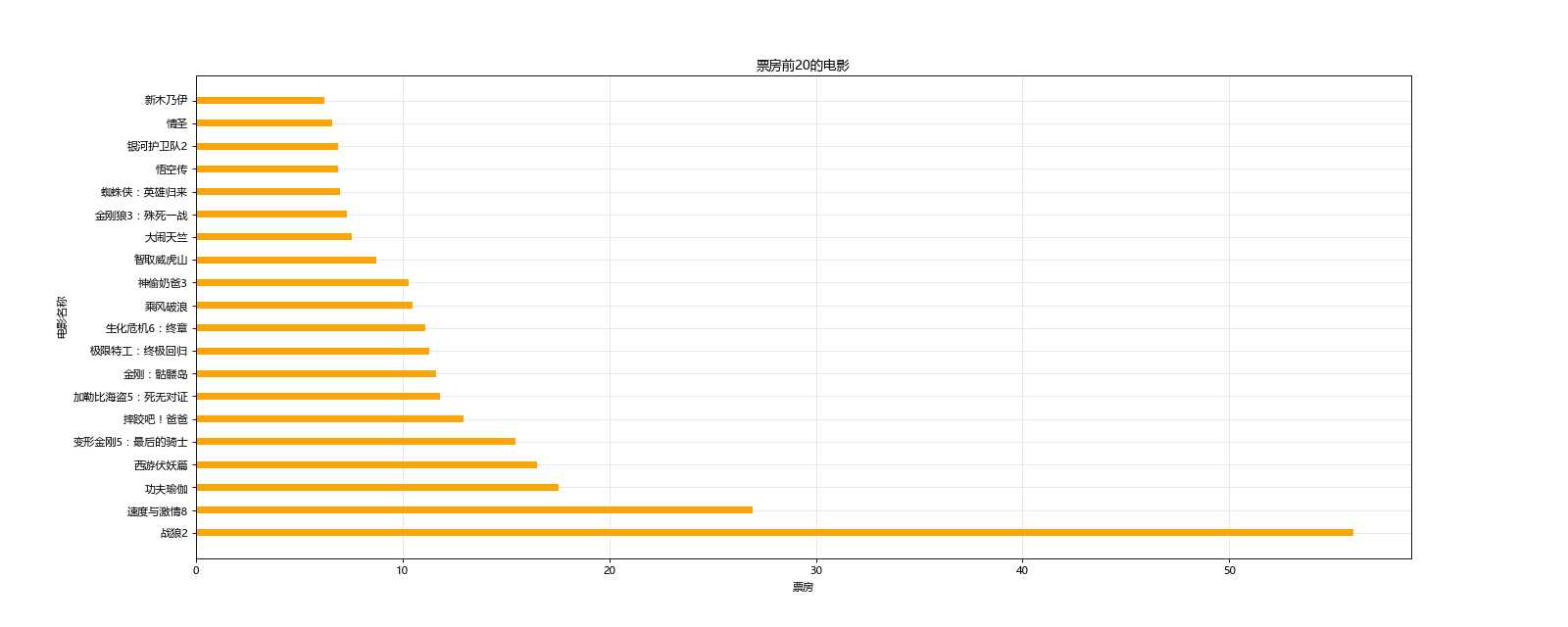

14 # plt.bar(range(len(x)), y, width=0.3)  # 绘制条形图，线条宽度
15 plt.barh(range(len(x)), y, height=0.3, color=‘orange‘)  # 绘制横着的条形图,横着的用height控制线条宽度
16 # 设置字符串到x轴
17 plt.yticks(range(len(x)),x)
18
19 plt.grid(alpha=0.3)  # 添加网格
20 plt.ylabel(‘电影名称‘)
21 plt.xlabel(‘票房‘)
22 plt.title(‘票房前20的电影‘)
23
24 plt.show()

 1 from matplotlib import pyplot as plt
 2 import matplotlib
 3
 4 font = {‘family‘: ‘MicroSoft YaHei‘}
 5 matplotlib.rc(‘font‘, **font)  # 使支持中文
 6
 7 a = ["猩球崛起3：终极之战","敦刻尔克","蜘蛛侠：英雄归来","战狼2"]
 8 b_16 = [15746,312,4497,319]
 9 b_15 = [12357,156,2045,168]
10 b_14 = [2358,399,2358,362]
11
12 bar_width = 0.2  # 绘制多个条形图，这里不能大于0.3
13 # 让后两个条形，向后移动一个bar_width
14 x_14 = list(range(len(a)))
15 x_15 = [i+bar_width for i in x_14]
16 x_16 = [i+2*bar_width for i in x_14]
17
18 plt.figure(figsize=(20, 8), dpi=80)  # 设置图形大小
19 plt.xticks(x_15, a)  # 设置x轴刻度
20

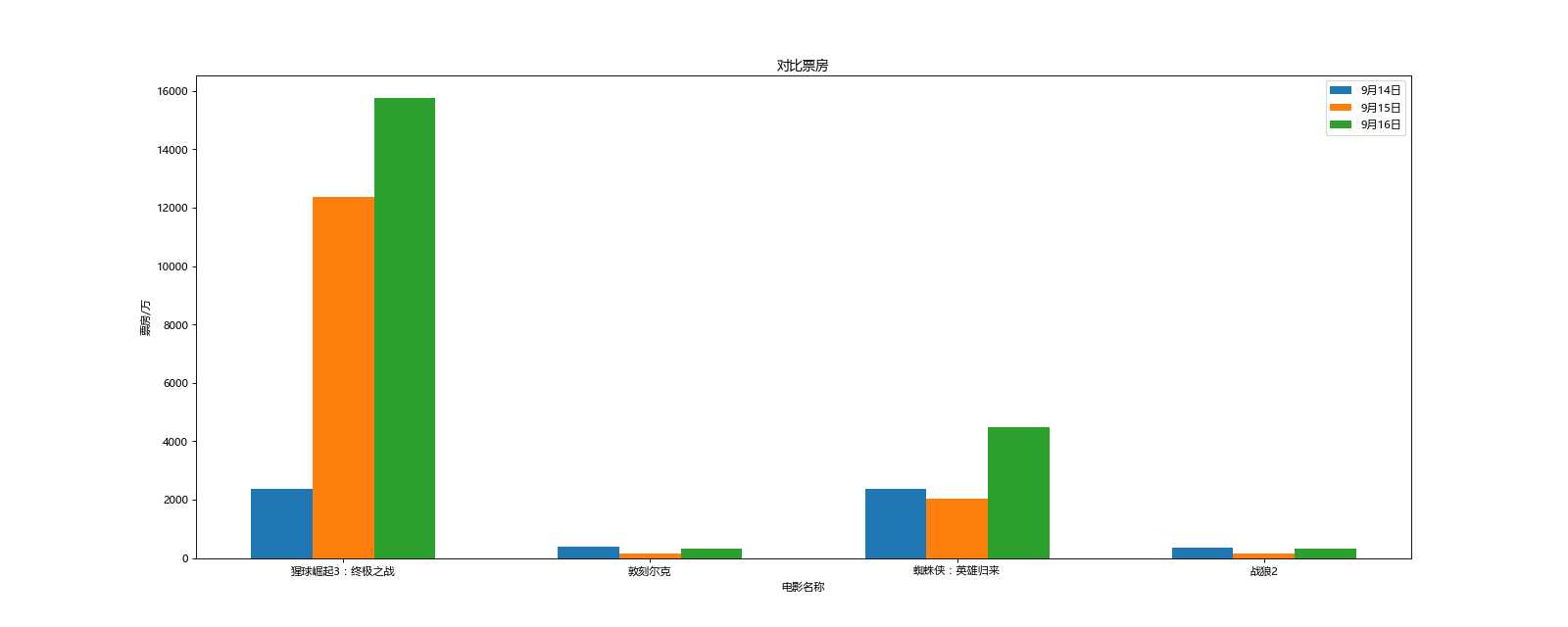

21 plt.bar(range(len(a)), b_14, width=bar_width, label=‘9月14日‘)
22 plt.bar(x_15, b_15, width=bar_width, label=‘9月15日‘)
23 plt.bar(x_16, b_16, width=bar_width, label=‘9月16日‘)
24
25 plt.legend()  # 设置图例
26 plt.xlabel(‘电影名称‘)
27 plt.ylabel(‘票房/万‘)
28 plt.title(‘对比票房‘)
29 plt.savefig(‘./02.png‘)
30 plt.show()
