实验六.配置链路聚合

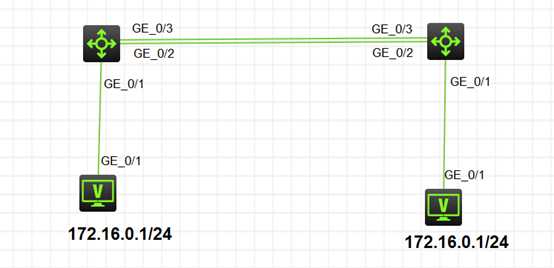

1. 建立物理连接


2. 配置静态聚合
   [swa]interface Bridge-Aggregation 1
   [swa]interface GigabitEthernet 1/0/2
   [swa-GigabitEthernet1/0/2]port link-aggregation group 1
   [swa]interface GigabitEthernet 1/0/3
   [swa-GigabitEthernet1/0/3]port link-aggregation group 1

[swb]interface Bridge-Aggregation 1
[swb]interface GigabitEthernet 1/0/2
[swb-GigabitEthernet1/0/2]port link-aggregation group 1
[swb]interface GigabitEthernet 1/0/3
[swb-GigabitEthernet1/0/3]port link-aggregation group 1

1. 查看聚合组信息
   [H3C]display link-aggregation summary
   Aggregation Interface Type:
   BAGG -- Bridge-Aggregation, BLAGG -- Blade-Aggregation, RAGG -- Route-Aggregation, SCH-B -- Schannel-Bundle
   Aggregation Mode: S -- Static, D -- Dynamic
   Loadsharing Type: Shar -- Loadsharing, NonS -- Non-Loadsharing
   Actor System ID: 0x8000, 6cd6-45bd-0100

AGG AGG Partner ID Selected Unselected Individual Share
Interface Mode Ports Ports Ports Type
--------------------------------------------------------------------------------
BAGG1 S None 2 0 0 Shar
