4. Bootstrapping

Now let’s try out the basic features of Dubbo.

This is a minimally invasive framework, and lots of its features depend on external configurations or annotations.

It’s officially suggested that we should use XML configuration file because it depends on a Spring container (currently Spring 4.3.10).

We’ll demonstrate most of its features using XML configuration.

4.1. Multicast Registry – Service Provider

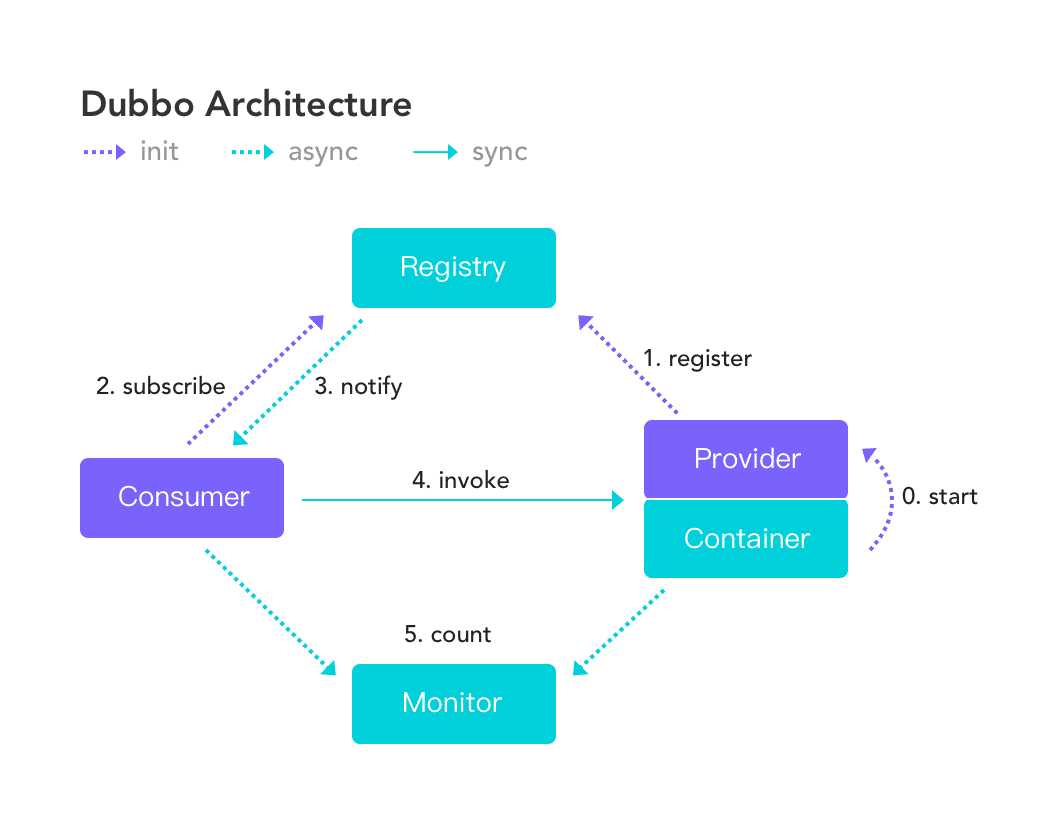

As a quick start, we’ll only need a service provider, a consumer and an “invisible” registry. The registry is invisible because we are using a multicast network.

In the following example, the provider only says “hi” to its consumers:

public interface GreetingsService {
    String sayHi(String name);
}

public class GreetingsServiceImpl implements GreetingsService {

    @Override
    public String sayHi(String name) {
        return "hi, " + name;
    }
}

4.2. Multicast Registry – Service Registration

Let’s now register GreetingsService to the registry. A very convenient way is to use a multicast registry if both providers and consumers are on the same local network provider-app.xml:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://code.alibabatech.com/schema/dubbo
        http://code.alibabatech.com/schema/dubbo/dubbo.xsd ">

    <dubbo:application name="demo-provider" version="1.0"/>
    <dubbo:registry address="multicast://224.1.1.1:9090"/>
    <dubbo:protocol name="dubbo" port="20880"/>
    <bean id="greetingsService" class="dubbo.test.app.GreetingsServiceImpl"/>
    <dubbo:service interface="dubbo.test.app.GreetingsService"
      ref="greetingsService"/>
</beans>

With the beans configuration above, we have just exposed our GreetingsService to an url under dubbo://127.0.0.1:20880 and registered the service to a multicast address specified in <dubbo:registry />.

In the provider’s configuration, we also declared our application metadata, the interface to publish and its implementation respectively by <dubbo:application />, <dubbo:service />and <beans />.

The dubbo protocol is one of many protocols the framework supports. It is built on top of the Java NIO non-blocking feature and it’s the default protocol used.

We’ll discuss it in more detail later in this article.

4.3. Multicast Registry – Service Consumer

Generally, the consumer needs to specify the interface to invoke and the address of remote service, and that’s exactly what’s needed for a consumer（consumer-app.xml）:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://code.alibabatech.com/schema/dubbo
        http://code.alibabatech.com/schema/dubbo/dubbo.xsd ">

    <dubbo:application name="demo-consumer" version="1.0"/>
    <dubbo:registry address="multicast://224.1.1.1:9090"/>
    <dubbo:reference interface="dubbo.test.app.GreetingsService"
      id="greetingsService"/>
</beans>

Now everything’s set up, let’s see how they work in action:

public class MulticastRegistryTest
{
    @Before
    public void initRemote()
    {
        ClassPathXmlApplicationContext remoteContext = new ClassPathXmlApplicationContext(
                "resources/provider-app.xml");
        remoteContext.start();
    }

    @Test
    public void givenProvider_whenConsumerSaysHi_thenGotResponse()
    {
        ClassPathXmlApplicationContext localContext = new ClassPathXmlApplicationContext(
                "resources/consumer-app.xml");
        localContext.start();
        GreetingsService greetingsService = (GreetingsService) localContext
                .getBean("greetingsService");
        String hiMessage = greetingsService.sayHi("baeldung");
        assertNotNull(hiMessage);
        assertEquals("hi, baeldung", hiMessage);
    }

}

When the provider’s remoteContext starts, Dubbo will automatically load GreetingsServiceand register it to a given registry. In this case, it’s a multicast registry.

The consumer subscribes to the multicast registry and creates a proxy of GreetingsService in the context. When our local client invokes the sayHi method, it’s transparently invoking a remote service.

We mentioned that the registry is optional, meaning that the consumer could connect directly to the provider, via the exposed port:

<dubbo:reference interface="com.baeldung.dubbo.remote.GreetingsService"
  id="greetingsService" url="dubbo://127.0.0.1:20880"/>

Basically, the procedure is similar to traditional web service, but Dubbo just makes it plain, simple and lightweight.
