华为交换机配置入门(五)

时间:2019-07-03 14:14:29      阅读:116      评论:0      收藏:0      [点我收藏+]

VLAN配置

1、创建VLAN

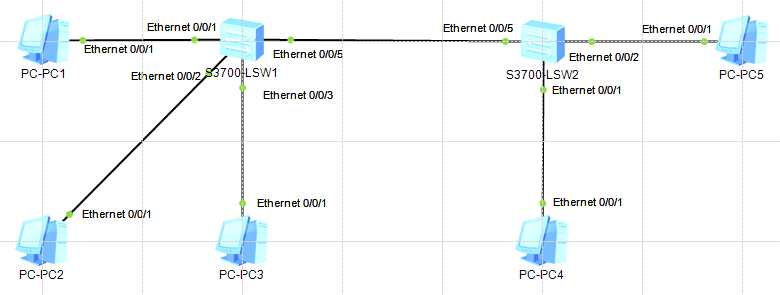

拓扑图

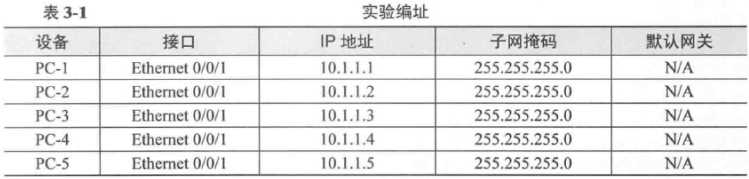

技术分享图片

技术分享图片



SW1配置:

<Huawei>system-view
[Huawei]sysname S1
[S1]vlan 10
[S1-vlan10]vlan 20

[S1]display vlan
The total number of vlans is : 3
--------------------------------------------------------------------------------
U: Up; D: Down; TG: Tagged; UT: Untagged;
MP: Vlan-mapping; ST: Vlan-stacking;
#: ProtocolTransparent-vlan; *: Management-vlan;
--------------------------------------------------------------------------------

VID Type Ports
--------------------------------------------------------------------------------
1 common UT:Eth0/0/1(U) Eth0/0/2(U) Eth0/0/3(U) Eth0/0/4(D)
Eth0/0/5(U) Eth0/0/6(D) Eth0/0/7(D) Eth0/0/8(D)
Eth0/0/9(D) Eth0/0/10(D) Eth0/0/11(D) Eth0/0/12(D)
Eth0/0/13(D) Eth0/0/14(D) Eth0/0/15(D) Eth0/0/16(D)
Eth0/0/17(D) Eth0/0/18(D) Eth0/0/19(D) Eth0/0/20(D)
Eth0/0/21(D) Eth0/0/22(D) GE0/0/1(D) GE0/0/2(D)

10 common
20 common

VID Status Property MAC-LRN Statistics Description
--------------------------------------------------------------------------------

1 enable default enable disable VLAN 0001
10 enable default enable disable VLAN 0010
20 enable default enable disable VLAN 0020



SW2配置:

<Huawei>system-view
[Huawei]sysname S2
[S2]vlan batch 30 40

[S2]display vlan
The total number of vlans is : 3
--------------------------------------------------------------------------------
U: Up; D: Down; TG: Tagged; UT: Untagged;
MP: Vlan-mapping; ST: Vlan-stacking;
#: ProtocolTransparent-vlan; *: Management-vlan;
--------------------------------------------------------------------------------

VID Type Ports
--------------------------------------------------------------------------------
1 common UT:Eth0/0/1(U) Eth0/0/2(U) Eth0/0/3(D) Eth0/0/4(D)
Eth0/0/5(U) Eth0/0/6(D) Eth0/0/7(D) Eth0/0/8(D)
Eth0/0/9(D) Eth0/0/10(D) Eth0/0/11(D) Eth0/0/12(D)
Eth0/0/13(D) Eth0/0/14(D) Eth0/0/15(D) Eth0/0/16(D)
Eth0/0/17(D) Eth0/0/18(D) Eth0/0/19(D) Eth0/0/20(D)
Eth0/0/21(D) Eth0/0/22(D) GE0/0/1(D) GE0/0/2(D)

30 common
40 common

VID Status Property MAC-LRN Statistics Description
--------------------------------------------------------------------------------

1 enable default enable disable VLAN 0001
30 enable default enable disable VLAN 0030
40 enable default enable disable VLAN 0040



端口配置

[S1]interface Ethernet0/0/1
[S1-Ethernet0/0/1]port link-type access
[S1-Ethernet0/0/1]port default vlan 10
[S1-Ethernet0/0/1]qu
[S1]interface Ethernet0/0/2
[S1-Ethernet0/0/2]port link-type access
[S1-Ethernet0/0/2]port default vlan 10
[S1-Ethernet0/0/2]qu
[S1]interface Ethernet0/0/3
[S1-Ethernet0/0/3]port link-type access
[S1-Ethernet0/0/3]port default vlan 20
[S1-Ethernet0/0/3]qu

[S2]interface Ethernet0/0/1
[S2-Ethernet0/0/1]port link-type access
[S2-Ethernet0/0/1]port default vlan 30
[S2-Ethernet0/0/1]qu
[S2]interface Ethernet0/0/2
[S2-Ethernet0/0/2]port link-type access
[S2-Ethernet0/0/2]port default vlan 40
[S2-Ethernet0/0/2]qu

查看vlan

[S1]display vlan
The total number of vlans is : 3
--------------------------------------------------------------------------------
U: Up; D: Down; TG: Tagged; UT: Untagged;
MP: Vlan-mapping; ST: Vlan-stacking;
#: ProtocolTransparent-vlan; *: Management-vlan;
--------------------------------------------------------------------------------

VID Type Ports
--------------------------------------------------------------------------------
1 common UT:Eth0/0/4(D) Eth0/0/5(U) Eth0/0/6(D) Eth0/0/7(D)
Eth0/0/8(D) Eth0/0/9(D) Eth0/0/10(D) Eth0/0/11(D)
Eth0/0/12(D) Eth0/0/13(D) Eth0/0/14(D) Eth0/0/15(D)
Eth0/0/16(D) Eth0/0/17(D) Eth0/0/18(D) Eth0/0/19(D)
Eth0/0/20(D) Eth0/0/21(D) Eth0/0/22(D) GE0/0/1(D)
GE0/0/2(D)

10 common UT:Eth0/0/1(U) Eth0/0/2(U)

20 common UT:Eth0/0/3(U)


VID Status Property MAC-LRN Statistics Description
--------------------------------------------------------------------------------

1 enable default enable disable VLAN 0001
10 enable default enable disable VLAN 0010
20 enable default enable disable VLAN 0020



[S2]dis vlan
The total number of vlans is : 3
--------------------------------------------------------------------------------
U: Up; D: Down; TG: Tagged; UT: Untagged;
MP: Vlan-mapping; ST: Vlan-stacking;
#: ProtocolTransparent-vlan; *: Management-vlan;
--------------------------------------------------------------------------------

VID Type Ports
--------------------------------------------------------------------------------
1 common UT:Eth0/0/3(D) Eth0/0/4(D) Eth0/0/5(U) Eth0/0/6(D)
Eth0/0/7(D) Eth0/0/8(D) Eth0/0/9(D) Eth0/0/10(D)
Eth0/0/11(D) Eth0/0/12(D) Eth0/0/13(D) Eth0/0/14(D)
Eth0/0/15(D) Eth0/0/16(D) Eth0/0/17(D) Eth0/0/18(D)
Eth0/0/19(D) Eth0/0/20(D) Eth0/0/21(D) Eth0/0/22(D)
GE0/0/1(D) GE0/0/2(D)

30 common UT:Eth0/0/1(U)

40 common UT:Eth0/0/2(U)


VID Status Property MAC-LRN Statistics Description
--------------------------------------------------------------------------------

1 enable default enable disable VLAN 0001
30 enable default enable disable VLAN 0030
40 enable default enable disable VLAN 0040
