[ML] {ud120} Lesson 4: Decision Trees

时间:2019-06-07 12:17:51      阅读:80      评论:0      收藏:0      [点我收藏+]

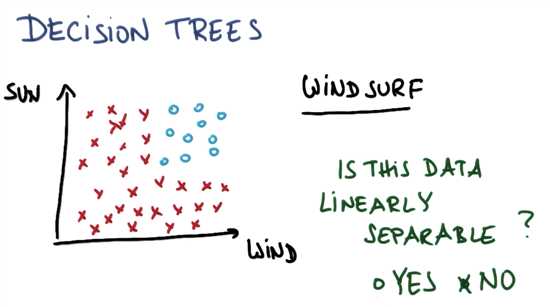

Linearly Separable Data



 技术分享图片

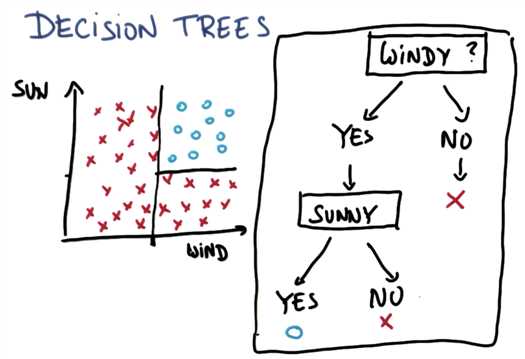

 Multiple Linear Questions

 技术分享图片

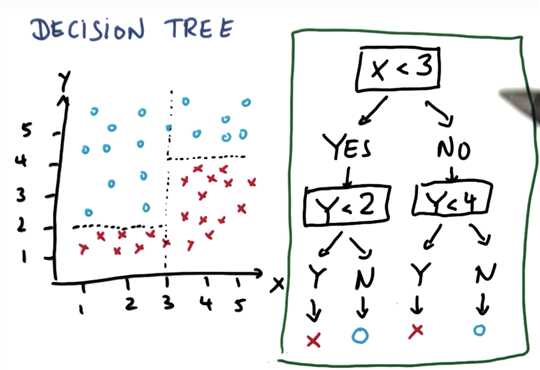

Constructing a Decision Tree First Split

 技术分享图片

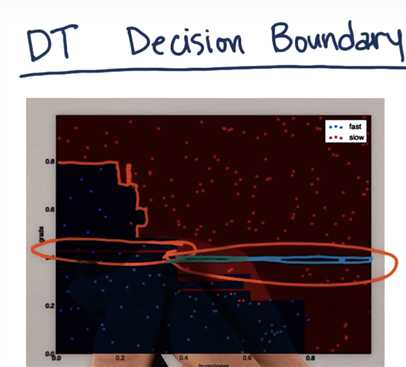

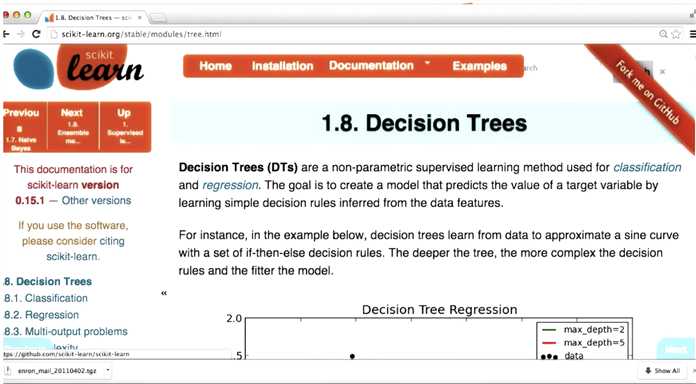

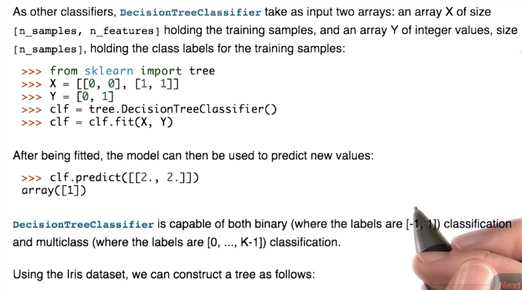

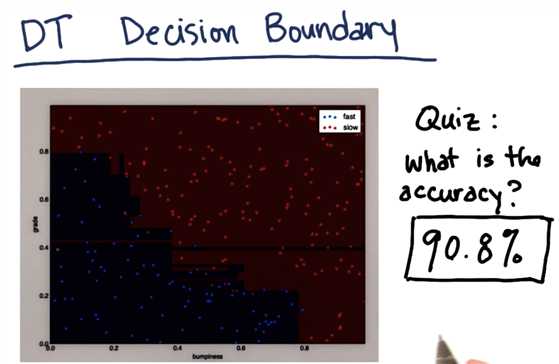

 Coding A Decision Tree

 技术分享图片

技术分享图片







 技术分享图片

技术分享图片

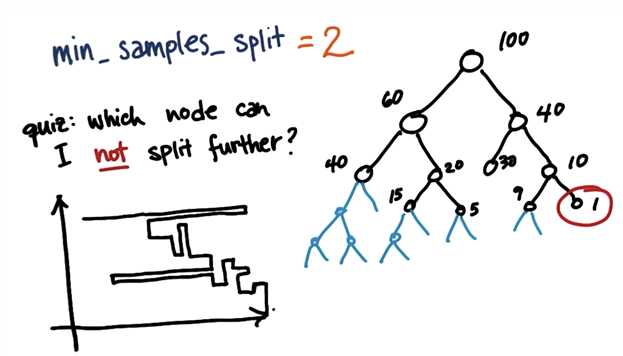

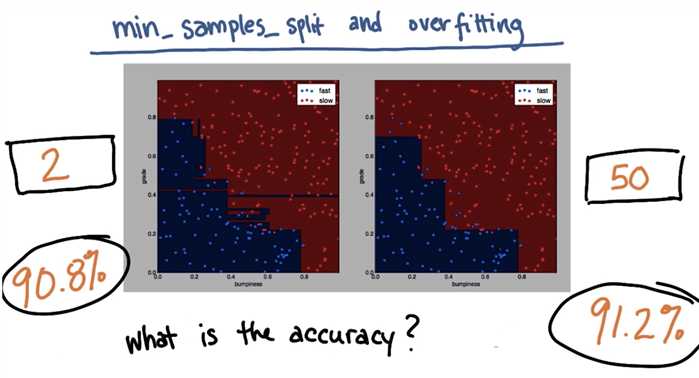

 Decision Tree Parameters

技术分享图片

技术分享图片

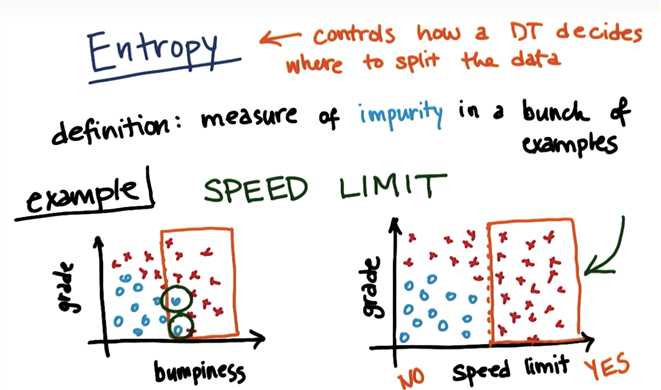

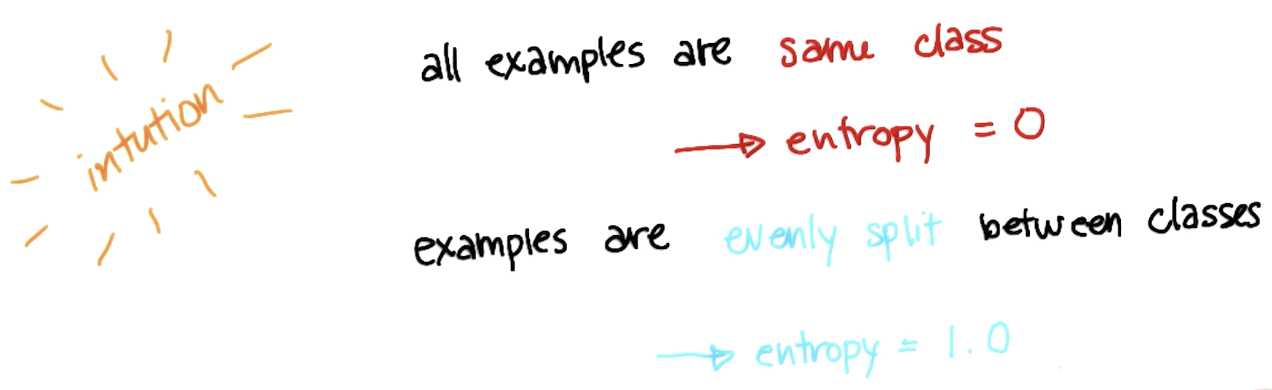

 Data Impurity and Entropy

 技术分享图片

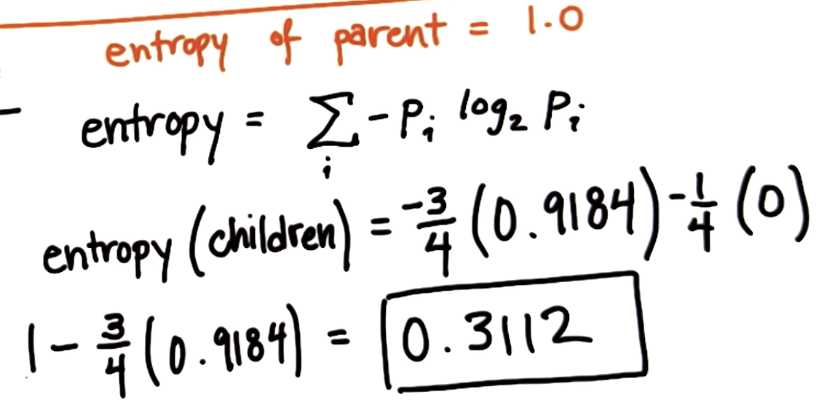

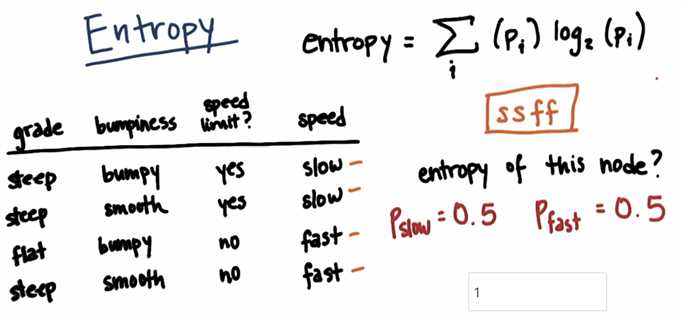

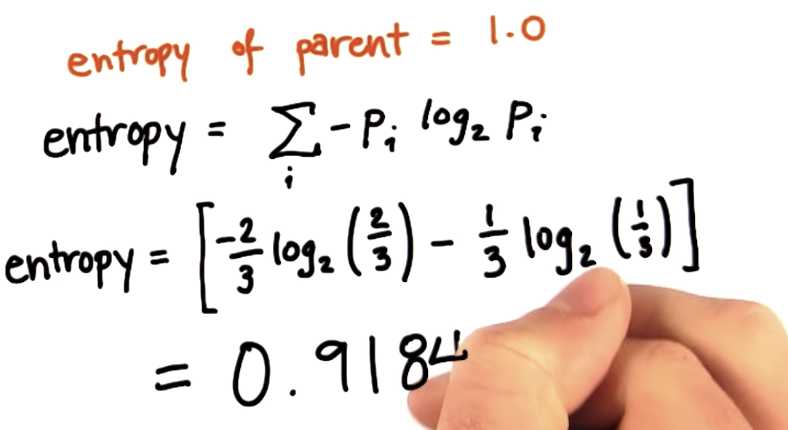

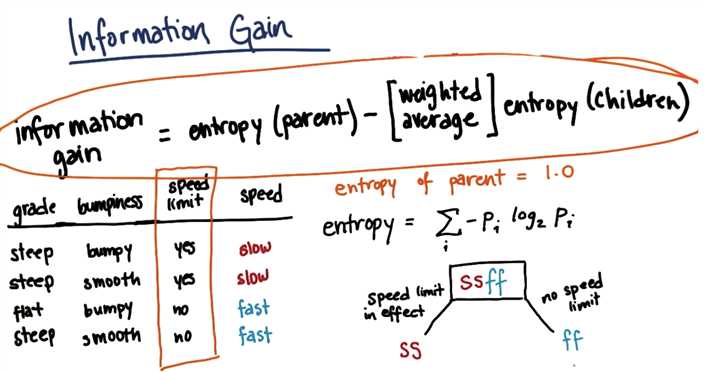

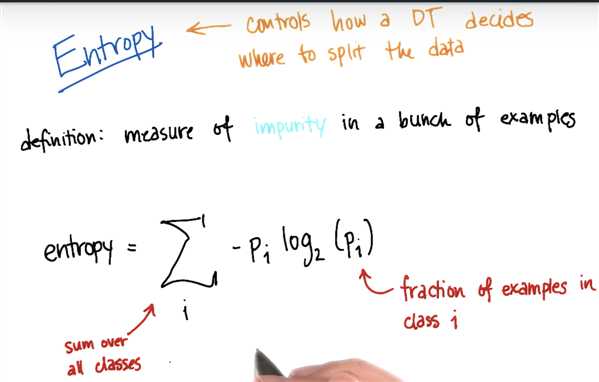

 Formula of Entropy

 技术分享图片

技术分享图片

技术分享图片

There is an error in the formula in the entropy written on this slide. There should be a negative (-) sign preceding the sum:

Entropy = - \sum_i (p_i) \log_2 (p_i)i?(pi?)log2?(pi?)

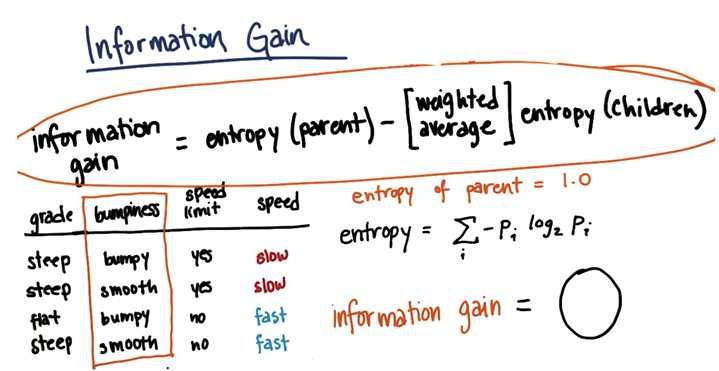

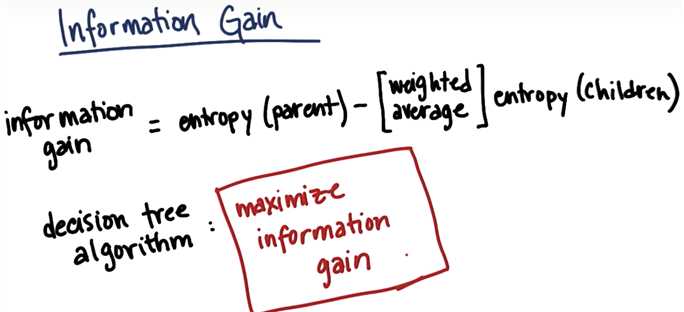

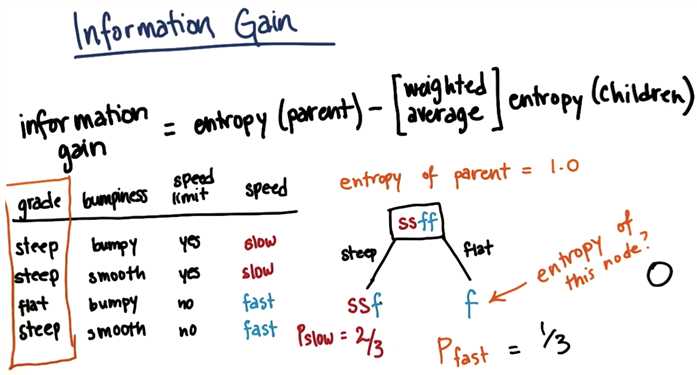

技术分享图片

技术分享图片

技术分享图片

技术分享图片



 技术分享图片

技术分享图片

IG = 1

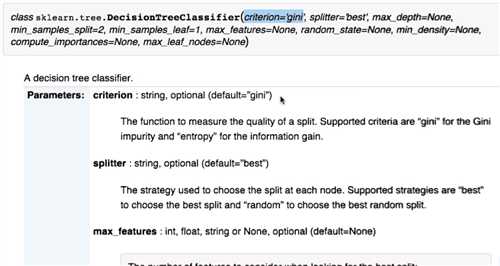

 Tuning Criterion Parameter

 技术分享图片

gini is another measurement of purity







Decision Tree Mini-Project



In this project, we will again try to identify the authors in a body of emails, this time using a decision tree. The starter code is in decision_tree/dt_author_id.py.

Get the data for this mini project from here.

Once again, you‘ll do the mini-project on your own computer and enter your answers in the web browser. You can find the instructions for the decision tree mini-project here.



[ML] {ud120} Lesson 4: Decision Trees

原文:https://www.cnblogs.com/ecoflex/p/10987754.html
