说明：
最开始是用的rehat7.2安装12.2.0.1，后面安装GI节点一执行root.sh脚本失败，排查原因，最开始以为是操作系统的问题，换成rehat7.6,同样的出现问题，经过一番折腾，后面通过MOS文献解决问题（如果直接18C，可以避免此BUG）。
操作系统：RedHat Linux 7.x 64位
数 据 库：Oracle 12.2.0.1 RAC
二、安装数据库前准备
vi /etc/resolv.conf --消除其内容
Rac1,rac2:

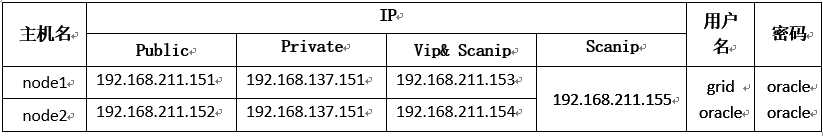

cat >> /etc/hosts<<EOF
#rac1
192.168.211.151 node1
192.168.211.153 node1-vip
192.168.137.151 node1-priv
#rac2
192.168.211.152 node2
192.168.211.154 node2-vip
192.168.137.152 node2-priv
#scan-ip
192.168.211.155 scan-cluster
EOF
service iptables stop
chkconfig iptables off
service ip6tables stop
chkconfig ip6tables off
systemctl disable firewalld
systemctl stop firewalld
#关闭selinux
sed -i ‘s\SELINUX=enforcing\SELINUX=disabled\‘ /etc/selinux/config
setenforce 0
/sbin/service ntpd stop
chkconfig ntpd off
mv /etc/ntp.conf /etc/ntp.conf.org
systemctl stop chronyd
systemctl disable chrnyd
systemctl stop avahi-dnsconfd
systemctl stop avahi-daemon
systemctl disable avahi-dnsconfd
systemctl disable avahi-daemon
systemctl stop NetworkManager
systemctl disable NetworkManager
#添加用户
useradd -u 54321 -g oinstall -G asmadmin,asmdba,asmoper,dba grid
echo ‘oracle‘ | passwd --stdin grid
useradd -u 54322 -g oinstall -G dba,asmdba,oper oracle
echo ‘oracle‘ | passwd --stdin oracle
#创建安装目录
mkdir -p /u01/app/grid
mkdir -p /u01/app/12.2.0/grid
mkdir -p /u01/app/oracle/product/12.2.0/db_1
#更改目录权限
chown -R grid:oinstall /u01
chown -R oracle:oinstall /u01/app/oracle
chmod -R 775 /u01
#改变内核参数
cat >> /etc/sysctl.conf<<EOF
#Kernel for Oracle 12C
fs.aio-max-nr = 1048576
fs.file-max = 6815744
#kernel.shmall = 2097152
#kernel.shmmax = 4294967295
kernel.shmall = 16097152
kernel.shmmax = 128849018880
kernel.shmmni = 4096
kernel.sem = 250 32000 100 128
net.ipv4.ip_local_port_range = 9000 65500
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048576
EOF
#使内核参数立即生效
sysctl -p
#添加用户资源限制
cat >> /etc/security/limits.conf<<EOF
#limits for Oracle users
grid soft nproc 2047
grid hard nproc 16384
grid soft nofile 1024
grid hard nofile 65536
grid soft stack 10240
oracle soft nproc 2047
oracle hard nproc 16384
oracle soft nofile 1024
oracle hard nofile 65536
oracle soft stack 10240
EOF
#编辑配置文件
cat >> /etc/profile<<EOF
#this is for oracle user
if [ \$USER = "oracle" ]||[ \$USER = "grid" ]; then
if [ \$SHELL = "/bin/ksh" ]; then
ulimit -p 16384
ulimit -n 65536
else
ulimit -u 16384 -n 65536
fi
umask 022
fi
EOF
#编辑登陆配置文件
cat >> /etc/pam.d/login<<EOF
#this is for oracle user
session required pam_limits.so
EOF
#为grid用户添加环境变量
cat >> /home/grid/.bash_profile<<EOF
export ORACLE_BASE=/u01/app/grid
export ORACLE_SID=+ASM1
export ORACLE_HOME=/u01/app/12.2.0/grid
export PATH=\$ORACLE_HOME/OPatch:\$ORACLE_HOME/bin:\$PATH
export LD_LIBRARY_PATH=\$ORACLE_HOME/lib:\$LD_LIBRARY_PATH
stty erase ^H
EOF
source /home/oracle/.bash_profile
#为oracle用户添加环境变量
cat >> /home/oracle/.bash_profile<<EOF
export ORACLE_BASE=/u01/app/oracle
export ORACLE_SID=orcl
export ORACLE_HOME=\$ORACLE_BASE/product/12.2.0/db_1
export PATH=\$ORACLE_HOME/OPatch:\$ORACLE_HOME/bin:\$PATH
export LD_LIBRARY_PATH=\$ORACLE_HOME/lib:\$LD_LIBRARY_PATH
export NLS_LANG=AMERICAN_AMERICA.ZHS16GBK
stty erase ^H
EOF
source /home/oracle/.bash_profile
#How To Prevent Bogus Entry 169.254.0.0/255.255.0.0 Automatically Added To Routing Table (文档 ID 1161144.1)
cat >>/etc/sysconfig/network<<EOF
NOZEROCONF=yes
EOF
cat > /etc/udev/rules.d/60-oracle-schedulers.rules<<EOF
ACTION=="add|change", KERNEL=="sd[a-z]", ATTR{queue/rotational}=="0", ATTR{queue/scheduler}="deadline"
EOF
udevadm control --reload-rules
1.查看透明大页是否启用
RHEL 6：
# cat /sys/kernel/mm/redhat_transparent_hugepage/enabled
[oracle@rhel 6 ~]$ cat /sys/kernel/mm/redhat_transparent_hugepage/enabled
[always] madvise never
RHEL 7：
# cat /sys/kernel/mm/transparent_hugepage/enabled
[root@rhel 7 ~]# cat /sys/kernel/mm/transparent_hugepage/enabled
[always] madvise never
2.禁用透明大页
RHEL 6：
（1）.编辑
/etc/grub.conf 文件，在kernel 那一行后面追加
transparent_hugepage=never
例如：
default=0
timeout=5
splashimage=(hd0,0)/grub/splash.xpm.gz
hiddenmenu
title Red Hat Enterprise Linux 6 (2.6.32-642.el6.x86_64)
root (hd0,0)
kernel /vmlinuz-2.6.32-642.el6.x86_64 ro root=/dev/mapper/rootvg-lvroot rd_NO_LUKS KEYBOARDTYPE=pc KEYTABLE=us LANG=en_US.UTF-8 rd_LVM_LV=rootvg/lvswap rd_NO_MD SYSFONT=latarcyrheb-sun16 crashkernel=auto rd_LVM_LV=rootvg/lvroot rd_NO_DM rhgb quiet transparent_hugepage=never
initrd /initramfs-2.6.32-642.el6.x86_64.img
（2）.重启系统生效。
RHEL 7：
（1）.编辑/etc/sysconfig/grub 文件，在 GRUB_CMDLINE_LINUX 那一行后面追加 transparent_hugepage=never
例如：
GRUB_TIMEOUT=5
GRUB_DISTRIBUTOR="$(sed ‘s, release .*$,,g‘ /etc/system-release)"
GRUB_DEFAULT=saved
GRUB_DISABLE_SUBMENU=true
GRUB_TERMINAL_OUTPUT="console"
GRUB_CMDLINE_LINUX="crashkernel=auto rd.lvm.lv=rootvg/root rd.lvm.lv=rootvg/swap rhgb quiet transparent_hugepage=never"
GRUB_DISABLE_RECOVERY="true"
（2）.再使用
grub2-mkconfig 生成grub.cfg配置文件。
# grub2-mkconfig -o /boot/grub2/grub.cfg
（3）.重启系统使配置生效。
for i in b c d e
do
echo "KERNEL==\"sd?\",SUBSYSTEM==\"block\",PROGRAM==\"/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/\$name\",RESULT==\"`/usr/lib/udev/scsi_id --whitelisted --replace-whitespace --device=/dev/sd$i`\",SYMLINK+=\"asm-disk$i\",OWNER=\"grid\",GROUP=\"asmadmin\",MODE=\"0660\""
done > /etc/udev/rules.d/99-oracle-asmdevices.rules
udevadm trigger
udevadm control -R
systemctl restart systemd-udevd.service

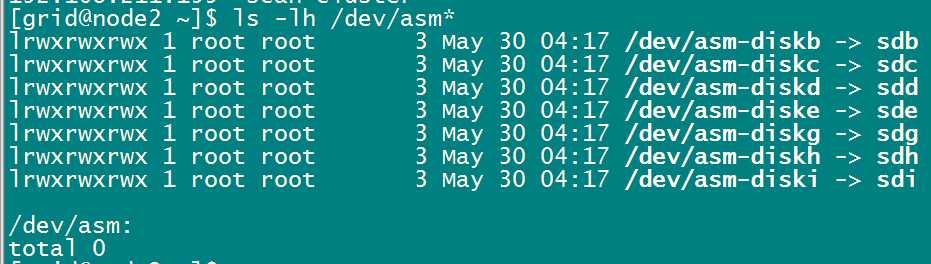

ls -lh /dev/asm*

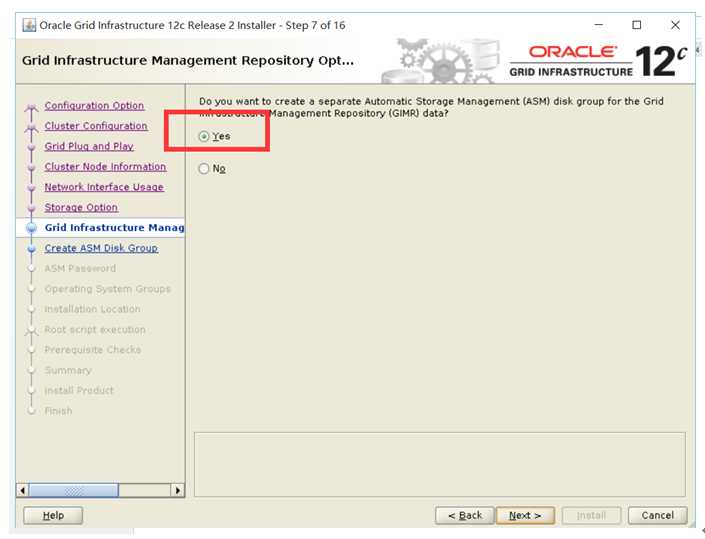

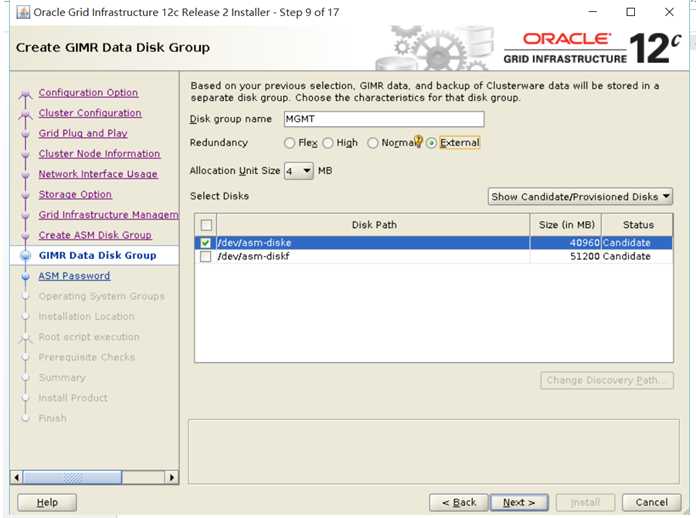

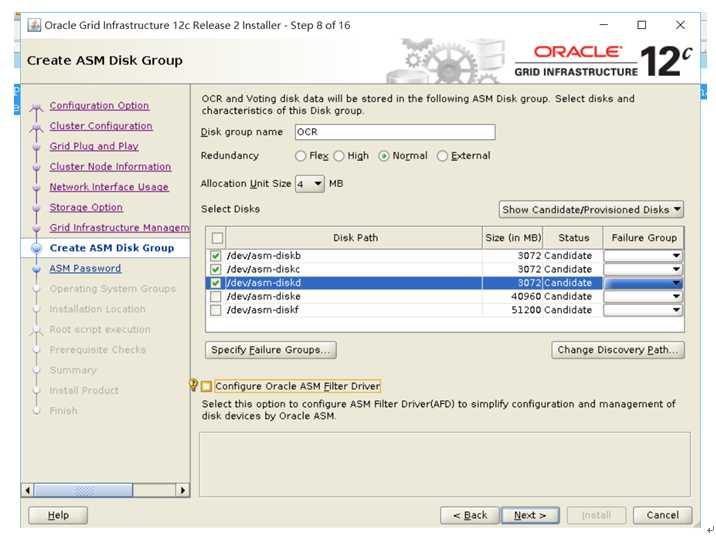

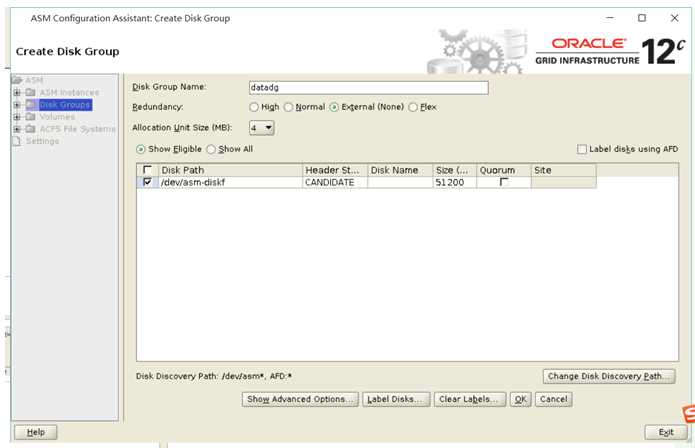

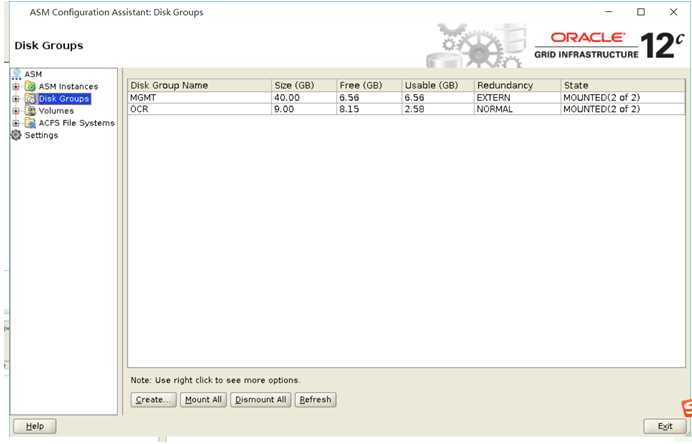

其中，12.2磁盘配置，把MGMT单独分开（建议40+G），否则跟ocr一起安装，每个OCR需要至少30+G。
yum -y install binutils \
compat-libcap1 \
compat-libstdc++-33 \
compat-libstdc++-33.i686 \
e2fsprogs \
e2fsprogs-libs \
gcc \
gcc-c++ \
glibc.i686 \
glibc \
glibc-devel.i686 \
glibc-devel \
ksh \
libaio \
libaio.i686 \
libaio-devel \
libaio-devel.i686 \
libX11.i686 \
libX11 \
libXau.i686 \
libXau \
libXi.i686 \
libXi \
libXtst.i686 \
libXtst \
libgcc.i686 \
libgcc \
libstdc++.i686 \
libstdc++ \
libstdc++-devel.i686 \
libstdc++-devel \
libxcb.i686 \
libxcb \
make \
net-tools \
nfs-utils \
smartmontools \
sysstat \
unixODBC.i686 \
unixODBC \
unixODBC-devel.i686 \
unixODBC-devel \
java-1.8.0-openjdk \
psmisc
从12.2开始，安装grid,直接把grid安装包解压到$GRID_HOME目录的前一个目录，解压生成grid目录，预检查，安装都可以，并且把MGMT分开。

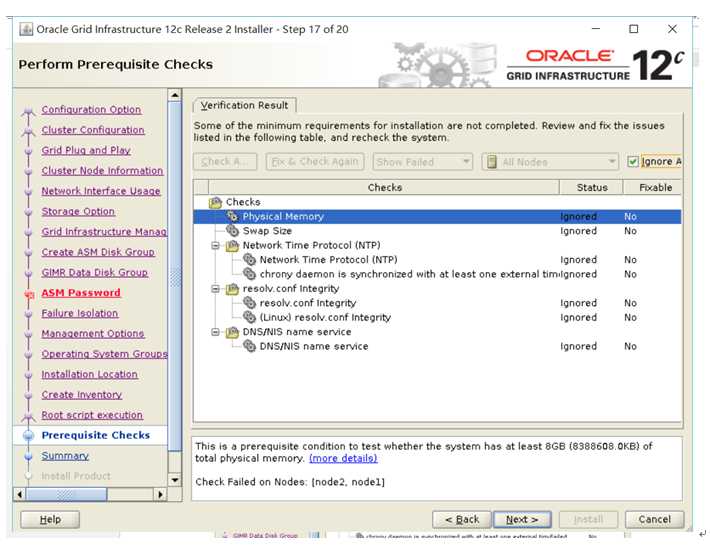

./runcluvfy.sh stage -pre crsinst -n node1,node2 -verbose >/tmp/grid_check.log
查看/tmp/grid_check.log

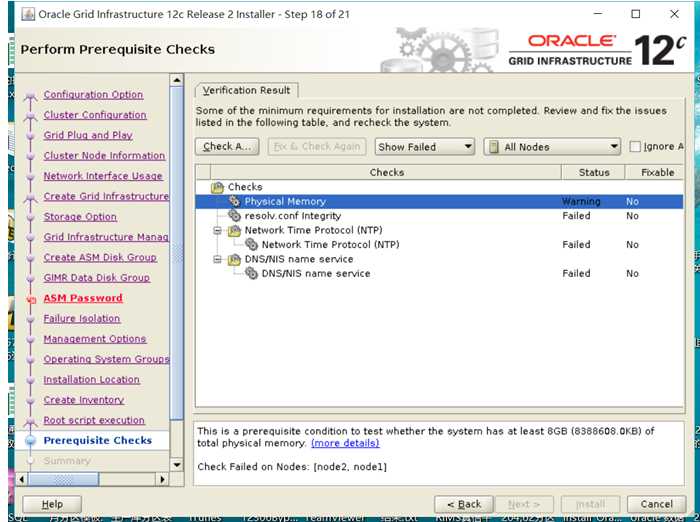

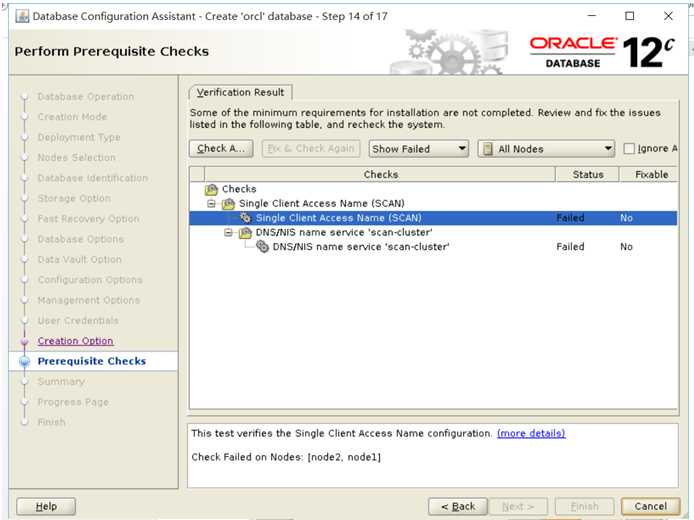

利用/etc/hosts 域名解析，/etc/resolv.conf 报错可以忽略

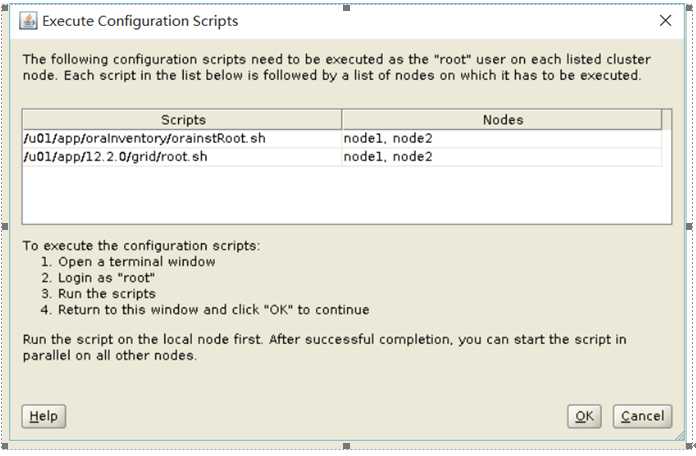

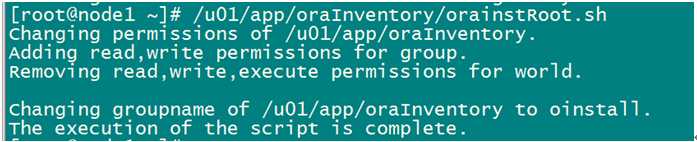

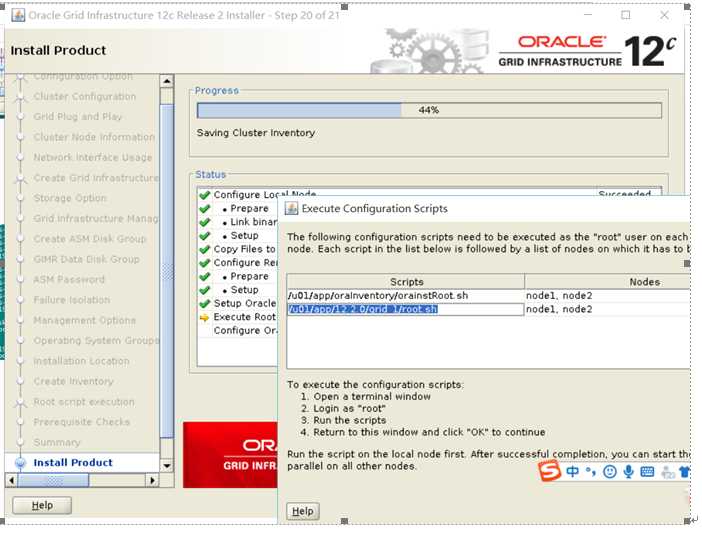

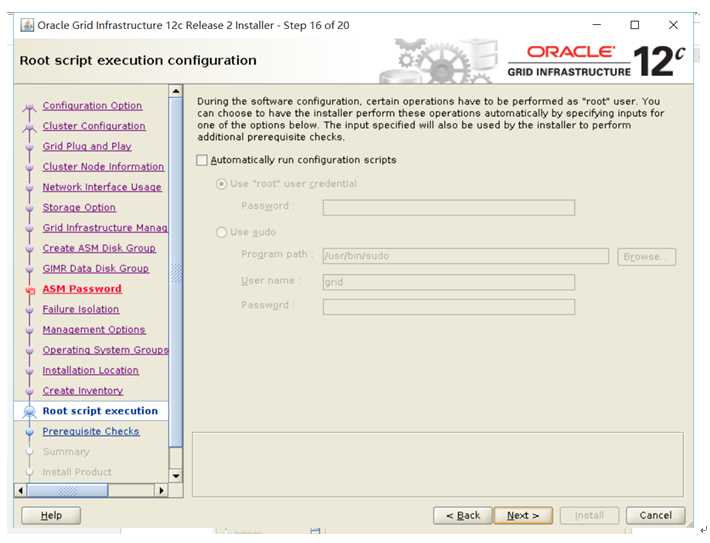

[root@node1 ~]# /u01/app/oraInventory/orainstRoot.sh
Changing permissions of /u01/app/oraInventory.
Adding read,write permissions for group.
Removing read,write,execute permissions for world.
Changing groupname of /u01/app/oraInventory to oinstall.
The execution of the script is complete.

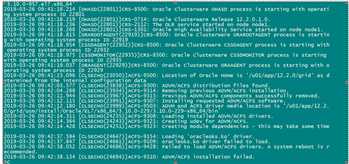

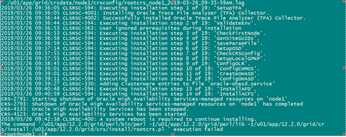

crs 报错：
The command ‘/opt/oracle/ghome/perl/bin/perl -I/opt/oracle/ghome/perl/lib -I/opt/oracle/ghome/crs/install /opt/oracle/ghome/crs/install/rootcrs.pl ‘ execution failed

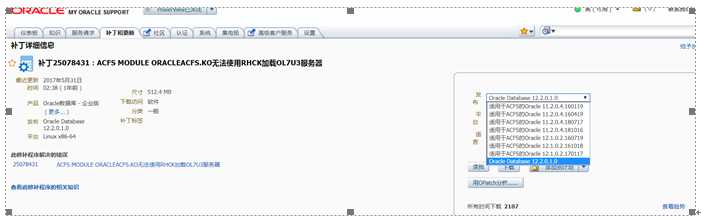

（Doc ID 26247490.8）
https://support.oracle.com/epmos/faces/PatchDetail?requestId=21111942&_afrLoop=291841035812717&patchId=25078431&_afrWindowMode=0&_adf.ctrl-state=6xvf8wj9o_73

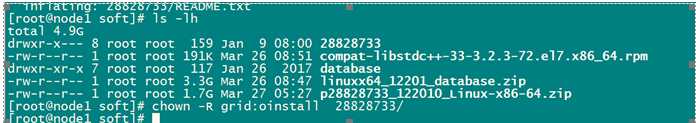

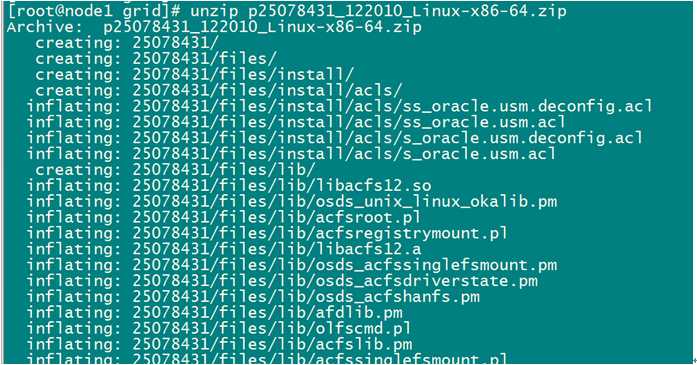

chown -R grid:oinstall 25078431/
cp -r /soft/OPatch /u01/app/12.2.0/grid/

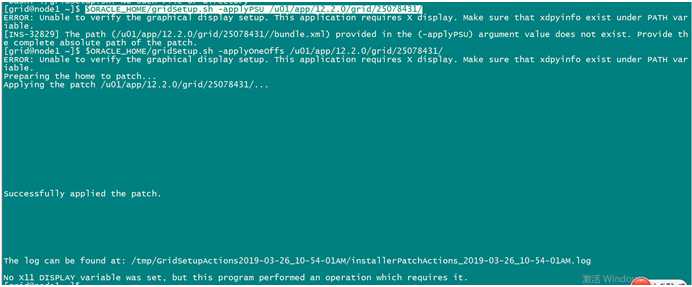

$ORACLE_HOME/gridSetup.sh -applyPSU /u01/app/12.2.0/grid/25078431/

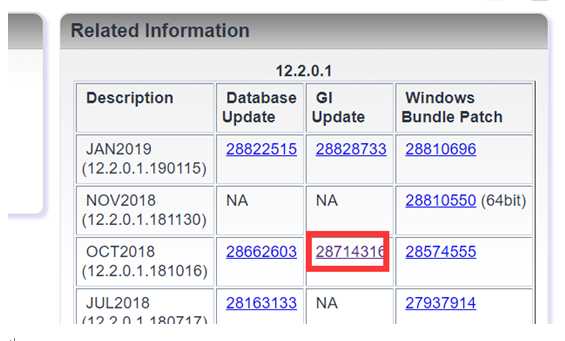

RU下载地址：
https://support.oracle.com/epmos/faces/PatchDetail?requestId=22666334&_afrLoop=334697806899329&patchId=28828733&_afrWindowMode=0&_adf.ctrl-state=1b2lzj24ao_100

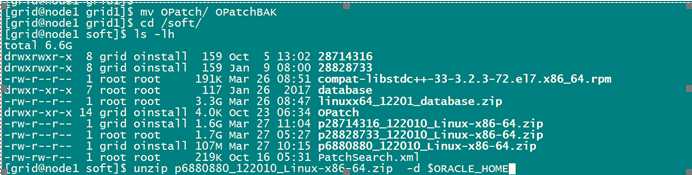

opatch 工具下载：
https://support.oracle.com/epmos/faces/PatchDetail?_afrLoop=363488317867689&patchId=6880880&_afrWindowMode=0&_adf.ctrl-state=12eicbce7h_853

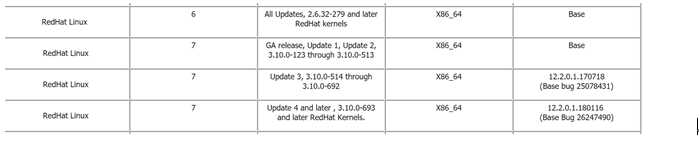

MOS 文档：ACFS Support On OS Platforms (Certification Matrix). (Doc ID 1369107.1)
由于我的操作系统是rehat7.6的，之前是rehat7.2版本，也是第一个脚本报错，创建集群资源的时候，7.2和7.5+的RU需要的不一样，最新的就行了。
官方建议使用OL7 UEK kernel替代，我打上最新RU（11G叫做PSU）,如果18C，可以完美避过此BUG。
12.2 Grid Infrastructure Installation: What‘s New (Doc ID 2024946.1)
打上补丁需要重新换GRID_HOME目录（真是蛋疼的一笔），即解压GRID软件包到新的GRID_HOME目录。
logout
[root@node1 soft]# mount /dev/cdrom /mnt/
mount: /dev/sr0 is write-protected, mounting read-only
[root@node1 soft]#
[root@node1 soft]#
[root@node1 soft]#
[root@node1 soft]# yum -y install psmisc

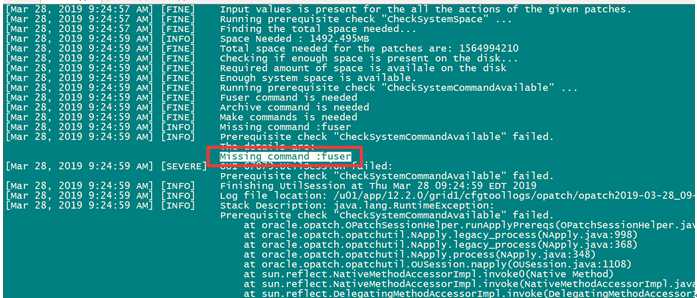

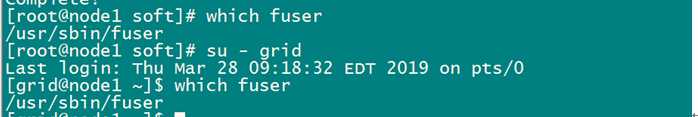

先决条件检查“CheckSystemCommandAvailable”失败（文档ID 1581604.1）

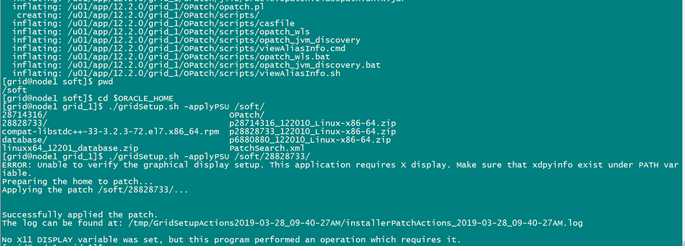

打上RU:
[grid@node1 grid_1]$ ./gridSetup.sh -applyPSU /soft/28828733/
ERROR: Unable to verify the graphical display setup. This application requires X display. Make sure that xdpyinfo exist under PATH variable.
Preparing the home to patch...
Applying the patch /soft/28828733/...
Successfully applied the patch.
The log can be found at:
/tmp/GridSetupActions2019-03-28_09-40-27AM/installerPatchActions_2019-03-28_09-40-27AM.log
No X11 DISPLAY variable was set, but this program performed an operation which requires it.

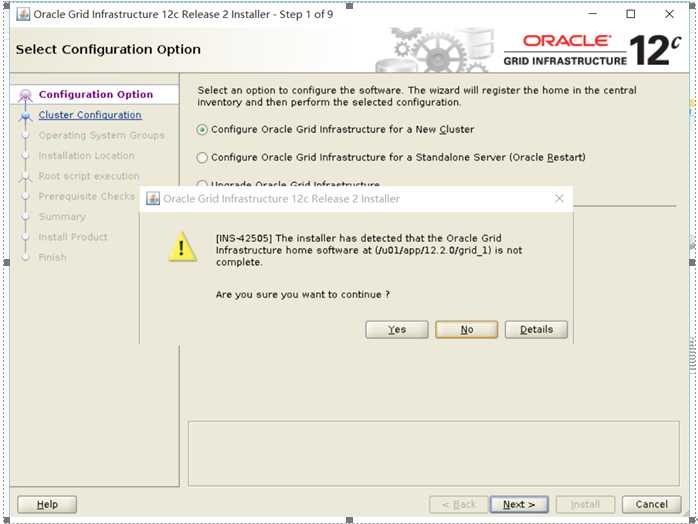

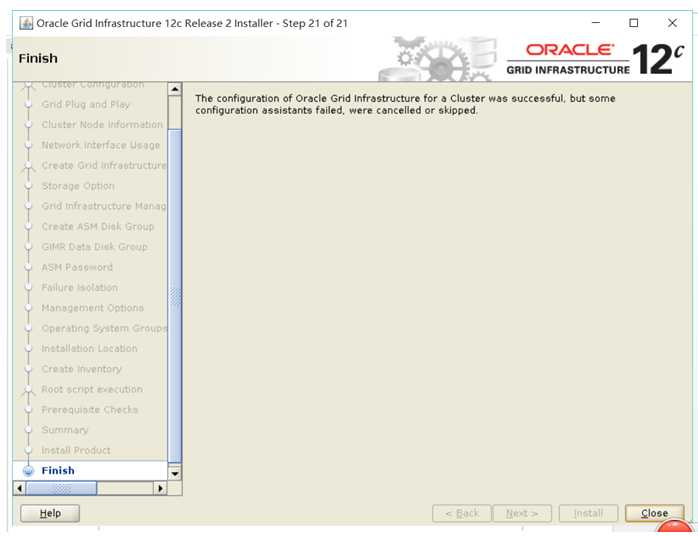

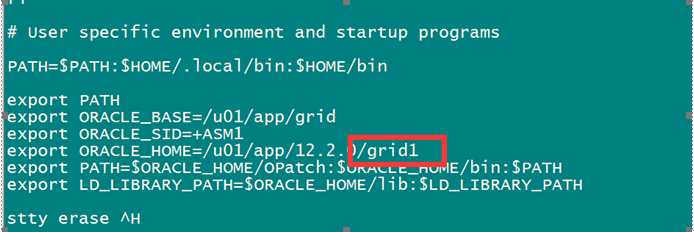

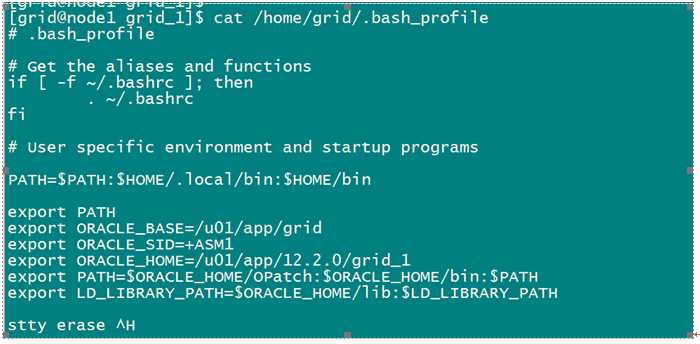

修改最新的grid home环境变量后，重新安装GRID软件。

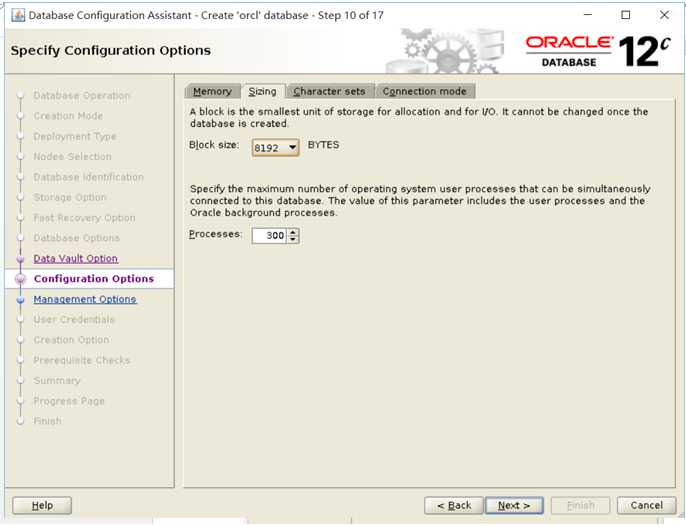

真实环境需要修改参数。
