2018-2019-2 20175226 实验五《网络编程与安全》实验报告

时间：2019-05-29 14:11:54      阅读：80      评论：0      收藏：0      [点我收藏+]

2018-2019-2 20175226 实验五《网络编程与安全》实验报告

任务一

实验要求

-两人一组结对编程：
- 参考http://www.cnblogs.com/rocedu/p/6766748.html#SECDSA
- 结对实现中缀表达式转后缀表达式的功能 MyBC.java
- 结对实现从上面功能中获取的表达式中实现后缀表达式求值的功能,调用MyDC.java
- 上传测试代码运行结果截图和码云链接

实验原理

  • 中缀转后缀表达式
    • 遇到数字，我们就直接将其输出。
    • 遇到非数字时，若栈为空或者该符号为左括号或者栈顶元素为括号，直接入栈。
    • 遇到一个右括号，持续出栈并输出符号，直到栈顶元素为左括号，然后将左括号出栈（注意，左括号只出栈，不输出），右括号不入栈。
    • 遇到运算符号且栈非空，查看栈顶元素，如果栈顶元素的运算优先级大于或者等于该运算符号，则持续出栈，直到栈顶元素优先级小于该运算符。最后将该元素入栈。
    • 我们读到了输入的末尾，则将栈中所有元素依次弹出。
  • 通过后缀表达式计算结果
    • 建立一个空栈，遇到数字就入栈，遇到符号就以符号前面的两个数为运算数进行计算

实验代码

  • 中缀转后缀表达式MyBC.java
package 实验五;

import java.util.Stack;
public class MyBC{
    String jieguo = "";
    public MyBC (String[] args) {
        Stack<String> z = new Stack<String>();
        String t = "";
        for (int i = 0; i < args.length; i++) {
            switch (args[i]) {
                case "(":
                    z.push(args[i]);
                    break;
                case "+":
                case "-":
                    while(z.empty() != true) {
                        t = z.pop();
                        if (t.equals("(")) {
                            z.push(t);
                            break;
                        }
                        jieguo = jieguo + t + " ";
                    }
                    z.push(args[i]);
                    break;
                case "*":
                case "/":
                    while(z.empty() != true) {
                        t = z.pop();
                        if (t.equals("+") || t.equals("-") || t.equals("(")) {
                            z.push(t);
                            break;
                        }
                        jieguo = jieguo + t + " ";
                    }
                    z.push(args[i]);
                    break;
                case ")":
                    while (z.empty()== false) {
                        t = z.pop();
                        if (t.equals("(")) {
                            break;
                        } else {
                            jieguo = jieguo + t + " ";
                        }
                    }
                    break;
                case" ":
                    break;

                default:
                    jieguo = jieguo + args[i] + " ";
                    break;
            }

        }

        while (z.empty() == false) {
            jieguo = jieguo + z.pop() + " ";
        }
        System.out.println(jieguo);
    }
}
  • 后缀表达式计算MyDC.java
package 实验五;

import java.util.Stack;
public class MyDC{
    private static Integer answer;
    public MyDC (String[] args) {
        Stack<String> z = new Stack<String>();
        int num1,num2,d;
        for(int i=0;i<args.length;i++) {
            switch (args[i]){
                case"+":
                    num2 = Integer.valueOf(z.pop());
                    num1 = Integer.valueOf(z.pop());
                    d = num1+num2;
                    z.push(String.valueOf(d));
                    break;
                case"-":
                    num2 = Integer.valueOf(z.pop());
                    num1 = Integer.valueOf(z.pop());
                    d = num1-num2;
                    z.push(String.valueOf(d));
                    break;
                case"*":
                    num2 = Integer.valueOf(z.pop());
                    num1 = Integer.valueOf(z.pop());
                    d = num1*num2;
                    z.push(String.valueOf(d));
                    break;
                case"/":
                    num2 = Integer.valueOf(z.pop());
                    num1 = Integer.valueOf(z.pop());
                    d = num1/num2;
                    z.push(String.valueOf(d));
                    break;
                case"":
                case" ":
                    break;

                default:
                    z.push(args[i]);
                    break;
            }
        }
        while (z.empty() == false) {
            answer =  Integer.valueOf(z.pop());
        }
        System.out.println(answer);
    }
}
  • 测试代码shiyan5_1 .java
package 实验五;

import java.util.Scanner;

public class shiyan5_1 {
    public static void main(String[] args) {
        String question = "";
        int result;
        Scanner scanner = new Scanner(System.in);
        System.out.println("请输入题目：");
        question = scanner.nextLine();
        String [] str = question.split(" ");
        System.out.println("转置结果如下：");
        MyBC translate = new MyBC(str);
        String [] str2 = translate.jieguo.split(" ");
        System.out.println("计算结果如下：");
        MyDC answer = new MyDC(str2);
    }
}

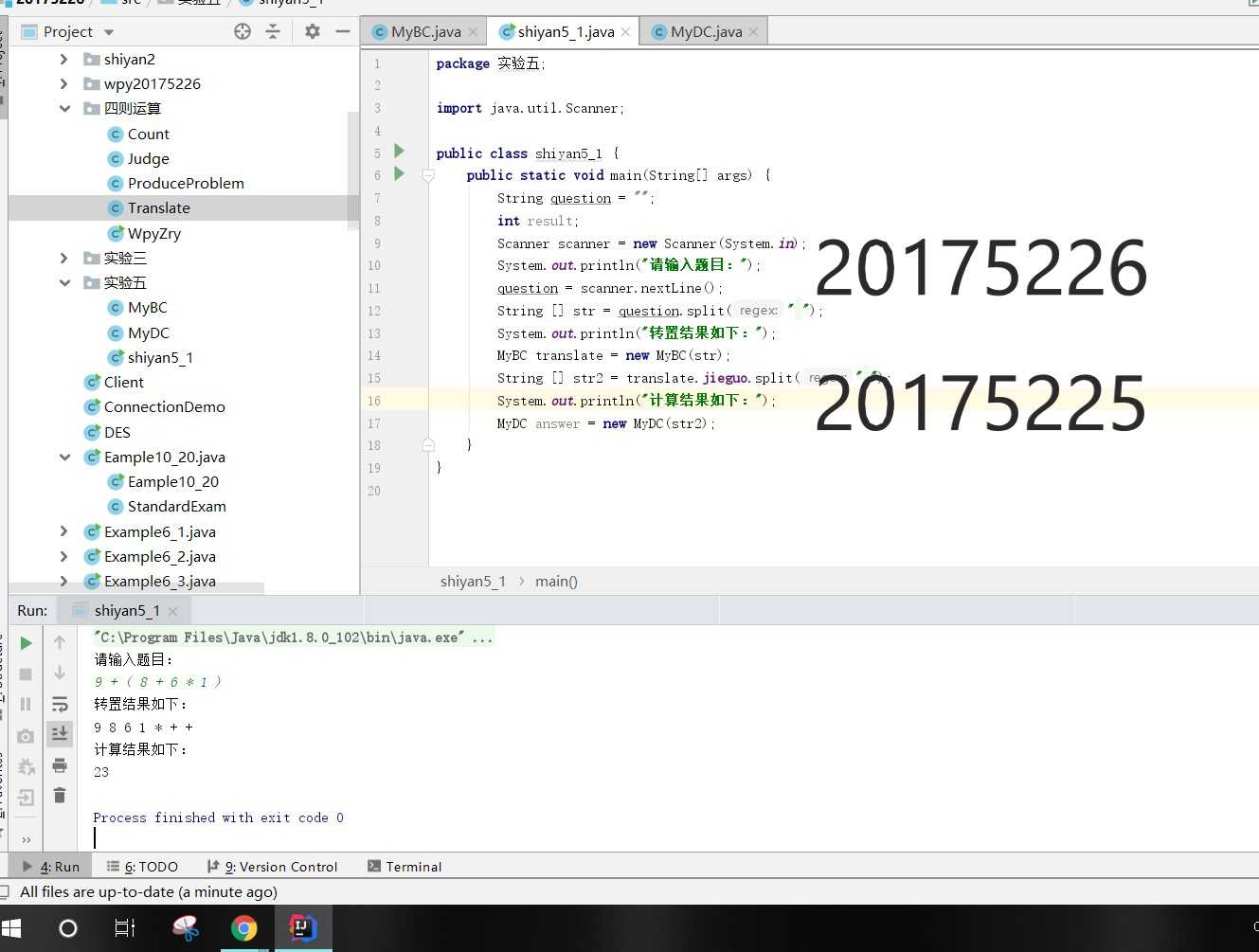

实验截图

技术分享图片

任务二

实验要求

  • 结对编程：1人负责客户端，一人负责服务器
    • 注意责任归宿，要会通过测试证明自己没有问题
    • 基于Java Socket实现客户端/服务器功能，传输方式用TCP
    • 客户端让用户输入中缀表达式，然后把中缀表达式调用MyBC.java的功能转化为后缀表达式，把后缀表达式通过网络发送给服务器
    • 服务器接收到后缀表达式，调用MyDC.java的功能计算后缀表达式的值，把结果发送给客户端
    • 客户端显示服务器发送过来的结果

实验过程及原理

  • 使用InetAddress类的静态方法getLocalHost()获得一个InetAddress的对象，该对象含有本地机器的IP地址
  • 客户端套接字：Socket clientSocket = new Socket("服务器的IP地址",一个端口号)
  • SeverSocket对象与服务器端套接字：SeverSocket severForClient = new SeverSocket(端口号)
  • 使用accept()方法将客户端和服务器的套接字连接起来：Socket sc = severForClient.accept()

实验代码

  • 访问本机IPgetHostAddress.java
package 实验五;

import java.net.*;
public class getHostAddress {
    public static void main(String[] args) {
        try{
            InetAddress hostaddress = InetAddress.getLocalHost();
            System.out.println(hostaddress.toString());
        }catch (UnknownHostException e){
            System.out.println(e);
        }
    }
}
  • 客户端Client.java
package 实验五;

import java.io.DataInputStream;
import java.io.DataOutputStream;
import java.net.Socket;
import java.util.Scanner;

public class Client {
    public static void main(String[] args) {
        Scanner inn = new Scanner(System.in);
        Socket mysocket;
        DataInputStream in = null;
        DataOutputStream out = null;
        try{
            mysocket = new Socket("169.254.92.198",2010);
            in = new DataInputStream(mysocket.getInputStream());
            out = new DataOutputStream(mysocket.getOutputStream());
            System.out.println("请输入中缀表达式：");
            String infix = inn.nextLine();
            String [] str = infix.split(" ");
            System.out.println("已传递后缀表达式");
            MyBC suffix =new MyBC(str);
            out.writeUTF(suffix.jieguo);
            String result = in.readUTF();
            System.out.println("已收到计算结果"+result);
            Thread.sleep(500);
        }catch (Exception e){
            System.out.println("双方已断开连接"+e);
        }
    }
}
  • 服务器Sever.java
package 实验五;

import com.sun.xml.internal.ws.policy.privateutil.PolicyUtils;
import java.io.*;
import java.net.*;
public class Sever {
    public static void main(String[] args) {
        ServerSocket serverForClient = null;
        Socket socketOnServer = null;
        DataOutputStream out = null;
        DataInputStream in = null;

        try{
            serverForClient = new ServerSocket(2010);
        }catch (IOException e){
            System.out.println("双方已断开连接"+e);
        }
        try{
            System.out.println("准备接受对方传来的问题");
            socketOnServer = serverForClient.accept();
            out = new DataOutputStream(socketOnServer.getOutputStream());
            in = new DataInputStream(socketOnServer.getInputStream());
            String suffix = in.readUTF();
            String [] str = suffix.split(" ");
            System.out.println("收到问题，正在解决:"+suffix);
            System.out.println("已传输得出结果：");
            MyDC myDC = new MyDC(str);
            String answer =  String.valueOf(myDC.answer);
            out.writeUTF(answer+"");
            Thread.sleep(500);
        }catch (Exception e){
            System.out.println("双方已断开连接");
        }
    }
}

实验截图

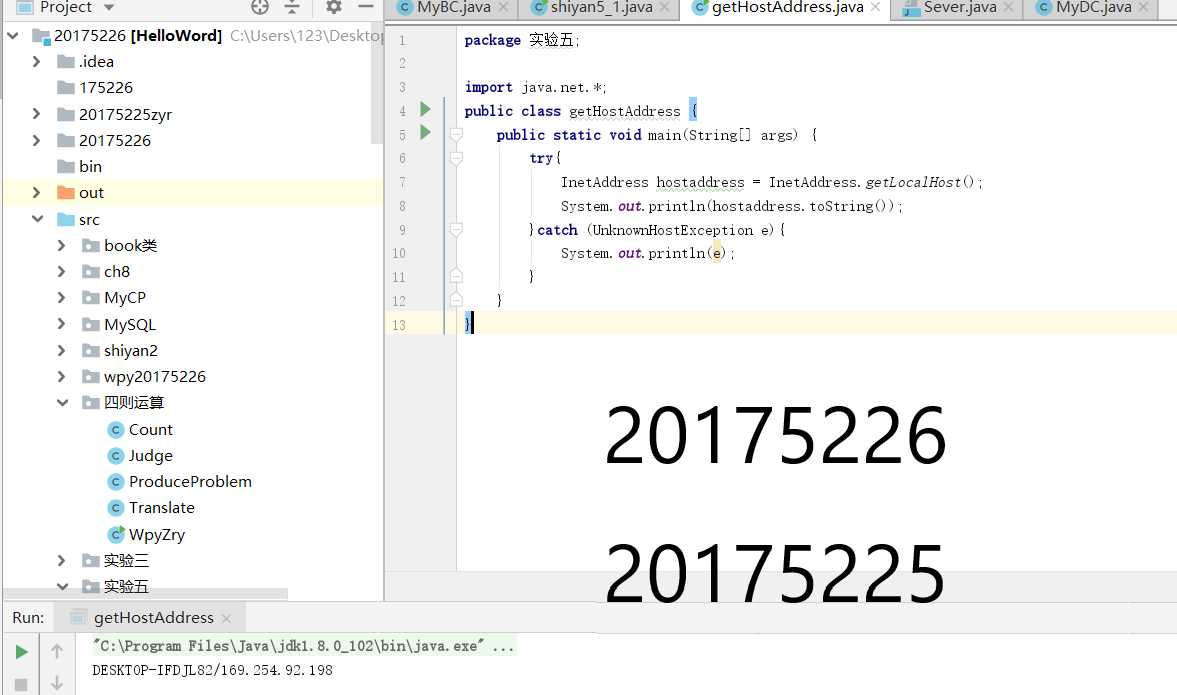

  • 访问本机IP
    技术分享图片

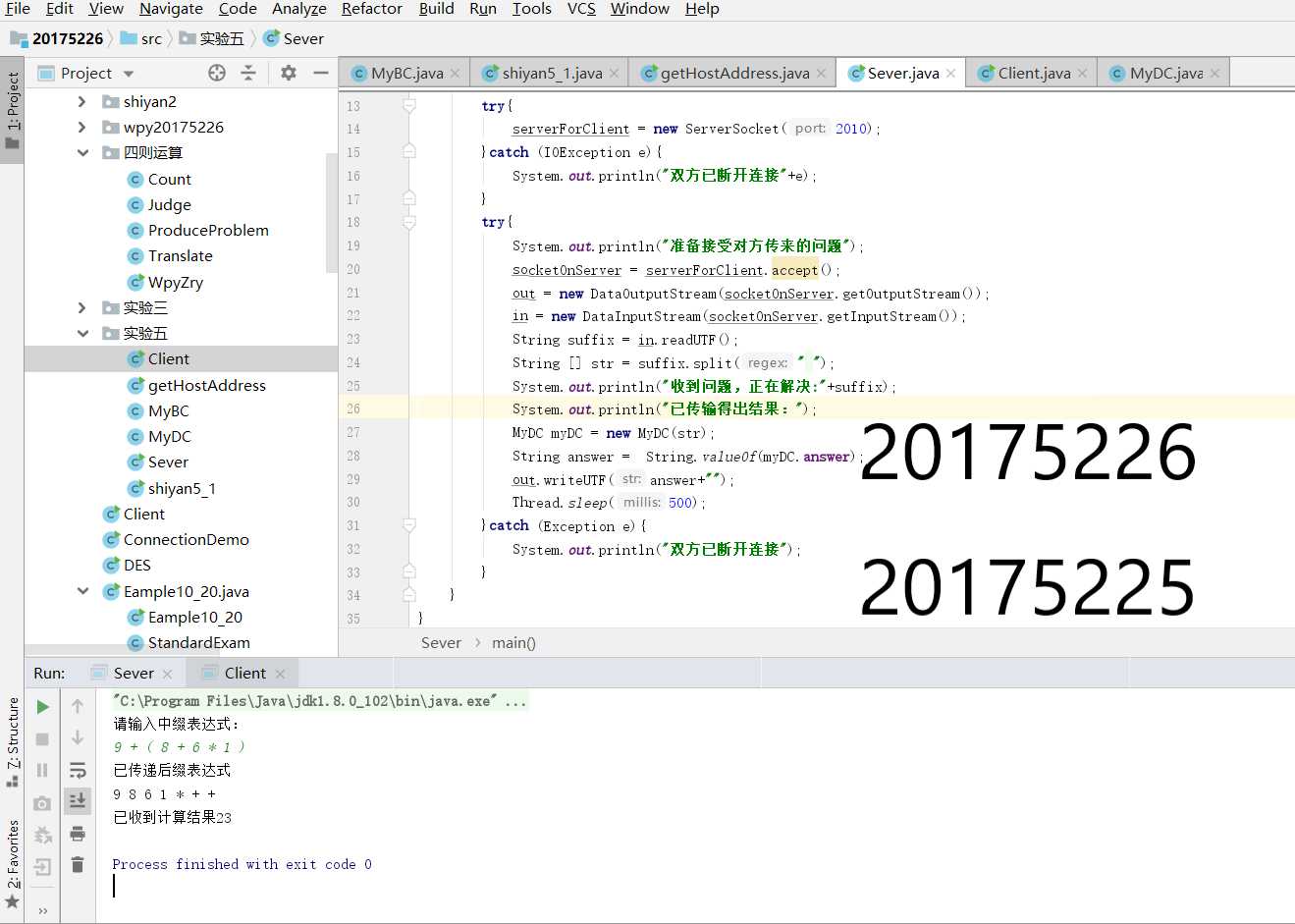

  • 客户端
    技术分享图片

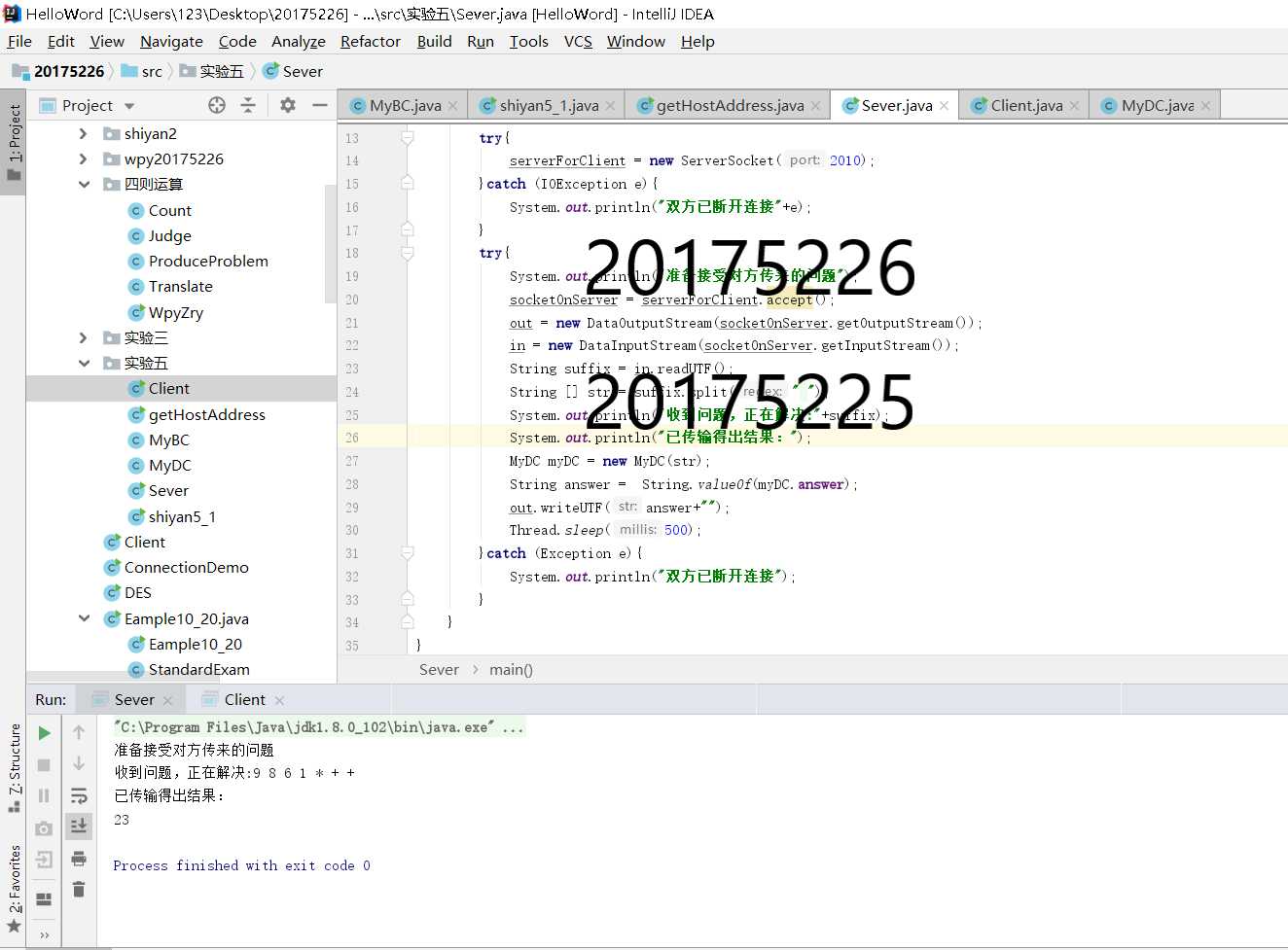

  • 服务器
    技术分享图片

任务三

实验要求

  • 加密结对编程：
    • 注意责任归宿，要会通过测试证明自己没有问题
    • 基于Java Socket实现客户端/服务器功能，传输方式用TCP
    • 客户端让用户输入中缀表达式，然后把中缀表达式调用MyBC.java的功能转化为后缀表达式，把后缀表达式用3DES或AES算法加密后通过网络把密文发送给服务器
    • 服务器接收到后缀表达式表达式后，进行解密（和客户端协商密钥，可以用数组保存），然后调用MyDC.java的功能计算后缀表达式的值，把结果发送给客户端
    • 客户端显示服务器发送过来的结果

实验原理及过程

  • 客户端
    • 获取并初始化密钥生成器KeyGenerator kg=KeyGenerator.getInstance("DESede")、kg.init(168);
    • 生成密钥SecretKey k=kg.generateKey( );
    • 传送密钥长度及密钥内容
    • 创建并初始化密码器Cipher cp=Cipher.getInstance("DESede")、cp.init(Cipher.ENCRYPT_MODE, k);
    • 执行加密byte []ptext=cp.doFinal(ctext)
  • 服务器
    • 接收密钥长度、密钥内容
    • 创建并初始化密码器Cipher cp=Cipher.getInstance("DESede")、cp.init(Cipher.DECRYPT_MODE, k);
    • 执行解密byte []ptext=cp.doFinal(ctext)

实验代码

  • 客户端Client.java
package 实验五;

import java.io.*;
import java.net.*;
import javax.crypto.*;
import java.util.Scanner;

public class Client5_3 {
    public static void main(String[] args) {
        Scanner inn = new Scanner(System.in);
        Socket mysocket;
        DataInputStream in = null;
        DataOutputStream out = null;
        try{
            mysocket = new Socket("169.254.92.198",2010);
            in = new DataInputStream(mysocket.getInputStream());
            out = new DataOutputStream(mysocket.getOutputStream());
            KeyGenerator kg = KeyGenerator.getInstance("DESede");
            kg.init(168);
            SecretKey k = kg.generateKey();
            byte []kb = k.getEncoded();
            out.writeUTF(kb.length+ "");
            System.out.println("产生的密钥为");
            for(int i=0;i<kb.length;i++) {
                System.out.print(kb[i]+ " ");
                out.writeUTF(kb[i] +"");
            }
            System.out.println("\n请输入中缀表达式：");
            String infix = inn.nextLine();
            String [] str = infix.split(" ");
            System.out.println("后缀表达式为");
            MyBC suffix =new MyBC(str);
            Cipher cp = Cipher.getInstance("DESede");
            cp.init(Cipher.ENCRYPT_MODE,k);
            byte ptext[] = suffix.jieguo.getBytes("UTF8");
            byte ctext[] = cp.doFinal(ptext);
            out.writeUTF(ctext.length + "");
            for(int i=0;i<ctext.length;i++) {
                out.writeUTF(ctext[i] +"");
            }
            String result = in.readUTF();
            System.out.println("已收到计算结果"+result);
            Thread.sleep(500);
        }catch (Exception e){
            System.out.println("双方已断开连接"+e);
        }
    }
}
  • 服务器Sever,java
package 实验五;

import com.sun.xml.internal.ws.policy.privateutil.PolicyUtils;
import java.io.*;
import java.net.*;
import javax.crypto.*;
import javax.crypto.spec.*;
public class Sever5_3 {
    public static void main(String[] args) {
        ServerSocket serverForClient = null;
        Socket socketOnServer = null;
        DataOutputStream out = null;
        DataInputStream in = null;
        try{
            serverForClient = new ServerSocket(2010);
        }catch (IOException e){
            System.out.println("双方已断开连接"+e);
        }
        try{
            System.out.println("准备接受对方传来的问题");
            socketOnServer = serverForClient.accept();
            out = new DataOutputStream(socketOnServer.getOutputStream());
            in = new DataInputStream(socketOnServer.getInputStream());
            String keylength = in.readUTF();
            byte []kb = new byte[Integer.parseInt(keylength)];
            System.out.println("收到的密钥为：");
            for(int i = 0;i<Integer.parseInt(keylength);i++) {
                String str = in.readUTF();
                kb[i] = Byte.parseByte(str);
                System.out.print(kb[i] + " ");
            }
            SecretKeySpec k = new SecretKeySpec(kb, "DESede");
            Cipher cp = Cipher.getInstance("DESede");
            cp.init(Cipher.DECRYPT_MODE, k);
            String clength = in.readUTF();
            byte ctext[] = new byte[Integer.parseInt(clength)];
            for (int i = 0;i<Integer.parseInt(clength);i++) {
                String temp = in.readUTF();
                ctext[i] = Byte.parseByte(temp);
            }
            byte[] ptext = cp.doFinal(ctext);
            String suffix = new String(ptext,"UTF8");
            String [] str = suffix.split(" ");
            System.out.println("\n收到问题，解密后的后缀表达式为:"+suffix);
            System.out.println("已传输得出结果：");
            MyDC myDC = new MyDC(str);
            String answer =  String.valueOf(myDC.answer);
            out.writeUTF(answer+"");
            Thread.sleep(500);
        }catch (Exception e){
            System.out.println("双方已断开连接");
        }
    }
}

实验截图

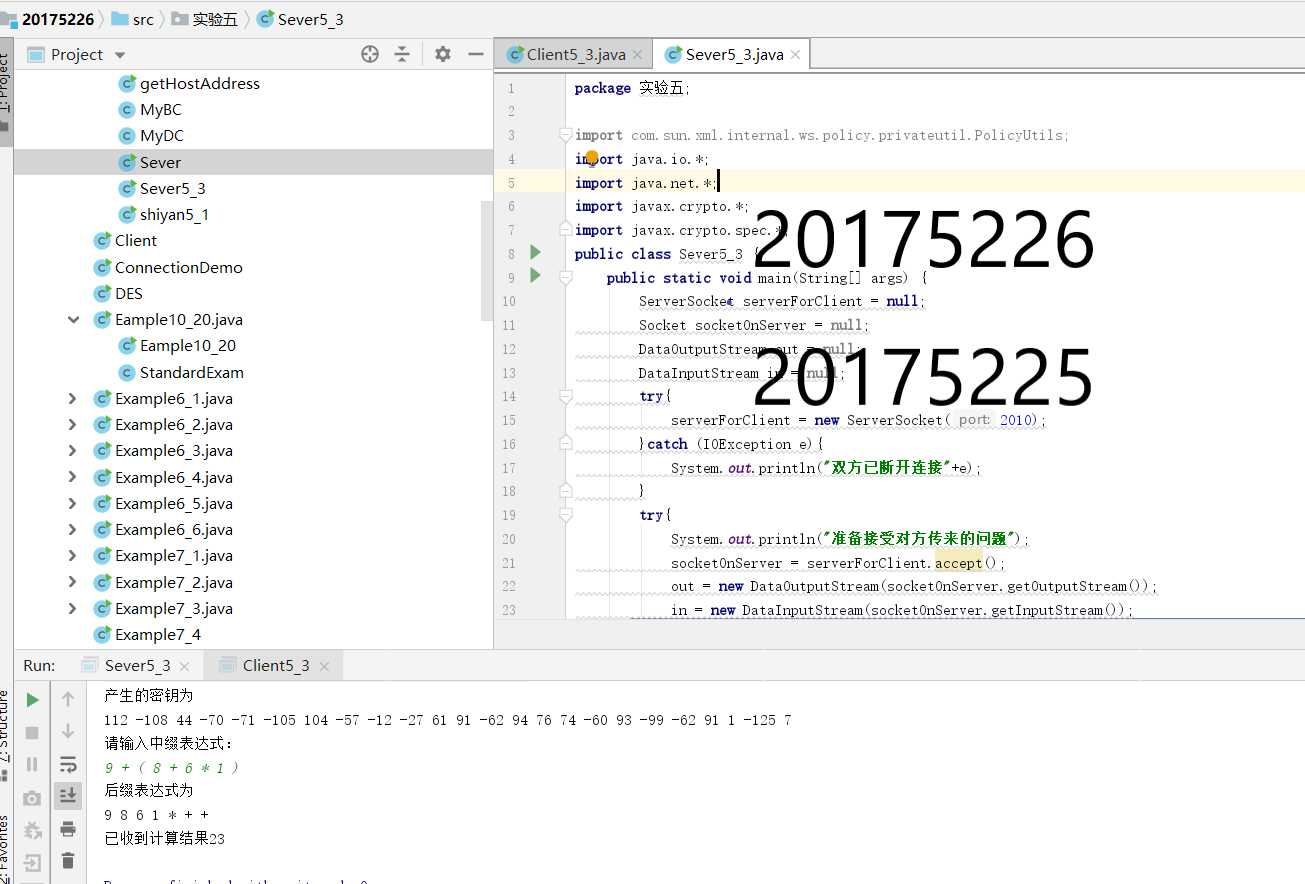

  • 客户端
    技术分享图片

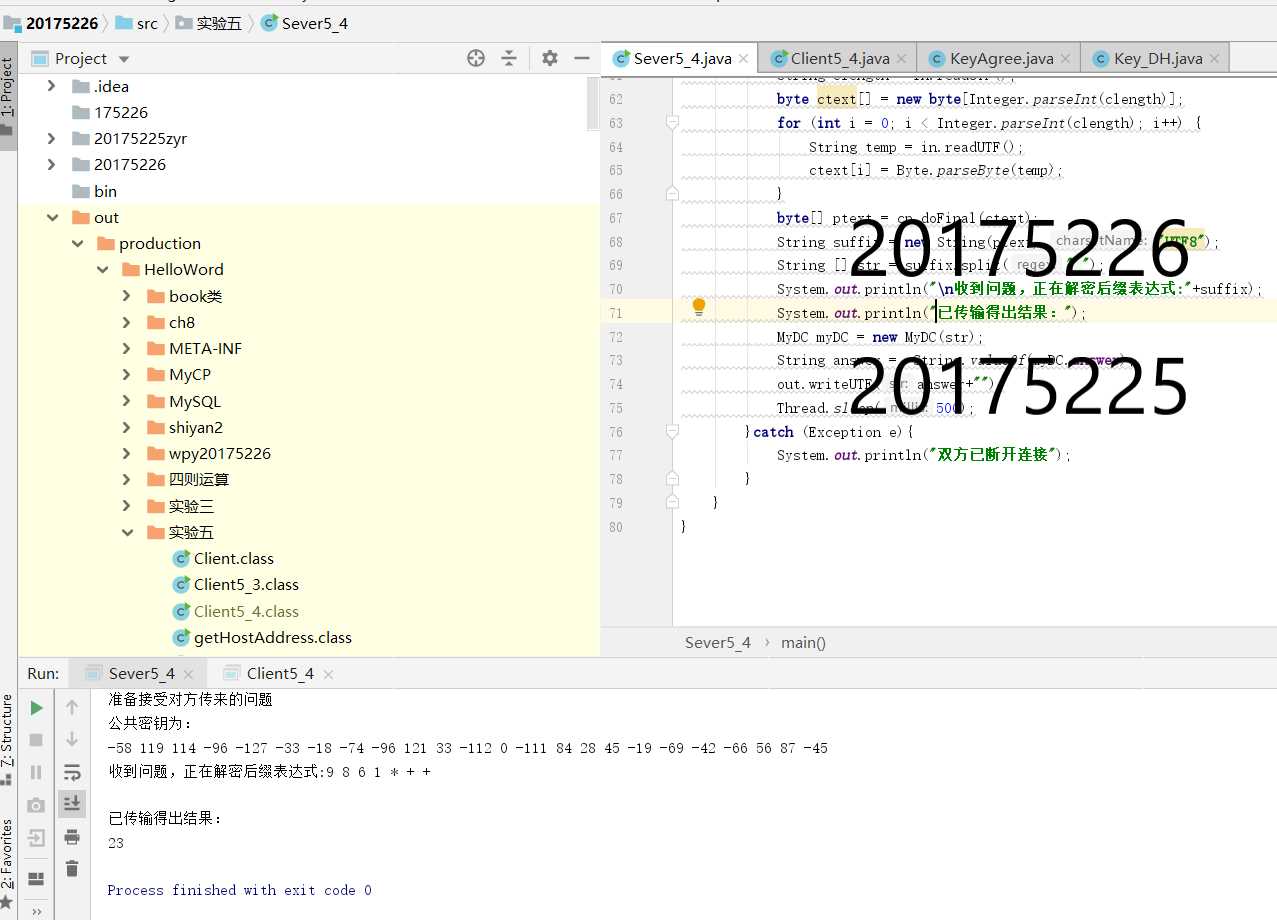

  • 服务器
    技术分享图片

任务四

实验要求

  • 密钥分发结对编程：
    • 注意责任归宿，要会通过测试证明自己没有问题
    • 基于Java Socket实现客户端/服务器功能，传输方式用TCP
    • 客户端让用户输入中缀表达式，然后把中缀表达式调用MyBC.java的功能转化为后缀表达式，把后缀表达式用3DES或AES算法加密通过网络把密文发送给服务器
    • 客户端和服务器用DH算法进行3DES或AES算法的密钥交换
    • 服务器接收到后缀表达式表达式后，进行解密，然后调用MyDC.java的功能计算后缀表达式的值，把结果发送给客户端
    • 客户端显示服务器发送过来的结果

实验原理及过程

  • 客户端和服务器分别产生自己的公钥和私钥，并用过字节数组的形式分别向另一方传递自己的公钥；
  • 客户端和服务器接受对方的公钥后利用自己的私钥创建共享密钥；
  • 创建并初始化密钥协定对象KeyAgreement ka=KeyAgreement.getInstance("DH")、ka.init(prk);
  • 执行密钥协定ka.doPhase(pbk,true);
  • 生成共享信息byte[ ] sb=ka.generateSecret();
  • 从文件中读取信息并给出共享密钥

实验代码

  • key_DH.java、keyAgree.java
package 实验五;

import java.io.*;
import java.math.*;
import java.security.*;
import javax.crypto.spec.*;

public class Key_DH{
    private static final byte skip1024ModulusBytes[] = {
            (byte)0xF4, (byte)0x88, (byte)0xFD, (byte)0x58,
            (byte)0x4E, (byte)0x49, (byte)0xDB, (byte)0xCD,
            (byte)0x20, (byte)0xB4, (byte)0x9D, (byte)0xE4,
            (byte)0x91, (byte)0x07, (byte)0x36, (byte)0x6B,
            (byte)0x33, (byte)0x6C, (byte)0x38, (byte)0x0D,
            (byte)0x45, (byte)0x1D, (byte)0x0F, (byte)0x7C,
            (byte)0x88, (byte)0xB3, (byte)0x1C, (byte)0x7C,
            (byte)0x5B, (byte)0x2D, (byte)0x8E, (byte)0xF6,
            (byte)0xF3, (byte)0xC9, (byte)0x23, (byte)0xC0,
            (byte)0x43, (byte)0xF0, (byte)0xA5, (byte)0x5B,
            (byte)0x18, (byte)0x8D, (byte)0x8E, (byte)0xBB,
            (byte)0x55, (byte)0x8C, (byte)0xB8, (byte)0x5D,
            (byte)0x38, (byte)0xD3, (byte)0x34, (byte)0xFD,
            (byte)0x7C, (byte)0x17, (byte)0x57, (byte)0x43,
            (byte)0xA3, (byte)0x1D, (byte)0x18, (byte)0x6C,
            (byte)0xDE, (byte)0x33, (byte)0x21, (byte)0x2C,
            (byte)0xB5, (byte)0x2A, (byte)0xFF, (byte)0x3C,
            (byte)0xE1, (byte)0xB1, (byte)0x29, (byte)0x40,
            (byte)0x18, (byte)0x11, (byte)0x8D, (byte)0x7C,
            (byte)0x84, (byte)0xA7, (byte)0x0A, (byte)0x72,
            (byte)0xD6, (byte)0x86, (byte)0xC4, (byte)0x03,
            (byte)0x19, (byte)0xC8, (byte)0x07, (byte)0x29,
            (byte)0x7A, (byte)0xCA, (byte)0x95, (byte)0x0C,
            (byte)0xD9, (byte)0x96, (byte)0x9F, (byte)0xAB,
            (byte)0xD0, (byte)0x0A, (byte)0x50, (byte)0x9B,
            (byte)0x02, (byte)0x46, (byte)0xD3, (byte)0x08,
            (byte)0x3D, (byte)0x66, (byte)0xA4, (byte)0x5D,
            (byte)0x41, (byte)0x9F, (byte)0x9C, (byte)0x7C,
            (byte)0xBD, (byte)0x89, (byte)0x4B, (byte)0x22,
            (byte)0x19, (byte)0x26, (byte)0xBA, (byte)0xAB,
            (byte)0xA2, (byte)0x5E, (byte)0xC3, (byte)0x55,
            (byte)0xE9, (byte)0x2F, (byte)0x78, (byte)0xC7
    };
    // The SKIP 1024 bit modulus
    private static final BigInteger skip1024Modulus
            = new BigInteger(1, skip1024ModulusBytes);
    // The base used with the SKIP 1024 bit modulus
    private static final BigInteger skip1024Base = BigInteger.valueOf(2);
    public static void DH(String str1,String str2) throws Exception{
        DHParameterSpec DHP=
                new DHParameterSpec(skip1024Modulus,skip1024Base);

        KeyPairGenerator kpg= KeyPairGenerator.getInstance("DH");
        kpg.initialize(DHP);
        KeyPair kp=kpg.genKeyPair();

        PublicKey pbk=kp.getPublic();
        PrivateKey prk=kp.getPrivate();
        // 保存公钥
        FileOutputStream  f1=new FileOutputStream(str1);
        ObjectOutputStream b1=new  ObjectOutputStream(f1);
        b1.writeObject(pbk);
        // 保存私钥
        FileOutputStream  f2=new FileOutputStream(str2);
        ObjectOutputStream b2=new  ObjectOutputStream(f2);
        b2.writeObject(prk);
    }
}

package 实验五;

import java.io.*;
import java.math.*;
import java.security.*;
import java.security.spec.*;
import javax.crypto.*;
import javax.crypto.spec.*;
import javax.crypto.interfaces.*;

public class KeyAgree {
    public static void Agree(String str1,String str2) throws Exception{
        // 读取对方的DH公钥
        FileInputStream f1=new FileInputStream(str1);
        ObjectInputStream b1=new ObjectInputStream(f1);
        PublicKey  pbk=(PublicKey)b1.readObject( );
//读取自己的DH私钥
        FileInputStream f2=new FileInputStream(str2);
        ObjectInputStream b2=new ObjectInputStream(f2);
        PrivateKey  prk=(PrivateKey)b2.readObject( );
        // 执行密钥协定
        KeyAgreement ka=KeyAgreement.getInstance("DH");
        ka.init(prk);
        ka.doPhase(pbk,true);
        //生成共享信息
        byte[ ] sb=ka.generateSecret();
        FileOutputStream fsb = new FileOutputStream("sb.dat");
        fsb.write(sb);
    }
}
  • 客户端Client5_4.java
package 实验五;

import javax.crypto.Cipher;
import javax.crypto.spec.SecretKeySpec;
import java.io.*;
import java.security.*;
import java.util.Scanner;
import java.net.*;
public class Client5_4 {
    public static void main(String[] args) {
        Scanner inn = new Scanner(System.in);
        Socket mysocket;
        DataInputStream in = null;
        DataOutputStream out = null;
        try{
            mysocket = new Socket("169.254.92.198",2010);
            in = new DataInputStream(mysocket.getInputStream());
            out = new DataOutputStream(mysocket.getOutputStream());
            Key_DH.DH ("Lpub.dat","Lpri.dat");
            FileInputStream my = new FileInputStream("Lpub.dat");
            ObjectInputStream mypub = new ObjectInputStream(my);
            Key kp = (Key) mypub.readObject();
            ByteArrayOutputStream DH = new ByteArrayOutputStream();
            ObjectOutputStream myDH = new ObjectOutputStream(DH);
            myDH.writeObject(kp);
            byte []pub = DH.toByteArray();
            out.writeUTF(pub.length+"");
            for(int i=0;i<pub.length;i++) {
                out.writeUTF(pub[i]+ "");
            }
            Thread.sleep(1000);
            int length = Integer.parseInt(in.readUTF());
            byte cpub[] = new byte[length];
            for(int i=0;i<length;i++) {
                String temp = in.readUTF();
                cpub[i] = Byte.parseByte(temp);
            }
            ByteArrayInputStream ckey1 = new ByteArrayInputStream(cpub);
            ObjectInputStream ckey = new ObjectInputStream(ckey1);
            Key k = (Key) ckey.readObject();
            FileOutputStream f2 = new FileOutputStream("W1pub.dat");
            ObjectOutputStream b2 = new ObjectOutputStream(f2);
            b2.writeObject(k);
            KeyAgree.Agree("W1pub.dat","Lpri.dat");
            FileInputStream f = new FileInputStream("sb.dat");
            byte[] keysb = new byte[24];
            f.read(keysb);
            System.out.println("公共密钥为：");
            for (int i = 0;i<24;i++) {
                System.out.print(keysb[i]+" ");
            }
            System.out.println("\n请输入中缀表达式：");
            String infix = inn.nextLine();
            String [] str = infix.split(" ");
            System.out.println("已传递后缀表达式");
            MyBC suffix =new MyBC(str);
            SecretKeySpec k1 = new SecretKeySpec(keysb, "DESede");
            Cipher cp = Cipher.getInstance("DESede");
            cp.init(Cipher.ENCRYPT_MODE, k1);
            byte ptext[] = suffix.jieguo.getBytes("UTF8");
            byte ctext[] = cp.doFinal(ptext);
            System.out.println("加密后的后缀表达式为：");
            for (int i = 0; i < ctext.length; i++) {
                System.out.print(ctext[i] + " ");
            }
            out.writeUTF(ctext.length + "");
            for (int i = 0; i < ctext.length; i++) {
                out.writeUTF(ctext[i] + "");
            }
            String result = in.readUTF();
            System.out.println("\n已收到计算结果"+result);
            Thread.sleep(500);
        }catch (Exception e){
            System.out.println("双方已断开连接"+e);
        }
    }
}
  • 服务器Sever5_4,java
package 实验五;

import com.sun.xml.internal.ws.policy.privateutil.PolicyUtils;
import javax.crypto.Cipher;
import javax.crypto.spec.SecretKeySpec;
import java.io.*;
import java.net.ServerSocket;
import java.net.Socket;
import java.security.*;
public class Sever5_4 {
    public static void main(String[] args) {
        ServerSocket serverForClient = null;
        Socket socketOnServer = null;
        DataOutputStream out = null;
        DataInputStream in = null;
        try{
            serverForClient = new ServerSocket(2010);
        }catch (IOException e){
            System.out.println("双方已断开连接"+e);
        }
        try{
            System.out.println("准备接受对方传来的问题");
            socketOnServer = serverForClient.accept();
            out = new DataOutputStream(socketOnServer.getOutputStream());
            in = new DataInputStream(socketOnServer.getInputStream());
            Key_DH.DH("Wpub.dat","Wpri.dat");
            int length = Integer.parseInt(in.readUTF());
            byte cpub[] = new byte[length];
            for(int i=0;i<length;i++) {
                String temp = in.readUTF();
                cpub[i] = Byte.parseByte(temp);
            }
            ByteArrayInputStream ckey1 = new ByteArrayInputStream(cpub);
            ObjectInputStream ckey = new ObjectInputStream(ckey1);
            Key k1 = (Key) ckey.readObject();
            FileOutputStream f2 = new FileOutputStream("Lpub.dat");
            ObjectOutputStream b2 = new ObjectOutputStream(f2);
            b2.writeObject(k1);
            FileInputStream my = new FileInputStream("Wpub.dat");
            ObjectInputStream mypub = new ObjectInputStream(my);
            Key kp = (Key) mypub.readObject();
            ByteArrayOutputStream DH = new ByteArrayOutputStream();
            ObjectOutputStream myDH = new ObjectOutputStream(DH);
            myDH.writeObject(kp);
            byte []pub = DH.toByteArray();
            out.writeUTF(pub.length+"");
            for(int i=0;i<pub.length;i++) {
                out.writeUTF(pub[i]+ "");
            }
            KeyAgree.Agree("Lpub.dat","Wpri.dat");
            FileInputStream f = new FileInputStream("sb.dat");
            byte[] keysb = new byte[24];
            f.read(keysb);
            System.out.println("公共密钥为：");
            for (int i = 0;i<24;i++) {
                System.out.print(keysb[i]+" ");
            }
            SecretKeySpec k = new SecretKeySpec(keysb, "DESede");
            Cipher cp = Cipher.getInstance("DESede");
            cp.init(Cipher.DECRYPT_MODE, k);
            String clength = in.readUTF();
            byte ctext[] = new byte[Integer.parseInt(clength)];
            for (int i = 0; i < Integer.parseInt(clength); i++) {
                String temp = in.readUTF();
                ctext[i] = Byte.parseByte(temp);
            }
            byte[] ptext = cp.doFinal(ctext);
            String suffix = new String(ptext, "UTF8");
            String [] str = suffix.split(" ");
            System.out.println("\n收到问题，正在解密后缀表达式:"+suffix);
            System.out.println("已传输得出结果：");
            MyDC myDC = new MyDC(str);
            String answer =  String.valueOf(myDC.answer);
            out.writeUTF(answer+"");
            Thread.sleep(500);
        }catch (Exception e){
            System.out.println("双方已断开连接");
        }
    }
}

实验截图

  • 客户端
    技术分享图片

  • 服务器
    技术分享图片

任务五

实验要求

  • 完整性校验结对编程：
    • 注意责任归宿，要会通过测试证明自己没有问题
    • 基于Java Socket实现客户端/服务器功能，传输方式用TCP
    • 客户端让用户输入中缀表达式，然后把中缀表达式调用MyBC.java的功能转化为后缀表达式，把后缀表达式用3DES或AES算法加密通过网络把密文和明文的MD5値发送给服务器
    • 客户端和服务器用DH算法进行3DES或AES算法的密钥交换
    • 服务器接收到后缀表达式表达式后，进行解密，解密后计算明文的MD5值，和客户端传来的MD5进行比较，一致则调用MyDC.java的功能计算后缀表达式的值，把结果发送给客户端
    • 客户端显示服务器发送过来的结果

实验原理

  • Java密码学算法中“Java摘要算法- MD5”部分的内容

实验代码

  • MD5DigestPass.java
package 实验五;

import java.security.*;

public class DigestPass{
    public static String MD5(String str) throws Exception{
        String x=str;
        MessageDigest m=MessageDigest.getInstance("MD5");
        m.update(x.getBytes("UTF8"));
        byte s[ ]=m.digest( );
        String result="";
        for (int i=0; i<s.length; i++){
            result+=Integer.toHexString((0x000000ff & s[i]) |
                    0xffffff00).substring(6);
        }
        return result;
    }
}
  • 客户端Client5_5
package 实验五;

import javax.crypto.Cipher;
import javax.crypto.spec.SecretKeySpec;
import java.io.*;
import java.net.Socket;
import java.security.*;
import java.util.Scanner;
import java.net.*;

public class Client5_5 {
    public static void main(String[] args) {
        Scanner inn = new Scanner(System.in);
        Socket mysocket;
        DataInputStream in = null;
        DataOutputStream out = null;
        try{
            mysocket = new Socket("169.254.92.198",2010);
            in = new DataInputStream(mysocket.getInputStream());
            out = new DataOutputStream(mysocket.getOutputStream());
            Key_DH.DH("Lpub.dat","Lpri.dat");
            FileInputStream my = new FileInputStream("Lpub.dat");
            ObjectInputStream mypub = new ObjectInputStream(my);
            Key kp = (Key) mypub.readObject();
            ByteArrayOutputStream DH = new ByteArrayOutputStream();
            ObjectOutputStream myDH = new ObjectOutputStream(DH);
            myDH.writeObject(kp);
            byte []pub = DH.toByteArray();
            out.writeUTF(pub.length+"");
            for(int i=0;i<pub.length;i++) {
                out.writeUTF(pub[i]+ "");
            }
            Thread.sleep(1000);
            int length = Integer.parseInt(in.readUTF());
            byte cpub[] = new byte[length];
            for(int i=0;i<length;i++) {
                String temp = in.readUTF();
                cpub[i] = Byte.parseByte(temp);
            }
            ByteArrayInputStream ckey1 = new ByteArrayInputStream(cpub);
            ObjectInputStream ckey = new ObjectInputStream(ckey1);
            Key k = (Key) ckey.readObject();
            FileOutputStream f2 = new FileOutputStream("W1pub.dat");
            ObjectOutputStream b2 = new ObjectOutputStream(f2);
            b2.writeObject(k);
            KeyAgree.Agree("W1pub.dat","Lpri.dat");
            FileInputStream f = new FileInputStream("sb.dat");
            byte[] keysb = new byte[24];
            f.read(keysb);
            System.out.println("公共密钥为：");
            for (int i = 0;i<24;i++) {
                System.out.print(keysb[i]+" ");
            }
            System.out.println("\n请输入中缀表达式：");
            String infix = inn.nextLine();
            String [] str = infix.split(" ");
            System.out.println("已传递后缀表达式");
            MyBC suffix =new MyBC(str);
            String mtoMD5 = DigestPass.MD5(suffix.jieguo);
            System.out.println("明文的MD5值为："+mtoMD5);
            out.writeUTF(mtoMD5);
            SecretKeySpec k1 = new SecretKeySpec(keysb, "DESede");
            Cipher cp = Cipher.getInstance("DESede");
            cp.init(Cipher.ENCRYPT_MODE, k1);
            byte ptext[] = suffix.jieguo.getBytes("UTF8");
            byte ctext[] = cp.doFinal(ptext);
            System.out.println("加密后的后缀表达式为：");
            for (int i = 0; i < ctext.length; i++) {
                System.out.print(ctext[i] + " ");
            }
            out.writeUTF(ctext.length + "");
            for (int i = 0; i < ctext.length; i++) {
                out.writeUTF(ctext[i] + "");
            }
            String result = in.readUTF();
            System.out.println("\n已收到计算结果"+result);
            Thread.sleep(500);
        }catch (Exception e){
            System.out.println("双方已断开连接"+e);
        }
    }
}
  • 服务器Sever.java
package 实验五;

import com.sun.xml.internal.ws.policy.privateutil.PolicyUtils;
import javax.crypto.Cipher;
import javax.crypto.spec.SecretKeySpec;
import java.io.*;
import java.net.ServerSocket;
import java.net.Socket;
import java.security.*;
public class Sever5_5 {
    public static void main(String[] args) {
        ServerSocket serverForClient = null;
        Socket socketOnServer = null;
        DataOutputStream out = null;
        DataInputStream in = null;

        try{
            serverForClient = new ServerSocket(2010);
        }catch (IOException e){
            System.out.println("双方已断开连接"+e);
        }
        try{
            System.out.println("准备接受对方传来的问题");
            socketOnServer = serverForClient.accept();
            out = new DataOutputStream(socketOnServer.getOutputStream());
            in = new DataInputStream(socketOnServer.getInputStream());
            Key_DH.DH("Wpub.dat","Wpri.dat");
            int length = Integer.parseInt(in.readUTF());
            byte cpub[] = new byte[length];
            for(int i=0;i<length;i++) {
                String temp = in.readUTF();
                cpub[i] = Byte.parseByte(temp);
            }
            ByteArrayInputStream ckey1 = new ByteArrayInputStream(cpub);
            ObjectInputStream ckey = new ObjectInputStream(ckey1);
            Key k1 = (Key) ckey.readObject();
            FileOutputStream f2 = new FileOutputStream("L1pub.dat");
            ObjectOutputStream b2 = new ObjectOutputStream(f2);
            b2.writeObject(k1);
            FileInputStream my = new FileInputStream("Wpub.dat");
            ObjectInputStream mypub = new ObjectInputStream(my);
            Key kp = (Key) mypub.readObject();
            ByteArrayOutputStream DH = new ByteArrayOutputStream();
            ObjectOutputStream myDH = new ObjectOutputStream(DH);
            myDH.writeObject(kp);
            byte []pub = DH.toByteArray();
            out.writeUTF(pub.length+"");
            for(int i=0;i<pub.length;i++) {
                out.writeUTF(pub[i]+ "");
            }
            KeyAgree.Agree("L1pub.dat","Wpri.dat");
            FileInputStream f = new FileInputStream("sb.dat");
            byte[] keysb = new byte[24];
            f.read(keysb);
            System.out.println("公共密钥为：");
            for (int i = 0;i<24;i++) {
                System.out.print(keysb[i]+" ");
            }
            String c = in.readUTF();
            SecretKeySpec k = new SecretKeySpec(keysb, "DESede");
            Cipher cp = Cipher.getInstance("DESede");
            cp.init(Cipher.DECRYPT_MODE, k);
            String clength = in.readUTF();
            byte ctext[] = new byte[Integer.parseInt(clength)];
            for (int i = 0; i < Integer.parseInt(clength); i++) {
                String temp = in.readUTF();
                ctext[i] = Byte.parseByte(temp);
            }
            byte[] ptext = cp.doFinal(ctext);
            String suffix = new String(ptext, "UTF8");
            String [] str = suffix.split(" ");
            System.out.println("\n收到问题，解密后缀表达式为:"+suffix);
            String mtoMD5 = DigestPass.MD5(suffix);
            System.out.println("MD5的值为"+ mtoMD5);
            if(mtoMD5.equals(c)) {
                System.out.println("传递的MD5值和解密的后缀表达式的MD5值相同，可以解密！");
                System.out.println("已传输得出结果：");
                MyDC myDC = new MyDC(str);
                String answer = String.valueOf(myDC.answer);
                out.writeUTF(answer + "");
            }
            else {
                System.out.println("密文有误，不能解密！");
            }
            Thread.sleep(500);
        }catch (Exception e){
            System.out.println("双方已断开连接");
        }
    }
}

实验截图

  • 客户端
    技术分享图片

  • 服务器
    技术分享图片

跳转链接

码云链接

搭档博客链接

2018-2019-2 20175226 实验五《网络编程与安全》实验报告

原文：https://www.cnblogs.com/20175226wpy/p/10933895.html
踩
(0)
赞
(0)

举报
评论 一句话评论（0）
分享档案
更多>
2021年09月23日 (328)
2021年09月24日 (313)
2021年09月17日 (191)
2021年09月15日 (369)
2021年09月16日 (411)
2021年09月13日 (439)
2021年09月11日 (398)
2021年09月12日 (393)
2021年09月10日 (160)
2021年09月08日 (222)
最新文章
更多>
教程昨日排行
更多>
友情链接
汇智网   PHP教程   插件网
关于我们 - 联系我们 - 留言反馈 - 联系我们:wmxa8@hotmail.com
© 2014 bubuko.com 版权所有
打开技术之扣，分享程序人生！
