静态连接库、动态链接库

时间:2014-02-13 18:48:39      阅读:418      评论:0      收藏:0      [点我收藏+]

网上看到的不错的总结,稍加整理,收藏下,方便今后回顾,

1、区别

  (1)静态链接库与动态链接库都是共享代码的方式,如果采用静态链接库,则无论你是否愿意,lib中的指令都会全部包含在最终生成的exe文件中,最终exe执行时不再需要此lib。若使用动态链接库dll,该dll不必被包含在最终生成的exe文件中,exe文件执行时可以“动态”地引用和卸载这个与exe独立的dll文件。

  (2)静态链接库中不能在包含其他的动态或者静态链接库,而动态链接库中还可以再包含其他的动态或者静态链接库。

  (3)静态链接库的使用,需要库开发者提供生成库的.h文件和.lib文件;动态链接库需要库开发者提供.h文件、.lib文件、.dll文件(静态加载),或只提供.dll文件(动态加载)。

2、加载方式

  静态链接库:

    在调用程序的.cpp源代码文件中如下:
    #include "..\lib.h"
    #pragma comment(lib,"..\\debug\\libTest.lib")
    //指定与静态库一起链接

  动态链接库:

    ->静态加载:(需要提供.h、.lib、.dll文件)

      在使用的cpp中指定.h 和.lib的路径(或者在vc6.0的Project->Settings...中配置),.dll放到exe同目录下。

      #include "..\lib.h"
      #pragma comment(lib,"..\\debug\\libTest.lib")

    ->动态加载:(只需要提供.dll文件)

     因此调用程序若想调用DLL中的某个函数就要以某种形式或方式指明它到底想调用哪一个函数。但是无法调用Class method了。
     如果要调用Dll中的function,需要经历3个步骤:
     Handle h=LoadLibrary(dllName) --> GetProcAddress(h,functionName) 返回函数指针,通过函指针调用其function-->FreeLibrary(h)
     例如:Another.dll有一个int Add(int x,int y)函数。则完整的调用过程如下:
        typedef int (* FunPtr)(int,int);//定义函数指针
        FunPtr funPtr;
        Handle h=LoadLibrary("Another.dll");
        funPtr=(FunPtr)GetProcAddress(h,"Add");
        funPtr(2,3);//2+3;
        FreeLibrary(h);

3、创建方式 (参考网上的)



示例之一:

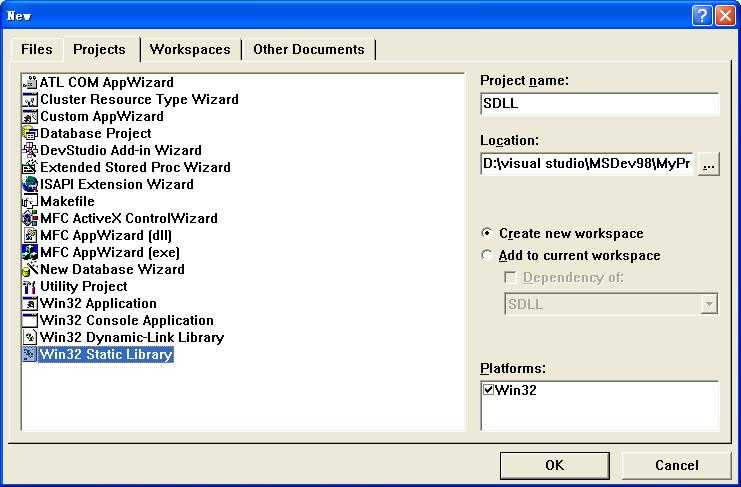

静态链接库的创建过程:
               bubuko.com,布布扣
例如:我们创建一个自定义字符串的类CHironString,
只需要在IDE里面添加class即可,然后program相应函数体
代码如下所示:
SDLL.h文件
------------------------------------------------------------------------
// HironString.h: interface for the CHironString class.
//
//////////////////////////////////////////////////////////////////////

#if !defined(AFX_HIRONSTRING_H__B23C5E5E_0E8B_4030_B057_34A40C934C59__INCLUDED_)
#define AFX_HIRONSTRING_H__B23C5E5E_0E8B_4030_B057_34A40C934C59__INCLUDED_

#if _MSC_VER > 1000
#pragma once
#endif // _MSC_VER > 1000

class CHironString
{
private:

char* m_data;
public:
char * GetData();
CHironString(CHironString &other);
int Length();

CHironString();
CHironString(char * str);
CHironString& operator=(CHironString &other);
virtual ~CHironString();
};

#endif // !defined(AFX_HIRONSTRING_H__B23C5E5E_0E8B_4030_B057_34A40C934C59__INCLUDED_)

SDLL.CPP如下:
--------------------------------------------------------------
// HironString.cpp: implementation of the CHironString class.
//
//////////////////////////////////////////////////////////////////////

#include "stdafx.h"
#include "HironString.h"

//////////////////////////////////////////////////////////////////////
// Construction/Destruction
//////////////////////////////////////////////////////////////////////

CHironString::CHironString()
{
m_data=NULL;
}

CHironString::CHironString(char * str)
{
int len=strlen(str);
m_data=new char[len+1];
strcpy(m_data,str);

}

CHironString::~CHironString()
{
delete m_data;
}

int CHironString::Length()
{
return strlen(m_data);
}

CHironString::CHironString(CHironString &other)
{
int len=strlen(other.m_data)+1;
m_data=new char[len];
strcpy(m_data,other.m_data);
}

CHironString& CHironString::operator =(CHironString &other)
{
if(this==&other)
   return *this;
if(m_data!=NULL)
   delete[] m_data;
int len=strlen(other.m_data)+1;
m_data=new char[len];
strcpy(m_data,other.m_data);
return *this;
}

char * CHironString::GetData()
{
return m_data;
}

然后,将程序编译后生成sdll.lib。
客户调用:将CHironString.h和SDLL.lib发布给client,那么客户端就可以调用我们编写的静态链接库了。

示例之二:

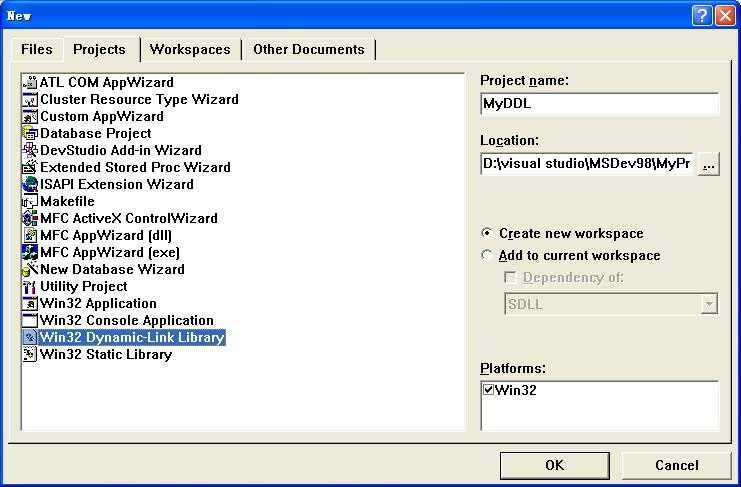

动态链接库的创建

bubuko.com,布布扣

首先我们必须先注意到DLL内的函数分为两种:
(1)DLL 导出函数,可供应用程序调用;
(2)DLL 内部函数,只能在 DLL 程序使用,应用程序无法调用它们。

我们还是创建一个自定义的字符串处理类CHironString,不同之处其是一个动态链接库Dll。
动态链接库的export 需要在在相应的头文件中编写相应的MACRO
MyDll.h:自定义了一些类(函数)export 宏(该文件由IDE自动生成)如下
------------------------------------------------------------------
#ifdef MYDLL_EXPORTS
#define MYDLL_API __declspec(dllexport)
#else
#define MYDLL_API __declspec(dllimport)
#endif
这是导出类的宏定义,将导出类必须加上该宏,才能被导出。
此处的MYDLL_EXPORTS会出现在 project-->settings-->C/C++页面上的 PreProcessor definition中,这个MACRO表明其要定义一个导出宏
CHironString.h 自定义类头文件
----------------------------------------------------------------
// HironString.h: interface for the CHironString class.
//
//////////////////////////////////////////////////////////////////////

CHironString.Cpp
------------------------------------------------------------

// HironString.cpp: implementation of the CHironString class.
//
//////////////////////////////////////////////////////////////////////

#include "stdafx.h"
#include "HironString.h"

//////////////////////////////////////////////////////////////////////
// Construction/Destruction
//////////////////////////////////////////////////////////////////////

CHironString::CHironString()
{
m_data=NULL;
}

CHironString::CHironString(char * str)
{
int len=strlen(str);
m_data=new char[len+1];
strcpy(m_data,str);

}

CHironString::~CHironString()
{
delete m_data;
}

int CHironString::Length()
{
return strlen(m_data);
}

CHironString::CHironString(CHironString &other)
{
int len=strlen(other.m_data)+1;
m_data=new char[len];
strcpy(m_data,other.m_data);
}

CHironString& CHironString::operator =(CHironString &other)
{
if(this==&other)
   return *this;
if(m_data!=NULL)
   delete[] m_data;
int len=strlen(other.m_data)+1;
m_data=new char[len];
strcpy(m_data,other.m_data);
return *this;
}

char * CHironString::GetData()
{
return m_data;
}

2.如果是动态加载,只需要提供*.dll即可

经过compile之后,会生成MyDll.dll和MyDll.lib文件。

客户端的调用:
1.如果是静态加载,那么需要提供*.lib和*.h,运行时候需提供*.dll

#if !defined(AFX_HIRONSTRING_H__518E9EC4_0837_4E45_9516_7D6A70CD3D0F__INCLUDED_)
#define AFX_HIRONSTRING_H__518E9EC4_0837_4E45_9516_7D6A70CD3D0F__INCLUDED_

#if _MSC_VER > 1000
#pragma once
#endif // _MSC_VER > 1000
#include "MyDll.h"

class MYDLL_API CHironString   //加上MYDLL_API表明此为Export Class
{
private:

char* m_data;
public:
char * GetData();
CHironString(CHironString &other);
int Length();

CHironString();
CHironString(char * str);
CHironString& operator=(CHironString &other);
virtual ~CHironString();

};

#endif // !defined(AFX_HIRONSTRING_H__518E9EC4_0837_4E45_9516_7D6A70CD3D0F__INCLUDED_)



原文:http://wenku.baidu.com/link?url=KzFoRIvlHDr9ptU8EsZ4x05Ku1oHA0d05kXzbM9jRPH2bCvV93CA6j23UEg-mYSvqHw6yA7hTFe_8wpiBUmtcOKztvhrkIiW3ol7RnoKJUu











静态连接库、动态链接库

原文:http://www.cnblogs.com/weiquxiong/p/3547766.html
