概述

• 默认界面左边是代码，右边是预览图
• Ctrl + D 可注释选中行（从edit菜单栏中得知）
• 以下按钮预览（鼠标停留可显示文字preview）


命令

几何体

cube(10);  //边长为10的正方体，锚点在其一角
cube([2,3,4]); //长宽高分别为2，3，4的长方体，锚点在其一角
cube(15, center=true);  //边长为15的正方体，锚点在其中心

sphere(10); //半径为10的球体

几何变换

translate([-24,0,0])  //平移
union()  //并
intersection //交
difference() // 差

例子：

文字

官方文档——text用法

text(letter,
                     size=size*22/30,
                     font="Bitstream Vera Sans",
                     halign="center",
                     valign="center");

linear Extrude

linear_extrude(height = fanwidth, center = true, convexity = 10, twist = -fanrot, slices = 20, scale = 1.0, $fn = 16) {...}

其他

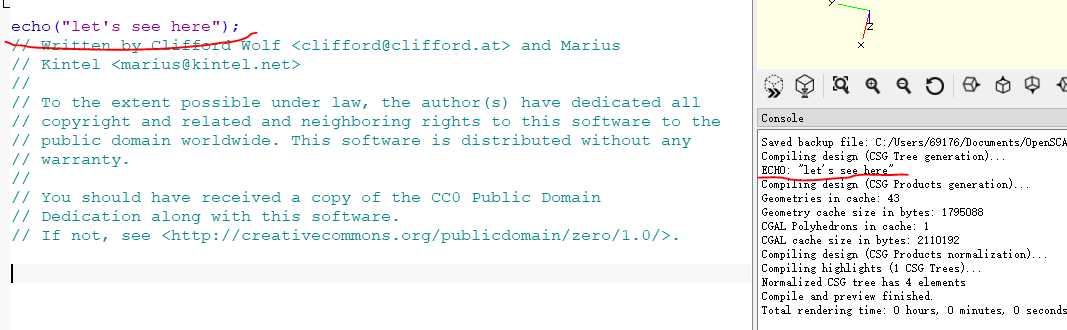

echo（字符串变量）; 会在右边控制台console中第三行左右显示

$fa, $fs and $fn

The $fa, $fs and $fn special variables control the number of facets used to generate an arc:

• $fa is the minimum angle for a fragment. Even a huge circle does not have more fragments than 360 divided by this number. The default value is 12 (i.e. 30 fragments for a full circle). The minimum allowed value is 0.01. Any attempt to set a lower value will cause a warning.

• $fs is the minimum size of a fragment. Because of this variable very small circles have a smaller number of fragments than specified using $fa. The default value is 2. The minimum allowed value is 0.01. Any attempt to set a lower value will cause a warning.

• $fn is usually 0. When this variable has a value greater than zero, the other two variables are ignored and full circle is rendered using this number of fragments. The default value is 0.
