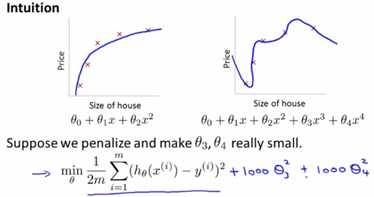

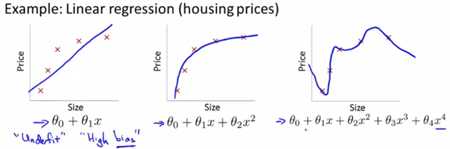

机器学习笔记（五）过拟合问题及正则化

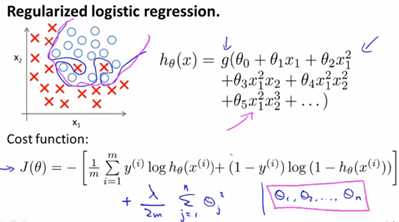

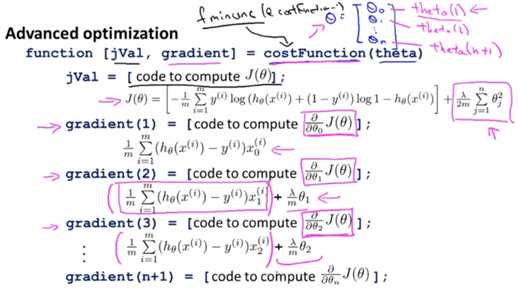

function [J, grad] = costFunctionReg(theta, X, y, lambda)
%COSTFUNCTIONREG Compute cost and gradient for logistic regression with regularization
m = length(y); % number of training examples

J = 0;
grad = zeros(size(theta));
% =============================================================
J = 1/m * (-y‘ * log(sigmoid(X*theta)) - (1 - y‘) * log(1 - sigmoid(X * theta))) + lambda/2/m*sum(theta(2:end).^2);

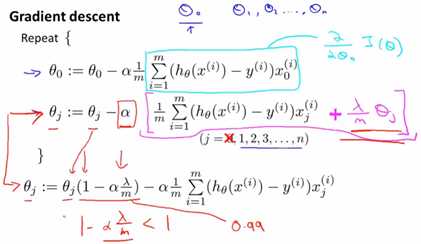

grad(1,:) = 1/m * (X(:, 1)‘ * (sigmoid(X*theta) - y));
grad(2:size(theta), :) = 1/m * (X(:, 2:size(theta))‘ * (sigmoid(X*theta) - y))...
    + lambda/m*theta(2:size(theta), :);

end

%lambda = 0
Train Accuracy: 87.288136

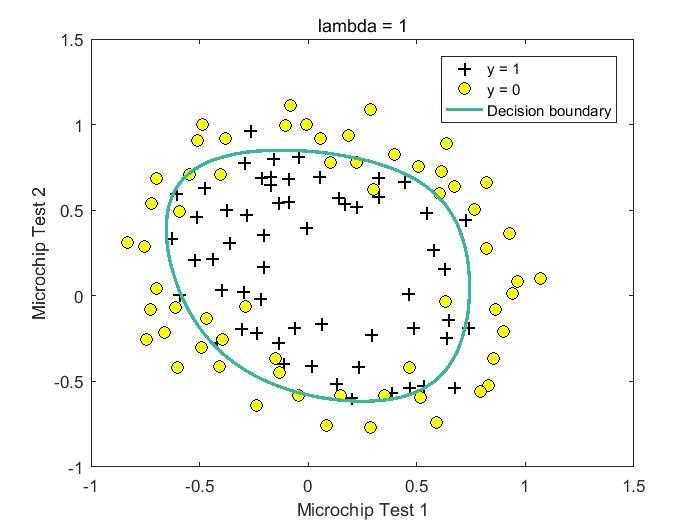

%lambda = 1
Train Accuracy: 83.050847
Expected accuracy (with lambda = 1): 83.1 (approx)

%lambda = 10
Train Accuracy: 83.050847

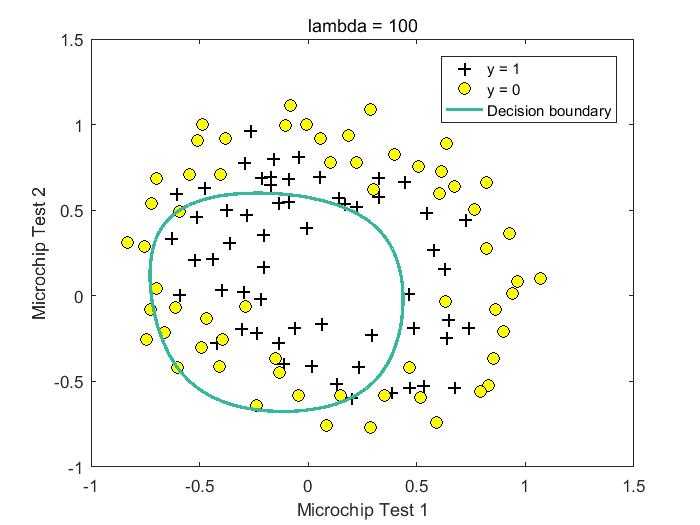

%lambda = 100
Train Accuracy: 61.016949

%% Machine Learning Online Class - Exercise 2: Logistic Regression
%% Initialization
clear ; close all; clc

%% Load Data
%  The first two columns contains the X values and the third column
%  contains the label (y).

data = load(‘ex2data2.txt‘);
X = data(:, [1, 2]); y = data(:, 3);

plotData(X, y);
hold on;
xlabel(‘Microchip Test 1‘)
ylabel(‘Microchip Test 2‘)

% Specified in plot order
legend(‘y = 1‘, ‘y = 0‘)
hold off;


%% =========== Part 1: Regularized Logistic Regression ============
% Add Polynomial Features
% Note that mapFeature also adds a column of ones for us, so the intercept
% term is handled
X = mapFeature(X(:,1), X(:,2));

% Initialize fitting parameters
initial_theta = zeros(size(X, 2), 1);

% Set regularization parameter lambda to 1
lambda = 100;

% Compute and display initial cost and gradient for regularized logistic
% regression
[cost, grad] = costFunctionReg(initial_theta, X, y, lambda);

fprintf(‘Cost at initial theta (zeros): %f\n‘, cost);
fprintf(‘Expected cost (approx): 0.693\n‘);
fprintf(‘Gradient at initial theta (zeros) - first five values only:\n‘);
fprintf(‘ %f \n‘, grad(1:5));
fprintf(‘Expected gradients (approx) - first five values only:\n‘);
fprintf(‘ 0.0085\n 0.0188\n 0.0001\n 0.0503\n 0.0115\n‘);

fprintf(‘\nProgram paused. Press enter to continue.\n‘);
pause;

% Compute and display cost and gradient
% with all-ones theta and lambda = 10
test_theta = ones(size(X,2),1);
[cost, grad] = costFunctionReg(test_theta, X, y, 10);

fprintf(‘\nCost at test theta (with lambda = 10): %f\n‘, cost);
fprintf(‘Expected cost (approx): 3.16\n‘);
fprintf(‘Gradient at test theta - first five values only:\n‘);
fprintf(‘ %f \n‘, grad(1:5));
fprintf(‘Expected gradients (approx) - first five values only:\n‘);
fprintf(‘ 0.3460\n 0.1614\n 0.1948\n 0.2269\n 0.0922\n‘);

fprintf(‘\nProgram paused. Press enter to continue.\n‘);
pause;

%% ============= Part 2: Regularization and Accuracies =============
%  Optional Exercise:
%  In this part, you will get to try different values of lambda and
%  see how regularization affects the decision coundart
%
%  Try the following values of lambda (0, 1, 10, 100).
%
%  How does the decision boundary change when you vary lambda? How does
%  the training set accuracy vary?
% Initialize fitting parameters
initial_theta = zeros(size(X, 2), 1);
% Set regularization parameter lambda to 1 (you should vary this)
lambda = 0;
% Set Options
options = optimset(‘GradObj‘, ‘on‘, ‘MaxIter‘, 400);
% Optimize
[theta, J, exit_flag] = ...
    fminunc(@(t)(costFunctionReg(t, X, y, lambda)), initial_theta, options);

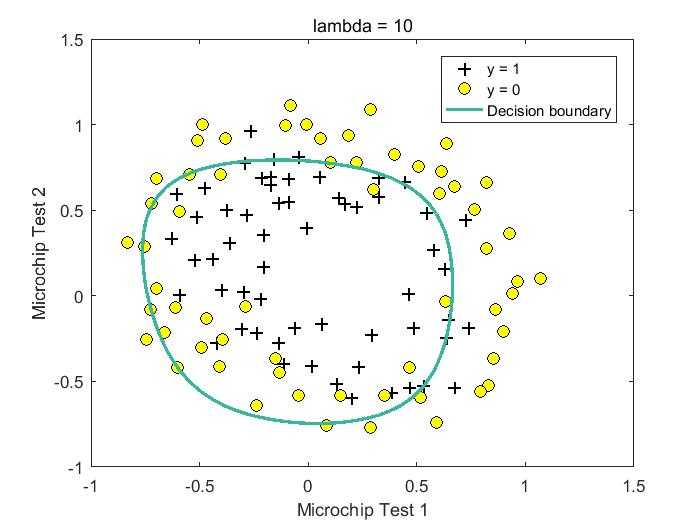

% Plot Boundary
plotDecisionBoundary(theta, X, y);
hold on;
title(sprintf(‘lambda = %g‘, lambda))
% Labels and Legend
xlabel(‘Microchip Test 1‘)
ylabel(‘Microchip Test 2‘)
legend(‘y = 1‘, ‘y = 0‘, ‘Decision boundary‘)
hold off;
% Compute accuracy on our training set
p = predict(theta, X);
fprintf(‘Train Accuracy: %f\n‘, mean(double(p == y)) * 100);
fprintf(‘Expected accuracy (with lambda = 0): (approx)\n‘);
