BMFont制作美术字体

时间:2018-07-07 23:52:21      阅读:409      评论:0      收藏:0      [点我收藏+]

技术分享图片



技术分享图片



技术分享图片



技术分享图片



技术分享图片



技术分享图片



技术分享图片



技术分享图片

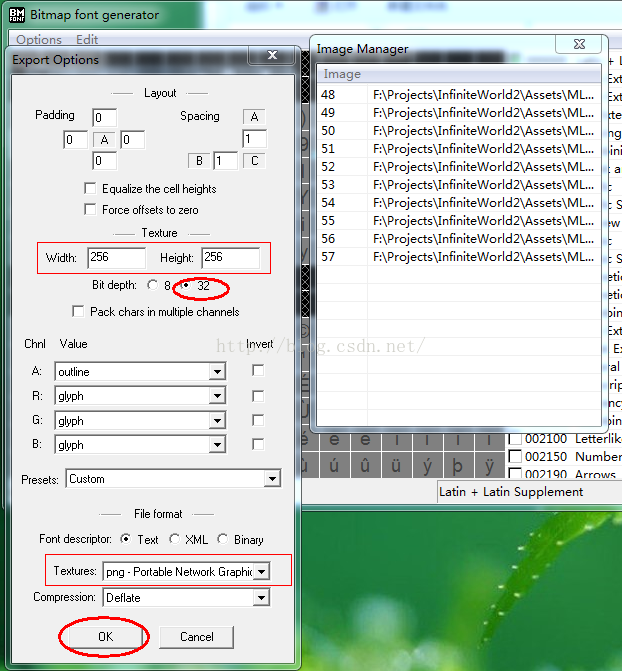

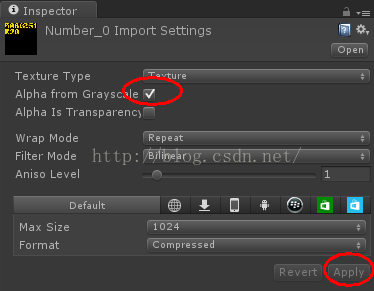

生成 Number.fnt、Number_0.png 两个文件,将其拖入Unity 相应位置,继续下一步



技术分享图片



技术分享图片



技术分享图片



技术分享图片



技术分享图片

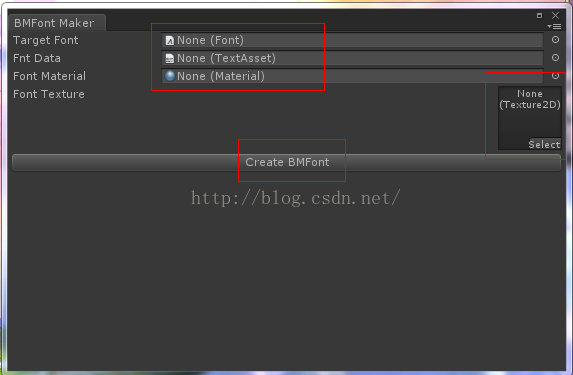

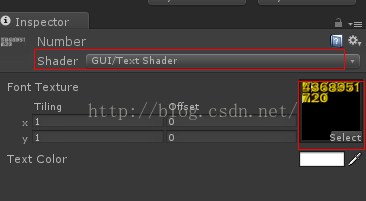

箭头所指就是我们要得到的最终目标,在文本处字体使用它就可以了。

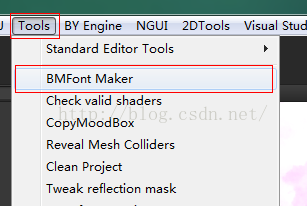

在使用 Tools -> BMFont Maker 之前得先完成以下步骤:



  1.
    using UnityEngine;
  2.
    using UnityEditor;
  3.

  4.
    public class BMFontEditor : EditorWindow
  5.
    {
  6.
    [MenuItem("Tools/BMFont Maker")]
  7.
    static public void OpenBMFontMaker()
  8.
    {
  9.
    EditorWindow.GetWindow<BMFontEditor>(false, "BMFont Maker", true).Show();
  10.
    }
  11.

  12.
    [SerializeField]
  13.
    private Font targetFont;
  14.

  15.
    [SerializeField]
  16.
    private TextAsset fntData;
  17.

  18.
    [SerializeField]
  19.
    private Material fontMaterial;
  20.

  21.
    [SerializeField]
  22.
    private Texture2D fontTexture;
  23.

  24.
    private BMFont bmFont = new BMFont();
  25.

  26.
    public BMFontEditor()
  27.
    {
  28.
    }
  29.

  30.
    void OnGUI()
  31.
    {
  32.
    targetFont = EditorGUILayout.ObjectField("Target Font", targetFont, typeof(Font), false) as Font;
  33.
    fntData = EditorGUILayout.ObjectField("Fnt Data", fntData, typeof(TextAsset), false) as TextAsset;
  34.
    fontMaterial = EditorGUILayout.ObjectField("Font Material", fontMaterial, typeof(Material), false) as Material;
  35.
    fontTexture = EditorGUILayout.ObjectField("Font Texture", fontTexture, typeof(Texture2D), false) as Texture2D;
  36.

  37.
    if (GUILayout.Button("Create BMFont"))
  38.
    {
  39.
    BMFontReader.Load(bmFont, fntData.name, fntData.bytes); //借用NGUI封装的读取类
  40.
    CharacterInfo[] characterInfo = new CharacterInfo[bmFont.glyphs.Count];
  41.
    for (int i = 0; i < bmFont.glyphs.Count; i++)
  42.
    {
  43.
    BMGlyph bmInfo = bmFont.glyphs[i];
  44.
    CharacterInfo info = new CharacterInfo();
  45.
    info.index = bmInfo.index;
  46.
    info.uv.x = (float)bmInfo.x / (float)bmFont.texWidth;
  47.
    info.uv.y = 1 - (float)bmInfo.y / (float)bmFont.texHeight;
  48.
    info.uv.width = (float)bmInfo.width / (float)bmFont.texWidth;
  49.
    info.uv.height = -1f * (float)bmInfo.height / (float)bmFont.texHeight;
  50.
    info.vert.x = 0;
  51.
    info.vert.y = -(float)bmInfo.height;
  52.
    info.vert.width = (float)bmInfo.width;
  53.
    info.vert.height = (float)bmInfo.height;
  54.
    info.width = (float)bmInfo.advance;
  55.
    characterInfo[i] = info;
  56.
    }
  57.
    targetFont.characterInfo = characterInfo;
  58.
    if (fontMaterial)
  59.
    {
  60.
    fontMaterial.mainTexture = fontTexture;
  61.
    }
  62.
    targetFont.material = fontMaterial;
  63.
    fontMaterial.shader = Shader.Find("UI/Default");//这一行很关键,如果用standard的shader,放到Android手机上,第一次加载会很慢
  64.

  65.
    Debug.Log("Create Font <" + targetFont.name + "> Success");
  66.
    Close();
  67.
    }
  68.
    }
  69.
    }

将这个类放入工程中,这样在 Tools 中才可以找到 BMFont Maker,它的作用是赋予字体的详细信息,由于它是借助 NGUI 来实现的工具,所以得加上 NGUI 中的以下类:

技术分享图片
