WebSocket学习

时间：2018-03-22 01:23:47      阅读：364      评论：0      收藏：0      [点我收藏+]

客户端连接

客户端

<script>
    var socket = new WebSocket("ws://127.0.0.1:8000/chat");
</script>

服务端

import socket

sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
sock.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
sock.bind((‘127.0.0.1‘, 8000))
sock.listen(5)

conn, address = sock.accept()
print(‘有链接过来。。。‘)
data = conn.recv(1024)
print(data)
"""
GET /chat HTTP/1.1\r\n
Host: 127.0.0.1:8000\r\n
Connection: Upgrade\r\n
Pragma: no-cache\r\n
Cache-Control: no-cache\r\n
Upgrade: websocket\r\n
Origin: http://localhost:63342\r\n
Sec-WebSocket-Version: 13\r\n
User-Agent: Mozilla/5.0 (Windows NT 6.1; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/64.0.3282.186 Safari/537.36\r\n
Accept-Encoding: gzip, deflate, br\r\n
Accept-Language: zh-CN,zh;q=0.9\r\n
Sec-WebSocket-Key: CyiOUMgm4Qd6WyjLQ+YbrA==\r\n
Sec-WebSocket-Extensions: permessage-deflate; client_max_window_bits\r\n\r\n
"""

conn.send("响应【握手】信息".encode(‘utf-8‘))
conn.close()



浏览器发起了连接请求，其中包含了握手信息，服务端要想握手成功达成连接，需要满足下面几个条件：

　　- 首先获取客户端发来的 Sec-WebSocket-Key ，然后把这个值和 magic_string（258EAFA5-E914-47DA-95CA-C5AB0DC85B11）连接起来。

　　- 然后进行 SHA-1 hash 加密，最后再进行 base64 加密。

　　- 最后得到的值赋值给 Sec-WebSocket-Accept 字段当做响应头发给客户端。

响应头格式如下：

HTTP/1.1 101 Switching Protocols
Upgrade: websocket
Connection: Upgrade
Sec-WebSocket-Accept: s3pPLMBiTxaQ9kYGzzhZRbK+xOo=

　　

建立连接（握手）

客户端

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>

    <button onclick="connection_check()">check</button>

<script>
    var socket = new WebSocket("ws://127.0.0.1:8000/chat");

    function connection_check() {
        if(0 == socket.readyState) {
            alert(‘尚未建立连接‘);
        }
        else if(1 == socket.readyState) {
            alert(‘连接已建立‘);
        }
        else if(2 == socket.readyState) {
            alert(‘连接正在进行关闭‘);
        }
        else {
            alert(‘连接已经关闭或者连接不能打开‘);
        }
    }


</script>

</body>
</html>

服务端

import socket
import hashlib
import base64


def get_headers(data):
    """
    将请求头格式化成字典
    :param data:
    :return:
    """
    header_dict = {}
    data = str(data, encoding=‘utf-8‘)

    header, body = data.split(‘\r\n\r\n‘, 1)
    header_list = header.split(‘\r\n‘)
    for i in range(0, len(header_list)):
        if i == 0:
            if len(header_list[i].split(‘ ‘)) == 3:
                header_dict[‘method‘], header_dict[‘url‘], header_dict[‘protocol‘] = header_list[i].split(‘ ‘)
        else:
            k, v = header_list[i].split(‘:‘, 1)
            header_dict[k] = v.strip()
    return header_dict


sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
sock.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
sock.bind((‘127.0.0.1‘, 8000))
sock.listen(5)

while True:
    conn, address = sock.accept()
    print(‘有链接过来。。。‘)
    data = conn.recv(1024)

    headers = get_headers(data)
    magic_string = ‘258EAFA5-E914-47DA-95CA-C5AB0DC85B11‘
    str_concatenate = headers[‘Sec-WebSocket-Key‘]+magic_string

    swa = base64.b64encode(hashlib.sha1(bytes(headers[‘Sec-WebSocket-Key‘]+magic_string,encoding=‘utf-8‘)).digest())
    response_tpl = "HTTP/1.1 101 Switching Protocols\r\n"         "Upgrade:websocket\r\n"         "Connection: Upgrade\r\n"         "Sec-WebSocket-Accept: %s\r\n"         "WebSocket-Location: ws://%s%s\r\n\r\n"

    print(response_tpl)

    response = response_tpl %(swa.decode(‘utf-8‘),headers[‘Host‘],headers[‘url‘])
    conn.send(bytes(response,encoding=‘utf-8‘))

conn.close()



服务端解析客户端发的数据【解包】

客户端发来的 Frame Format

      0                   1                   2                   3
      0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
     +-+-+-+-+-------+-+-------------+-------------------------------+
     |F|R|R|R| opcode|M| Payload len |    Extended payload length    |
     |I|S|S|S|  (4)  |A|     (7)     |             (16/64)           |
     |N|V|V|V|       |S|             |   (if payload len==126/127)   |
     | |1|2|3|       |K|             |                               |
     +-+-+-+-+-------+-+-------------+ - - - - - - - - - - - - - - - +
     |     Extended payload length continued, if payload len == 127  |
     + - - - - - - - - - - - - - - - +-------------------------------+
     |                               |Masking-key, if MASK set to 1  |
     +-------------------------------+-------------------------------+
     | Masking-key (continued)       |          Payload Data         |
     +-------------------------------- - - - - - - - - - - - - - - - +
     :                     Payload Data continued ...                :
     + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - +
     |                     Payload Data continued ...                |
     +---------------------------------------------------------------+

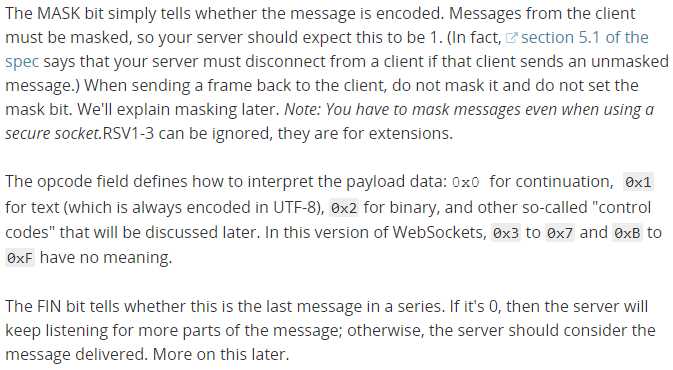

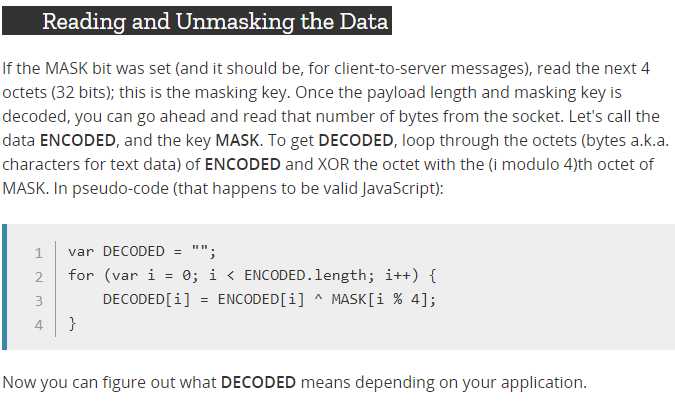

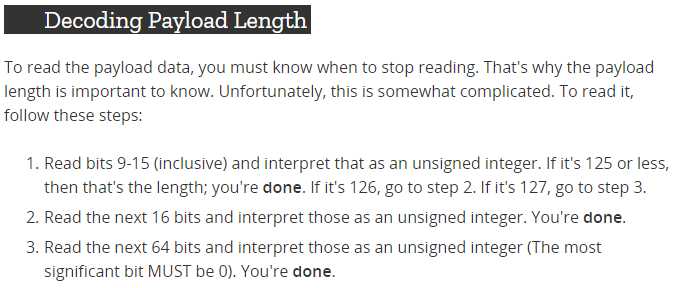

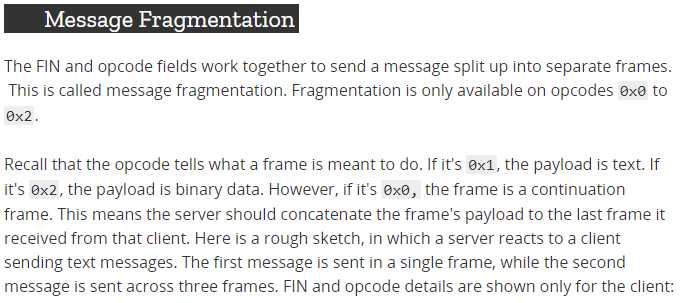

官方解释：

技术分享图片

技术分享图片

技术分享图片

技术分享图片

Client: FIN=1, opcode=0x1, msg="hello"
Server: (process complete message immediately) Hi.
Client: FIN=0, opcode=0x1, msg="and a"
Server: (listening, new message containing text started)
Client: FIN=0, opcode=0x0, msg="happy new"
Server: (listening, payload concatenated to previous message)
Client: FIN=1, opcode=0x0, msg="year!"
Server: (process complete message) Happy new year to you too!

客户端

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>

    <input type="text" id="input_msg">
    <button id="send_msg">发送消息</button>

<script>
    var socket = new WebSocket("ws://127.0.0.1:8000/chat");
    var send_btn = document.getElementById(‘send_msg‘);
    var input = document.getElementById(‘input_msg‘);
    send_btn.onclick = function() {
        console.log(input.value);
        if(1 == socket.readyState){
            socket.send(input.value);
            input.value = "";
        }else {
            alert(‘连接尚未建立‘);
        }
    }

</script>

</body>
</html>

服务端

import socket
import hashlib
import base64


def get_headers(data):
    """
    将请求头格式化成字典
    :param data:
    :return:
    """
    header_dict = {}
    data = str(data, encoding=‘utf-8‘)

    header, body = data.split(‘\r\n\r\n‘, 1)
    header_list = header.split(‘\r\n‘)
    for i in range(0, len(header_list)):
        if i == 0:
            if len(header_list[i].split(‘ ‘)) == 3:
                header_dict[‘method‘], header_dict[‘url‘], header_dict[‘protocol‘] = header_list[i].split(‘ ‘)
        else:
            k, v = header_list[i].split(‘:‘, 1)
            header_dict[k] = v.strip()
    return header_dict


sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
sock.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
sock.bind((‘127.0.0.1‘, 8000))
sock.listen(5)

conn, address = sock.accept()
print(‘有链接过来。。。‘)
data = conn.recv(1024)

headers = get_headers(data)
magic_string = ‘258EAFA5-E914-47DA-95CA-C5AB0DC85B11‘
str_concatenate = headers[‘Sec-WebSocket-Key‘]+magic_string

swa = base64.b64encode(hashlib.sha1(bytes(headers[‘Sec-WebSocket-Key‘]+magic_string,encoding=‘utf-8‘)).digest())
response_tpl = "HTTP/1.1 101 Switching Protocols\r\n"     "Upgrade:websocket\r\n"     "Connection: Upgrade\r\n"     "Sec-WebSocket-Accept: %s\r\n"     "WebSocket-Location: ws://%s%s\r\n\r\n"

response = response_tpl %(swa.decode(‘utf-8‘),headers[‘Host‘],headers[‘url‘])
conn.send(bytes(response,encoding=‘utf-8‘))

while True:
    info = conn.recv(8096)
    payload_len = info[1] & 127
    if payload_len == 126:
        extend_payload_len = info[2:4]
        mask = info[4:8]
        decoded = info[8:]
    elif payload_len == 127:
        extend_payload_len = info[2:10]
        mask = info[10:14]
        decoded = info[14:]
    else:
        extend_payload_len = None
        mask = info[2:6]
        decoded = info[6:]

    bytes_list = bytearray()
    for i in range(len(decoded)):
        chunk = decoded[i] ^ mask[i % 4]
        bytes_list.append(chunk)
    # body = str(bytes_list, encoding=‘utf-8‘)
    body = bytes_list.decode(‘utf-8‘)
    print(body)


conn.close()

　　

服务端给客户端发送数据【封包】

def send_msg(conn, msg_bytes):
    """
    WebSocket服务端向客户端发送消息
    :param conn: 客户端连接到服务器端的socket对象,即： conn,address = socket.accept()
    :param msg_bytes: 向客户端发送的字节
    :return:
    """
    import struct

    token = b"\x81"  # 即 10000001，FIN置为1，opcode置为0x1
    length = len(msg_bytes)
    if length < 126:
        token += struct.pack("B", length)
    elif length <= 0xFFFF:
        token += struct.pack("!BH", 126, length)
    else:
        token += struct.pack("!BQ", 127, length)

    msg = token + msg_bytes
    conn.send(msg)
    return True

服务端封包的时候不需要加密，即没有 MASK 字段。

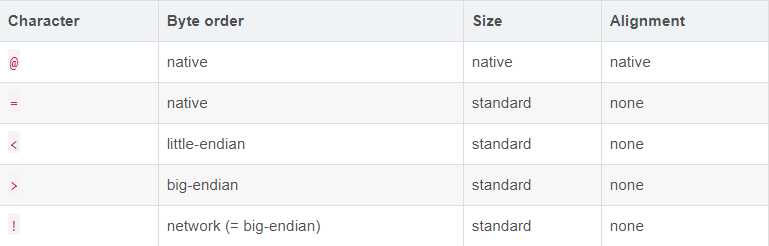

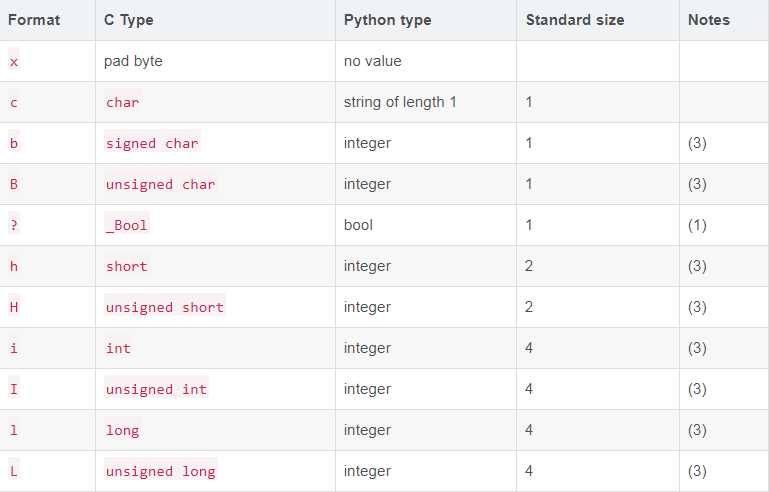

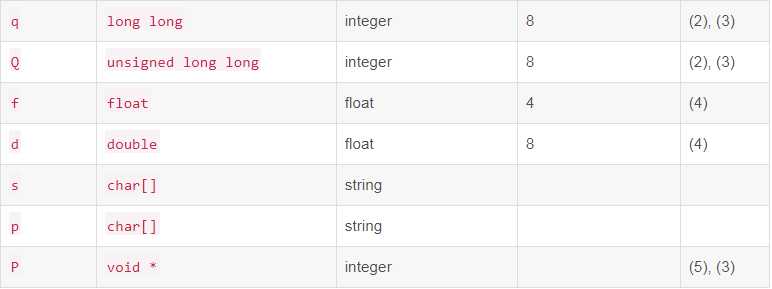

但是需要注意length的判断和字节序的问题。

技术分享图片

技术分享图片

技术分享图片



基于Python简单实现的WebSocket示例

服务端：

import socket
import base64
import hashlib


def get_headers(data):
    """
    将请求头格式化成字典
    :param data:
    :return:
    """
    header_dict = {}
    data = str(data, encoding=‘utf-8‘)

    header, body = data.split(‘\r\n\r\n‘, 1)
    header_list = header.split(‘\r\n‘)
    for i in range(0, len(header_list)):
        if i == 0:
            if len(header_list[i].split(‘ ‘)) == 3:
                header_dict[‘method‘], header_dict[‘url‘], header_dict[‘protocol‘] = header_list[i].split(‘ ‘)
        else:
            k, v = header_list[i].split(‘:‘, 1)
            header_dict[k] = v.strip()
    return header_dict


def send_msg(conn, msg_bytes):
    """
    WebSocket服务端向客户端发送消息
    :param conn: 客户端连接到服务器端的socket对象,即： conn,address = socket.accept()
    :param msg_bytes: 向客户端发送的字节
    :return:
    """
    import struct

    token = b"\x81"    # 即 10000001，FIN置为1，opcode置为0x1
    length = len(msg_bytes)
    if length < 126:
        token += struct.pack("B", length)
    elif length <= 0xFFFF:
        # Read the next 16 bits and interpret those as an unsigned integer.
        token += struct.pack("!BH", 126, length)
    else:
        # Read the next 64 bits and interpret those as an unsigned integer.
        token += struct.pack("!BQ", 127, length)

    msg = token + msg_bytes
    conn.send(msg)
    return True

def get_conn(ip=‘127.0.0.1‘,port=80):
    """
    准备接收客户端的请求并建立连接
    :param ip: 绑定的ip
    :param port: 监听的端口
    :return:
    """
    sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    sock.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
    sock.bind((ip, port))
    sock.listen(5)

    conn, address = sock.accept()
    print("有连接到来...")
    data = conn.recv(1024)
    headers = get_headers(data)
    magic_string = ‘258EAFA5-E914-47DA-95CA-C5AB0DC85B11‘
    str_completed = headers[‘Sec-WebSocket-Key‘] + magic_string

    swa = base64.b64encode(hashlib.sha1(bytes(str_completed, encoding=‘utf-8‘)).digest())
    response_tpl = "HTTP/1.1 101 Switching Protocols\r\n"                    "Upgrade:websocket\r\n"                    "Connection: Upgrade\r\n"                    "Sec-WebSocket-Accept: %s\r\n"                    "WebSocket-Location: ws://%s%s\r\n\r\n"

    response = response_tpl % (swa.decode(‘utf-8‘), headers[‘Host‘], headers[‘url‘])
    conn.send(bytes(response, encoding=‘utf-8‘))
    return sock,conn

def close(sock):
    """
    关闭sock连接
    :param sock:
    :return:
    """
    sock.close()

def run():
    """
    消息循环
    :return:
    """
    sock,conn = get_conn()

    while True:
        try:
            info = conn.recv(8096)
        except Exception as e:
            info = None
        if not info:
            break
        # 位运算得到第二个字节后7个bit的值
        payload_len = info[1] & 127
        if payload_len == 126:
            extend_payload_len = info[2:4]
            mask = info[4:8]
            decoded = info[8:]
        elif payload_len == 127:
            extend_payload_len = info[2:10]
            mask = info[10:14]
            decoded = info[14:]
        else:
            extend_payload_len = None
            mask = info[2:6]
            decoded = info[6:]

        bytes_list = bytearray()
        # DECODED
        for i in range(len(decoded)):
            chunk = decoded[i] ^ mask[i % 4]
            bytes_list.append(chunk)
        body = str(bytes_list, encoding=‘utf-8‘)
        print("Client: %s" % body)
        send_msg(conn, ("服务端已收到: %s" % body).encode(‘utf-8‘))

    close(sock)


if __name__ == ‘__main__‘:
    run()

客户端：

<!DOCTYPE html>
<html>
<head lang="en">
    <meta charset="UTF-8">
    <title></title>
</head>
<body>
    <div>
        <input type="text" id="txt"/>
        <input type="button" id="btn" value="提交" onclick="sendMsg();"/>
        <input type="button" id="close" value="关闭连接" onclick="closeConn();"/>
    </div>
    <div id="content"></div>

<script type="text/javascript">
    var socket = new WebSocket("ws://127.0.0.1:80/chatsocket");

    socket.onopen = function () {
        /* 与服务器端连接成功后，自动执行 */

        var newTag = document.createElement(‘div‘);
        newTag.innerHTML = "【连接成功】";
        document.getElementById(‘content‘).appendChild(newTag);
    };

    socket.onmessage = function (event) {
        /* 服务器端向客户端发送数据时，自动执行 */
        var response = event.data;
        var newTag = document.createElement(‘div‘);
        newTag.innerHTML = response;
        document.getElementById(‘content‘).appendChild(newTag);
    };

    socket.onclose = function (event) {
        /* 服务器端主动断开连接时，自动执行 */
        var newTag = document.createElement(‘div‘);
        newTag.innerHTML = "【关闭连接】";
        document.getElementById(‘content‘).appendChild(newTag);
    };

    function sendMsg() {
        var txt = document.getElementById(‘txt‘);
        socket.send(txt.value);
        txt.value = "";
    }
    function closeConn() {
        socket.close();
        var newTag = document.createElement(‘div‘);
        newTag.innerHTML = "【关闭连接】";
        document.getElementById(‘content‘).appendChild(newTag);
    }

</script>
</body>
</html>

　　

基于Tornado框架实现Web聊天室

示例来自：http://www.cnblogs.com/wupeiqi/articles/6558766.html

import uuid
import json
import tornado.ioloop
import tornado.web
import tornado.websocket


class IndexHandler(tornado.web.RequestHandler):
    def get(self):
        self.render(‘index.html‘)


class ChatHandler(tornado.websocket.WebSocketHandler):
    # 用户存储当前聊天室用户
    waiters = set()
    # 用于存储历时消息
    messages = []

    def open(self):
        """
        客户端连接成功时，自动执行
        :return:
        """
        ChatHandler.waiters.add(self)
        uid = str(uuid.uuid4())
        self.write_message(uid)

        for msg in ChatHandler.messages:
            content = self.render_string(‘message.html‘, **msg)
            self.write_message(content)

    def on_message(self, message):
        """
        客户端连发送消息时，自动执行
        :param message:
        :return:
        """
        msg = json.loads(message)
        ChatHandler.messages.append(message)

        for client in ChatHandler.waiters:
            content = client.render_string(‘message.html‘, **msg)
            client.write_message(content)

    def on_close(self):
        """
        客户端关闭连接时，，自动执行
        :return:
        """
        ChatHandler.waiters.remove(self)


def run():
    settings = {
        ‘template_path‘: ‘templates‘,
        ‘static_path‘: ‘static‘,
    }
    application = tornado.web.Application([
        (r"/", IndexHandler),
        (r"/chat", ChatHandler),
    ], **settings)
    application.listen(8888)
    tornado.ioloop.IOLoop.instance().start()


if __name__ == "__main__":
    run()

index.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Python聊天室</title>
</head>
<body>
    <div>
        <input type="text" id="txt"/>
        <input type="button" id="btn" value="提交" onclick="sendMsg();"/>
        <input type="button" id="close" value="关闭连接" onclick="closeConn();"/>
    </div>
    <div id="container" style="border: 1px solid #dddddd;margin: 20px;min-height: 500px;">

    </div>

    <script src="/static/jquery-2.1.4.min.js"></script>
    <script type="text/javascript">
        $(function () {
            wsUpdater.start();
        });

        var wsUpdater = {
            socket: null,
            uid: null,
            start: function() {
                var url = "ws://127.0.0.1:8888/chat";
                wsUpdater.socket = new WebSocket(url);
                wsUpdater.socket.onmessage = function(event) {
                    console.log(event);
                    if(wsUpdater.uid){
                        wsUpdater.showMessage(event.data);
                    }else{
                        wsUpdater.uid = event.data;
                    }
                }
            },
            showMessage: function(content) {
                $(‘#container‘).append(content);
            }
        };

        function sendMsg() {
            var msg = {
                uid: wsUpdater.uid,
                message: $("#txt").val()
            };
            wsUpdater.socket.send(JSON.stringify(msg));
        }

</script>

</body>
</html>

参考：http://www.cnblogs.com/wupeiqi/articles/6558766.html

参考：https://developer.mozilla.org/en-US/docs/Web/API/WebSockets_API/Writing_WebSocket_servers

RFC 6455：https://tools.ietf.org/html/rfc6455

WebSocket学习

原文：https://www.cnblogs.com/standby/p/8595588.html
踩
(0)
赞
(0)

举报
评论 一句话评论（0）
分享档案
更多>
2021年09月23日 (328)
2021年09月24日 (313)
2021年09月17日 (191)
2021年09月15日 (369)
2021年09月16日 (411)
2021年09月13日 (439)
2021年09月11日 (398)
2021年09月12日 (393)
2021年09月10日 (160)
2021年09月08日 (222)
最新文章
更多>
教程昨日排行
更多>
友情链接
汇智网   PHP教程   插件网
关于我们 - 联系我们 - 留言反馈 - 联系我们:wmxa8@hotmail.com
© 2014 bubuko.com 版权所有
打开技术之扣，分享程序人生！
