分区

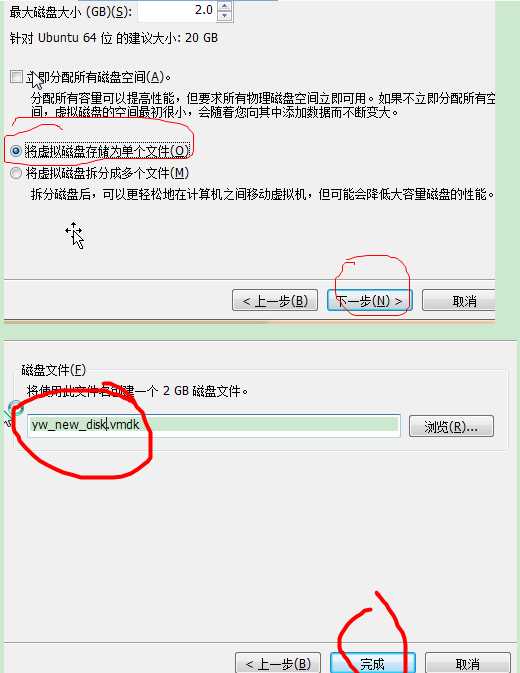

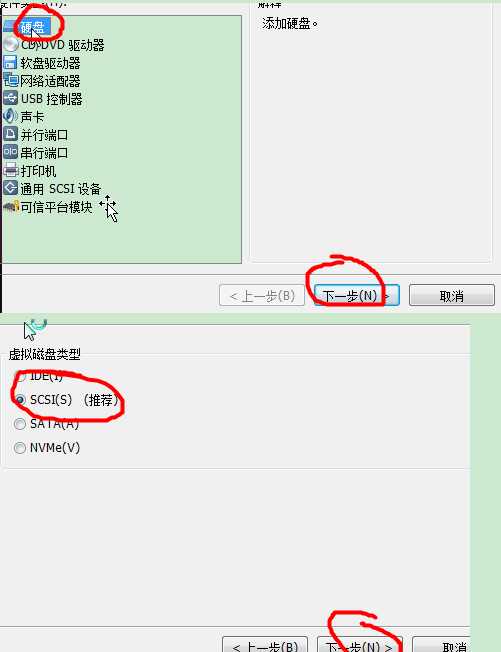

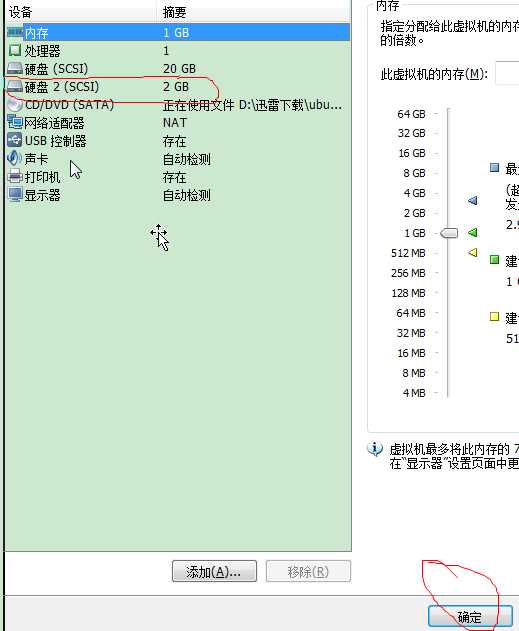

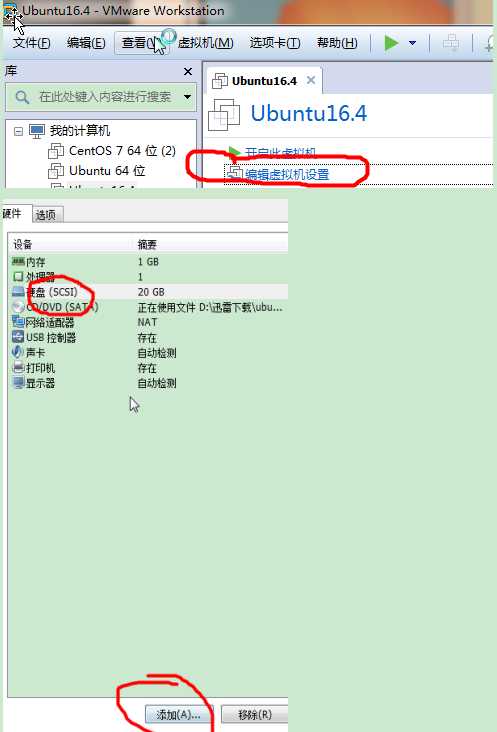

对硬盘分区:安装操作系统的时候有一个分区过程,新增加硬盘也会涉及到分区,如何给操作系统新增一台硬件设备。

技术分享图片

技术分享图片

技术分享图片

技术分享图片

启动操作系统。

技术分享图片

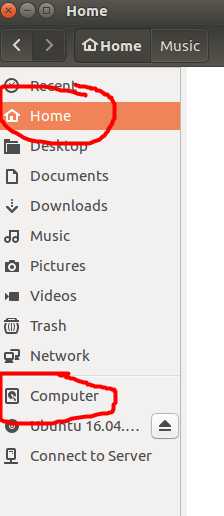

Home是当前账号的根目录,Computer是/系统根目录。

~是当前账号的根目录,/是系统的根目录。

root@ubuntu:~# pwd
/root
Passwd: root:x:0:0:root:/root:/bin/bash(所以root账号进来是/root目录)
root@ubuntu:~# ls

root@ubuntu:/# ls
bin    etc             lib         mnt           root  srv  var
boot   home            lib64       nginx-1.13.8  run   sys  vmlinuz
cdrom  initrd.img      lost+found  opt           sbin  tmp  vmlinuz.old
dev    initrd.img.old  media       proc          snap  usr  yw

yw1989@ubuntu:~$ pwd
/home/yw1989
Passwd: yw1989:x:1000:1000:ubuntu16.4,,,:/home/yw1989:/bin/bash(所以yw1989账号进来的根目录是/home/yw1989)

yw1989@ubuntu:/$ ls
bin    etc             lib         mnt           root  srv  var
boot   home            lib64       nginx-1.13.8  run   sys  vmlinuz
cdrom  initrd.img      lost+found  opt           sbin  tmp  vmlinuz.old
dev    initrd.img.old  media       proc          snap  usr  yw
yw1989@ubuntu:/$ cd home/yw1989
yw1989@ubuntu:~$ ls
Desktop     Documents  examples.desktop  Pictures  Templates  ywjuan
dockerfile  Downloads  Music             Public    Videos     ywjuanxin
root@ubuntu:/# fdisk -l (当前操作系统有几块硬盘,每块硬盘的分区情况,每块硬盘的大小)
(硬盘也是一个硬件设备,存储在dev下面,第一块硬盘叫sda,第二快叫sdb,第三块叫sdc,sddd,20GB,后面是20GB有多少字节,)
Disk /dev/sda: 20 GiB, 21474836480 bytes, 41943040 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0xc48cecd2

(当前硬盘设备下有3个分区sda1,sda2,sda3,*表示这是一个启动分区,操作系统的时候就是基于sda1启动的,19G,占到2048 到39845887 扇区,sda2从39847934 到41940991,       )
Device     Boot    Start      End  Sectors  Size Id Type
/dev/sda1  *        2048 39845887 39843840   19G 83 Linux
/dev/sda2       39847934 41940991  2093058 1022M  5 Extended
/dev/sda5       39847936 41940991  2093056 1022M 82 Linux swap / Solaris

(第二块硬盘sdb,2G大小,这块硬盘没有进行分区,是无法使用的,)
Disk /dev/sdb: 2 GiB, 2147483648 bytes, 4194304 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
root@ubuntu:/dev# fdisk /dev/sdb(对sdb硬盘进行分区,进入sdb硬盘)

Welcome to fdisk (util-linux 2.27.1).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.

Device does not contain a recognized partition table.
Created a new DOS disklabel with disk identifier 0x0cade2ce.

Command (m for help): m

Help:

  DOS (MBR)
   a   toggle a bootable flag
   b   edit nested BSD disklabel
   c   toggle the dos compatibility flag

  Generic
   d   delete a partition :删除一个分区
   F   list free unpartitioned space
   l   list known partition types
   n   add a new partition :创建一个新的分区
   p   print the partition table :打印分区表
   t   change a partition type :显示分区系统的id号
   v   verify the partition table
   i   print information about a partition

  Misc
   m   print this menu :打印菜单帮助信息
   u   change display/entry units
   x   extra functionality (experts only)

  Script
   I   load disk layout from sfdisk script file
   O   dump disk layout to sfdisk script file

  Save & Exit
   w   write table to disk and exit :写入分区表到硬盘并退出
   q   quit without saving changes :退出不保存相应分区操作

  Create a new label
   g   create a new empty GPT partition table
   G   create a new empty SGI (IRIX) partition table
   o   create a new empty DOS partition table
   s   create a new empty Sun partition table
(针对当前这个硬盘,首先看有没有分区表,如果有就针对分区表进行操作,没有就创建新的分区,没有Device     Boot    Start      End  Sectors  Size Id Type
说明没有分区表,)
Command (m for help): p :打印分区表
Disk /dev/sdb: 2 GiB, 2147483648 bytes, 4194304 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x0cade2ce

Command (m for help): n :添加一个新的分区(是要创建主分区还是扩展分区,)
Partition type
   p   primary (0 primary, 0 extended, 4 free) :主分区
   e   extended (container for logical partitions) :扩展分区
Select (default p): p :(一个硬盘里面最多只能拥有4个主分区,)
Partition number (1-4, default 1): 1 (只能有4个主分区1-4,主分区1)
First sector (2048-4194303, default 2048): 2048 (扇区数,默认从2048扇区开始,)
Last sector, +sectors or +size{K,M,G,T,P} (2048-4194303, default 4194303): 4194303 (要给这个主分区分多大空间,default 4194303表示就一个分区)

Created a new partition 1 of type ‘Linux‘ and of size 2 GiB.(这个硬盘就一个主分区)
Command (m for help): p
(硬盘信息)
Disk /dev/sdb: 2 GiB, 2147483648 bytes, 4194304 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x0cade2ce

(这个硬盘的分区信息,sdb1这一个主分区)
Device     Boot Start     End Sectors Size Id Type
/dev/sdb1        2048 4194303 4192256   2G 83 Linux

Command (m for help): w
The partition table has been altered. (分区表已经被改变)
Calling ioctl() to re-read partition table.
Syncing disks. (可以重新读分区表并且同步硬盘)

root@ubuntu:/dev# fdisk -l
(硬盘信息)
Disk /dev/sda: 20 GiB, 21474836480 bytes, 41943040 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0xc48cecd2
(这个硬盘的分区信息)
Device     Boot    Start      End  Sectors  Size Id Type
/dev/sda1  *        2048 39845887 39843840   19G 83 Linux
/dev/sda2       39847934 41940991  2093058 1022M  5 Extended
/dev/sda5       39847936 41940991  2093056 1022M 82 Linux swap / Solaris

(硬盘信息)
Disk /dev/sdb: 2 GiB, 2147483648 bytes, 4194304 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x7251b8e3
(这个硬盘的分区信息)
Device     Boot Start     End Sectors Size Id Type
/dev/sdb2        2048 4194303 4192256   2G 83 Linux

-----------------------前面是安装分区,后面是调整分区----------------------------------------------



root@ubuntu:/dev# fdisk sdb (进入这块硬盘,不是进入这个分区,)

Welcome to fdisk (util-linux 2.27.1).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.

Command (m for help): p (打印sdb硬盘的分区信息)
(硬盘信息)
Disk sdb: 2 GiB, 2147483648 bytes, 4194304 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x7251b8e3

(这个硬盘的分区信息)
Device Boot Start     End Sectors Size Id Type
sdb2         2048 4194303 4192256   2G 83 Linux

Command (m for help): d  (删除分区)
Selected partition 2
Partition 2 has been deleted.

Command (m for help): p  (只有硬盘信息没有分区信息了)
Disk sdb: 2 GiB, 2147483648 bytes, 4194304 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x7251b8e3

Command (m for help): n
Partition type
   p   primary (0 primary, 0 extended, 4 free)
   e   extended (container for logical partitions)
Select (default p): p
Partition number (1-4, default 1):
First sector (2048-4194303, default 2048):
Last sector, +sectors or +size{K,M,G,T,P} (2048-4194303, default 4194303): +500M (创建2个分区,第一个500M)

Created a new partition 1 of type ‘Linux‘ and of size 500 MiB.

Command (m for help): p
(硬盘信息)
Disk sdb: 2 GiB, 2147483648 bytes, 4194304 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x7251b8e3
(分区信息,sdb1分区500M)
Device Boot Start     End Sectors  Size Id Type
sdb1         2048 1026047 1024000  500M 83 Linux

(创建第二个分区)
Command (m for help): n
Partition type
   p   primary (1 primary, 0 extended, 3 free)
   e   extended (container for logical partitions)
Select (default p): p
Partition number (2-4, default 2):
First sector (1026048-4194303, default 1026048): +500M
Value out of range.
First sector (1026048-4194303, default 1026048): +100M
Value out of range.
First sector (1026048-4194303, default 1026048): +1M
Value out of range.
First sector (1026048-4194303, default 1026048):
Last sector, +sectors or +size{K,M,G,T,P} (1026048-4194303, default 4194303): +500M

Created a new partition 2 of type ‘Linux‘ and of size 500 MiB.

Command (m for help): p
Disk sdb: 2 GiB, 2147483648 bytes, 4194304 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x7251b8e3

Device Boot   Start     End Sectors  Size Id Type
sdb1           2048 1026047 1024000  500M 83 Linux
sdb2        1026048 2050047 1024000  500M 83 Linux

Command (m for help): n
Partition type
   p   primary (2 primary, 0 extended, 2 free)
   e   extended (container for logical partitions)
Select (default p): p
Partition number (3,4, default 3):
First sector (2050048-4194303, default 2050048):
Last sector, +sectors or +size{K,M,G,T,P} (2050048-4194303, default 4194303): +500M

Created a new partition 3 of type ‘Linux‘ and of size 500 MiB.

Command (m for help): w (保存退出)
The partition table has been altered.
Calling ioctl() to re-read partition table.
Syncing disks.

root@ubuntu:/dev# fdisk -l (对硬盘sdb就分了5个主分区一个扩展分区)
Disk /dev/sda: 20 GiB, 21474836480 bytes, 41943040 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0xc48cecd2

Device     Boot    Start      End  Sectors  Size Id Type
/dev/sda1  *        2048 39845887 39843840   19G 83 Linux
/dev/sda2       39847934 41940991  2093058 1022M  5 Extended
/dev/sda5       39847936 41940991  2093056 1022M 82 Linux swap / Solaris


Disk /dev/sdb: 2 GiB, 2147483648 bytes, 4194304 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x7251b8e3

Device     Boot   Start     End Sectors  Size Id Type
/dev/sdb1          2048 1026047 1024000  500M 83 Linux
/dev/sdb2       1026048 2050047 1024000  500M 83 Linux
/dev/sdb3       2050048 3074047 1024000  500M 83 Linux
/dev/sdb4       3074048 4098047 1024000  500M  5 Extended
/dev/sdb5       3076096 3895295  819200  400M 83 Linux
/dev/sdb6       3897344 4081663  184320   90M 83 Linux



root@ubuntu:/dev# fdisk sdb (进入第二块硬盘)

Welcome to fdisk (util-linux 2.27.1).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.


Command (m for help): t
Partition number (1-6, default 6): 1
Partition type (type L to list all types): L

(分区这种文件操作系统有很多种,这里是156种,FAT32和NTFS是windows的分区,LINUX SWAP,LINUX extended是linux的分区,)
 0  Empty           24  NEC DOS         81  Minix / old Lin bf  Solaris
 1  FAT12           27  Hidden NTFS Win 82  Linux swap / So c1  DRDOS/sec (FAT-
 2  XENIX root      39  Plan 9          83  Linux           c4  DRDOS/sec (FAT-
 3  XENIX usr       3c  PartitionMagic  84  OS/2 hidden or  c6  DRDOS/sec (FAT-
 4  FAT16 <32M      40  Venix 80286     85  Linux extended  c7  Syrinx
 5  Extended        41  PPC PReP Boot   86  NTFS volume set da  Non-FS data
 6  FAT16           42  SFS             87  NTFS volume set db  CP/M / CTOS / .
 7  HPFS/NTFS/exFAT 4d  QNX4.x          88  Linux plaintext de  Dell Utility
 8  AIX             4e  QNX4.x 2nd part 8e  Linux LVM       df  BootIt
 9  AIX bootable    4f  QNX4.x 3rd part 93  Amoeba          e1  DOS access
 a  OS/2 Boot Manag 50  OnTrack DM      94  Amoeba BBT      e3  DOS R/O
 b  W95 FAT32       51  OnTrack DM6 Aux 9f  BSD/OS          e4  SpeedStor
 c  W95 FAT32 (LBA) 52  CP/M            a0  IBM Thinkpad hi ea  Rufus alignment
 e  W95 FAT16 (LBA) 53  OnTrack DM6 Aux a5  FreeBSD         eb  BeOS fs
 f  W95 Ext‘d (LBA) 54  OnTrackDM6      a6  OpenBSD         ee  GPT
10  OPUS            55  EZ-Drive        a7  NeXTSTEP        ef  EFI (FAT-12/16/
11  Hidden FAT12    56  Golden Bow      a8  Darwin UFS      f0  Linux/PA-RISC b
12  Compaq diagnost 5c  Priam Edisk     a9  NetBSD          f1  SpeedStor
14  Hidden FAT16 <3 61  SpeedStor       ab  Darwin boot     f4  SpeedStor
16  Hidden FAT16    63  GNU HURD or Sys af  HFS / HFS+      f2  DOS secondary
17  Hidden HPFS/NTF 64  Novell Netware  b7  BSDI fs         fb  VMware VMFS
18  AST SmartSleep  65  Novell Netware  b8  BSDI swap       fc  VMware VMKCORE
1b  Hidden W95 FAT3 70  DiskSecure Mult bb  Boot Wizard hid fd  Linux raid auto
1c  Hidden W95 FAT3 75  PC/IX           bc  Acronis FAT32 L fe  LANstep
1e  Hidden W95 FAT1 80  Old Minix       be  Solaris boot    ff  BBT



linux4 分区

标签:扇区   ash   eba   arw   blog   public   space   save   rim

原文:https://www.cnblogs.com/yaowen/p/8447920.html

(0)
(0)

举报
评论 一句话评论(0
0条
登录后才能评论!
© 2014 bubuko.com 版权所有 鲁ICP备09046678号-4
打开技术之扣,分享程序人生!


鲁公网安备 37021202000002号
