1.当遇到需要传输大量数据时,怎么样传输数据?
2.压缩数据有哪几种常见的方式?
问题1解答:通过压缩来传输数据
问题2解答:
(1)WCF自带的压缩方式
(2)自定义WCF binding进行压缩
(3)将对象序列化为JSON格式
今天来探讨一下WCF自带的压缩方式Gzip和Json序列化
我的其他WCF文章:
先上图:

参考资料:https://msdn.microsoft.com/en-us/library/system.servicemodel.channels.compressionformat.aspx
总共有三种方式:
     Deflate:The Deflate compression format.
     GZip:The GZip compression format.
     None: The none compression format.
注意,.NET framwork版本需要在4.0以上(包含4.0)。
(1)Server端和Client的配置
<binarymessageencoding compressionformat="GZip">
|
 1
2
3
4
5
6
7
8
9
10
11
12
 |
<bindings>  <custombinding>    <binding name="BindingForTcp" receivetimeout="00:05:00" sendtimeout="00:05:00">        <binarymessageencoding compressionformat="GZip">          <readerquotas maxstringcontentlength="2147483647" maxarraylength="2147483647" maxbytesperread="2147483647"></readerquotas>        </binarymessageencoding>        <httptransport maxreceivedmessagesize="2147483647">                   </httptransport>      </binding>    </custombinding></bindings> |
|
 1
2
3
4
5
 |
<services>      <service name="Jackson0714.WcfServices.Service.GetPersonDetailService" behaviorconfiguration="metadataBehavior">        <endpoint address="http://127.0.0.1:3725/GetPersonDetailService" binding="customBinding" bindingconfiguration="BindingForTcp" contract="Jackson0714.WcfServices.Service.Interface.IGetPersonDetailService"></endpoint>      </service></services> |
注意:Client和Server端必须使用相同的binding。
(2)Server端代码
打开端口,host服务
using System;
using System.ServiceModel;
using Jackson0714.WcfServices.Service;
namespace Jackson0714.WcfServices.Hosting
{
    class Program
    {
        static void Main(string[] args)
        {
            ServiceHost getPersonDetailServiceHost = null;
            try
            {
                getPersonDetailServiceHost = new ServiceHost(typeof(GetPersonDetailService));
                getPersonDetailServiceHost.Open();
                Console.WriteLine("GetPersonDetailService Started!");
                Console.ReadKey();
            }
            catch(Exception ex)
            {
                Console.WriteLine(ex.StackTrace);
            }
            finally
            {
                getPersonDetailServiceHost.Close();
            }
        }
    }
}
(3)Client端代码
调用方法GetPersonDetail
using System;
using System.ServiceModel;
using Jackson0714.WcfServices.Service.Interface;
namespace Jackson0714.WcfServices.Client
{
    class Program
    {
        static void Main(string[] args)
        {
            using (ChannelFactory<IGetPersonDetailService> channelFactory = new ChannelFactory<IGetPersonDetailService>("GetPersonDetailService"))
            {
                IGetPersonDetailService proxy = channelFactory.CreateChannel();
                Console.WriteLine("Person Decription:{0}", proxy.GetPersonDetail("123").Description);
            }
            Console.Read();
        }
    }
}
(4)接口
GetPersonDetail
using Jackson0714.WcfServices.Common;
using System.ServiceModel;
namespace Jackson0714.WcfServices.Service.Interface
{
    [ServiceContract(Name = "GetPersonDetailService", Namespace = "http://www.Jackson0714.com/")]
    public interface IGetPersonDetailService
    {
        [OperationContract]
        Person GetPersonDetail(string name);
    }
}
(5)实现接口方法
GetPersonDetail
using Jackson0714.WcfServices.Common;
using Jackson0714.WcfServices.Service.Interface;
namespace Jackson0714.WcfServices.Service
{
    public class GetPersonDetailService : IGetPersonDetailService
    {
        public Person GetPersonDetail(string name)
        {
            Person person = DataAccess.MockQueryPersonDetail(name);
            return person;
        }
    }
}
(6)Mock数据库访问层
MockQueryPersonDetail
模拟Person类的Description的数据量大小为100000字节
using Jackson0714.WcfServices.Common;
using System.Text;
namespace Jackson0714.WcfServices.Service
{
    class DataAccess
    {
        public static Person MockQueryPersonDetail(string name)
        {
            Person person = new Person();
            person.Name = "Jackson0714";
            string testString = "0123456789";
            StringBuilder builder = new StringBuilder();
            for(long i = 0;i<10000;i++)
            {
                builder.Append(testString);
            }
            person.Description = builder.ToString();
            return person;
        }
    }
}
(6)Person类
Person
namespace Jackson0714.WcfServices.Common
{
    public class Person
    {
        private string name;
        public string Name
        {
            get
            {
                return this.name;
            }
            set
            {
                name = value;
            }
        }
        private string description;
        public string Description
        {
            get
            {
                return this.description;
            }
            set
            {
                description = value;
            }
        }
    }
}

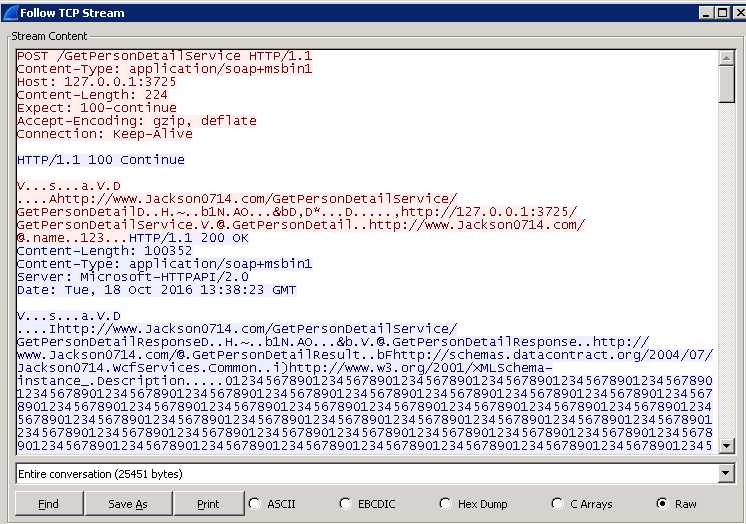

通过WireShare抓包,可以得知Response的数据大小为Content-Length: 100352 bytes。

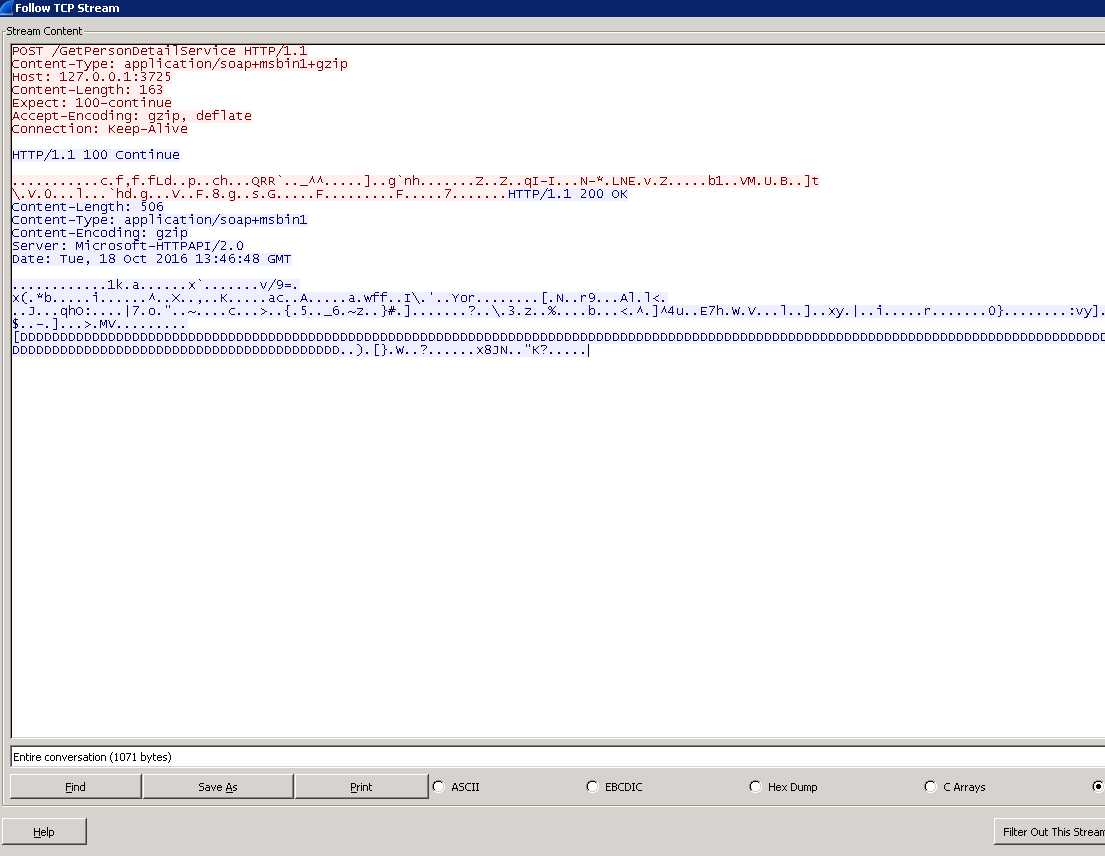

经过压缩后,Response的数据大小为Content-Length: 506 bytes。,远小于未压缩的数据量。

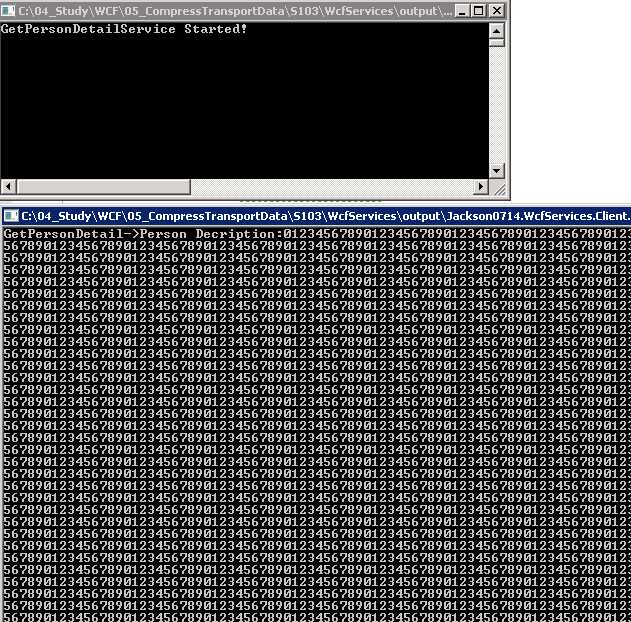

1.3 打印窗口

Server端首先将数据序列化为Json格式的数据,String类型,Client端接收到Json格式的数据后,反序列化为Json格式的数据。
需要引入Newtonsoft.Json.dll
下载地址:http://www.newtonsoft.com/json
(1)定义接口
GetPersonDetailWithJson
using Jackson0714.WcfServices.Common;
using System.ServiceModel;
namespace Jackson0714.WcfServices.Service.Interface
{
    [ServiceContract(Name = "GetPersonDetailService", Namespace = "http://www.Jackson0714.com/")]
    public interface IGetPersonDetailService
    {
        [OperationContract]
        string GetPersonDetailWithJson(string name);
    }
}
(2)实现接口
GetPersonDetailWithJson
使用JsonConvert.SerializeObject(person)将person序列化为Json格式的数据。
public string GetPersonDetailWithJson(string name)
{
     Person person = DataAccess.MockQueryPersonDetail(name);
     return JsonConvert.SerializeObject(person);
}
(3)客户端调用GetPersonDetailWithJson
使用JsonConvert.DeserializeObject<Person>(proxy.GetPersonDetailWithJson("123"))方法反序列化Json格式的数据,将Json格式的数据转换为Person对象。
using (ChannelFactory channelFactory = new ChannelFactory("GetPersonDetailService"))
{
      IGetPersonDetailService proxy = channelFactory.CreateChannel();
      Person person = JsonConvert.DeserializeObject(proxy.GetPersonDetailWithJson("123"));
      Console.WriteLine("GetPersonDetailWithJson->Person Decription:{0}", person.Description);
 }

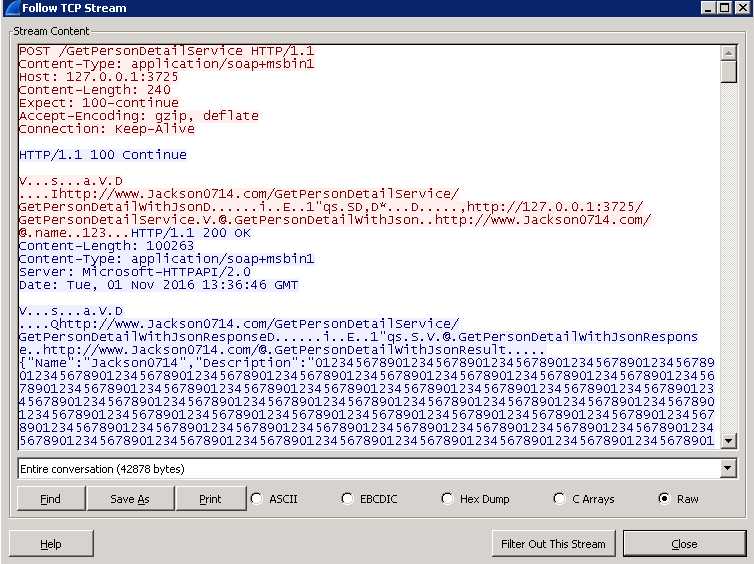

通过WireShare抓包,可以得知Response的数据大小为Content-Length: 100263bytes。比未经过序列化的数据减少了89 bytes的数据。
这里有个问题,为什么Json格式的数据比原WCF基于XML传输的数据小???
原因是WCF的传输的数据是将对象序列化为xml格式,需要用很多标签来记录各个字段的内容。而用JSON格式的数据,已经将对象转化为键值对形式的数据,不包含标签,所以数据量减少了。

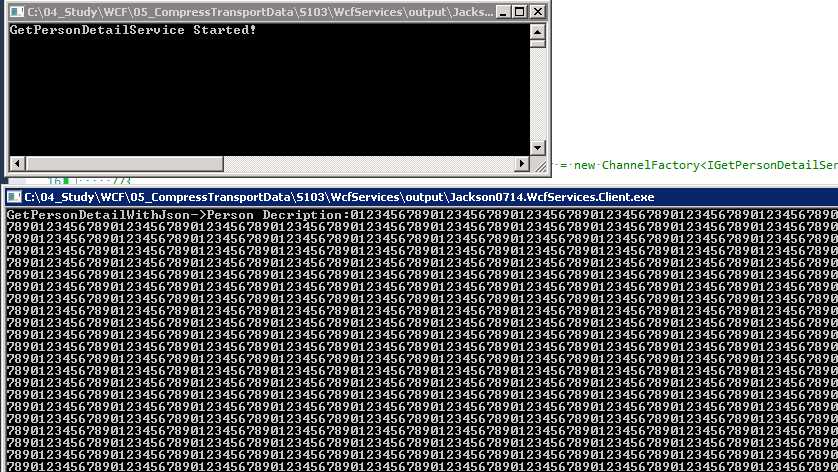

2.3 打印窗口

(1) 定义WCF压缩方式
| 1 | <binaryMessageEncoding compressionFormat="GZip"> |
(2) 将对象序列化为Json格式的数据
JsonConvert.SerializeObject(person);
(3) 将Json格式的数据反序列化为对象
Person person = JsonConvert.DeserializeObject<Person>(proxy.GetPersonDetailWithJson("123"));

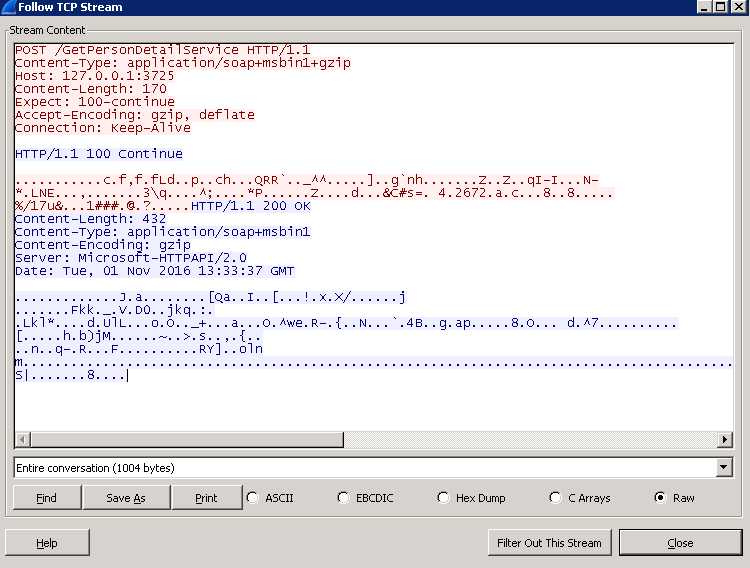

从下图可以看出经过Json格式化然后压缩的数据为1004 bytes,未用Json格式化的数据为1071 bytes,减少了67个bytes。

(1) 压缩或Json格式化需要消耗一定的资源,如果CPU和内存不足时,慎用压缩或Json格式化。
(2) 压缩或Json格式化需要消耗一定的时间,如果数据量很大,那么压缩或Json格式化的时间也很大,对于需要快速响应的系统,慎用压缩或Json格式化。
https://msdn.microsoft.com/en-us/library/system.servicemodel.channels.compressionformat.aspx
https://msdn.microsoft.com/en-us/library/ms751458(v=vs.110).aspx
