开发工具android stdio，组件Radio Button
1.新建空项目DDDD
2.将事先准备好的图标复制到对应的文件夹中（如图），这五个文件夹都要拷进去，图标文件http://pan.baidu.com/s/1slVnev7
3.在values/colors.xml中加入几种会用到的颜色资源
<?xml version="1.0" encoding="utf-8"?>
<resources>
<color name="colorPrimary">#3F51B5</color>
<color name="colorPrimaryDark">#303F9F</color>
<color name="colorAccent">#FF4081</color>
<color name="main_menu_color">#f6f7f9</color>
<color name="main_menu_color_normal">#6E7174</color>
<color name="main_menu_color_check">#4169E1</color>
<color name="divider_color">#E1E1E1</color>
</resources>
4.在values/styles.xml中为RadioButton编写统一样式
<resources>
<!-- Base application theme. -->
<style name="AppTheme" parent="Theme.AppCompat.Light.DarkActionBar">
<!-- Customize your theme here. -->
<item name="colorPrimary">@color/colorPrimary</item>
<item name="colorPrimaryDark">@color/colorPrimaryDark</item>
<item name="colorAccent">@color/colorAccent</item>
</style>
<style name="RadioButtonButtomTab">
<item name="android:layout_width">0dp</item>
<item name="android:layout_height">match_parent</item>
<item name="android:layout_weight">1</item>
<item name="android:button">@null</item>
<item name="android:gravity">center</item>
<item name="android:textColor">@drawable/top_menu</item>
<item name="android:paddingTop">6dp</item>
<item name="android:background">@color/main_menu_color</item>
</style>
</resources>
5.在res/drawable下新建几个RadioButton对应的xml文件，将图片导入
<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
<item android:drawable="@mipmap/friends_selected" android:state_checked="true"/>
<item android:drawable="@mipmap/friends"/>
</selector>
<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
<item android:drawable="@mipmap/location_selected" android:state_checked="true"/>
<item android:drawable="@mipmap/location"/>
</selector>
<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
<item android:drawable="@mipmap/step_selected" android:state_checked="true"/>
<item android:drawable="@mipmap/step"/>
</selector>
<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
<item android:drawable="@mipmap/weather_selected" android:state_checked="true"/>
<item android:drawable="@mipmap/weather"/>
</selector>
<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
<item android:color="@color/main_menu_color_check" android:state_checked="true"/>
<item android:color="@color/main_menu_color_normal"/>
</selector>
6. 编写activity_main.xml文件，并将之前写好的样式和图片资源导入RadioButton，界面部分就此完工，继续加功能的话，就要通过监听器实现活动间的跳转了。
<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:id="@+id/activity_main" android:layout_width="match_parent" android:layout_height="match_parent" tools:context="test.example.com.dddd.MainActivity"> <LinearLayout android:gravity="bottom" android:orientation="vertical" android:layout_width="match_parent" android:layout_height="match_parent"> <RadioGroup android:orientation="horizontal" android:layout_width="match_parent" android:layout_height="55dp"> <RadioButton style="@style/RadioButtonButtomTab" android:drawableTop="@drawable/main_menu_location" android:checked="true" android:text="定位" /> <RadioButton style="@style/RadioButtonButtomTab" android:drawableTop="@drawable/main_menu_weather" android:text="天气" /> <RadioButton style="@style/RadioButtonButtomTab" android:drawableTop="@drawable/main_menu_step" android:text="步数" /> <RadioButton android:text="好友" android:drawableTop="@drawable/main_menu_friends" style="@style/RadioButtonButtomTab"/> </RadioGroup> </LinearLayout> </RelativeLayout>

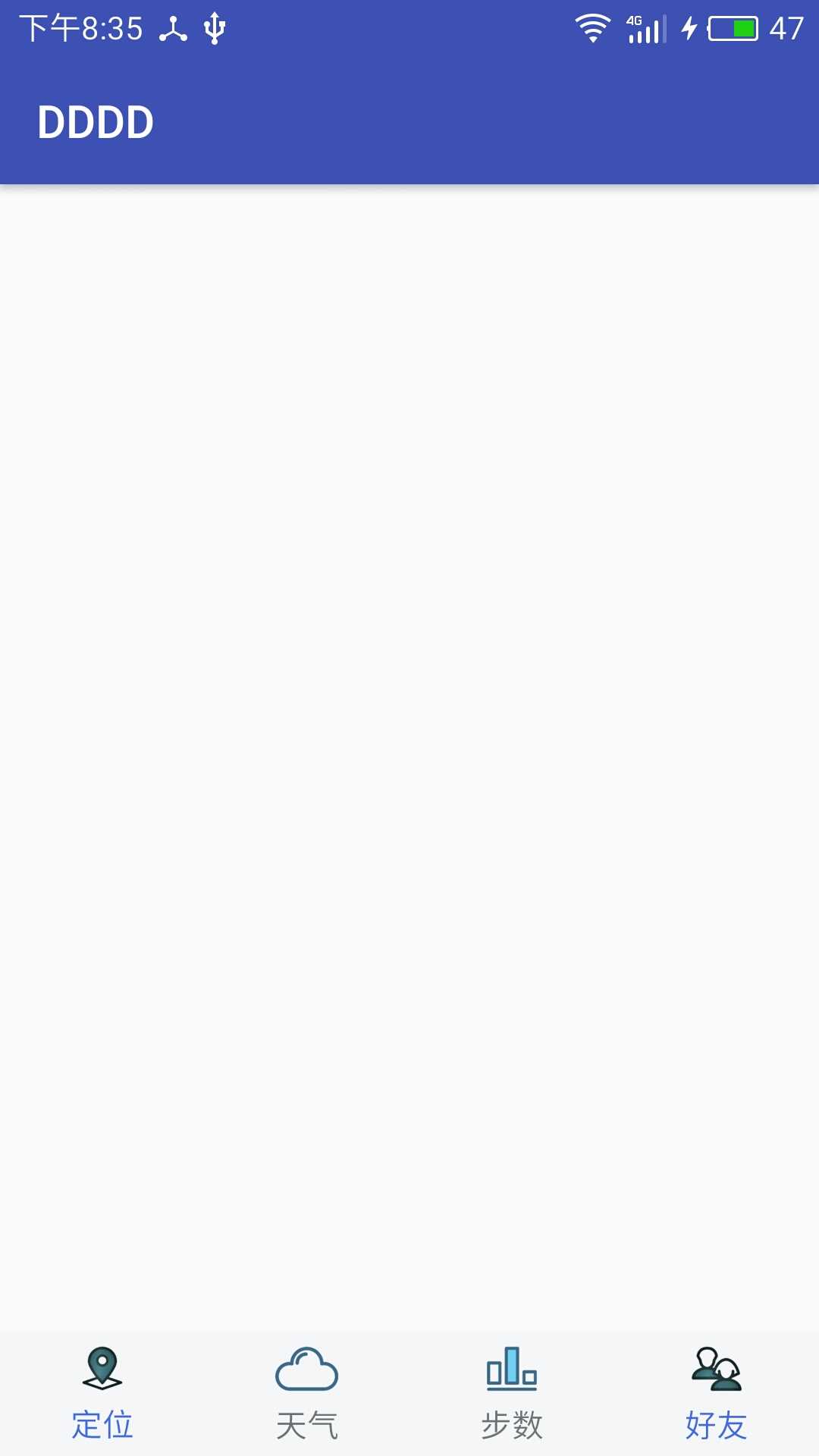

最终效果如图
