protel项目创建

File->New->Project->PCB Project//新建PCB项目

Save Project As...

Project->Add New to Project->Schematic//新建电路设计图纸

Save As

View->Workspaces Panels->System->Libraries//元件库窗口

Design->Add/Remove Library ...->Installed::Miscellaneous Devices.IntLib//添加元件库

Design->Add/Remove Library ...->Installed::Miscellaneous Connectors.IntLib

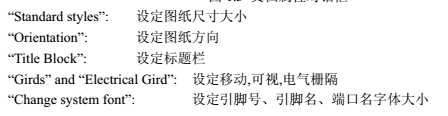

Design->Documents Options...->Sheet Options//电路设计图纸设置

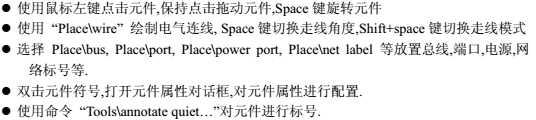

Place->Part//放置元件库元件

Project->Compile ->Document Schematic_filename.SCHDOC

Project->Compile PCB Project PCB_filename.PRJPCB

Reports->Bill of materials//生成BOM

BOM===Bill Of Materials//材料清单
