3. Matplotlib图像属性控制
3.1 色彩和样式（通过help(plt.plot)来查看符号对应含义）
plt.plot(listKOindex, listKO, ‘g--‘) # 绿色虚线
plt.plot(listKOindex, listKO, ‘rD‘) # 红色钻石
3.2 文字：为图、横轴和纵轴加标题
plt.title(‘Stock Statistics of Coca-Cola‘) # 图标题
plt.xlabel(‘Month‘) # 横轴标题
plt.ylabel(‘Average Close Price‘) # 纵轴标题

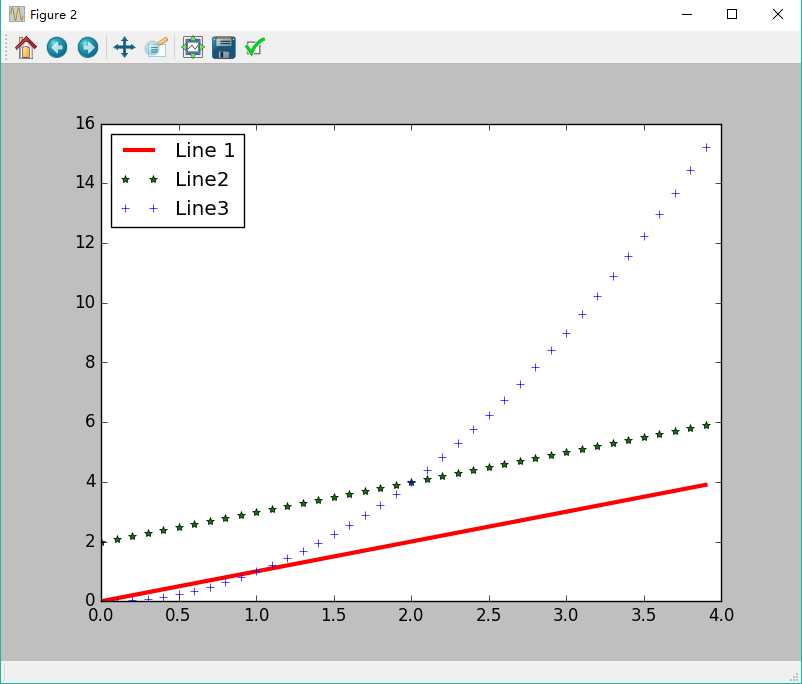

3.3 其他属性（figure(figsize=(8,6), dpi=50)）（pl.legend(loc=‘upper left‘)）
# -*- coding: utf-8 -*- """ Created on Tue Jan 24 13:07:01 2017 @author: Wayne """ import pylab as pl import numpy as np pl.figure(figsize=(8,6), dpi=100) # 创建一个8*6 点(point)的图，并设置分辨率为100 t = np.arange(0.,4.,0.1) pl.plot(t,t,color=‘red‘,linestyle=‘-‘,linewidth=3,label=‘Line 1‘) pl.plot(t,t+2,color=‘green‘,linestyle=‘‘,marker=‘*‘,linewidth=3,label=‘Line2‘) pl.plot(t,t**2,color=‘blue‘,linestyle=‘‘,marker=‘+‘,linewidth=3,label=‘Line3‘) pl.legend(loc=‘upper left‘) # 图例放在左上角

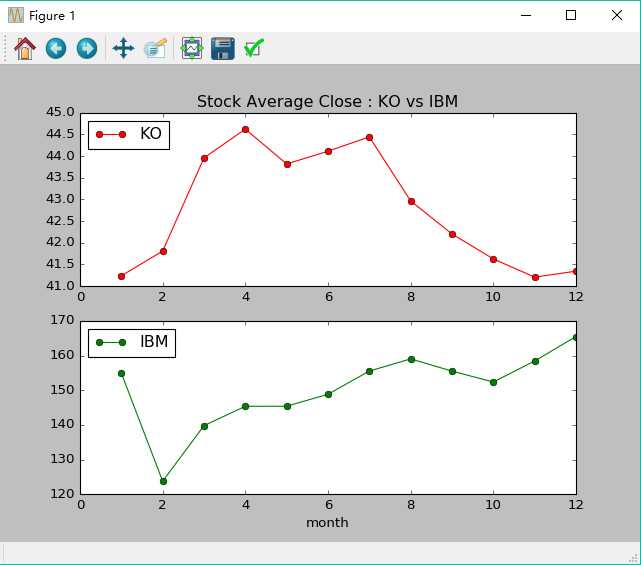

3.4 子图 subplot：将KO公司和IBM公司近一年来股票收盘价的月平均价绘制在一张图中
# -*- coding: utf-8 -*- """ Created on Tue Jan 24 13:07:01 2017 @author: Wayne """ from matplotlib.finance import quotes_historical_yahoo_ochl from datetime import date, datetime import time import pandas as pd import matplotlib.pylab as pl today = date.today() start = (today.year-1, today.month, today.day) quotes1 = quotes_historical_yahoo_ochl(‘KO‘, start, today) quotes2 = quotes_historical_yahoo_ochl(‘IBM‘, start, today) fields = [‘date‘,‘open‘,‘close‘,‘high‘,‘low‘,‘volume‘] list1 = [] list2 = [] for i in range(0,len(quotes1)): x = date.fromordinal(int(quotes1[i][0])) y = datetime.strftime(x,‘%Y-%m-%d‘) list1.append(y) for i in range(0,len(quotes2)): x = date.fromordinal(int(quotes2[i][0])) y = datetime.strftime(x,‘%Y-%m-%d‘) list2.append(y) quoteskodf1 = pd.DataFrame(quotes1, index = list1, columns = fields) quoteskodf1 = quoteskodf1.drop([‘date‘], axis = 1) quoteskodf2 = pd.DataFrame(quotes2, index = list2, columns = fields) quoteskodf2 = quoteskodf2.drop([‘date‘], axis = 1) listtemp1 = [] listtemp2 = [] for i in range(0,len(quoteskodf1)): temp = time.strptime(quoteskodf1.index[i],"%Y-%m-%d") # 提取月份 listtemp1.append(temp.tm_mon) for i in range(0,len(quoteskodf2)): temp = time.strptime(quoteskodf2.index[i],"%Y-%m-%d") # 提取月份 listtemp2.append(temp.tm_mon) tempdf1 = quoteskodf1.copy() tempdf1[‘month‘] = listtemp1 closeMeans1 = tempdf1.groupby(‘month‘).mean().close list11 = [] for i in range(1,13): list11.append(closeMeans1[i]) list1Index = closeMeans1.index tempdf2 = quoteskodf2.copy() tempdf2[‘month‘] = listtemp2 closeMeans2 = tempdf2.groupby(‘month‘).mean().close list22 = [] for i in range(1,13): list22.append(closeMeans2[i]) list2Index = closeMeans2.index p1 = pl.subplot(211) p2 = pl.subplot(212) p1.set_title(‘Stock Average Close : KO vs IBM‘) p1.plot(list1Index,list11,color=‘r‘,marker=‘o‘,label=‘KO‘) p1.legend(loc=‘upper left‘) p2.plot(list2Index,list22,color=‘g‘,marker=‘o‘,label=‘IBM‘) p2.set_xlabel(‘month‘) p2.legend(loc=‘upper left‘) pl.show()

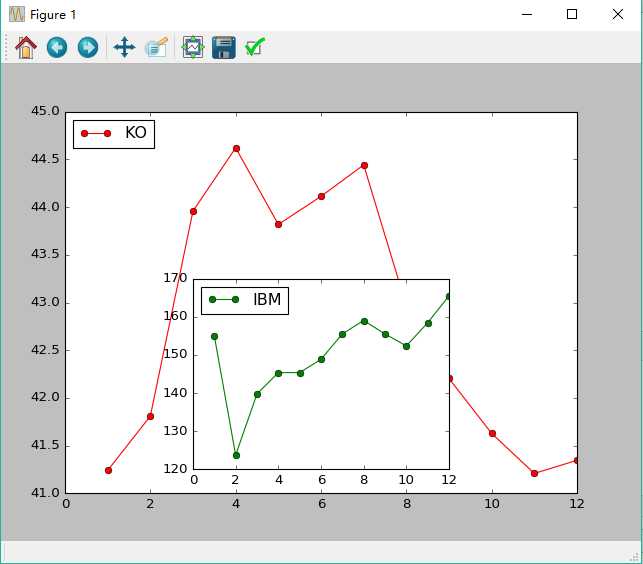

3.5 子图 axes：p1 = pl.axes([.1,.1,0.8,0.8]) # axes([left,bottom,width,height])（参数范围为(0,1)）
参考：http://www.xuebuyuan.com/491377.html
p1 = pl.axes([.1,.1,0.8,0.8]) # axes([left,bottom,width,height]) p2 = pl.axes([.3,.15,0.4,0.4]) p1.plot(list1Index,list11,color=‘r‘,marker=‘o‘,label=‘KO‘) p1.legend(loc=‘upper left‘) p2.plot(list2Index,list22,color=‘g‘,marker=‘o‘,label=‘IBM‘) p2.legend(loc=‘upper left‘) pl.show()
4. Pandas作图

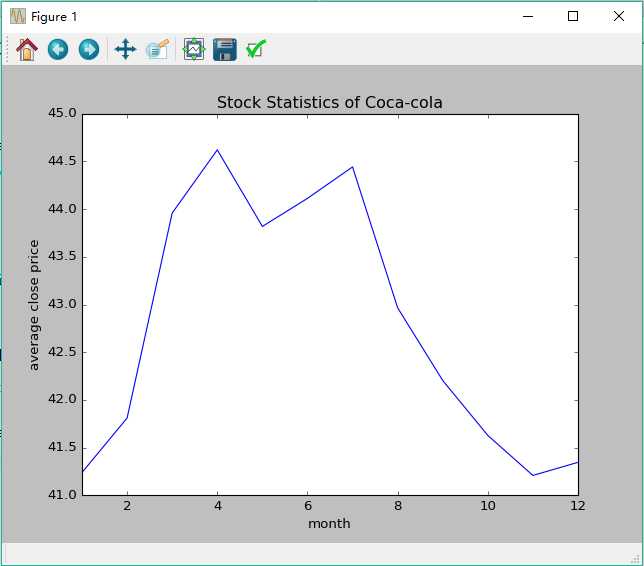

4.1 直接对Series进行绘图：closeMeansKO.plot() # KO公司12个月的月平均收盘价折线图
from matplotlib.finance import quotes_historical_yahoo_ochl from datetime import date, datetime import time import pandas as pd import matplotlib.pyplot as plt today = date.today() start = (today.year-1, today.month, today.day) quotes = quotes_historical_yahoo_ochl(‘KO‘, start, today) fields = [‘date‘,‘open‘,‘close‘,‘high‘,‘low‘,‘volume‘] list1 = [] for i in range(0,len(quotes)): x = date.fromordinal(int(quotes[i][0])) y = datetime.strftime(x,‘%Y-%m-%d‘) list1.append(y) #print(list1) quoteskodf = pd.DataFrame(quotes, index = list1, columns = fields) quoteskodf = quoteskodf.drop([‘date‘], axis = 1) #print(quotesdf) listtemp = [] for i in range(0,len(quoteskodf)): temp = time.strptime(quoteskodf.index[i],"%Y-%m-%d") # 提取月份 listtemp.append(temp.tm_mon) #print(listtemp) # “print listtemp” in Python 2.x tempkodf = quoteskodf.copy() tempkodf[‘month‘] = listtemp closeMeansKO = tempkodf.groupby(‘month‘).mean().close closeMeansKO.plot() plt.title(‘Stock Statistics of Coca-cola‘) plt.xlabel(‘month‘) plt.ylabel(‘average close price‘)

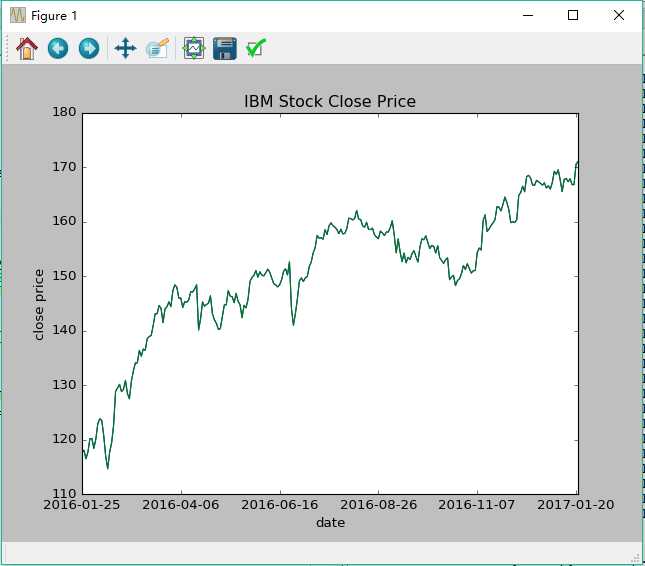

4.2 直接对DataFrame进行绘图：quotesdf.close.plot() # IBM公司近一年收盘价折线图
# -*- coding: utf-8 -*- """ Created on Tue Jan 24 13:07:01 2017 @author: Wayne """ from matplotlib.finance import quotes_historical_yahoo_ochl from datetime import date, datetime import pandas as pd import matplotlib.pyplot as plt today = date.today() start = (today.year-1, today.month, today.day) quotes = quotes_historical_yahoo_ochl(‘IBM‘, start, today) fields = [‘date‘,‘open‘,‘close‘,‘high‘,‘low‘,‘volume‘] list1 = [] for i in range(0,len(quotes)): x = date.fromordinal(int(quotes[i][0])) y = datetime.strftime(x,‘%Y-%m-%d‘) list1.append(y) #print(list1) quotesdf = pd.DataFrame(quotes, index = list1, columns = fields) quotesdf = quotesdf.drop([‘date‘], axis = 1) plt.title(‘IBM Stock Close Price‘) plt.xlabel(‘date‘) plt.ylabel(‘close price‘) quotesdf.close.plot()
原文：http://www.cnblogs.com/wnzhong/p/6347489.html
