Dell PowerEdge RAID Controller (PERC)




技术分享

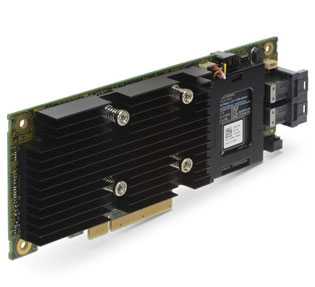

The Dell? PERC (PowerEdge? RAID Controller) family of enterprise-class controllers is designed for enhanced performance, increased reliability and fault tolerance, and simplified management — providing a powerful, easy-to-manage way to create a robust infrastructure and help maximize server uptime.





技术分享

 As Storage demands expand and processing loads grow, it becomes increasingly more difficult for administrators to achieve maximum performance from their applications. The newest line of Dell PowerEdge RAID Controller (PERC) cards offer unmatched I/O performance for database applications, streaming digital media environments and storage intensive applications.
Key Features for the Series-9, 12Gb/s SAS PowerEdge RAID Controller (PERC):
  • PCI-Express Gen3.0 support & 12Gb/s SAS (SAS 3.0) host interface
  • 2GB NV Flash Backed Cache on the H730P & H830
  • 1GB NV Flash Backed Cache on the H730
  • Significantly increased IOPs performance & throughput performance capability
  • Capable of RAID as well as Non-RAID (JBOD Mode) operations

*See Product datasheets for full details


Dell PERC Products

Model

Interface Support

PCI Support

SAS Connectors

Cache Memory Size

Write Back Cache

RAID Levels

Max Drive Support

RAID Support

PowerEdge RAID Controller (PERC) Series 9

PERC H830 Adapter

12Gb/s SAS 6Gb/s SATA

PCI-Express 3.0

2x4 External

2GB NV

Flash Backed Cache

0,1,5,6,10,50,60

255

Hardware RAID
PERC H730P Adapter 12Gb/s SAS 6Gb/s SATA PCI-Express 3.0 2x4 Internal 2GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware RAID
PERC H730P Mini Mono 12Gb/s SAS 6Gb/s SATA PCI-Express 3.0  2x4 Internal 2GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware RAID
PERC H730P Mini Blade 12Gb/s SAS 6Gb/s SATA PCI-Express 3.0 2x4 Internal 2GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware RAID
PERC H730 Adapter 12Gb/s SAS 6Gb/s SATA PCI-Express 3.0 2x4 Internal 1GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware RAID
PERC H730 Mini Mono 12Gb/s SAS 6Gb/s SATA PCI-Express 3.0 2x4 Internal 1GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware RAID
PERC H730 Mini Blade 12Gb/s SAS 6Gb/s SATA PCI-Express 3.0 2x4 Internal 1GB NV  Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware RAID
PERC H330 Adapter 12Gb/s SAS 6Gb/s SATA PCI-Express 3.0 2x4 Internal No Cache No Cache  0,1,5,10,50
*See Help Me Choose for R5/R50
performance with no controller cache		 16 RAID, 32 Non-RAID Hardware RAID
PERC H330 Mini Mono 12Gb/s SAS 6Gb/s SATA PCI-Express 3.0 2x4 Internal No Cache No Cache 0,1,5,10,50
*See Help Me Choose for R5/R50
performance with no controller cache		 16 RAID, 32 Non-RAID Hardware RAID
PERC H330 Mini Blade 12Gb/s SAS 6Gb/s SATA PCI-Express 3.0 2x4 Internal No Cache No Cache 0,1,5,10,50
*See Help Me Choose for R5/R50
performance with no controller cache		 8 Hardware RAID
S130 Software RAID 6Gb/s SATA N/A N/A No Cache No Cache 0,1,5,10 8 Software RAID - Windows Only
12Gbps SAS Ext. HBA 12Gb/s SAS PCI-Express 3.0 2x4 External No Cache No Cache No RAID Pass-Thru Only 255 Software RAID - Windows Only


PowerEdge RAID Controller (PERC) Series 8 Family

PERC H810 Adapter

6Gb/s SAS

PCI-Express 2.0

2x4 External

1GB NV

Flash Backed Cache

0,1,5,6,10,50,60

192

Hardware RAID

PERC H710P Adapter

6Gb/s SAS

PCI-Express 2.0

2x4 Internal

1GB NV

Flash Backed Cache

0,1,5,6,10,50,60

32

Hardware RAID

PERC H710P Mini Mono

6Gb/s SAS

PCI-Express 2.0

2x4 Internal

1GB NV

Flash Backed Cache

0,1,5,6,10,50,60

32

Hardware RAID

PERC H710P Mini Blade

6Gb/s SAS

PCI-Express 2.0

2x4 Internal

1GB NV

Flash Backed Cache

0,1,5,6,10,50,60

4

Hardware RAID

PERC H710 Adapter

6Gb/s SAS

PCI-Express 2.0

2x4 Internal

512MB NV

Flash Backed Cache

0,1,5,6,10,50,60

32

Hardware RAID

PERC H710 Mini Mono

6Gb/s SAS

PCI-Express 2.0

2x4 Internal

512MB NV

Flash Backed Cache

0,1,5,6,10,50,60

32

Hardware RAID

PERC H710 Mini Blade

6Gb/s SAS

PCI-Express 2.0

1x4 Internal

512MB NV

Flash Backed Cache

0,1,5,6,10,50,60

4

Hardware RAID

PERC H310 Adapter

6Gb/s SAS

PCI-Express 2.0

2x4 Internal

-

-

0,1,5,10,50

16, Non-RAID 32

Hardware RAID

PERC H310 Mini Mono

6Gb/s SAS

PCI-Express 2.0

2x4 Internal

-

-

0,1,5,10,50

16, Non-RAID 32

Hardware RAID

PERC H310 Mini Blade

6Gb/s SAS

PCI-Express 2.0

1x4 Internal

-

-

0,1,5,10,50

4

Hardware RAID

S110 Software RAID

3Gb/s SATA

PCI-Express 2.0



-

-

0,1,5,10

4

Software RAID - Windows Only

12Gbps SAS Ext. HBA

3Gb/s SAS

PCI-Express 2.0

1x4 Internal

-

-

0,1,5,10,50

4

Hardware RAID

PowerEdge RAID Controller (PERC) Series 6 & 7 Family

PERC H800 Adapter

6Gb/s SAS

PCI-Express 2.0

2x4 External

512MB
512MB NV
1GB NV

Yes (TBBU)

0,1,5,6,10,50,60

192

Hardware RAID

PERC H700 Integrated/ Adapter

6Gb/s SAS

PCI-Express 2.0

2x4 Internal

512MB
512MB NV
1GB NV

Yes (BBU)

0,1,5,6,10,50,60

16

Hardware RAID

PERC H700 Modular

6Gb/s SAS

PCI-Express 2.0

1x4 Internal

512MB

Yes (BBU)

0,1,5,6,10

4

Hardware RAID

PERC H200 Integrated/ Adapter

6Gb/s SAS

PCI-Express 2.0

2x4 Internal

-

-

0,1,10
Supports non-RAID

16

Hardware RAID

PERC H200 Modular

6Gb/s SAS

PCI-Express 2.0

1x4 Internal

-

-

0,1,10
Supports non-RAID

4

Hardware RAID

6Gbps SAS HBA

6Gb/s SAS

PCI-Express 2.0

2x4 External

-

-

-

-

HBA Hardware

PERC 6/E Adapter

3Gb/s SAS

PCI-Express 1.0

2x4 External

512MB
256 MB

Yes (TBBU)

0,1,5,6,10,50,60

144

Hardware RAID

PERC 6/I Integrated/ Adapter

3Gb/s SAS

PCI-Express 1.0

2x4 Internal

256MB

Yes (BBU)

0,1,5,6,10,50,60

16

Hardware RAID

PERC 6/I Modular

3Gb/s SAS

PCI-Express 1.0

1x4 Internal

256MB

Yes (BBU)

0,1,5,6,10

4

Hardware RAID

CERC 6/I Modular

3Gb/s SAS

PCI-Express 1.0

1x4 Internal

128MB

-

0,1,5,6,10

4

Hardware RAID

SAS 6/iR Integrated/ Adapter

3Gb/s SAS

PCI-Express 1.0

2x4 Internal

-

-

0,1

8

Hardware RAID

SAS 6/iR Modular

3Gb/s SAS

PCI-Express 1.0

1x4 Internal

-

-

0,1

4

Hardware RAID

PERC S300 Windows only OS

3Gb/s SAS

PCI-Express 1.0

2x4 Internal

-

-

0,1,10,5

8

Software RAID on HBA

PERC S100 Windows only OS

3Gb/s SATA

-

4 cabled SATA

-

-

0,1,10,5

4

Software RAID on SATA Chipset
